2010 Citroen JUMPY MULTISPACE Owner's Manual

8
2a
2b
2a
2b
8
5
Exterior
FAMILIARISATION
1
17 136

Key
: chapter identification
: page identification
21-22
Key - Remote control
Complete locking of the vehicle, cab
and rear doors.
Complete unlocking of the vehicle,
cab and rear doors.
Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.
Usable dimensions
Door open warning light
If this comes on, a door has not been
closed correctly.

3b3a
2
7
7
2
3a3b
7
Exterior
6
86
79

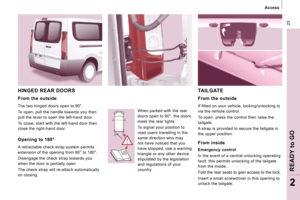

Hinged rear doors
This control permits opening to
approximately 180°.
Parking assistance
Rear suspension
Two functions:
- Automatic correction.
- Manual correction.
117
Repairing a wheel
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
119
Changing a wheel
23

6
7
6
6
7
Exterior
FAMILIARISATION
1
Opening the bonnet 107
Diesel engines Petrol engine
108
134
Towing eye 106
Partially open the bonnet, lift the control and
raise the bonnet.
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Lift the cover at the foot of the left-hand
seat and pull the control upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. Take care when working under the bonnet.
Refer to the "Levels" section of chapter 6 for adv
ice on use of the fluids.

Interior
8
INSTRUMENTS AND CONTROLS

1. Lights and direction indicators stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip computer
controls.

4. Gear lever.

5. Ignition.

6. Audio equipment controls.

7. Driver's airbag, horn.

8. Steering wheel height and depth
adjustment.

9. Headlamp beam adjustment.

10. Cruise control, speed limiter switch.

11. 12 volt accessories socket
(120 W max) of the lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,
passenger airbag disarming switch.

9
Interior
FAMILIARISATION
1
CENTRE CONSOLE AND OVERHEAD STORAGE UNIT

1. Location of the controls:
- locking of the electric child lock,
- central locking/unlocking.

2. Heating and/or air conditioning
controls.

3. Location of the ticket/card storage or
controls:
- deactivation of the ESP,
- disarming of the interior protection alarm, alarm diode,
- deactivation of the parking assistance.

4. CD changer or storage compartment.

5. Audio equipment or storage
compartment.

6. Central adjustable vents.

7. Hazard warning lights button.

8. Display or storage compartment.

9. Courtesy light.

10. Passenger airbag disarmed warning
light.

11. Location of the ticket/card storage,
rear ventilation deactivation switch,
heated seat controls.
ADJUSTING THE TIME - a centre console with display: refer to the "Adjusting the date and time"
section of chapter 9,
- a centre console without display: refer to the "Instruments and controls"
section of chapter 2.
Depending on the configuration of your
vehicle, you have either:

3
Interior
10

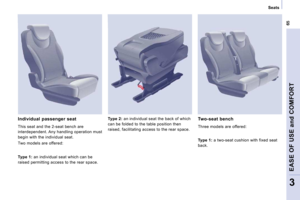

Driver's seat
SIT COMFORTABLY

1. Forwards-backwards adjustment.

2. Angle.

3. Height.

4. Lumbar.

5. Head restraint height.
60

2
4
3
3
11
Interior
FAMILIARISATION
1

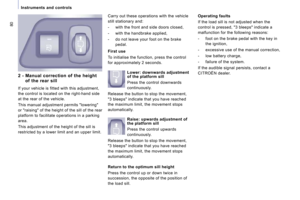

Steering wheel Electric windows

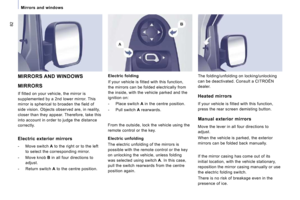

Mirrors
36
Seat belts 89 84
82
Adjust the height and depth of the steering
wheel.
Manual adjustments.
Electric adjustments, electric folding/
unfolding.
Height adjustment.
Fastening.

3
3
7
Interior
12
SEE CLEARLY
37
Lights off.
Side lights.
Main beam headlamps (blue).
Dipped headlamps (green). Wipers stalk

2 fast.

1 normal.

I intermittent.

0 off.

 single wipe.

AUTO , press the stalk down.
AUTO, automatic switching
on of the lights.
Lights stalk
40 Changing bulbs
124
In bad weather or in winter, check that the
lights are not covered with mud or snow.
