2010 CHRYSLER 300 ECU

WARNING! (Continued)
•Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
•Block the wheel diagonally opposite the wheel to
be raised.
•Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.(Continued)
WARNING! (Continued)
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
•Turn on the Hazard Warning flasher.
1. Remove the spare tire, jack, and lug wrench.
Jack Warning Label
6
WHAT TO DO IN EMERGENCIES 405

WARNING!
•Use only manufacturer’s recommended brake
fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information. Using the wrong type of brake fluid
can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also labeled on the origi-
nal factory installed hydraulic master cylinder
reservoir.(Continued)
WARNING! (Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that
has been in a tightly closed container. Keep the
master cylinder reservoir cap secured at all times.
Brake fluid in a open container absorbs moisture
from the air resulting in a lower boiling point.
This may cause it to boil unexpectedly during hard
or prolonged braking, resulting in sudden brake
failure. This could result in a accident.
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.(Continued)
7
MAINTAINING YOUR VEHICLE 451

Cavity Car-tridge
FuseMini-
Fuse
Description
5 30 Amp Pink— Heated Seats – If
Equipped
6 — 20 Amp YellowFuel Pump
7 — 15 Amp BlueRear Heated Seats – If
Equipped
8 — 15 Amp BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp YellowPower Outlet
10———
11 * ———
12 * ———Cavity Car-
tridge
FuseMini-
Fuse
Description
13 * ———
14 — 10 Amp RedAC Heater Control/
Cluster/Security Mod-
ule – If Equipped
15 — 20 Amp YellowTrailer Tow Brake Mod-
ule – If Equipped
16———
17 — 20 Amp YellowCluster
18 — 20 Amp YellowSelectable Power Outlet
19 — 10 Amp RedStop Lights
20———
21———
7
MAINTAINING YOUR VEHICLE 465

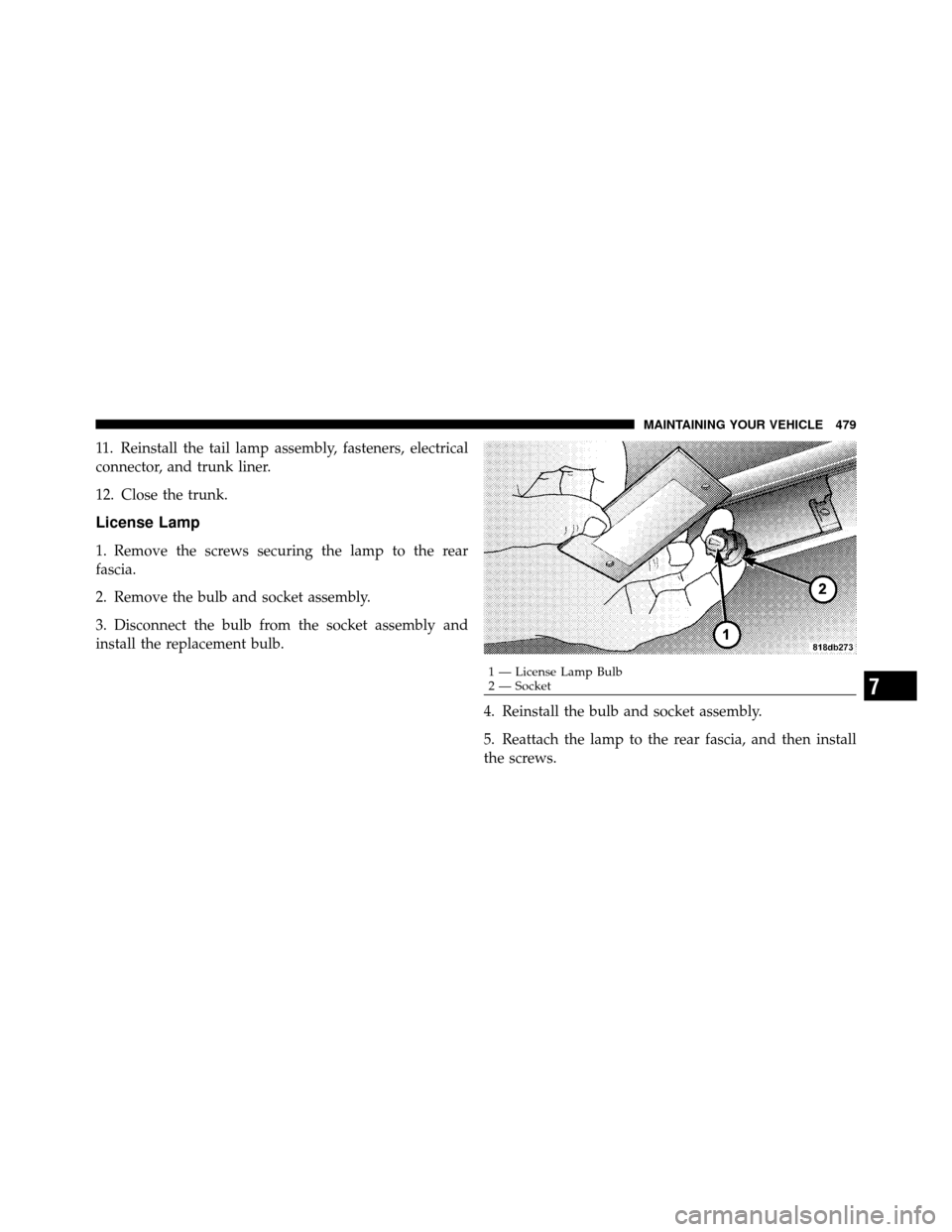

11. Reinstall the tail lamp assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.
License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
7
MAINTAINING YOUR VEHICLE 479

About Your Brakes....................... 335
ABS (Anti-Lock Brake System) .............. 338
Adaptive Cruise Control (ACC) (Cruise Control) . . 162
Adding Engine Coolant (Antifreeze) .......... 446
Adding Fuel ........................... 379
Adding Washer Fluid ..................... 440
Additives, Fuel ......................... 377
Adjustable Pedals ....................... 156
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 433
Air Conditioner Maintenance ............... 436
Air Conditioning ..................... 293,295
Air Conditioning Controls ................. 293
Air Conditioning Filter .................302,437
Air Conditioning, Operating Tips ............ 303
Air Conditioning Refrigerant .............436,437
Air Conditioning System ..........293,295,296,436
Air Pressure, Tires .................... 226,356
Airbag .............................. 56,65
Airbag Deployment ....................... 66 Airbag Light
..................... 64,69,82,221
Airbag Maintenance ....................... 68
Airbag, Side .......................... 62,65
Airbag, Window (Side Curtain) ...........59,62,65
Alarm, Panic ............................ 25
Alarm (Security Alarm) .................18,225
Alarm System (Security Alarm) ............... 18
All Wheel Drive (AWD) ................329,454
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 283
Antifreeze (Engine Coolant) ...........445,446,480
Disposal ............................ 448
Anti-Lock Brake System (ABS) ............338,340
Anti-Lock Warning Light .................. 220
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 455
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ....................... 110
Auto Down Power Windows ................ 41
516 INDEX

Memory............................ 138
Power .............................. 130
Rear Folding ......................... 136
Reclining ............................ 131
Seatback Release ....................... 136
Tilting .............................. 130
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........445,482
Selection of Oil ......................... 431
Self-Sealing Tires ........................ 363
Sentry Key (Immobilizer) ................... 16
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 17
Service Assistance ....................... 507
Service Contract ......................... 509
Service Engine Soon Light
(Malfunction Indicator) .................... 228
Service Manuals ......................... 511
Setting the Clock .............251,252,254,257,266 Settings, Personal
........................ 245
Shifting ............................... 314
Automatic Transmission ............314,319,324
Shoulder Belt Upper Anchorage .............. 51
Shoulder Belts ........................... 46
Side View Mirror Adjustment ................ 92
Signals, Turn ...................... 84,148,216
Slippery Surfaces, Driving On ............... 330
SmartBeams ........................... 146
Snow Tires ............................ 363
Sound System Kicker .............................. 287
Spare Tire ....................... 358,359,402
Spark Plugs ............................ 482
Specifications Fuel (Gasoline) ........................ 482
Oil ................................ 482
Speed Control (Cruise Control) ...........158,162
Speedometer ........................... 216
532 INDEX

Starting............................. 27,309
Automatic Transmission ................. 309
Cold Weather ......................... 312
Engine Fails to Start .................... 312
Remote .............................. 27
Starting and Operating .................... 309
Starting Procedures ...................... 309
Steering Column Controls ...................... 148
Column Lock ......................... 154
Power .............................. 334
Tilt Column ....................... 154,155
Wheel, Tilt ........................ 154,155
Steering Wheel Mounted Sound
System Controls ......................... 290
Storage ............................ 204,468
Storage, Vehicle ...................... 302,468
Storing Your Vehicle ...................... 468
Stuck, Freeing .......................... 417 Sun Roof
.............................. 196
Sunglasses Storage ....................... 189
Sunroof Maintenance ..................... 199
Supplemental Restraint System - Airbag ........ 56
Sway Control, Trailer ..................... 385
Synthetic Engine Oil ...................... 433
System, Remote Starting .................... 27
Tachometer ............................ 220
Telescoping Steering Column .............154,155
Temperature Control, Automatic (ATC) ........ 296
Temperature Gauge, Engine Coolant .......223,401
Tether Anchor, Child Restraint ............... 74
Theft Alarm (Security Alarm) ................ 18
Theft System (Security Alarm) ............... 18
Tilt Steering Column ................... 154,155
Time Delay, Headlight .................... 145
Tire and Loading Information Placard ......... 351
Tire Identification Number (TIN) ............. 349
10
INDEX 533

Unleaded Gasoline....................... 374
Untwisting Procedure, Seat Belt .............. 52
Vanity Mirrors ........................... 96
Variance, Compass ....................... 243
Vehicle Certification Label ................. 382
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 352,381,383
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 302,468
Vehicle Theft Alarm (Security Alarm) .......... 18
Video Entertainment System™
(Rear Seat Video System) .................. 288
Viscosity, Engine Oil ...................... 432
Voice Recognition System (VR) .............. 124
Warning Flasher, Hazard .................. 400
Warning Lights
(Instrument Cluster Description) ............. 216
Warnings and Cautions ..................... 6 Warranty Information
..................... 510
Washer, Adding Fluid ..................... 440
Washers, Windshield .................. 152,440
Washing Vehicle ......................... 455
Water Driving Through ...................... 331
Wheel and Wheel Trim .................... 457
Wheel and Wheel Trim Care ................ 457
Wind Buffeting ....................... 43,199
Window Fogging ........................ 302
Windows .............................. 40
Power ............................... 40
Windshield Defroster ................83,294,300
Windshield Washers ................... 150,152
Windshield Wiper Blades .................. 440
Windshield Wipers ....................... 150
Wiper Blade Replacement .................. 440
Wipers, Intermittent ...................... 151
Wipers, Rain Sensitive .................... 153
536 INDEX
