•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch (and
Keyless Go Start/Stop button) for unauthorized opera-
tion. If something triggers the alarm, the Vehicle Security
Alarm will prevent the vehicle from starting and provide
the following audible and visible signals: the horn will
pulse, the headlights, park lamps and/or turn signals
will flash, and the Vehicle Security Light in the instru-
ment cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm the System
Vehicles Not Equipped with Keyless Go
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
Vehicles Equipped with Keyless Go
Press the Keyless Go Start/Stop button until the Elec-
tronic Vehicle Information Center (EVIC) indicates that
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Inserting the Key Fob with RKE transmitter into
the ignition switch disables all buttons on that RKE
transmitter; however, the buttons on the remaining RKE
transmitters will continue to work. Driving at speeds
5 mph (8 km/h) and above disables all RKE transmitter
buttons for all RKE transmitters.To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice
within five seconds to unlock all doors. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
If your vehicle is equipped with Passive Entry, refer to
“Passive Entry System — If Equipped” under “Door
Locks” for further information.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC) — If Equipped/Personal
Key Fob with RKE Transmitter
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

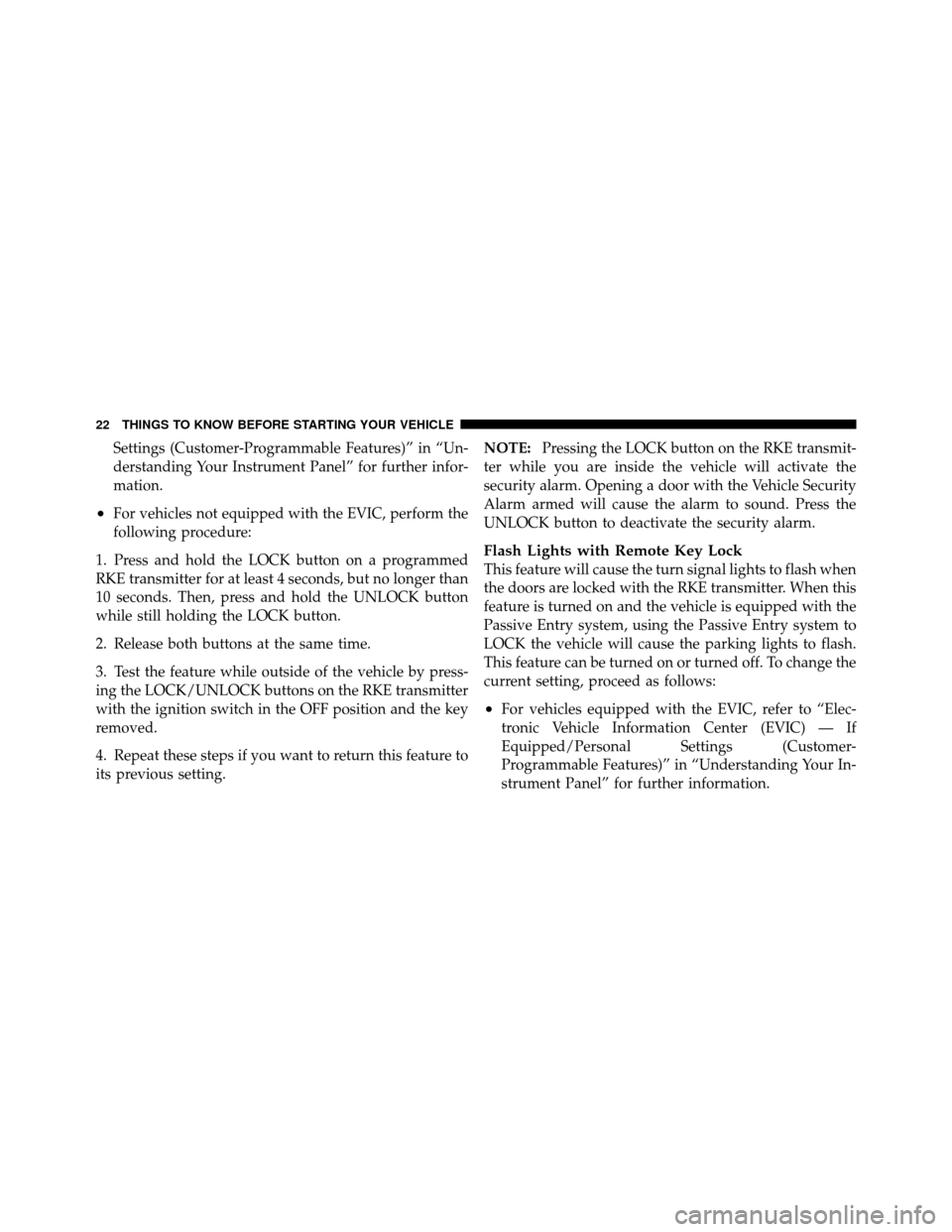

Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the OFF position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting. NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the Vehicle Security
Alarm armed will cause the alarm to sound. Press the
UNLOCK button to deactivate the security alarm.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked with the RKE transmitter. When this
feature is turned on and the vehicle is equipped with the
Passive Entry system, using the Passive Entry system to
LOCK the vehicle will cause the parking lights to flash.
This feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC) — If
Equipped/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
If the vehicle is equipped with Passive Entry, refer to
“Passive Entry System — If Equipped” under “Door
Locks” for further information.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter, or locked using the
Passive Entry door handle lock button (if equipped). This
feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC) — If
Equipped/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least 4 seconds, but no longer than 10 sec-
onds. Then, press the PANIC button while still holding
the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK button on the RKE transmitter with the
ignition switch in the LOCK position and the key re-
moved.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE: Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the security
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The ORC contains a backup power supply system that
may deploy the airbags even if the battery loses power or
it becomes disconnected prior to deployment.Also, the ORC turns on the Airbag Warning
Light in the instrument panel for approxi-
mately six to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Airbag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
turns on the Airbag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup.
It also includes diagnostics that will illuminate the instru-
ment cluster Airbag Warning Light if a malfunction is
noted that could affect the airbag system. The diagnostics
also record the nature of the malfunction.WARNING!
Ignoring the Airbag Warning Light in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away by an authorized dealer.
Driver and Passenger Airbag Inflator Units
The Driver and Passenger Airbag Inflator Units are
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the Advanced Front Airbags, it signals
the inflator units. A large quantity of non-toxic gas is
generated to inflate the Advanced Front Airbags. Differ-
ent airbag inflation rates are possible, based on the
collision type and severity. The steering wheel hub trim
cover and the upper right side of the instrument panel
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver foot well while the vehicle is moving.
Objects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 91
▫ Inside Day/Night Mirror ................ 91
▫ Automatic Dimming Mirror — If Equipped . . . 92
▫ Outside Mirrors ...................... 92
▫ Outside Mirrors Folding Feature
— If Equipped ....................... 93
▫ Driver’s Automatic Dimming Mirror
— If Equipped ....................... 93
▫ Outside Mirrors With Turn Signal And
Approach Lighting — If Equipped ......... 93▫
Tilt Mirrors In Reverse — If Equipped ...... 94
▫ Power Mirrors ....................... 94
▫ Heated Mirrors — If Equipped ............ 95
▫ Illuminated Vanity Mirrors — If Equipped . . . 96
 Uconnect™ Phone — If Equipped ........... 96
▫ Operation .......................... 98
▫ Phone Call Features .................. 106
▫ Uconnect™ Phone Features ............. 109
▫ Advanced Phone Connectivity ........... 114
3

▫Headlight Time Delay ................. 145
▫ Smartbeam™ — If Equipped ............ 146
▫ Daytime Running Lights — If Equipped .... 147
▫ Lights-On Reminder .................. 147
▫ Fog Lights — If Equipped .............. 147
▫ Multifunction Lever .................. 148
▫ Turn Signals ........................ 148
▫ Lane Change Assist ................... 148
▫ High/Low Beam Switch ............... 149
▫ Flash-To-Pass ....................... 149
▫ Overhead Console Map/Reading Lights .... 149
▫ Interior Lights ...................... 149
 Windshield Wipers And Washers .......... 150▫
Intermittent Wiper System .............. 151
▫ Mist Feature ........................ 152
▫ Windshield Washers .................. 152
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 152
▫ Rain Sensing Wipers — If Equipped ....... 153
 Tilt/Telescoping Steering Column .......... 154
 Power Tilt/Telescoping Steering Column
— If Equipped ........................ 155
 Adjustable Pedals — If Equipped .......... 156
 Electronic Speed Control ................ 158
▫ To Activate ......................... 159
▫ To Set At A Desired Speed .............. 159
▫ To Deactivate ....................... 160
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
