2010 CHRYSLER 300 Owners Manual

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Cavity Car-tridge
FuseMini-
Fuse
Description
1 60 Amp Yellow— Ignition Off Draw (IOD)
Cavity 1 of the Rear
Power Distribution
Center contains a black
IOD fuse needed for
vehicle processing dur-
ing assembly. The ser-
vice replacement part is
a 60 Amp yellow car-
tridge fuse.
2 40 Amp Green— Integrated Power Mod-
ule (IPM)
3 ———
4 40 Amp Green— Integrated Power Mod-
ule (IPM)
464 MAINTAINING YOUR VEHICLE

Cavity Car-tridge
FuseMini-
Fuse
Description
5 30 Amp Pink— Heated Seats – If
Equipped
6 — 20 Amp YellowFuel Pump
7 — 15 Amp BlueRear Heated Seats – If
Equipped
8 — 15 Amp BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp YellowPower Outlet
10———
11 * ———
12 * ———Cavity Car-
tridge
FuseMini-
Fuse
Description
13 * ———
14 — 10 Amp RedAC Heater Control/
Cluster/Security Mod-
ule – If Equipped
15 — 20 Amp YellowTrailer Tow Brake Mod-
ule – If Equipped
16———
17 — 20 Amp YellowCluster
18 — 20 Amp YellowSelectable Power Outlet
19 — 10 Amp RedStop Lights
20———
21———
7
MAINTAINING YOUR VEHICLE 465

Cavity Car-tridge
FuseMini-
Fuse
Description
22———
23———
24———
25———
26———
27 — 10 Amp RedOccupant Restraint Con-
troller (ORC)
28 — 10 Amp RedIgnition Run, AC Heater
Control/Headlights/
Park Assist – If
Equipped/Tire Pressure
Monitoring – If
Equipped/Occupant
Restraint Controller
(ORC)Cavity Car-
tridge
FuseMini-
Fuse
Description
29 — 5 Amp OrangeAdaptive Cruise Control
(ACC) – If Equipped/
Cluster/Electronic Sta-
bility Program (ESP) – If
Equipped/Powertrain
Control Module (PCM)/
STOP LIGHT Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/Steering Con-
trol Module (SCM)
31———
32———
33———
34———
466 MAINTAINING YOUR VEHICLE

Cavity Car-tridge
FuseMini-
Fuse
Description
35 — 5 Amp OrangeAntenna Module – If
Equipped/Power
Mirrors/Rain Sensor – If
Equipped
36 — 25 Amp NaturalHands-Free Phone – If
Equipped/Video Moni-
tor – If Equipped/Radio
37 — 15 Amp BlueTransmission
38 — 10 Amp RedAnalog Clock/Cargo
Light/Satellite Receiver
(SDARS) Video – If
Equipped/Vehicle Infor-
mation Module – If
EquippedCavity Car-
tridge
FuseMini-
Fuse
Description
39 — 10 Amp RedHeated Mirrors – If
Equipped
40 — 5 Amp OrangeAuto Inside Rearview
Mirror – If Equipped/
Heated Seats – If
Equipped/Switch Bank
41 — 15 Amp BlueAWD Module – If
Equipped
42 30 Amp Pink— Front Blower Motor
43 30 Amp Pink— Rear Window Defroster
44 20 Amp Blue— Amplifier – If
Equipped/Sunroof – If
Equipped
7
MAINTAINING YOUR VEHICLE 467

*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster, the driver seat switch (if
equipped), and the memory module (if equipped) are
fused by the 25 Amp circuit breaker in Cavity 11. The
passenger seat switch (if equipped) is fused by the
25 Amp circuit breaker in Cavity 12. The door modules,
the driver power window switch, and the passenger
power window switch are fused by the 25 Amp circuit
breaker in Cavity 13. If you experience temporary or
permanent loss of these systems, see your authorized
dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamps ............ 578
Visor Vanity Lamps ..................... A6220
Glove Box Lamp – If Equipped ............... 194
Door Courtesy .......................... 562
Shift Indicator Lamp ................. JKLE14140
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
468 MAINTAINING YOUR VEHICLE

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Exterior (300 Models) Bulb Number
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Lamp .................... 3157
Front Inner Park Lamp .................. 194NA
Front Outer Park Lamp .................. 194NA
Front Fog Lamp – If Equipped ............PSX24W
Front Sidemarker ....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop/Turn Lamp ..................... 3057
Rear Sidemarker ......................... 168
Backup Lamp .......................... 3057
Center High Mount Stop Lamp (CHMSL) ....... LED
(Serviced at Authorized Dealer)
License ................................ 168 Exterior (300C Models)
Bulb Number
Low Beam Headlamp (Standard Halogen) ....9006XS
Low Beam Headlamp – High Intensity Discharge
(HID) ................................ D1S
(Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp .................3157AK
Front Fog Lamp ...................... PSX24W
Front Sidemarker ....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop Lamp ......................... 3057
Tail Lamp ............................. 3057
Turn Signal Lamp ...................... 3757A
Backup Lamp .......................... 3057
Center High Mount Stop Lamp (CHMSL) ....... LED
(Serviced at Authorized Dealer)
Outside Mirror Turn Signal & Approach Lamps . . LED
(Serviced at Authorized Dealer)
License .............................. W5W
7
MAINTAINING YOUR VEHICLE 469

BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp, Inner Park Lamp, and Outer
Park Lamp – 300 Models
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
lamp assembly, and then turn it clockwise.
1 — High Beam Headlamp Bulb
2 — Low Beam Headlamp Bulb
470 MAINTAINING YOUR VEHICLE

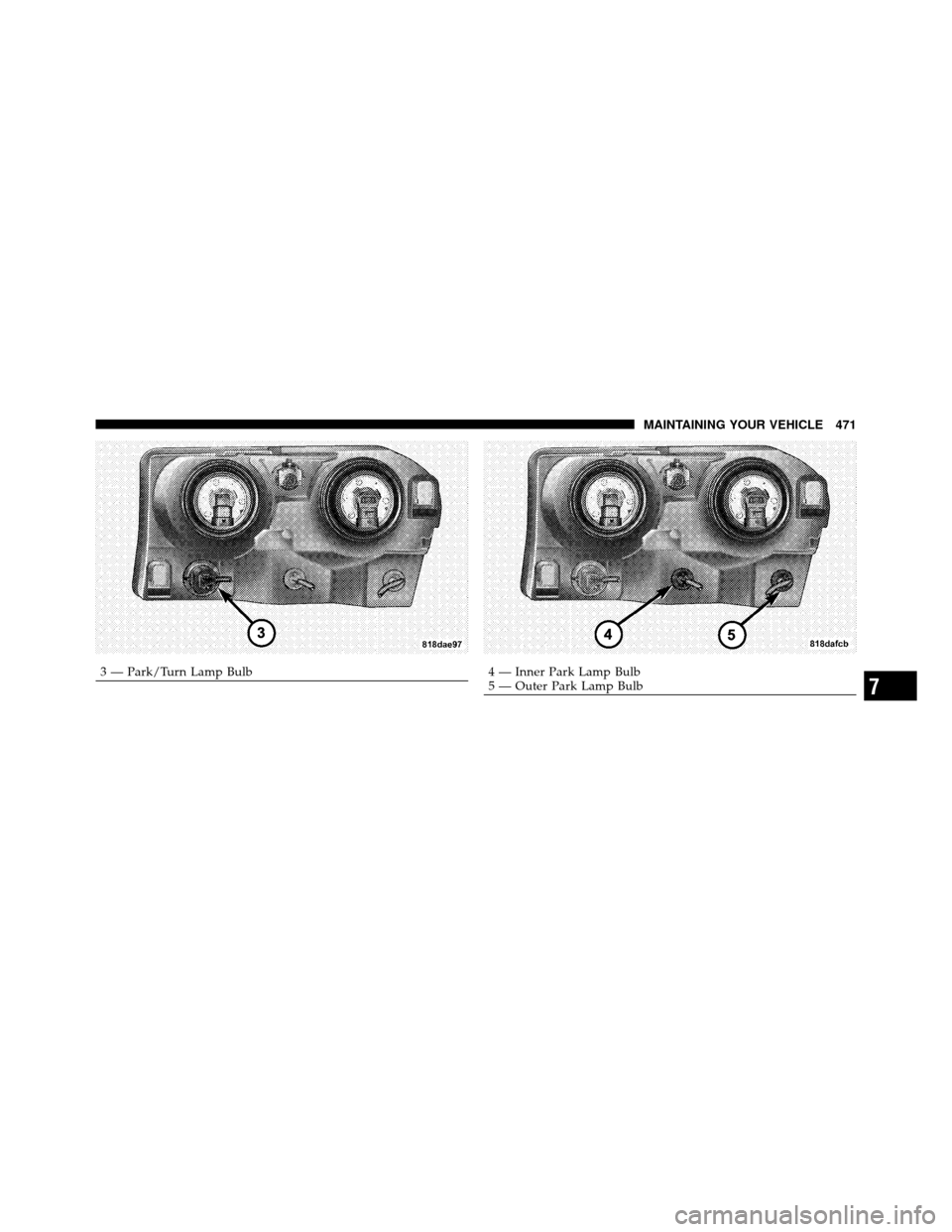

3 — Park/Turn Lamp Bulb4 — Inner Park Lamp Bulb
5 — Outer Park Lamp Bulb
7
MAINTAINING YOUR VEHICLE 471
