2010 BMW MOTORRAD G 650 GS headlight bulb

nical data". The figures in thegraphic correspond to the fusenumbers.
Close the fuse cover.
The latch engages with anaudible click.
Installing seat (39).
Bulbs
Notes
A defective bulb placesyour safety at risk becauseit is easier for other users tooversee the motorcycle.
Replace defective bulbs assoon as possible; always carry acomplete set of spare bulbs ifpossible.
The bulb is pressurised andcan cause injury if dam-aged.
Wear protective goggles andgloves when changing bulbs.
The types of bulb fitted toyour motorcycle are listedin the section entitled "Technicaldata".
Do not touch the glass ofnew bulbs with your fingers.Use a clean, dry cloth to holdthe bulbs when handling them.Dirt deposits, in particular oil andgrease, interfere with heat radi-ation from the bulb. This leadsto overheating and shortens thebulb's operating life.
Replacing low-beam and
high-beam headlight bulb
If it is not standing firmly,the motorcycle could topplein the course of the operationsdescribed below.
Always make sure that themotorcycle is stable and firmlysupported.
Make sure the ground is leveland firm and place the motor-cycle on its stand.
Switch off the ignition.
Disconnect plug1.
Remove rubber cap2.
8
85
zMaintenance

The rubber cap enclosesand forms a seal aroundthe wiring for the parking light.Consequently, the rubber capcannot be removed.

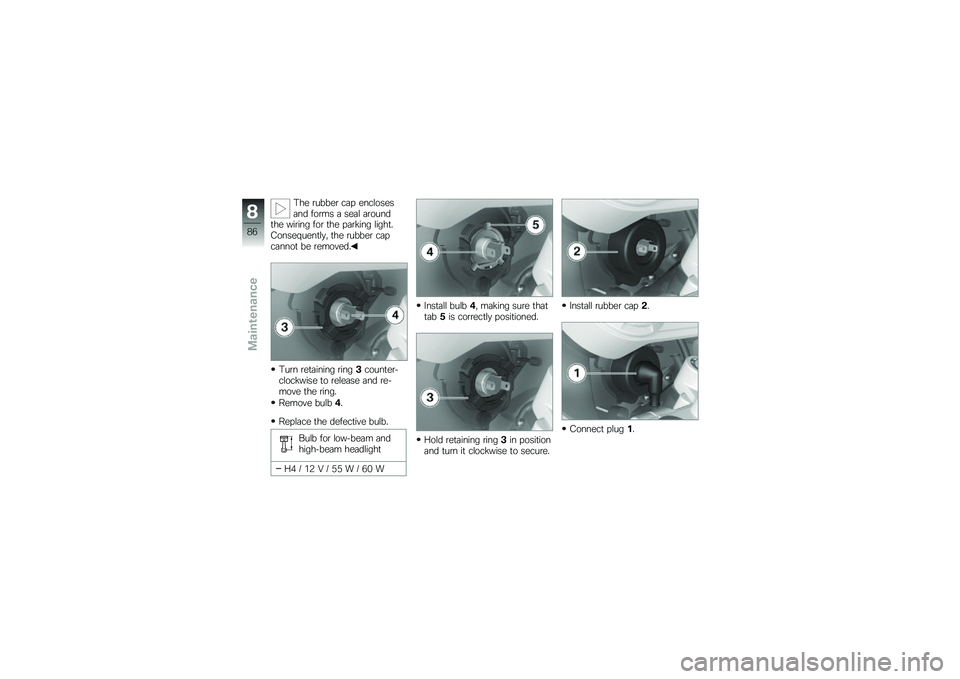

Turn retaining ring3counter-clockwise to release and re-move the ring.
Remove bulb4.
Replace the defective bulb.
Bulb for low-beam andhigh-beam headlight
H4 / 12 V / 55 W / 60 W
Install bulb4, making sure thattab5is correctly positioned.
Hold retaining ring3in positionand turn it clockwise to secure.
Install rubber cap2.
Connect plug1.
8
86
zMaintenance

Replacing parking-light
bulb
If it is not standing firmly,the motorcycle could topplein the course of the operationsdescribed below.
Always make sure that themotorcycle is stable and firmlysupported.
Make sure the ground is leveland firm and place the motor-cycle on its stand.
Switch off the ignition.
Disconnect plug1.
Remove rubber cap2.
The rubber cap enclosesand forms a seal aroundthe wiring for the parking light.Consequently, the rubber capcannot be removed.

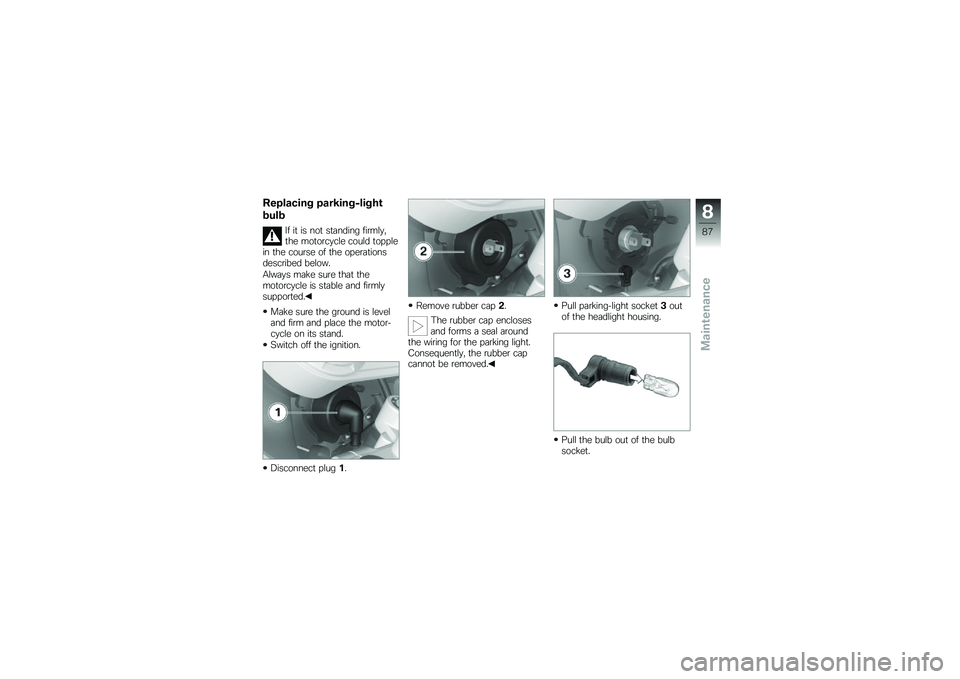

Pull parking-light socket3outof the headlight housing.
Pull the bulb out of the bulbsocket.
8
87
zMaintenance

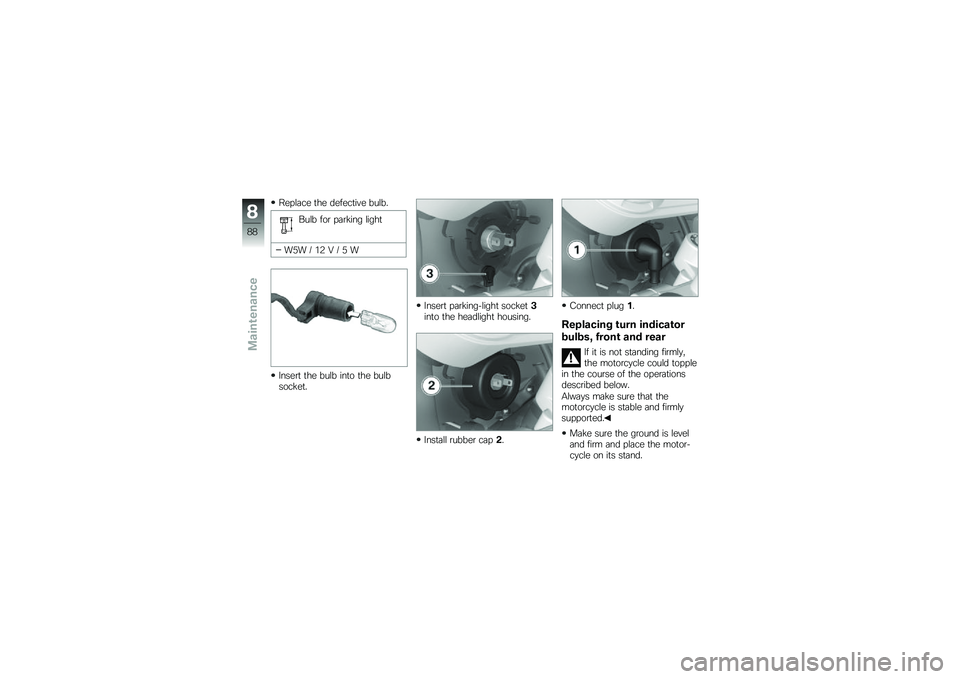

Replace the defective bulb.
Bulb for parking light
W5W / 12 V / 5 W
Insert the bulb into the bulbsocket.
Insert parking-light socket3into the headlight housing.
Install rubber cap2.
Connect plug1.
Replacing turn indicator
bulbs, front and rear
If it is not standing firmly,the motorcycle could topplein the course of the operationsdescribed below.
Always make sure that themotorcycle is stable and firmlysupported.
Make sure the ground is leveland firm and place the motor-cycle on its stand.
8
88
zMaintenance

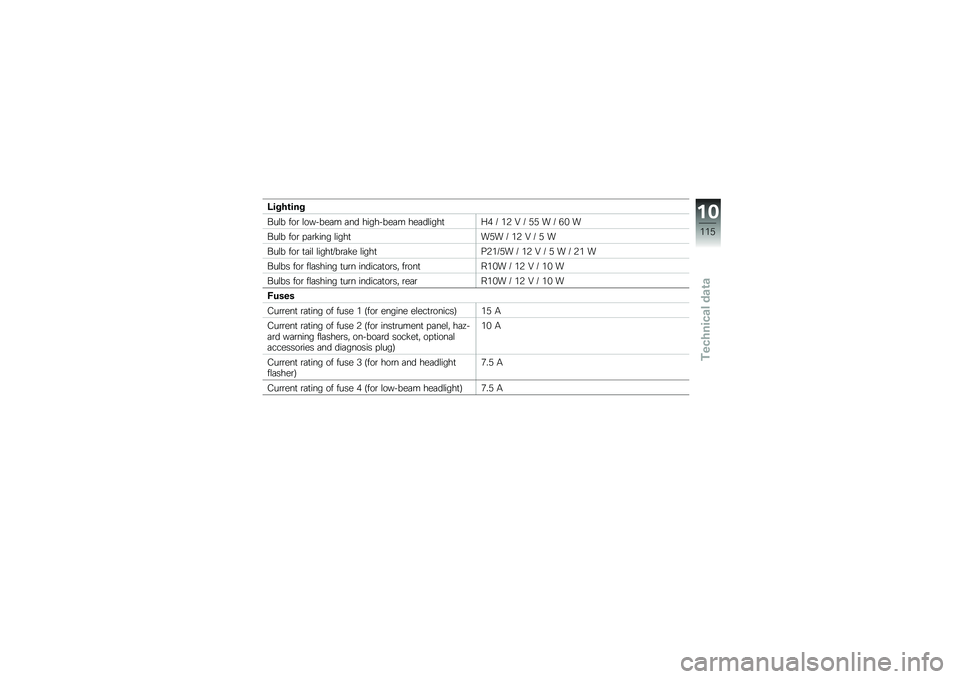

Lighting
Bulb for low-beam and high-beam headlightH4 / 12 V / 55 W / 60 W
Bulb for parking lightW5W / 12 V / 5 W
Bulb for tail light/brake lightP21/5W / 12 V / 5 W / 21 W
Bulbs for flashing turn indicators, frontR10W / 12 V / 10 W
Bulbs for flashing turn indicators, rearR10W / 12 V / 10 W
Fuses
Current rating of fuse 1 (for engine electronics)15 A
Current rating of fuse 2 (for instrument panel, haz-ard warning flashers, on-board socket, optionalaccessories and diagnosis plug)
10 A
Current rating of fuse 3 (for horn and headlightflasher)7.5 A
Current rating of fuse 4 (for low-beam headlight)7.5 A
10
115
zTechnical data
