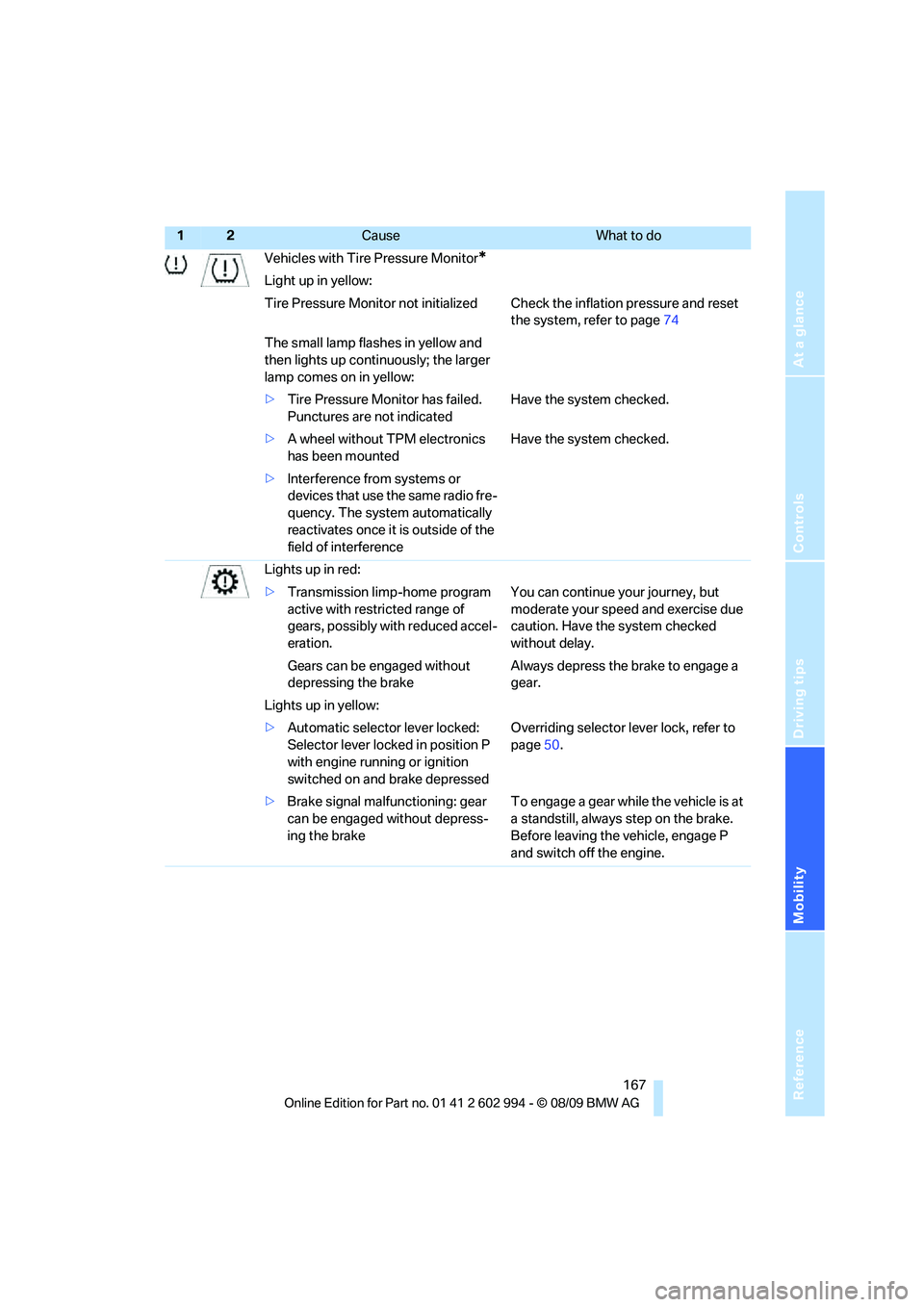

Vehicles with Tire Pressure Monitor*
Light up in yellow:
Tire Pressure Monitor not initialized Check the inflation pressure and reset
the system, refer to page74
The small lamp flashes in yellow and
then lights up continuously; the larger
lamp comes on in yellow:
>Tire Pressure Monitor has failed.
Punctures are not indicatedHave the system checked.
>A wheel without TPM electronics
has been mountedHave the system checked.
>Interference from systems or
devices that use the same radio fre-
quency. The system automatically
reactivates once it is outside of the
field of interference
Lights up in red:
>Transmission limp-home program
active with restricted range of
gears, possibly with reduced accel-
eration.You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked
without delay.
Gears can be engaged without
depressing the brakeAlways depress the brake to engage a
gear.
Lights up in yellow:
>Automatic selector lever locked:
Selector lever locked in position P
with engine running or ignition
switched on and brake depressedOverriding selector lever lock, refer to
page50.
>Brake signal malfunctioning: gear
can be engaged without depress-
ing the brakeTo engage a gear while the vehicle is at
a standstill, always step on the brake.
Before leaving the vehicle, engage P
and switch off the engine.
12Cause What to do

Indicator and warning lamps
168Lights up in red:
Transmission overheating Bring the car to a stop and engage P.
Allow the transmission to cool down.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked if the
situation reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate your
speed and exercise due caution.
P is not engaged. Vehicle not pre-
vented from rolling
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition, refer
to page46.
Pinch protection system of the power
windows malfunctioningHave the system checked.
Pinch protection system of the electric
glass roof/panorama glass roof mal-
functioningHave the system checked.
Cruise control deactivated:
>Driving stability control systems are
active or
>parking brake is applied or
>the vehicle has not achieved a
speed of 20 mph or 30 km/h or
>engaged gear not suitable for the
speed being driven
Cruise control system failed You can continue your journey. Have
the system checked.
Active cruise control deactivated:
>Driving stability control systems are
active or
>parking brake is applied or
>the vehicle has not achieved a
speed of 20 mph or 30 km/h or
>engaged gear not suitable for the
speed being driven orKeep a safe distance.
12Cause What to do

Reference
At a glance
Controls
Driving tips
Mobility
169

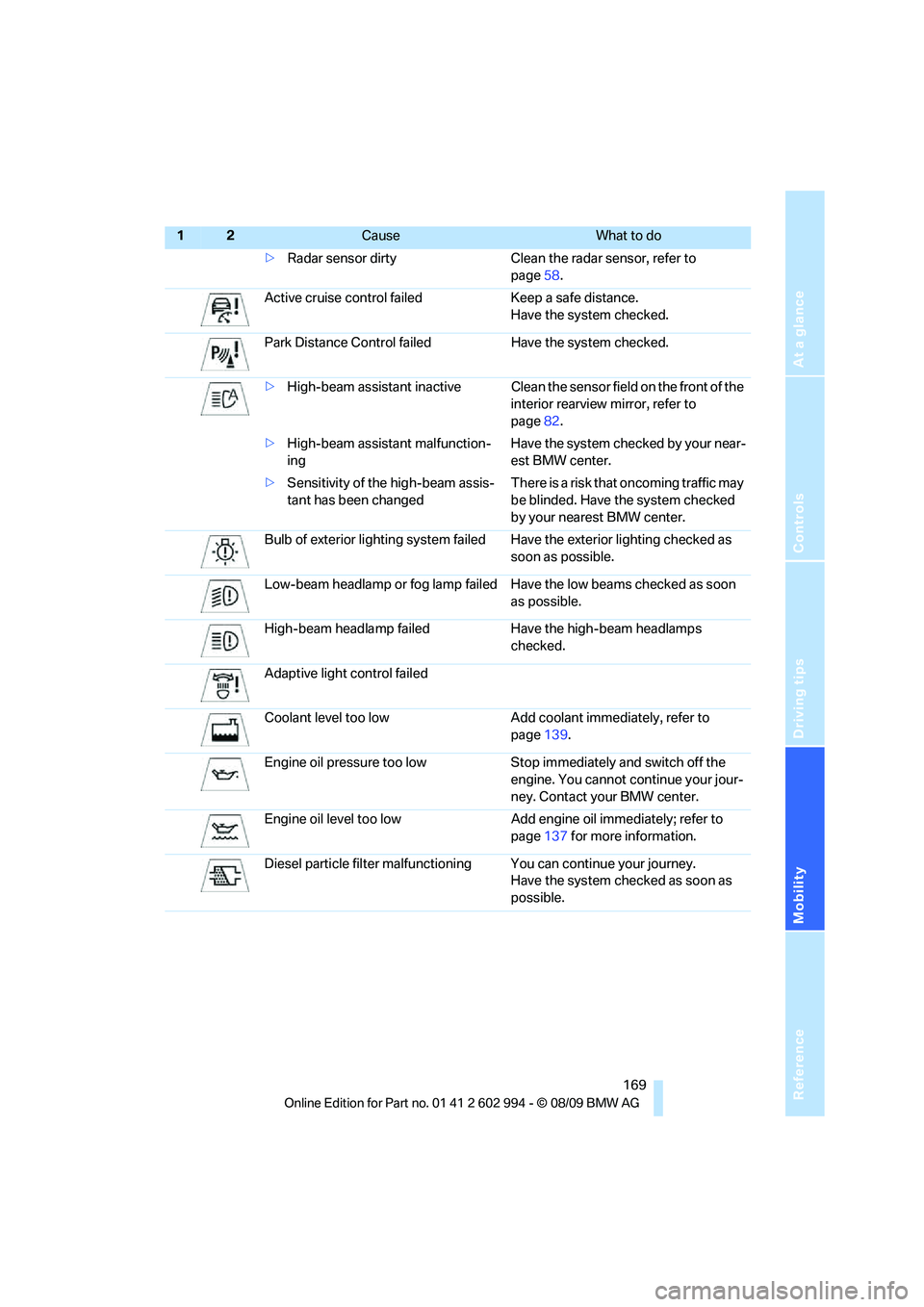

>Radar sensor dirty Clean the radar sensor, refer to
page58.
Active cruise control failed Keep a safe distance.
Have the system checked.
Park Distance Control failed Have the system checked.
>High-beam assistant inactive Clean the sensor field on the front of the
interior rearview mirror, refer to
page82.
>High-beam assistant malfunction-
ingHave the system checked by your near-
est BMW center.
>Sensitivity of the high-beam assis-
tant has been changedThere is a risk that oncoming traffic may
be blinded. Have the system checked
by your nearest BMW center.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Adaptive light control failed
Coolant level too low Add coolant immediately, refer to
page139.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your jour-
ney. Contact your BMW center.
Engine oil level too low Add engine oil immediately; refer to
page137 for more information.
Diesel particle filter malfunctioning You can continue your journey.
Have the system checked as soon as
possible.
12Cause What to do

Indicator and warning lamps
170Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, refer to
page65.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page65.
No service due Check service requirements, refer to
page65.
Time and date no longer correct Set the time and date, refer to page67.
12Cause What to do

Reference
At a glance
Controls
Driving tips
Mobility
171

Reference
This chapter contains technical data and an
index that will help you find information most
quickly.
Reference

Technical data
174
Technical data
Engine data
Sedan
Sports Wagon
323i (Canada)328i/xDrive335i/xDrive335d
Displacement cu in/cmμ152.4/2,497 182.8/2,996 181.8/2,979 182.6/2,993
Number of cylinders 6666
Maximum power output hp 200 230 300 265
at engine speed rpm 6,000 6,500 5,800 4,200
Maximum torque lb ft/Nm 180/244 200/270 300/407 425/580
at engine speed rpm 4,000 - 5,000 2,750 1,400 - 5,000 1,750 - 2,250
328i/xDrive
Displacement cu in/cmμ182.8/2,996
Number of cylinders6
Maximum power output hp 230
at engine speed rpm 6,500
Maximum torque lb ft/Nm 200/270
at engine speed rpm 2,750
