IIII.___A_ d_v_ a_ n _ c_e _d _ P_ a_ rk_ in--= g'-S -=- y_s_t_ e_ m _________________________________________ _
- Press the switch P1JJ! in the center console=:, page 161,
fig. 177 to activate the Audi parking system manually.
Activation of the acoustic parking system is confirmed by
a brief acknowledgement sound. The indicator light in the
switch lights up.
Deactivation
- If you drive forwards faster than approx. 6 mph (10 km/h), or
- if you switch the ignition off, the entire acoustic parking
assist is automatically deactivated, or
- you can press the switch
Pw! in the center console
=:, page 161, fig. 177 to deactivate the Audi parking
system. The indicator light in the switch goes out.
You have to turn on the acoustic parking assist manually if you wish
to park the vehicle forwards or if you wish to approach an obstacle
forwards and want a distance warning.
The range at which the sensors start to measure is
about :
Front
Rear
Warning tones
side
center
side
center 3 ft (0.90 m)
4 ft (1.20 m)
2 ft (0.60 m)
5.2 ft (1.60 m)
Distance warning is given by chimes which are generated by a signal
generator . The volume and the pitch of the chimes can be adjusted in
the MMI =>
page 171.
Mute
In the case of vehicles with automatic transmission, an acoustic
distance warning is discontinued when the transmission selector lever is moved to the P position
. However, the system remains active.
As soon as the selector lever is moved from the
P position and the
vehicle approaches an obstacle, the acoustic distance warning
resumes.
Driving forward/backward
Distance warning when driving forward/backward is based on detec­
tion of an obstacle in the range of the parking assist . As the distance
decreases, the time interval between the audible tones becomes
shorter.
When the distance is less than approx. 1 ft (0.30 m), the tone
becomes continuous. At this point you should stop backing up or
driving forward .
If the distance to an obstacle remains the same, the volume of the
distance warning is gradually reduced after about
4 seconds (does
not apply to the zone for the continuous tone). If you start to
approach the detected obstacle again, the distance warning will
sound at the normal volume again.
Parking
When you select another gear when parking (e.g. reverse/forward),
the warning tones are temporarily suppressed, but the visual display
remains on the MMI display. If you start approaching a detected
obstacle again, the distance warning will sound at the normal volume
again.
Visual display
The segments on the MMI display indicate a change in the distance
between the vehicle and an obstacle . The number of segments
displayed depends on the obstacles in front of or behind the vehicle.
The closer the vehicle comes to the obstacle, the closer the segments
approach the vehicle=>
page 161, fig. 178. When the segment
before last is displayed, the vehicle has reached the collision zone. At
this point you should stop backing up or driving forward=>& .
The image in the visual display can be switched off on the MMI display
=>
page 173 . The acoustic distance warning remains active. .,,

_________________________________________ A_ d_v _ a_ n_ c_e _d _ P_ a_ rk_ in_ g =- S -.:.y_s _t _e _ m ___ _
If you press a fu nction bu tto n on t he M MI termina l, the v is u a l display
dis appea rs. Manu ally sw itchin g th e par king assist on ag ain via the
p,qA
switch s hows th e visual image on the MMI display again . Further
info rmation regarding the MMI term inal is in cl uded in the MMI user's
ma nual.
Rear-view camera (rear view)
The rear-view camera picture~ page 166, fig . 183 appears on the
MM I d is play as a mir ror im age. The re ar-view came ra pic ture has
or ientat ion lines and mar ked surfaces projected into i t as an a id to
the par king process ~
page 164. The red line in the picture
~ pag e 164, fig. 179 or~ page 164, fig. 1 80 indicates the coll is ion
area . You s houl d sto p bac kin g up, prefera bly befo re yo u reac h this
poin t~ & -
lf your vehicle is close to an obstacle , th e visual d istance d isplay also
appe ars in th e pic t ur e fr om t he re ar -view camera. This s uperim posed
display is intended to help d isplay the re levant cr itical ve hicle area .
If the visual dis play is shown on the MMI display and you press the
co ntr ol bu tton wi th the
Rear view funct ion ~ page 161 , fig. 178, the
pict ure from t he rear -view came ra is disp laye d.
If the pic ture from t he re ar-view camera is sh own and yo u pre ss the
cont rol button with the
Graphic f unction~ page 166 , fig. 183, t he
visual displ ay is s hown.
Th e p icture from th e re ar-v iew ca mera can b e sw itche d off o n the
MM I dis play ~
page 173 . The acoust ic distance warning remains
a cti ve.
If you press a function b utton on the MMI term ina l, the rear-v iew
c amera picture d is app ears. The rear -view came ra pictur e re a ppears
the next time you pa rk . But the picture from the rear-view camera can
also be show n ag a in on the MMI display by manua lly switc hing off
and on wi th t he
p,,1 A swi tch. Fu rther in fo rm ation r egard ing the M MI
terminal is incl uded i n th e MM I user 's manual.
Controls and equip ­
ment Safety first
& WARNING
•
Sensors have dead spaces in which objects cannot be detected .
Be especially careful to check for small children and animals
before backing up. Small children and animals will not always be
detected by the sensors .
• The Audi parking system is not a substitute for being careful
and alert when backing up. Be especially careful during parking
and similar maneuvers . Always watch where you are driving and
make sure that nothing is in the way.
• Remember that low obstacles which have already been
signaled may pass below the system's sensing zone when the
vehicle is backing up. The fact that the signal stops does not mean
that you have cleared the obstacle. When the signal stops, impact is imminent . Objects such as trailer hitches, chains, narrow posts
or fences covered by a thin layer of paint may not always be
detected by the sy stem. They can still damage your vehicle
without warning.
• Always make sure that the volume and frequency of the chimes
is adjusted so that you can easily hear the acoustic distance signal
even if the radio is playing, the air-conditioner blower is on High
or there is a high level of outside no ise.
- Check the settings whenever someone else has driven the
vehicle before you.
• Improper reliance on the Audi parking system can cause colli­
sions and serious personal injury.
-Never rely only on parking assist when backing up.
- Always che ck rear view mirrors to make sure it i s safe to back
up.
[ i ] Tips
• The rear -view came ra pict ure is avai lab le as soon as the M MI
D ispl ay or the MMI i s swi tched o n, or the s tart -up ph ase is comple ted. _,.
Vehicle care Technical data

IIII.___A_ d_v_ a_ n _ c_e _d _ P_ a_ rk_ in--= g'-S -=- y_s_t_ e_ m _________________________________________ _
• Keep the sensors in the rear bumper and the rear-view camera lens
clean and free of snow and ice, so that the Aud i parking system can
work properly. Please follow the additional notes on=> page 173 . •
A pplie s to v eh icle s: w ith Adva nce d Park ing Sys tem with rear vie w c amera

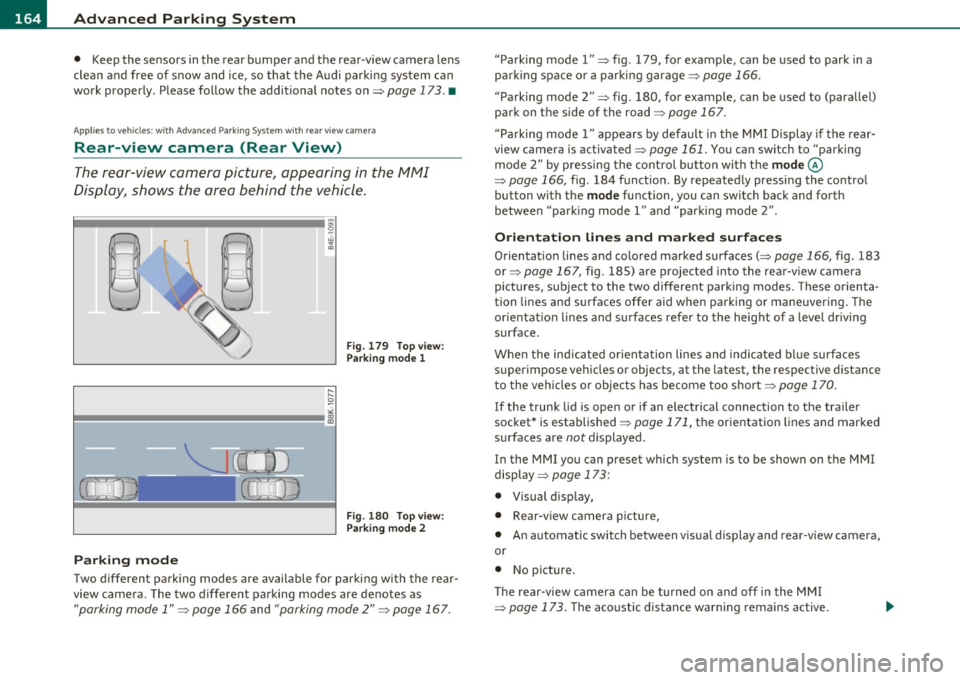

Rear-view camera (Rear View)
The rear-view camera picture, appearing in the MMI
Display, shows the area behind the vehicle.
"-.J l
-
Fig. 179 Top view:
Parking mode 1
Fig . 180 Top view:
Parking mode 2
Parking mode
Two different parking modes are available for parking with the rear­
view camera. The two different parking modes are denotes as
"parking mode 1" => page 166 and "parking mode 2" => page 167. "Parking mode
l" => fig . 179, for example, can be used to park in a
parking space or a parking garage=> page 166.
" Parking mode
2" => fig . 180, for example , can be used to (parallel)
park on the side of the road=> page 167.
" Parking mode l" appears by default in the MMI Display if the rear­
view camera is activated=> page 161. You can switch to "parking
mode
2" by pressing the control button with the mode©
=> page 166, fig. 184 function. By repeatedly pressing the control
button with the
mode function, you can switch back and forth
between "park ing model" and "parking mode
2" .
Orientation lines and marked surfaces
Orientation lines and colored marked surfaces(:::::> page 166, fig. 183
or=> page 167, fig. 185) are projected into the rear-view camera
pictures, subject to the two different parking modes. These orienta ­
tion lines and surfaces offer aid when parking or maneuvering. The
orientat ion lines and surfaces refer to the height of a level driving
surface .
When the indicated or ientation lines and indicated blue surfaces
super impose veh icles or objects, at the latest, the respective distance
to the vehicles o r objects has become too short => page 170.
I f the trunk lid is open or if an electrical connection to the trailer
socket* is established => page 171, the orientation lines and marked
surfaces are not displayed .
I n the MMI you can preset which system is to be shown on the MMI
display => page 173:
• Visual d isplay,
• Rear-v iew camera picture,
• An automatic switch between visual display and rear-view camera,
or
• No picture.
Th e rear-view camera can be turned on and off in the MMI
=> page 173. The acoustic distance warning remains active.

_________________________________________ A_ d_v _a_ n_ c_e _d _ P_ a_ r _k_ , _· n_ g=- S-=- y_s _t _e _m __ ....JIJII
& WARNING
• The rear-view cam era has blind spots, in which objects cannot
be detected. Be especiall y carefu l to check for small children and
animal s before backing up . Small childr en and animals will not
always be detected by the sensor s.
• The Audi parking system is not a subst itute for being careful
and alert when ba cking up. Be e specially careful dur ing parking
and similar maneuvers . Always watch where you are driving and
make sure that nothing is in the way.
• Remember that low obstacles which have already been
s ignaled may pass below the system 's sensing zone when the
vehicle is back ing up . Th e fact that the signal stop s does not mean
that you have cleared the obstacle . When the signal stops , impact
is imminent . Objects su ch as trailer hitches, chains, narrow posts
or fences covered by a thin la yer of paint may not always be
detected by the system. They c an still damage your vehicle
without warning.
• Alway s make sure that the volume and frequency of the chimes
is adjusted so th at you can eas ily hear the acoustic distance s ignal
even if the radio is playing, the air-conditioner blower is on High
or there is a high level of outside noise .
- Che ck the setting s whenever someone el se has driven the
vehicle befo re you.
• Improper reliance on the Aud i parking system can caus e colli­
sions and seriou s per sonal injury.
- Never rely only on parking assist when changing ba cking up.
- Alway s check re ar view mirrors to make sure it is safe to back
up.
[ i ) Tips
• Before parking with the rear-view camera, the Adaptive A ir
S uspension stan dard or au tomatic mo de must be swit ched on
=> page 18.
Cont rols a nd e quip ­
m en t
Vehicle OP-eration
• The rear-view camera pict ure is avai lab le as soon as the MMI
Display or the MMI is sw itched on , or the sta rt-u p ph ase is completed .
• In or der for the rear-view camera to function p roper ly, the came ra
lens =>
page 16 1, fig. 176 mus t be kept clean , a nd free o f snow and
ice . Please follow t he addit ional notes on =>
page 174 .
• The c ame ra cover age angle change s when the t runk lid is o pen.
The refore, the rear-v iew camera pict ure is displayed without orienta ­
t ion lines and w ithout blu e surfaces.
• Obse rve and fo llow the notes on towing mode on=>
page 171. •
Applies to ve hicles: w it h Advanced Pa rking System w ith rear view camera
Rear -view camera coverage area
0
Vehicle care
I)
Fig. 18 1 Top vie w:
R ear-v iew came ra
c o ve rage a re a
Fi g. 182 Side view :
Cov ered ar ea @ and
u nc overed are a@ of
th e re ar -vi ew c am era ..
Do-it-yourselt service iTechnical data

Ill Safety belts
---=-------------------------------
Adjusting safety belt height
Use the safety belt height adjustment to change belt
position on the shoulder.
Fig. 211 Adjusting
shoulder belt height
The safety belt height adjustors for the front seats can be
used to adjust the height of the shoulder portion of the
safety belt so that it is positioned correctly.
- Push the latch=> fig. 211 up or down so that the shoulder
portion of the safety belt is positioned nearly midway over
the shoulder => & in "Safety belt position" on
page 202.
& WARNING
Always read and heed all WARNINGS and other important infor­
mation =>
page 200. •
Improperly worn safety belts
Incorrectly positioned safety belts can cause severe inju­
ries.
Wearing safety belts improperly can cause serious injury or
death. Safety belts can only work when they are correctly
positioned on the body . Improper seating positions reduce the effectiveness of safety belts and will even increase
the
risk of injury and death by moving the safety belt to critical
areas of the body. Improper seating positions also increase
the risk of serious injury and death when an airbag deploys and strikes an occupant who is not in the correct seating posi­
tion. A driver is responsible for the safety of all vehicle occu­ pants and especially for children . Therefore:
- Never permit anyone to assume an incorrect sitting posi­
tion in the vehicle while traveling=>& .
& WARNING
Improperly worn safety belts increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all vehicle occupants are correctly
restrained and stay in a correct seating position whenever the
vehicle is being used.
• Always read and heed all WARNINGS and other important
information =>
page 200. •
Safety belt pretensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a particular
severity, safety belts are tensioned automatically.
The safety belts are equipped with safety belt pretensioners. The
system is activated by sensors in front, side and rear-end collisions of
great severity. This tightens the belt and takes up belt slack~
& in
" Service and disposal of safety belt pretensioner" on
page 205 .
Taking up the slack helps to reduce forward occupant movement
during a collision. ..

Airbag system Ill
----------------=--=---
& WARNING (co ntinued )
PASSENGER AIR BAG OFF light does not come on and stay on,
imm ediately ins tall the rear-facing child seat in a rear seating
position and have the a irbag system inspected by your Audi
dealer .
& WARNING
If, in exceptional circumstances, you mu st install a forward-facing
c hild restraint on the front passenger 's seat:
• Always make sure the forward-facing seat has been designed
and cert ified by its manufacturer for use on a front seat with a
pa ssenger front and side airbag .
• Never put the forward-facing child re straint up against or very
near the instrument panel.
• Alway s move the passenger seat into it s rearmost po sition in
the seat's fore and aft adjustment range, as far away from the
airbag as possible , befo re installing the forward-facing child
restraint. The backrest must be adjusted to an upright pos ition.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on .•
Advanced Airbag System components
The front passenger seat i n your veh icle has a lot of very important
parts o f th e A dva nced A irbag System in it. These parts include t he
we ight-sens ing mat, sensors, wiring, bracke ts, and more . The func­
ti on of the system in the front p assenger seat is chec ke d by the e lec ­
tr on ic contro l u ni t whe n the ig ni tion is on . T he contro l unit monitors
the Advanced Airbag System and turns the airbag indicator light on
when a mal function in the system compone nts is detected. The func­
tion of the a irbag indicator light is described in g reater detail be low.
Be ca u se the fron t passenge r seat con tains import ant parts of the
Advanced Ai rbag System, you must take care to prevent it from being
Controls and equip­
ment Safety first Vehicle operation
damaged
. Damage to the seat may prevent t he Adva nced A irbag for
t he fro nt pa ssenge r se at from d oin g its jo b in a cra sh.
The front Advanced Airbag System consists of the
following:
• Cras h sensors in the front of the vehicle t hat measure vehicle
acc ele rat ion/d ece le rat ion to prov ide info rma tion t o the Adv anced
Airbag System about t he severity of the crash .
• An e lec tron ic con trol uni t, w ith i ntegr ated cr ash sen sors fo r front
and side impacts. The contro l unit "dec ides" w het her to fire the front
air bag s base d on th e inf ormati on re ceived from t he cr ash sensors.
T he control unit also "decides" whether the saf ety b elt pret ensio ners
sh ould be ac tiva ted.
• An Advanced Airbag with gas generator for the dr ive r inside the
stee ring w hee l hub .
• An Advanced Airbag with gas generator inside the inst rument
p ane l for the fron t passenge r.
• A weig ht-sensing mat under the upholste ry padd ing of the front
passenge r seat cushi on th at m easures the tota l we ig ht on t he seat.
The informat ion registe red is se nt co ntinuo us ly to the electronic
contr ol un it to r egulat e dep lo ym en t of th e fr ont Adv anced A irbag on
the passenger side .
• An a irbag moni to ring system a nd ind icator light in the inst rume nt
cl uster =>
page 217.
• The PASSENGER AIR BAG OFF light comes on an d stays o n in the
center o f the instr ument panel =>
page 218, fig. 215 an d tells you
whe n the fr ont Ad van ced Air bag on the p assenge r sid e has bee n
t ur ned off.
• A senso r bel ow th e saf ety b elt la tch fo r the front s eat pa ss e ng er
to meas ure the tension on the safety be lt . Th e tens io n on the safety
bel t an d t he we ight regi stered by the we ig ht- se ns ing mat he lp t he
cont rol un it "dec ide" whether the front airbag fo r th e front
pa ssenger se at sh o uld be tur ned o ff o r no t =>
p age 20 8, "Ch ild
restraints on t he front seat -some important thi ngs to know". ...
Vehicle care Do-it-yourself service Technical data

........ _A_ ir_ b_ a-=g :..- s.:o.y _s _t _e_ m _______________________________________________ _
• A sensor in the safety belt latch for t he driver and for the front
sea t passenge r that senses w hether t hat s afe ty bel t is la tc h ed or not
and transmits this information to the electron ic cont rol un it .
& WARNING
Damage to the front passenger seat can prevent the front airbag
from working properly .
• Improper repair or disassembly of the front passenger and
driver seat will prevent the Advanced Airbag Sy stem from func ­
tioning properly.
• Repairs to the front passenger seat mu st be performed by qual­
ified and properly trained wo rkshop personnel.
• Never remove the front passenger or driver seat from the
vehicle.
• Never remove the uphol stery from the front passenger seat.
• Never disas semble or remove parts from the seat or disconnect
wires from it.
• Never carry sharp object s in your pockets or place them on th e
seat.
If the weight -sens ing mat in the passenger seat is punctured
it cannot work properly.
• Never carry things on your lap or carry objects on the passenger
s eat. Such items can in crease the weight regi stered by the weight ­
sensing mat and send the wrong information to the airbag control
unit.
• Never store items under the front passenger seat. Parts of the
Advan ced Airbag Sy stem under the pass enger seat could be
damaged, prevent ing them and the airbag system from working
properly.
• Never place seat covers or replacement upholstery that have
not been specifically approved by Audi on the front seat s.
• Seat covers can prevent the Advanced Airbag System from
recognizing child re straints or occupants on the front pas senger
seat and prevent the side airbag in the seat backrest from
deploying properly .
& WARNING (c on tinued )
• Never u se cushions , pillow s, blankets or s imilar items on the
front passenger seat . The additional padding will prevent the
weight-sens ing mat in the seat from accurately registering the
child restraint or person on the seat and prevent the Advan ced
Airbag System from functioning properly .
• If you must use a child restraint on the front passenger seat
and the child restraint manufacturer's instructions require the use
of a towel, foam cushion or something else to properly po sition
the child restraint , make certain that the PASSENGER AIR BAG
OFF light come s on and stay s on whenever the child re straint is
i nstalled on the front passenger seat.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on , immediately install child restraint in a rear seating posi­
tion and have the airbag system inspected by your Audi dealer. •
How the Advanced Airbag System
components work together
Th e front Advanced A irbag System and the side airbags sup plement
the protect ion offered by the fro nt three -po int safety belts with
pretens ioners and load lim iters a nd the adjustable head restra ints to
he lp red uce the risk of i nju ry in a wide range of accident and crash
si tua tions. Be su re to re ad the impo rtan t info rmat ion about safe ty
and heed the WARNINGS in this c hapter.
Deploy ment o f the Advan ced Air bag Sys tem and t he activ ation o f the
safety belt pretensioners depend on the deceleration measured by
the crash sensors and registered by the electronic contro l u ni t. Crash
sever ity depe nds on speed and decelerat ion as well as the mass a nd
st iffness of the ve hicle or object invo lve d in the crash.
W hen the elect ronic contro l uni t reg isters a low sever ity cras h and
the safety belt is being used, the airbag will not dep loy . If the safety
be lt i s no t being used , the fi rs t sta ge dep loy s, followed by t he second
stage after a much later time in the crash sequence. ..

______________________________________________ ___:.A:::::.:.: ir:....: b~ a~g !....= s:ly '..:s~ t~ e~ m~ ---
& WARNING (co ntinued )
• Always make sure that the side airbag can inflate without
interference:
-Never install se at covers or replacement upholstery over the
front seatbacks that have not been specifically approved by
Audi .
- Never use additional seat cushions that cover the areas
where the side airbags inflate .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
• The airbag sy stem can be activated only once. After an airbag
has inflated, it must be replaced by an authorized Audi dealer or
qualified technician who has the technical information , training
and special equipment necessary.
• The airbag sy stem can be deployed only onc e. After an airbag
has been deployed, it must be replaced w ith new replacement
parts de signed and approved es pecially for your Audi model
version . Replacement of complete airbag systems or airbag
components must be performed by qualified workshops only.
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD.
• For safety reasons in severe accidents, the alternator and
starter are separated from the vehicle battery with a pyrotechni c
circuit interrupter .
- Work on the pyrotechnic circu it interrupter must only be
performed by a qualified dealer -risk of an a ccident!
- If the vehicle or the circu it interrupter is scrapped, all appli­
cable safety precautions must be followed .
Controls and equip­ ment Safety first Vehicle operation
<£' For the sake of the environment
U
ndeployed airbag modules and pretens io ners mig ht be classified as
Perch lorate Material -sp ec ial handling may a pply, see
www.d ts c. ca.gov/ha za rdouswaste/pe rchlorate . W he n t he vehicle or
parts of the restraint system including airbag modules and safety
bel ts wi th prete nsio ners are scra pped, all applica ble laws an d regula­
tions m ust be observed. Your authorized Aud i dea ler is familiar with
t hese requireme nts and we recommend tha t you have you r dealer
perform this service for you. •
Other things that can affect Advanced
Airbag performance
Chang ing the ve hicle's suspension system can change the way that
t he Adv anced Airbag System pe rforms in a crash . For example, using
tire-r im combinations not approved by Aud i, lower ing t he veh icle,
c hang ing the st iffness o f the suspe nsio n, incl uding the s prings,
s u spension str uts, shoc k absorbe rs etc. can change the forces that
are meas ured by the airb ag sensors and sen t to the ele ctron ic con trol
uni t. Some suspension changes ca n, for examp le, increase the force
levels measu red by t he sensors and ma ke the airbag sys tem dep loy in
crashes in which it wou ld not deploy if the changes had not bee n
made . Other kin ds of c hanges may re duce the force levels meas ured
by the senso rs and p revent the airbag from dep loyi ng when it should .
The sensors in the safety belt buckle for the d river and front
p assenger se at tell the e le ct ro nic co ntro l mo dule if the sa fe ty belt is
latc hed or not . If the safety be lt is be ing used, the fron t airbag w ill
dep loy at a s ligh tly hig her ra te o f ve hicl e decelerat io n t han if the
safety belt is not be ing us ed. T he refo re, in a part icular collis io n, it is
poss ible that an a irbag wi ll not deploy at a seating posit ion where the
safety belt is being used but wi ll inflate at the posi tion whe re the
safety belt is not bei ng used. It is important that not hing interfere
w ith the s afe ty be lt bu ckles so t hat th e sensor s can sen d the correct
information about safety belt use to the electronic contro l unit. ..
Vehicle care Do-it-yourself service Technical data
