Exterior Trim (01.08)
Body System (01.00)
May 2007 Workshop Manual 1-5-3

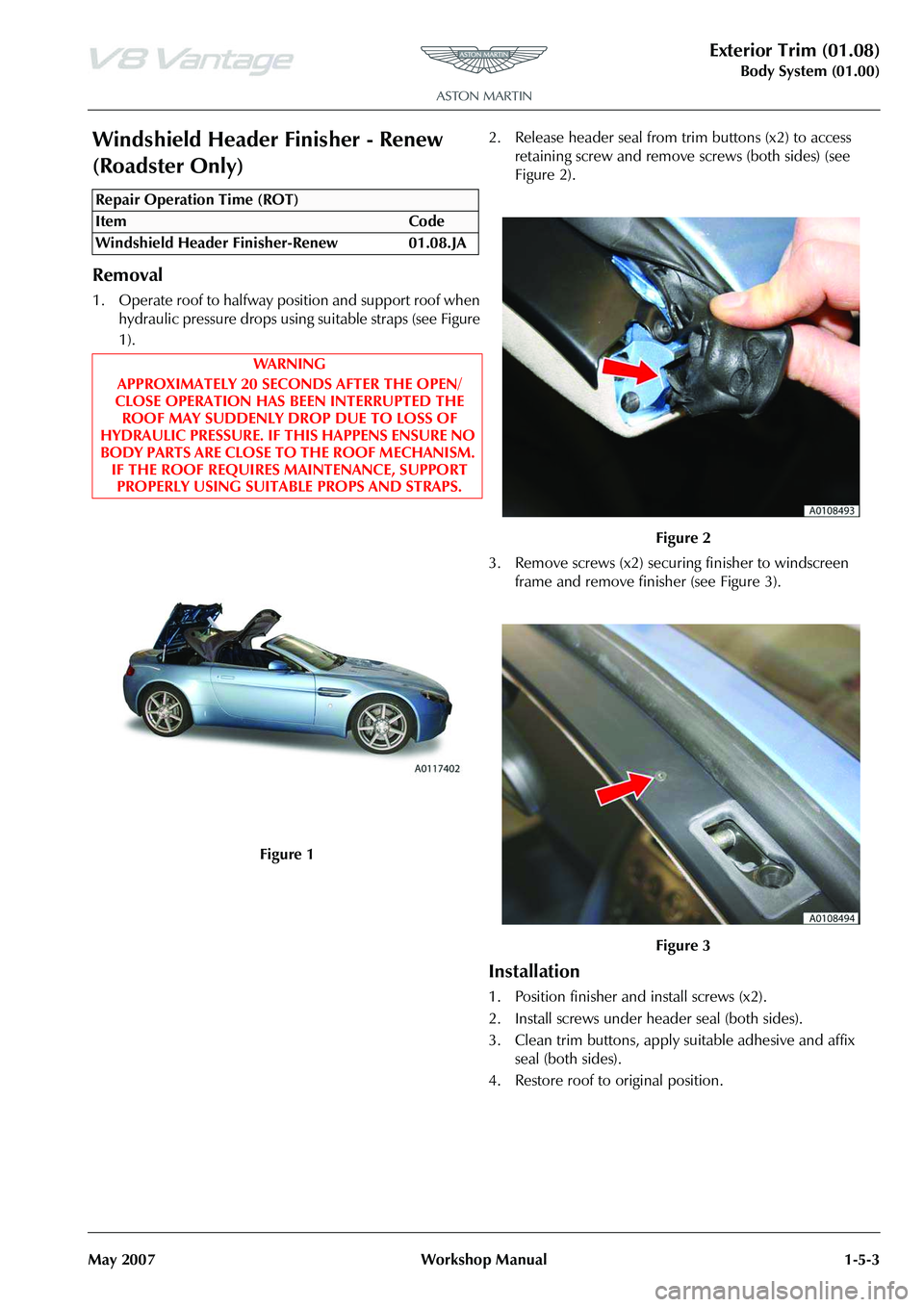

Windshield Header Finisher - Renew
(Roadster Only)
Removal
1. Operate roof to halfway position and support roof when hydraulic pressure drops using suitable straps (see Figure
1). 2. Release header seal from tr
im buttons (x2) to access
retaining screw and remove screws (both sides) (see
Figure 2).
3. Remove screws (x2) securi ng finisher to windscreen
frame and remove finisher (see Figure 3).
Installation
1. Position finisher and install screws (x2).
2. Install screws under header seal (both sides).
3. Clean trim buttons, apply suitable adhesive and affix seal (both sides).
4. Restore roof to original position.
Repair Operation Time (ROT)
Figure 2
Figure 3

Wipers and Washer System (01.16)
Body System (01.00)
Issue 4, November, 2008 Workshop Manual 1-11-1
Body System (01.00)
Wipers and Washer System (01.16)
The wipers and washers system consists of the following
components:
• Wipers and washers
• Mounting arm and pivot shaft
•Wiper motor
• Reservoir and washer pump
• Headlamp washing system
The wipers have two speed control (low and high) and an
intermittent wipe mode. The wi pers will park automatically
irrespective of their position when the ‘OFF’ position of the
ignition or control switch is selected.
Within the wiper and washer sy stem the following features
can be attained:
• Adjustable interval intermittent wiping
The intermittent wiping has six speed settings, 3, 6, 9,
12, 15, 18 seconds.
• Programmable wash and wipe sequences The programmable wash and wipe sequence is driver
controlled. With a depression of the wash/wipe switch
between 40 milliseconds and 1.2 seconds the wash
pump will be activated for a duration of 1.2 seconds.
When the wash/wipe switch is depressed for longer than
1.2 seconds the wash pump will be activated for the
duration of switch depression
, a 10 second duration is
the maximum available.
• Vertical wiper park routine to aid servicing the wiper blades.
Hold buttons 8 and 9 (centre console) on continuously
for 500ms within 3 seconds of switching the ignition
‘ON’. Once ignition is ‘ON’ the wipers will move to the
most vertical position. To cancel simply switch ‘OFF’
ignition or switch wiper switch from ‘OFF’ position.
The wiping system is automatically activated with the
depression of the wash switch.
Headlamp Washing
Headlight washers will operate automatically on operation
of the windscreen washers. After one operation of the
headlamp washers they will not operate for 16 minutes, after which they will be available on the next operation of the
windscreen washers.
Headlamp washing is only available when the headlamps
are switched on.Wipers must be in ‘OFF’ pos
ition before continuing with
procedure.
Wiper Motor Wipers and
Washers
Wiper Arm Assemblies
Reservoir
Headlamp
Washer Pump
Headlamp
Washer Jet
Headlamp
Washer Tube
01-16-001

Wipers and Washer System (01.16)
Body System (01.00)1-11-2 Workshop Manual Issue 4,November, 2008
Specifications
Maintenance
Windscreen Wiper Motor Assembly -
Renew
Removal
1. Remove wiper linkage.
2. Remove arm from motor (nut x1).
3. Remove motor from plate (bolts x3).
Installation
1. Install motor to plate (bolts x3).
2. Ensure wiper motor is in the ‘PARK’ position.
3. Install arm from motor (nut x1), using special tool.
4. Install wiper linkage.
Wiper Linkage Assembly - Renew
Removal
1. Remove brake booster (see Workshop Manual procedure 06.07.DE/06.07.DG Master Cylinder and
Vacuum Booster - Brake - Renew).
2. Remove inlet manifold (see Workshop Manual procedure 03.01.BB/03.01.BF Gasket - Manifold
Assembly - Intake Upper - Renew).
3. Remove wiper arm drivers si de (see Workshop Manual
procedure 01.16.AD Arm Asse mbly - Wiper - Driver -
Renew).
4. Remove wiper arm passengers side (see Workshop Manual procedure 01.16.AE Arm Assembly - Wiper -
Passenger - Renew).
5. Unclip expansion tank hose for access. 6. Remove sound deadening (trim buttons x6).
7. Remove seal from spindle.
8. Remove nuts (x2) from heatshield to move aside.
9. Unclip wiper motor harness (x2) LHS.
10. Unclip windscreen heater harness RHS.
11. Disconnect motor multiplu
g and unclip harness (x2).
12. To prevent damage, protect A/C pipe with tape before
wiper linkage removal.
13. Remove plate securing scre ws (x10) (through plenum).
14. Remove plate securing bolts (x8) (under bonnet).
15. Remove wiper linkage.
Installation
1. Install wiper linkage.
2. Install plate securing bolts (x8) (under bonnet).
3. Install plate securing scre ws (x10) (through scuttle
panel).
4. Connect motor multiplug and clip harness (x2).
5. Clip harness LHS.
6. Clip harness RHS.
7. Refit heatshield and install nuts (x2).
8. Install seal to spindle.
9. Install sound deadening (re-stick, trim buttons x6).
10. Clip expansion tank hose.
11. Install wiper arm drivers side (see Workshop Manual procedure 01.16.AD Arm Assembly - Wiper - Driver -
Renew).
12. Install wiper arm passengers side (see Workshop Manual
procedure 01.16.AE Arm Asse mbly - Wiper - Passenger
- Renew).
13. Install inlet manifold (see Workshop Manual procedure 03.01.BB/03.01.BF Gasket - Manifold Assembly - Intake
Upper - Renew).
14. Install brake booster (see Workshop Manual procedure 06.07.DE/06.07.DG Master Cylinder and Vacuum
Booster - Brake - Renew).
Windshield Wash Tube - Renew
Removal
1. Remove RH wheel arch liner (see Workshop Manual Procedure 01.02.GB Wheel Arch Liner - Front - RH -
Renew).
2. Place container to catch fluid.
Torque Figures
DescriptionTorque Figure (Nm)
Wiper motor crank to motor 35-42Nm
Wiper motor to cowl panel 7-10Nm
Wiper assembly plate 6Nm (M6 Torx) 8Nm (M6 Bolt)
Brake servo nuts 21-24Nm
Brake master cylinder nuts 25
Wiper arm (Driver) 13-17Nm (M8 Nut)
Wiper arm (Passenger) 20-26Nm (M10 Nut) 5-7Nm (M6 Bolt)
Repair Operation Time (ROT)
Repair Operation Time (ROT)
Repair Operation Time (ROT)
ItemCode
Windshield Wash Tube-Renew 01.16.CB
