2010 Alfa Romeo Brera/Spider Owner handbook (in English)

79
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARResetting the power supply
cut-off switch
(for versions/markets,
where provided)The switch is located inside the fuse box
at battery positive terminal.
To reset the power supply cut-off switch,
proceed as follows:
❒press button A-fig. 53to reset the
fuel cut-off switch;
❒open the bonnet;
A0F0126mfig. 54
Before resetting the
power supply cut-off
switch carefully inspect the car
for fuel leaks or damages to
electric devices (e.g. head-
lights).
WARNING
A0F0071mfig. 55
❒operate the retaining clips A-fig.
54and remove the protection cov-
erB;
❒press buttonC-fig. 55to reset the
power supply.

80
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
INTERIOR FITTINGS
CENTRAL ARMREST
The central armrest is located between
the front seats. Inside the armrest is
housed an air-conditioned food box (for
versions/markets, where provided)
(see next paragraph).
A0F0141mfig. 57
Pay attention not to
spill the drinks into the
food box.
A0F0039mfig. 56
Air-conditioned food box
(for versions/markets,
where provided)
The food box is located inside the cen-
tral armrest. Turn wheel A-fig. 57 to
adjust the air flow inside the food box.
IMPORTANTFunction of the food
box is to keep the temperature of the
drinks placed inside it; drinks shall be
warmed or cooled as required before be-
ing put inside the food box. Oddment compartment
To open the oddment compartment,
press button A-fig. 56and raise the
coverB.

81
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARREAR ARMREST
To use the armrest A-fig. 58lower it
as shown in the figure.
A0F0139mfig. 58
Ski compartment
This compartment can be used for car-
rying long loads.
To have access to this compartment,
lower the armrest, pull the tab
A-fig. 59of the lid, then lower it on
the armrest.
A0F0142mfig. 59
GLOVE COMPARTMENT
To open the glove compartment use lever
A-fig. 60. When opening the glove
compartment, the courtesy light inside it
will turn on. Leaving inadvertently open
the glove compartment, this light will turn
off automatically after a few minutes. The
folding top is also provided with a recess
for a pen or a pencil.
A0F0149mfig. 60
Do not travel with the
glove compartment open;
it could harm the pas-
senger in the event of an acci-
dent.

82
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARASHTRAY AND CIGAR
LIGHTER
Ashtray
To use the ashtray, lift cover A-fig. 61.
The ashtray can be removed. Pull it up-
wards to removeit.
IMPORTANTDo not use the ashtray
as paper bin: it could set on fire on con-
tact with cigarette stubs.
A0F0140mfig. 61
Cigar lighter
It is located inside the cigar lighter. To
use the cigar lighter, lift cover A-fig.
61.
Press button Bto switch on the cigar
lighter with key fitted into ignition de-
vice.
IMPORTANTAlways check that the
cigar lighter has turned off.
IMPORTANTThe cigar lighter gets
very hot. Handle it with care and make
sure that it is not used by children: dan-
ger of fire and/or burns.
IMPORTANTDo not plug electric ac-
cessories with power exceeding 100W
to the cigar lighter seat.
IMPORTANTPlugs too big could
damage the cigar lighter outlet tabs.
Do not plug electric ac-
cessories with absorp-
tion exceeding the max.
specified value. Prolonged cur-
rent absorption could drain the
battery and impair next engine
start up.
IMPORTANTTo safeguard the light-
ing life of certain internal devices (e.g.:
cigar lighter ring and ashtray), when
switching on the external lights, these
devices will switch on according to the
passenger's compartment brightness:
with enough daylight these devices will
not switch on. On the contrary they will
switch on with poor daylight.

83
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
ODDMENTS
COMPARTMENTS
Front
They are located on the central console
fig. 62 and on front doorsfig. 63
(one per door).
A0F0101mfig. 62
A0F0248mfig. 63
A0F0245mfig. 64
A0F0246mfig. 65
A0F0264mfig. 66
SUN VISORS
These are positioned to the sides of the
rear-view mirror. They can swing to the
sides and up or down.
On certain versions, sun visors are fitted
on the back with a courtesy mirror and
a light which enables to use the mirror
also with poor sunlight.
To use the mirror open cover A-fig.
66.
Mirror lights will turn on automatically
when lifting the cover and they will turn
off when lowering it or few minutes af-
ter removing the electronic key from the
ignition device. Rear
They are located on the central console
fig. 64and near the rear seats fig.
65.

84
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

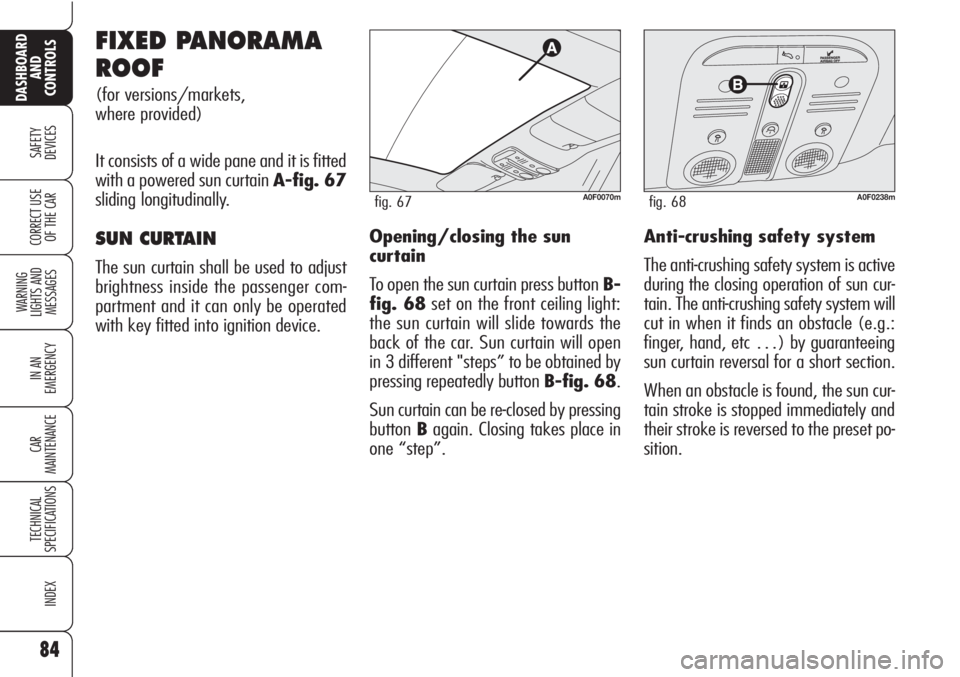

FIXED PANORAMA
ROOF
(for versions/markets,
where provided)
It consists of a wide pane and it is fitted
with a powered sun curtain A-fig. 67
sliding longitudinally.
SUN CURTAIN
The sun curtain shall be used to adjust
brightness inside the passenger com-
partment and it can only be operated
with key fitted into ignition device.Opening/closing the sun
curtain
To open the sun curtain press button B-
fig. 68set on the front ceiling light:
the sun curtain will slide towards the
back of the car. Sun curtain will open
in 3 different "steps” to be obtained by
pressing repeatedly button B-fig. 68.
Sun curtain can be re-closed by pressing
buttonBagain. Closing takes place in
one “step”.Anti-crushing safety system
The anti-crushing safety system is active
during the closing operation of sun cur-
tain. The anti-crushing safety system will
cut in when it finds an obstacle (e.g.:
finger, hand, etc …) by guaranteeing
sun curtain reversal for a short section.
When an obstacle is found, the sun cur-
tain stroke is stopped immediately and
their stroke is reversed to the preset po-
sition.
A0F0070mfig. 67A0F0238mfig. 68

85
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
SUN CURTAIN
INITIALISATION
PROCEDURE
Initialisation
After disconnecting the battery or failing
the protection fuse, the sun curtain sys-
tem shall be "initialised" again; proceed
as follows (the following steps shall be
carried out with engine on):
❒close the sun curtain completely:
– if the anti-crushing safety system
has cut in;
– "force" closing by keeping pressed
the button in closing position;
– 10 seconds after the sun curtain
will close jerkily (during this stage,
continue to keep the button
pressed);
– when the sun curtain stops, re-
lease the button and proceed as
follows;
❒remove the key from the ignition de-
vice for 10 seconds;
❒refit the key and start the engine;
❒press the sun curtain button in clos-
ing position and keep it pressed un-
til hearing the mechanical lock
(about 10 seconds after);
❒release the sun curtain button;
❒press again the sun curtain button in
CLOSING position within 3 seconds;
❒keep the button pressed in this po-
sition: the sun curtain will automat-
ically open and close completely
(keep on pressing the button during
the WHOLE opening/closing cycle);
❒then, release the button;
❒initialisation ended.
Should the opening/closing cycle fail,
repeat the initialisation operations from
the beginning.
MAINTENANCE
Sun curtain slide guides shall be cleaned
at regular intervals to remove any for-
eign matters that could impair regular
sliding.
IMPORTANT
Clean slide guides in order to remove
any foreign matters and dust.
Should slide guides be cleaned with sol-
vents/oil then, grease again sliding
mechanisms, wires, cables and also the
sliding components like the sun curtain
slide runners.
To clean the sun curtains, use common
fabric cleaning products for car uphol-
stery.

86
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

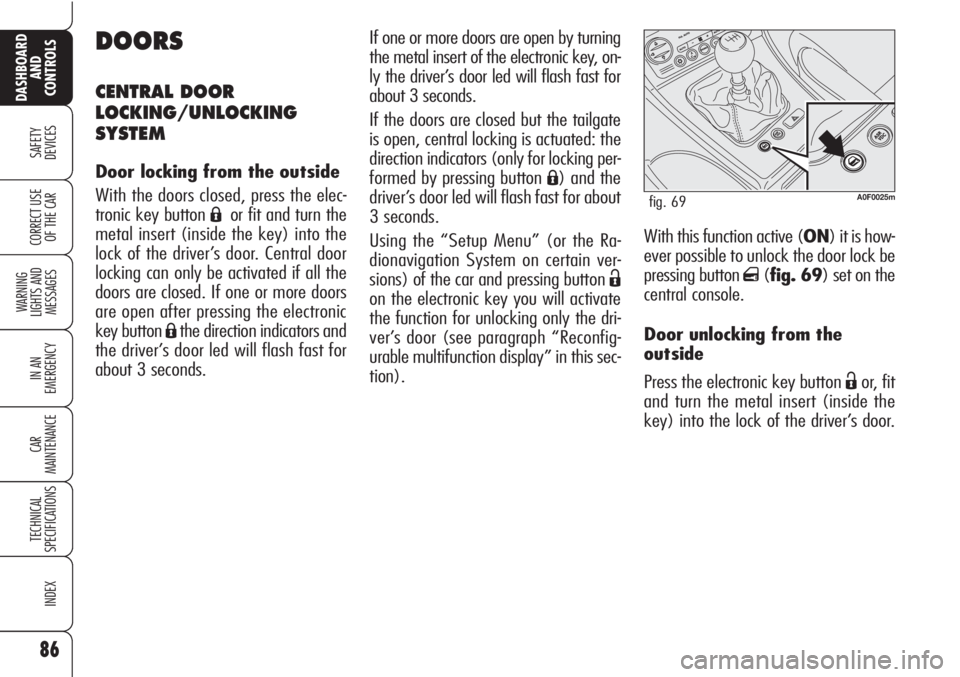

OF THE CARWith this function active (ON) it is how-
ever possible to unlock the door lock be
pressing button
q(fig. 69) set on the
central console.
Door unlocking from the
outside
Press the electronic key button
Ëor, fit
and turn the metal insert (inside the
key) into the lock of the driver’s door.
DOORS
CENTRAL DOOR
LOCKING/UNLOCKING
SYSTEM
Door locking from the outside
With the doors closed, press the elec-
tronic key button
Áor fit and turn the
metal insert (inside the key) into the
lock of the driver’s door. Central door
locking can only be activated if all the
doors are closed. If one or more doors
are open after pressing the electronic
key button
Áthe direction indicators and
the driver’s door led will flash fast for
about 3 seconds.
A0F0025mfig. 69
If one or more doors are open by turning
the metal insert of the electronic key, on-
ly the driver’s door led will flash fast for
about 3 seconds.
If the doors are closed but the tailgate
is open, central locking is actuated: the
direction indicators (only for locking per-
formed by pressing button
Á) and the
driver’s door led will flash fast for about
3 seconds.
Using the “Setup Menu” (or the Ra-
dionavigation System on certain ver-
sions) of the car and pressing button
Ë
on the electronic key you will activate
the function for unlocking only the dri-
ver’s door (see paragraph “Reconfig-
urable multifunction display” in this sec-
tion).
