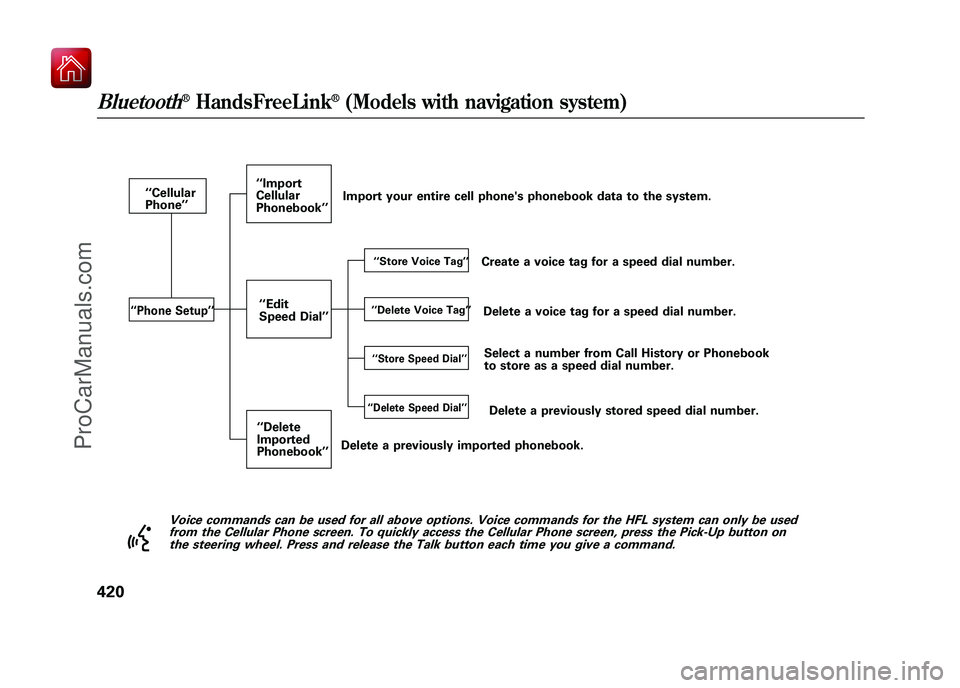

2010 ACURA ZDX navigation system

‘‘Cellular
Phone ’’‘‘Phone Setup ’’
‘‘Import
Cellular
Phonebook ’’
‘‘ Edit
Speed Dial ’’
‘‘ Delete
Imported
Phonebook ’’
‘‘Store Voice Tag ’’
‘‘ Delete Voice Tag ’’‘‘Store Speed Dial ’’
‘‘ Delete Speed Dial ’’
Import your entire cell phone's phonebook data to the system.
Create a voice tag for a speed dial number.Delete a voice tag for a speed dial number.Select a number from Call History or Phonebook
to store as a speed dial number.
Delete a previously stored speed dial number.
Delete a previously imported phonebook.
Voice commands can be used for all above options. Voice commands for the HFL system can only be used from the Cellular Phone screen. To quickly access the Cellular Phone screen, press the Pick-Up button onthe steering wheel. Press and release the Talk button each time you give a command.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

‘‘Cellular
Phone ’’ ‘‘
Dial’’ Enter a phone number to dial.
‘‘Dial ’’
‘‘ Dial ’’
Send numbers or names during a call.
‘‘ Mute ’’ Mute your voice during a call.
‘‘ Transfer ’’Transfer a call from HFL to your phone,
or from your phone to HFL.
‘‘ Phonebook ’’
‘‘ Call History ’’Display the paired phone's previously imported phonebook (or import a new one).
Speed dial
entries
‘‘ More Speed
Dial ’’ ‘‘
Eric ’’
ꭧ
‘‘Mike ’’
ꭧ
‘‘Lisa ’’
ꭧ
‘‘John ’’
ꭧ
Display a list of all 20 speed dial entries. The first 4 speed dial numbers are shown
on the Cellular Phone screen.
Voice commands can be used for all above options. Voice commands for the HFL system can only be used
from the Cellular Phone screen. To quickly access the Cellular Phone screen, press the Pick-Up button onthe steering wheel. Press and release the Talk button each time you give a command.
Display the last 30 incoming, outgoing, or missed calls.
ꭧ: Example
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
421
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Use HFL, you need to pair your
Bluetooth-compatible cell phone to
the system.
HFL uses a Class 2 Bluetooth, which
means the maximum range between
your phone and vehicle is 30 feet (10
meters).Cellular Phone
Press the PICK-UP button to go
directly to the Cellular Phone screen.Phone Setup
This menu group is for phone
pairing, and user, phonebook, and
speed dial editing.
Select
‘‘PHONE SETUP ’’from the
Cellular Phone screen.
PHONE SETUP
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Setup Bluetooth PhoneTo pair a cell phone:1. Select‘‘Setup Bluetooth Phone ’’
from the Phone Setup screen.
2. Select ‘‘Pair Phone. ’’
3. HFL gives you a 4-digit pass-key that you will need to input on your
phone.
4. Put your cell phone in ‘‘Discovery ’’
or ‘‘Search ’’mode, and search for a
Bluetooth device.
5. When your phone prompts you, input the 4-digit pass-key.
6. You will receive a notification on the screen and your phone if
pairing is successful.
Phone pairing tips:●You cannot pair your phone while
the vehicle is moving.●Up to six phones can be paired.●Your phone's battery may drain
faster when it is paired to HFL.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
423
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Change the pass-key setting:1. Select‘‘Setup Bluetooth Phone ’’
from the Phone Setup screen.
2. Select ‘‘Pass-Key. ’’
NOTE: The default pass-key ‘‘0000 ’’
is used until you change the setting.
For a randomly generated pass-key
each time you pair a phone, select
‘‘ Random. ’’
To create your own pass-key, select
‘‘Fixed ’’and follow step 3 and 4.
3. Delete the current pass-key.
4. Enter a new pass-key, and select ‘‘OK. ’’
To delete a paired phone:1. Select ‘‘Setup Bluetooth Phone ’’
from the Phone Setup screen.
2. Select ‘‘Delete a phone. ’’
3. Select the phone you want to delete. The Bluetooth icon shows
you the currently linked phone.
4. A trash icon appears next to the select phone. Select ‘‘OK ’’to
continue.
DELETE THE NUMBER FIRST
TRASH ICON
BLUETOOTH ICON
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Search for Next Connected PhoneTo change from the currently linked
phone to another paired phone,
select‘‘Search a Next Connected
Phone ’’on the Phone Setup screen.
HFL disconnects the linked phone
and starts searching for another
paired phone.
If no other paired phone is found,
HFL will automatically link the
previous phone.
Edit User/PINYou can name up to six HFL users.
Each can be PIN protected, and have
its own phonebook, speed dial, and
call history.Select the user you want to edit on
the Cellular Phone screen.
If the user your selected is PIN-
protected, the speed dial list
becomes ‘‘
ꭧꭧꭧꭧ
.’’
To name a user:1. Select ‘‘Edit User/PIN ’’from the
Phone Setup screen.
2. Select ‘‘Name. ’’
3. Enter a user name, and select ‘‘OK ’’when complete.
SELECT A USER NAME
SPEED DIAL LIST
WHEN PIN-PROTECTED
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
425
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To create a PIN for each user:When you set a PIN for a user, you
will be asked to enter the PIN every
time you select the user on the
Cellular Phone screen.1. Select‘‘Edit User/PIN’’ from the
Phone Setup screen.
2. Select ‘‘PIN.’’
3. Enter a 4-digit PIN, re-enter it, and select ‘‘OK. ’’ If you select
‘‘DO NOT USE PIN ’’
before entering any number, the user
will not have a PIN.
If the user is already PIN-protected,
you need to enter the current PIN
before creating a new one.
To delete a user:Deleting a user will delete all setting,
such as call history and phonebook.
1. Select ‘‘Edit User/PIN ’’from the
Phone Setup screen.
2. Select ‘‘Delete. ’’
3. Follow the prompts to complete the deletion.
Bluetooth
®HandsFreeLink
®(Models with navigation system)
42609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Import Cellular Phonebook(available on some phones)The entire phonebook data (up to
10,000 numbers for 1,000 names) of
the cell phone that is linked to HFL
can be imported to the system.1. Select ‘‘Import Cellular
Phonebook ’’from the Phone Setup
screen.
2. HFL begins importing the phonebook. Select ‘‘OK ’’after the
import is completed. Up to three category icons appear
next to the phonebook entries
ꭧ.
These indicate how many numbers
are stored for the name. If a name
has more than three category icons,
‘‘
.... ’’is displayed.
ꭧ : Available on some phones.
Edit Speed DialUp to 20 speed dial numbers can be
stored per user, and the first four
numbers are displayed on the
Cellular Phone screen.
Select a ‘‘No Entry’’ field to store a
speed dial entry, or use the following
procedure.
Preference
Home
Mobile
Work
Pager Fax
Car
Voice
Other
The first four speed dial entries
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
427
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
