2010 ACURA ZDX navigation system

Press and release the HFL Talk button each time you give a command.
ꭧ : Canadian models
Press HFL
Talk button
‘‘
System
Setup ’’
‘‘ Change Language ’’
‘‘ Tutorial ’’
‘‘ Hands Free Help ’’‘‘
Security ’’
‘‘ Change Passcode ’’
‘‘ Call Notification ’’
‘‘ Auto Transfer’’
‘‘ Clear ’’ Apply a security passcode to the system that must be input
at each key cycle to access the system (See page 412)
Change your security passcode (See page 413)
Set how you would like to be notified of an incoming call
(See page 413)
Set calls to automatically transfer from your phone to HFL
when you enter the vehicle (See page 413)
Clear the system of all paired phones, phonebook entries and
security passcode (See page 414)
Change language from English to French (See page 414)
ꭧ
Hear a tutorial for general rules on using the system (See page 400)
Hear a list of available commands and additional information describing
each command (See page 400)
Bluetooth
®HandsFreeLink
®(Models without navigation system)
40409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To Use HFL, you need to pair your
Bluetooth-compatible cell phone to
the system.
Phone Setup
This command group is available for
paired cell phones.Phone pairing tips●You cannot pair your phone while
the vehicle is moving.●Your phone must be in discovery
or search mode to pair. Refer to
your phone's manual.●Up to six phones can be paired.●Your phone's battery may drain
faster when it is paired to HFL.●If after three minutes your phone
is not ready to pair or a phone is
not found, the system will time out
and return to idle.
To pair a cell phone:1. Press and release the HFL Talkbutton. If you are pairing a phone
for the first time, HFL will give you
information about the pairing
process. If it is not the first phone
you are pairing, say ‘‘Phone
setup ’’and say ‘‘Pair. ’’
2. Follow the HFL prompts and put your phone in discovery or search
mode. HFL will give you a 4-digit
pairing code and begin searching
for your phone.
3. When your phone finds a Bluetooth device, select HFL from
the options and enter the 4-digit
code from the previous step.
4. Follow the HFL prompts and name the newly paired phone.
To rename a paired phone:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phone setup. ’’
2. Say ‘‘Edit’’ after the prompts.
3. If there is more than one phone paired to the system, HFL will ask
you which phone's name you want
to change. Follow the HFL
prompts and rename the phone.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
405
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To delete a paired phone:Press and release the HFL Talk
button before a command.1. Say ‘‘Phone setup. ’’
2. Say ‘‘Delete’’ after the prompts.
3. HFL will ask you which phone you want to delete. Follow the HFL
prompts to continue with the
deletion.
To hear the names of all pairedphones:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phone setup. ’’
2. Say ‘‘List ’’after the prompts.
3. HFL will read out all the paired phone's names.
To hear which paired phone iscurrently linked:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phone setup. ’’
2. Say ‘‘Status ’’after the prompts.
3. HFL will tell you which phone is linked to the system.
Bluetooth
®HandsFreeLink
®(Models without navigation system)
40609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

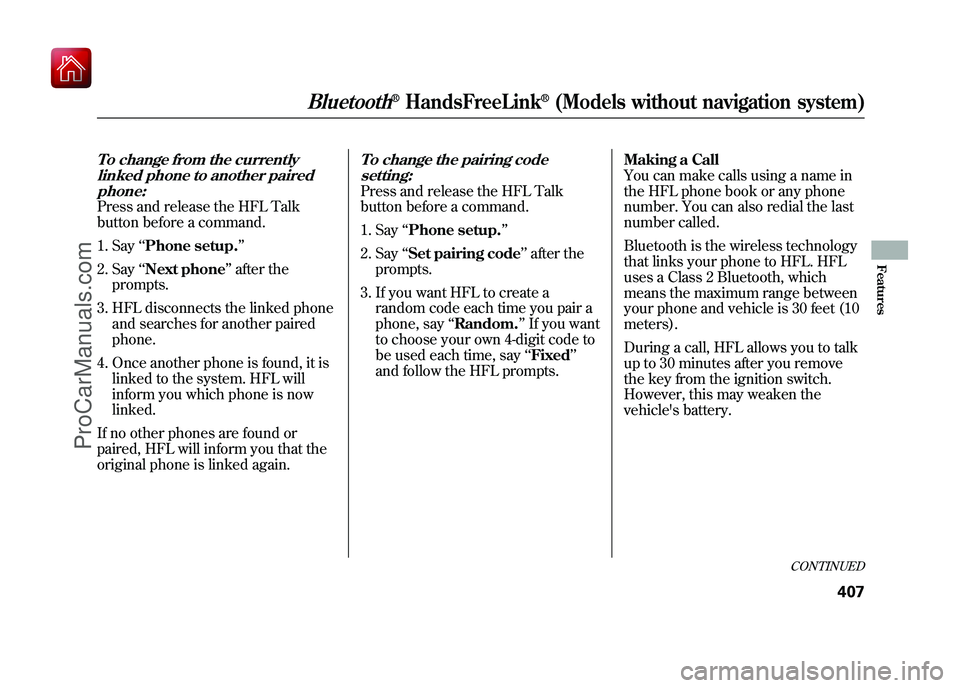

To change from the currentlylinked phone to another pairedphone:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phone setup. ’’
2. Say ‘‘Next phone ’’after the
prompts.
3. HFL disconnects the linked phone and searches for another paired
phone.
4. Once another phone is found, it is linked to the system. HFL will
inform you which phone is now
linked.
If no other phones are found or
paired, HFL will inform you that the
original phone is linked again.
To change the pairing code setting:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phone setup. ’’
2. Say ‘‘Set pairing code ’’after the
prompts.
3. If you want HFL to create a random code each time you pair a
phone, say ‘‘Random. ’’If you want
to choose your own 4-digit code to
be used each time, say ‘‘Fixed ’’
and follow the HFL prompts. Making a Call
You can make calls using a name in
the HFL phone book or any phone
number. You can also redial the last
number called.
Bluetooth is the wireless technology
that links your phone to HFL. HFL
uses a Class 2 Bluetooth, which
means the maximum range between
your phone and vehicle is 30 feet (10
meters).
During a call, HFL allows you to talk
up to 30 minutes after you remove
the key from the ignition switch.
However, this may weaken the
vehicle's battery.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
407
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To make a call using a name in theHFL phonebook:Press and release the HFL Talk
button before a command.
1. Say ‘‘Call ’’or ‘‘Dial. ’’
2. Follow the HFL prompts and say the name stored in the HFL
phonebook that you want to call.
3. Follow the HFL prompts to confirm the name and make the
call.
To make a call using a phonenumber:Press and release the HFL Talk
button before a command.
1. Say ‘‘Call ’’or ‘‘Dial. ’’
2. Follow the HFL prompts and say the phone number you want to
dial.
3. Follow the HFL prompts to confirm the number and say ‘‘Call ’’
or ‘‘Dial. ’’
Once connected, you will hear the
person you called through the audio
speakers.To redial the last number called by HFL:Press and release the HFL Talk
button and say ‘‘Redial. ’’ Receiving a Call
When you receive a call, an incoming
call notification (if activated) will play
and interrupt the audio system if it is
on.
Press the HFL Talk button to answer
the call, or the HFL Back button to
hang up.
Bluetooth
®HandsFreeLink
®(Models without navigation system)
40809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Call WaitingIf your phone has Call Waiting, press
and release the HFL Talk button to
put the original call on hold and
answer the incoming call.
To return to the original call, press
the HFL Talk button again. If you
don't want to answer the incoming
call, disregard it and continue with
your original call. If you want to hang
up the original call and answer the
new call, press the HFL Back button.Transferring a Call
You can transfer a call from HFL to
your phone, or from your phone to
HFL.
Press and release the HFL Talk
button and say
‘‘Transfer. ’’ Muting a Call
You can mute your voice to the
person you are talking to during a
call.
To mute your voice during a call,
press and release the HFL Talk
button and say
‘‘Mute. ’’
To unmute your voice, press and
release the HFL Talk button and say
‘‘ Mute ’’again.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
409
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Send Numbers or Names During
a Call
HFL allows you to send numbers or
names during a call. This is useful
when you call a menu-driven phone
system.To send a name or number during acall:Press and release the HFL Talk
button before a command.
1. Say ‘‘Send. ’’
2. Follow the HFL prompts and say the name or number you want to
send.
3. Follow the HFL prompts to send the tones and continue the call.
NOTE: To send a pound (#), say
‘‘ pound.’’ To send a star (*), say
‘‘ star. ’’ Phonebook
You can store up to 50 names with
their associated numbers in HFL.
The numbers you store cannot only
be phone numbers but other types,
such as account numbers or
passwords, which can be sent during
a menu-driven call.
To store a phonebook entry:Press and release the HFL Talk
button before a command.
1. Say
‘‘Phonebook. ’’
2. Say ‘‘Store ’’after the prompts.
3. Say a name you want to list as your phonebook entry.
4. Say the number you want to store for the name entry.
5. Follow the HFL prompts and say ‘‘Enter ’’to store the entry. NOTE:
●Avoid using duplicate name
entries.●Avoid using
‘‘home ’’as a name
entry.●It is easier for HFL to recognize a
multisyllabic or longer name. For
example, use ‘‘Peter’’ instead of
‘‘ Pete, ’’or ‘‘John Smith ’’instead of
‘‘ John. ’’
Bluetooth
®HandsFreeLink
®(Models without navigation system)
41009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To edit the number stored in a name:Press and release the HFL Talk
button before a command.1. Say ‘‘Phonebook. ’’
2. Say ‘‘Edit’’ after the prompts.
3. Follow the HFL prompts and say the name entry you want to edit.
4. When asked, say the new number for that name.
5. Follow the HFL prompts to complete the edit.
To delete a name:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phonebook. ’’
2. Say ‘‘Delete ’’after the prompts.
3. Say the name you want to delete and follow the HFL prompts to
complete the deletion.
To list all names in the phonebook:Press and release the HFL Talk
button before a commands.
1. Say ‘‘Phonebook. ’’
2. Say ‘‘List ’’after the prompts.
3. HFL begins reading the names in the order they were stored.
4. If you hear a name you want to call, immediately press the HFL
Talk button and say ‘‘Call. ’’
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
411
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
