PASSENGER COMPARTMENT VENTILATION
To ventilate the passenger compartment well, proceed
as follows:
❒turn knob A to the blue section;
❒turn air recirculation off by pressing button D
(button LED off);
❒turn knob C to
¶;
❒turn knob B to the required speed.CLIMATE CONTROL SYSTEM (cooling)
For fast cooling of the passenger compartment, proceed
as follows:
❒turn knob A to the blue section;
❒turn air recirculation on by pressing button D
(button LED on);
❒turn knob C to ¶;
❒press button E to turn the climate control system
on; the LED on the button will come on;
❒rotate knob B to 4
-(max. fan speed).
Cooling adjustment
❒turn knob A to the right to increase the
temperature;
❒turn air recirculation off by pressing button D
(button LED off);
❒turn the knob B to reduce the fan speed.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 40

43
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
HEATED REAR WINDSCREEN
AND DOOR MIRRORS
DEMISTING/DEFROSTING fig. 34
(for versions/markets where provided)
Press the button A to activate this function; once
enabled, the light on the button comes on.
This function is timed and will turn off automatically
after 20 minutes. Press the button A again to switch the
function off.
IMPORTANT Do not apply stickers on the inside of the
rear window over the heating filaments to avoid damage
that might cause it to stop working properly.INTERNAL AIR RECIRCULATION
ACTIVATION
Press
•so that the button LED is on.
It is advisable to switch the internal air recirculation on
whilst queueing or in tunnels to prevent the
introduction of polluted air. However, it is better not to
use the function for long periods, particularly if there
are many people on board, to prevent the windows
from misting inside.
IMPORTANT The inside air recirculation system makes
it possible to reach the required heating or cooling
conditions more quickly.
Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of
the windows misting inside.
SYSTEM SERVICING
In winter, the climate control system must be turned on
at least once a month for about 10 minutes. Have the
system inspected at an Abarth Dealership before the
summer.
The system uses R134a refrigerant fluid
which does not pollute the environment
in the event of accidental leakage. Under
no circumstances should R12 fluid be used as it is
incompatible with the system components.
fig. 34F0U034Ab
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 43

46
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

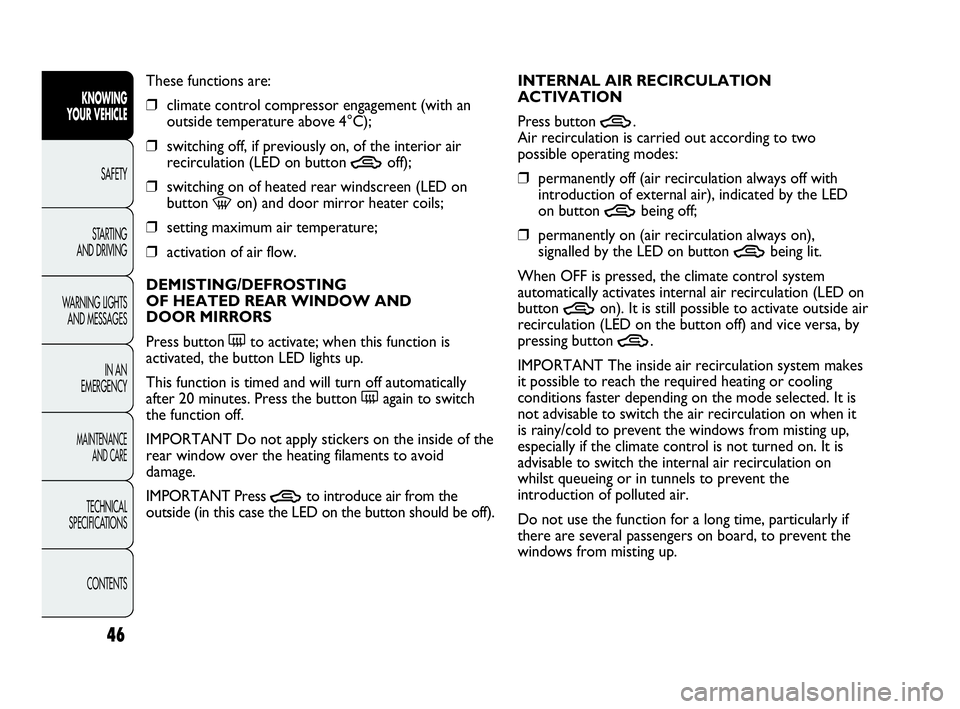

These functions are:
❒climate control compressor engagement (with an
outside temperature above 4°C);
❒switching off, if previously on, of the interior air
recirculation (LED on button
Toff);
❒switching on of heated rear windscreen (LED on
button
-on) and door mirror heater coils;
❒setting maximum air temperature;
❒activation of air flow.
DEMISTING/DEFROSTING
OF HEATED REAR WINDOW AND
DOOR MIRRORS
Press button (to activate; when this function is
activated, the button LED lights up.
This function is timed and will turn off automatically
after 20 minutes. Press the button (again to switch
the function off.
IMPORTANT Do not apply stickers on the inside of the
rear window over the heating filaments to avoid
damage.
IMPORTANT Press
Tto introduce air from the
outside (in this case the LED on the button should be off).INTERNAL AIR RECIRCULATION
ACTIVATION
Press button
T.
Air recirculation is carried out according to two
possible operating modes:
