Replacing the normal tyres with winter
tyres and vice versa requires an
inspection of the TPMS, which should be carried
out only by an Abarth Dealership.
WARNING
The TPMS requires the use of specific
equipment. Contact an Abarth
Dealership to find out which accessories are
compatible with the system (wheels, hub caps
etc.). The use of other accessories may affect
the normal operation of the system.
WARNING
Tyre inflation pressure may vary
according to outdoor temperature. The
TPMS system may temporarily indicate
insufficient pressure. In this case, check the tyre
pressures with the tyres cold and, if necessary,
pump them up.
WARNING
.If the vehicle is fitted with TPMS, tyre
and wheel fitting/removal operations
require specific precautions. To prevent damage
or incorrect sensor refitting, contact an Abarth
Dealership to have tyre and/or
rim changed.
WARNING
If the vehicle is fitted with TPMS, when
a tyre is removed, it is advisable to
replace the rubber gasket for the valve. Contact
an Abarth Dealership.
WARNING
Strong radio-frequency interference
could inhibit the correct operation of
the TPMS system.
This condition will be indicated by a message on
the reconfigurable multfunction display. The
message will disappear automatically as soon as
the interference ceases to disturb the system.
WARNING
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 94

138
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

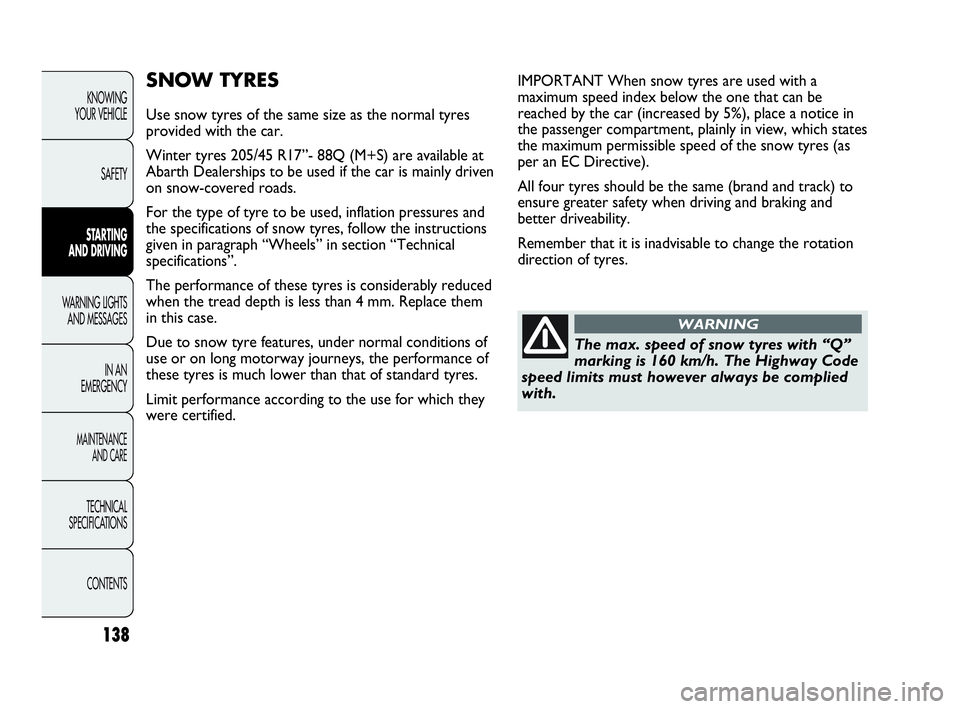

SNOW TYRES

Use snow tyres of the same size as the normal tyres
provided with the car.
Winter tyres 205/45 R17”- 88Q (M+S) are available at
Abarth Dealerships to be used if the car is mainly driven
on snow-covered roads.
For the type of tyre to be used, inflation pressures and
the specifications of snow tyres, follow the instructions
given in paragraph “Wheels” in section “Technical
specifications”.
The performance of these tyres is considerably reduced
when the tread depth is less than 4 mm. Replace them
in this case.
Due to snow tyre features, under normal conditions of
use or on long motorway journeys, the performance of
these tyres is much lower than that of standard tyres.
Limit performance according to the use for which they
were certified.
The max. speed of snow tyres with “Q”
marking is 160 km/h. The Highway Code
speed limits must however always be complied
with.
WARNING
IMPORTANT When snow tyres are used with a
maximum speed index below the one that can be
reached by the car (increased by 5%), place a notice in
the passenger compartment, plainly in view, which states
the maximum permissible speed of the snow tyres (as
per an EC Directive).
All four tyres should be the same (brand and track) to
ensure greater safety when driving and braking and
better driveability.
Remember that it is inadvisable to change the rotation
direction of tyres.
131-140 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:01 Pagina 138

149
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TYRE PRESSURE CHECK
(amber)
TYRE PRESSURE LOW (amber)
TYRE PRESSURE UNSUITABLE FOR
SPEED
(amber)
(for versions/markets where provided)
Check tyre pressures
The symbol is shown on the display to indicate the flat
tyre. Should two or more tyres be flat, the display will
show the indications corresponding to each tyre in
sequence.
Restore correct tyre pressures as soon as possible (see
“Cold tyre pressures” in the “Technical specifications”
section).
Tyre pressure low
The symbol is shown on the display if the pressure of
one or more tyres drops below the preset level. In this
way the TPMS system warns the driver that one or
more tyres may be dangerously flat and liable to
puncture.
n
IMPORTANT Do not continue driving with one or
more flat tyres as handling may be compromised. Stop
the car, avoiding harsh braking or steering manoeuvres.
Repair using the dedicated kit (see the “Automatic
Fix&Go quick tyre repair kit” paragraph in the “In an
emergency” section) and contact an Abarth Dealership
as soon as possible.
Tyre pressure unsuitable for speed
Should travelling at a higher speed than 160 km/h be
required, inflate tyres to pressures values specified in
paragraph “Inflation pressures”.
If the TPMS system (where provided) detects that the
pressure of one or more tyres is unsuitable for the
current speed, the symbol will be shown on the display
together with the dedicated message (see paragraph
“Low tyre pressure” in this section) and it will stay on
until the car speed returns within the preset threshold.
IMPORTANT In this case, slow down immediately
because tyre overheating could compromise tyre
performance and durability beyond repair, and may even
make the tyre explode.
141-150 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:04 Pagina 149

F0U131Abfig. 130F0U130Abfig. 129
INFLATION PROCEDURE
Wear on the protective gloves provided
together with quick tyre repair kit.
WARNING
Check tyre pressure on gauge F-fig. 130 with compressor
off to obtain precise reading;
❒if a pressure value of a least 1.5 bar is not reached
within five minutes, disconnect the compressor from
the valve and socket, move the vehicle forwards by
about 10 metres to distribute the sealant fluid within
the tyre and repeat the inflation procedure;
155
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒Apply the handbrake. Unscrew the tyre valve cap,
take out the transparent flexible filler tube A-fig. 129
and tighten the ring nut B on the tyre valve;
❒make sure that switch D-fig. 130 for the compressor
is in position O (off), start the engine, insert pin E-fig.
131 into the nearest socket and switch on the
compressor by moving switch D-fig. 130 to position I
(on). Inflate the tyre to the pressure value specified in
paragraph “Inflation pressure” in chapter “Technical
specifications”.
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 155

156
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U133Abfig. 132
❒after driving for about 10 minutes, stop and check
the tyre pressure fig. 132 again; remember to put the
handbrake on;
Apply the adhesive label in a position
clearly visible by the driver as a reminder
that the tyre has been treated with the quick
repair kit. Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not accelerate and
brake suddenly.
WARNING
F0U132Abfig. 131
❒if in this case a pressure of at least 1.8 bar is not
reached within five minutes of switching on the
compressor, do not continue driving because the tyre
is too damaged and the hold cannot be guaranteed
using the kit. Contact an Abarth Dealership;
❒if the tyre reaches the pressure specified in the
“Inflation pressure” paragraph in the “Technical
Specifications” chapter, start driving immediately;
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 156

195
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT If the charge level remains under 50% for
a long time, the battery is damaged by sulphation,
reducing its capacity and efficiency at start-up.
The battery will also be more at risk of freezing (e.g.
already at -10°C). Refer to the paragraph “Car
inactivity” in “Starting and driving” if the car is left
parked for a long time.
If after buying the car, you want to install electrical
accessories which require permanent electrical supply
(alarm, etc.) or accessories influencing the electrical
supply requirements, contact an Abarth Dealership
whose qualified personnel, in addition to suggesting the
most suitable devices available in Lineaccessori Abarth,
will evaluate the overall electric absorption, checking
whether the car’s electric system is capable of
withstanding the load required, or whether it should be
integrated with a more powerful battery.
Since these devices continue absorbing energy even with
the engine off, they gradually run down the battery.WHEELS AND TYRES
Check the pressure of each tyre, including the space-saver,
every two weeks and before long journeys. The pressure
should be checked with the tyre rested and cold.
While driving the car, the pressure increases under
standard conditions: for the correct tyre inflation
pressure, see “Wheels” in the “Technical specifications”
chapter.
Incorrect pressure causes abnormal tyre wear fig. 171:
A normal pressure: tread evenly worn;
B low pressure: tread particularly worn at the edges;
C high pressure: tread particularly worn in the centre.
The tyres must be replaced when the tread is less than
1.6 mm thick. In all cases, follow the laws in force in the
country where you are driving.
IMPORTANT NOTES
❒Avoid braking suddenly, high-powered starts and
violent impacts against curbs, potholes or other
obstacles if possible. Driving for long stretches over
bumpy roads can damage the tyres;
183-204 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:28 Pagina 195

196
F0U175Abfig. 171
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTSRemember that road holding also
depends on the correct tyre inflation.
WARNING
If the pressure is too low the tyre
overheats and this can cause it serious
damage.
WARNING
Do not cross switch the tyres, moving
them from the right of the car to the left
and vice versa.
Never submit alloy rims to repainting
treatments requiring the use of temperatures
exceeding 150°C.
The mechanical properties of the wheels could
be impaired.
WARNING
❒check the tyres regularly for cuts on the sides, swelling
or irregular tread wear;. Contact an Abarth Dealership
if required;
❒avoid overloading the car when travelling: this may
cause serious damage to the wheels and tyres;
❒if a tyre is punctured, stop the vehicle immediately and
change it to avoid damage to the tyre, the rim, the
suspensions and the steering system;
❒a tyre will age even if it is not used much. Cracks in the
tread and on the sidewalls are a sign of ageing. Have
the tyres checked by skilled personnel if they have
been fitted for longer than six years. Also remember
to check the space-saver wheel very carefully;
❒in case of replacement, always fit new tyres, avoiding
those with an unknown origin;
❒if a tyre is replaced, also change the inflation valve;
❒to allow even wear between the front and rear tyres,
it is advisable to change them over every 10-15
thousand kilometres, keeping them on the same side
of the car so as not to reverse the direction of
rotation.
183-204 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:28 Pagina 196
