Practical information
lamps
 Turn the wheel fully inwards for easy access to the wheel arch liner.  Remove the two fixing screws for the access flap, located in the wheel arch.  Pull away the wheel arch liner.
 Turn the bulb holder a quar ter of a turn and pull it out.  Disconnect the bulb holder connector.  Pull the bulb and change it. For reassembly, carry out these operations in reverse order. You may also contact a PEUGEOT dealer or a qualified workshop to have these bulbs replaced.

8187
Practical information
Direction indicators
 Lie down under the vehicle.  Remove the screws securing the underbody shield.  Remove the underbody shield.
 Turn the bulb holder a quar ter turn and pull it out.  Replace the faulty bulb. For reassembly, carry out these operations in reverse order. You can also contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs. Integrated direction indicator side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these
bulbs.
Door mirror spotlamps
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.

188
i
Practical information

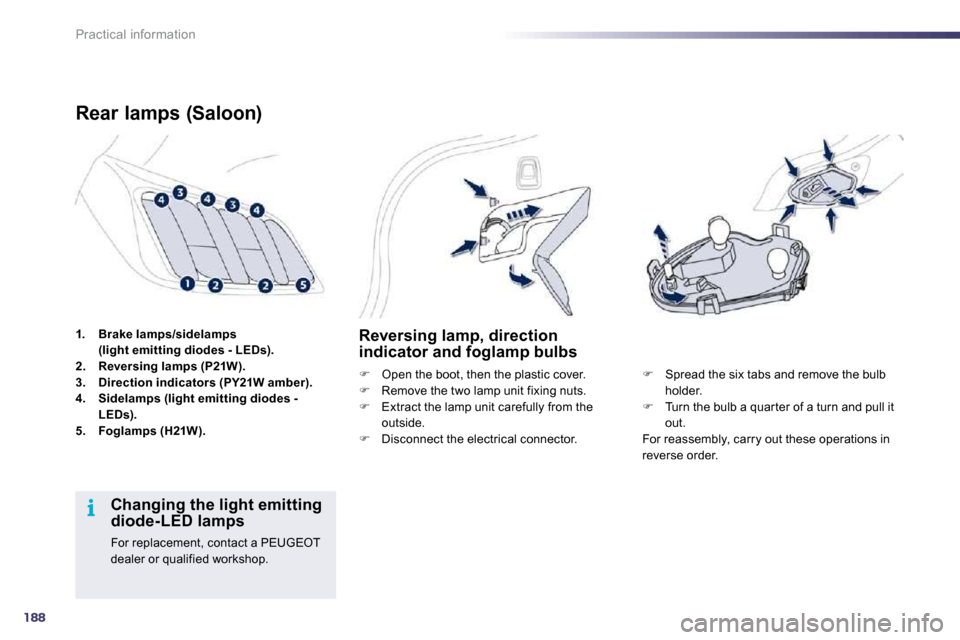

1. Brake lamps/sidelamps (light emitting diodes - LEDs).2. Reversing lamps (P21W).3. Direction indicators (PY21W amber).4. Sidelamps (light emitting diodes - LEDs).5. Foglamps (H21W).
Rear lamps (Saloon)
Reversing lamp, direction indicator and foglamp bulbs
 Open the boot, then the plastic cover.  Remove the two lamp unit fixing nuts.  Extract the lamp unit carefully from the outside.  Disconnect the electrical connector.
 Spread the six tabs and remove the bulb holder.  Turn the bulb a quar ter of a turn and pull it out. For reassembly, carry out these operations in reverse order.
Changing the light emitting diode-LED lamps
For replacement, contact a PEUGEOT dealer or qualified workshop.

8189
i
Practical information

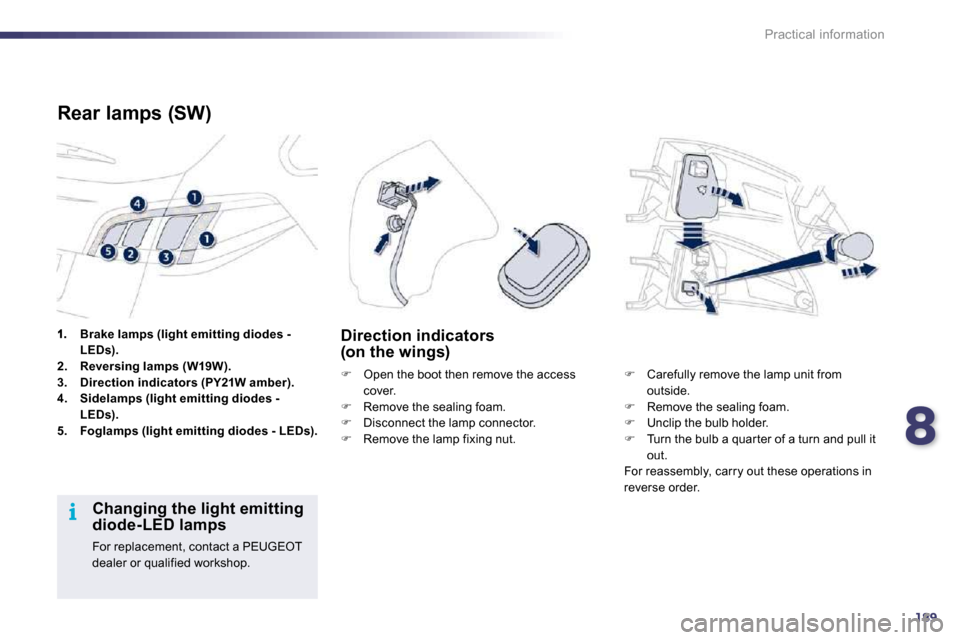

Brake lamps (light emitting diodes - LEDs).2. Reversing lamps (W19W).3. Direction indicators (PY21W amber).4. Sidelamps (light emitting diodes - LEDs).5. Foglamps (light emitting diodes - LEDs).
Rear lamps (SW)

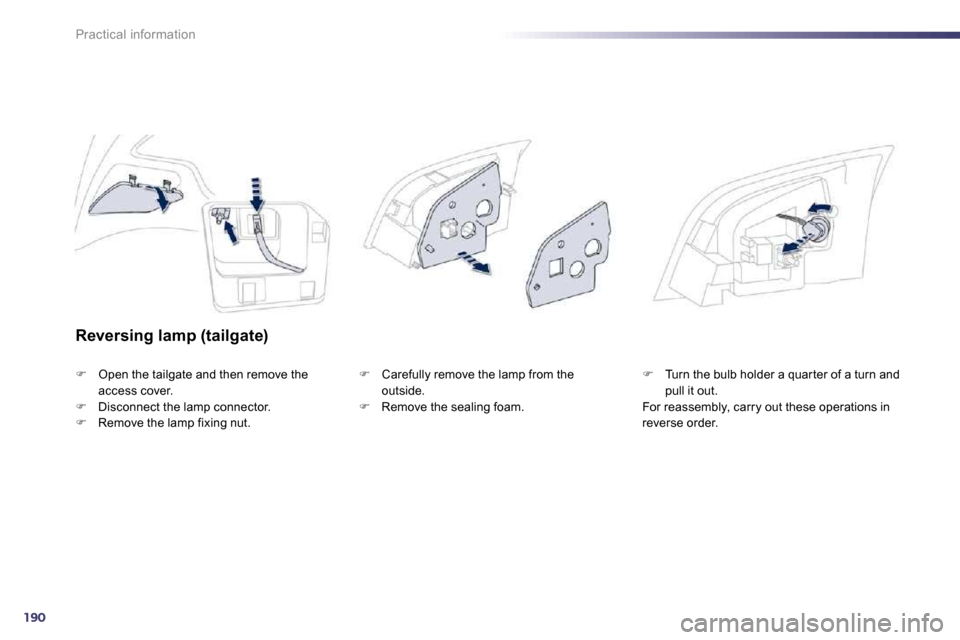

 Open the boot then remove the access cover.  Remove the sealing foam.  Disconnect the lamp connector.  Remove the lamp fixing nut.
Direction indicators (on the wings)
 Carefully remove the lamp unit from outside.  Remove the sealing foam.  Unclip the bulb holder.  Turn the bulb a quar ter of a turn and pull it out. For reassembly, carry out these operations in reverse order.
Changing the light emitting diode-LED lamps
For replacement, contact a PEUGEOT dealer or qualified workshop.

190
Practical information
Reversing lamp (tailgate)
 Open the tailgate and then remove the access cover.  Disconnect the lamp connector.  Remove the lamp fixing nut.
 Carefully remove the lamp from the outside.  Remove the sealing foam.
 Turn the bulb holder a quar ter of a turn and pull it out. For reassembly, carry out these operations in reverse order.

8191
Practical information
Third brake lamp (light emitting diodes - LEDs)
Contact a PEUGEOT dealer or qualified workshop.
Number plate lamps

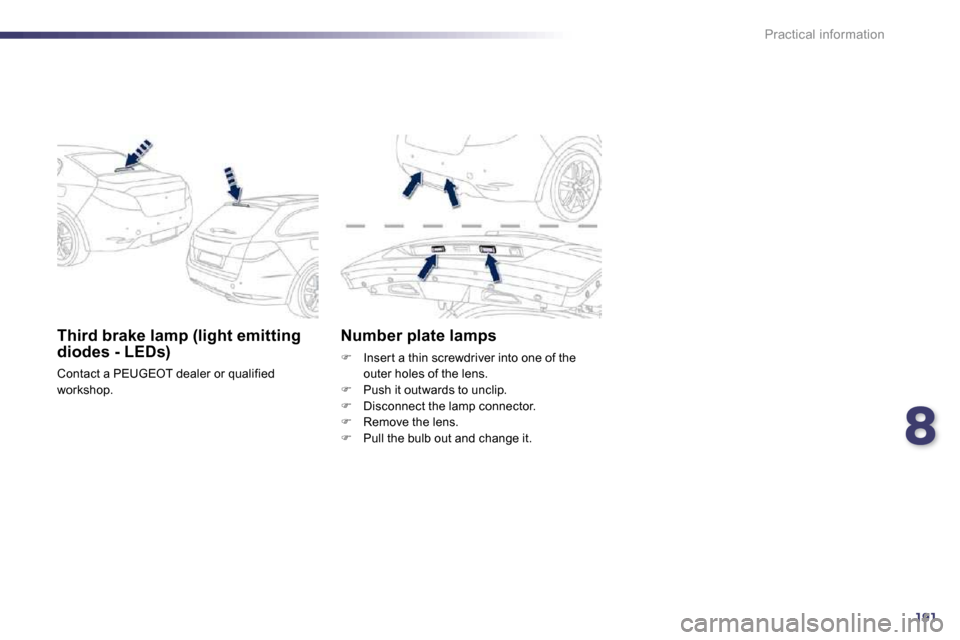

 Inser t a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Disconnect the lamp connector.  Remove the lens.  Pull the bulb out and change it.

192
i
!
Practical information
Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and spare fuses are located in the glove box.
Access to the tools
Before changing a fuse, the cause of the failure must be identified and rectified.  Identify the failed fuse by checking the condition of its filament.
Changing a fuse
GoodFailed
 Use the special tweezer to extract the fuse from its housing.  Always replace the faulty fuse with a fuse of the same rating.  Check that the number marked on the fusebox, the rating marked on the fuse and the following tables all agree.
PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in par ticular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.

8193
Practical information
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
 Open the hinged switch panel, then apply
light force to bypass the stops.
Fuse N° Rating (A) Functions
F6 A or B15 Audio system.
F83 Alarm.
F1310 Front cigar lighter.
F1410 Front 12 V socket.
F163 Rear cour tesy lamp, rear map reading lamps.
F173 Rear cour tesy lamp, cour tesy mirror.
F28 A or B15 Audio system.
F3020 Rear wiper.
F3210 Audio amplifier.
