2010.5 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

39
INSTRUMENTS and CONTROLS

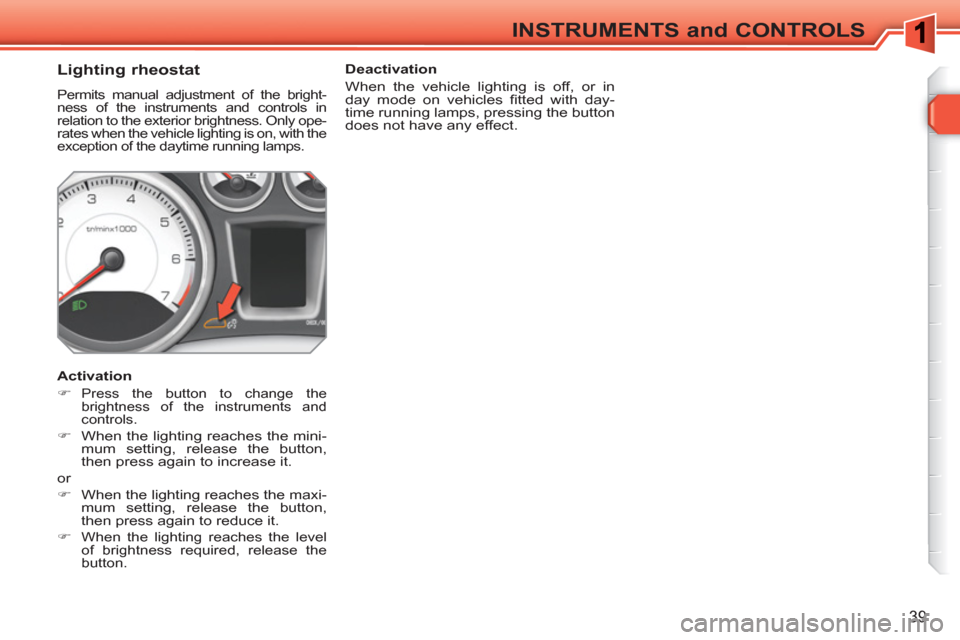

Lighting rheostat

Permits manual adjustment of the bright-
ness of the instruments and controls in
relation to the exterior brightness. Only ope-
rates when the vehicle lighting is on, with the
exception of the daytime running lamps.

Activation


)

Press the button to change the
brightness of the instruments and
controls.

)
When the lighting reaches the mini-
mum setting, release the button,
then press again to increase it.
or


)

When the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it.

)
When the lighting reaches the level
of brightness required, release the
button.



Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.

40
MULTIFUNCTION SCREENS

Displays on the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
MONOCHROME SCREEN A (WITHOUT PEUGEOT CONNECT SOUND)

Controls
Main menu

There are three display control buttons:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the menus
or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required.

*
With air conditioning only.

!
41
MULTIFUNCTION SCREENS

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).



)
Once you have selected a setting,
press the "OK"
button to change its
value.

)
Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- "guide-me-home" and welcome
lighting (refer to the "Visibility"
section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

42
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A
Controls

Displays on the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.


Main menu



)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:


- radio-CD,

- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required. From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or

)
press the "ESC"
button to abandon
the operation in progress.

Radio-CD
With the Peugeot Connect Sound
switched on, once the "Radio-CD" menu
has been selected you can activate or de-
activate the functions linked with use of
the radio (RDS, REG), the CD or the CD
changer (introscan, shuffl e, CD repeat).
For more information on the "Radio-
CD" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.

*
With air conditioning only.

!
43
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button to
cancel.



Vehicle confi guration


Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

44
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Main menu

Displays on the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.


"Audio functions" menu


Controls

From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.


)
Press the "MENU"
button for access
to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (Bleutooth system).

)
Press the "
" or "
" buttons to select
the menu required, then confi rm by
pressing the "OK"
button.


*
With air conditioning only. With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), the CD or
the CD changer (introscan, shuffl e, CD
repeat).
For more information on the "Audio
functions" application, refer to the
Peugeot Connect Sound part of the
"Audio and Telematics" section.

45
MULTIFUNCTION SCREENS

"Diagnosis vehicle"
menu


)
Press the "MENU"
button for access
to the main menu.

)
Press the arrows, then the "OK"

button to select the " Diagnosis
vehicle
" menu.

)
On the "
Diagnosis vehicle
" menu,
select the following application:



Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen. Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert log.

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.

!
46
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.


"Telephone" menu


Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:


- brightness-video setting,

- date and time setting,

- choice of units.


Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"

button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can confi gure your Blue-
tooth system (pairing), consult the vari-
ous telephone directories (calls log,
services...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.

**
According to country.
