2010.5 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

1
183
PRACTICAL INFORMATION

Changing third brake lamp bulbs
(4 bulbs W5W)


)
Unclip the tailgate upper trim from
left to right.

)
Unscrew the two lamp fi xing nuts A
.

)
Unclip the lamp's central pin.

)
Extract the lamp from the outside.

)
Disconnect the bulb holder connector
and the wash-wipe pipe.

)
Unclip the bulb holder from the lamp
by pressing on the two tabs B
.

)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Do not apply force to the lamp when
tightening the nuts.
Changing the number plate lamp
bulbs (W5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb and change it.

1
184
PRACTICAL INFORMATION






























Rear lamps



1.
Brake lamps/sidelamps (P21/5W).


2.
Sidelamps (P21/5W).


3.
Foglamp,

offside

(P21W)


Reversing lamp, nearside (P21W).

4.
Direction indicators (P21W)


Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

)
unclip the lamp connector,

)
separate the fi ve tabs and remove
the bulb holder,

)
turn the bulb a quarter of a turn and
change it.

)
open the boot,

)
unscrew the two lamp fi xing bolts,

)
extract the lamp carefully pulling
it from the bottom and pivoting it
towards the outside,
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

1
185
PRACTICAL INFORMATION

Changing the number plate lamp
bulbs (W5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb and change it.

















Changing the third brake lamp
(SW - 4 bulbs W5W)


)
Remove the two lamp fi xing nuts A
.

)
Take out the lamp from the outside.

)
Disconnect the connector and the
screenwash pipe from the lamp.

)
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.

)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.


Changing the third brake lamp
(SW - LEDs)
On the versions with opening rear
screen, for the replacement of this type
of LED lamp, contact a PEUGEOT
dealer.

1
!
i
186
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.

Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.

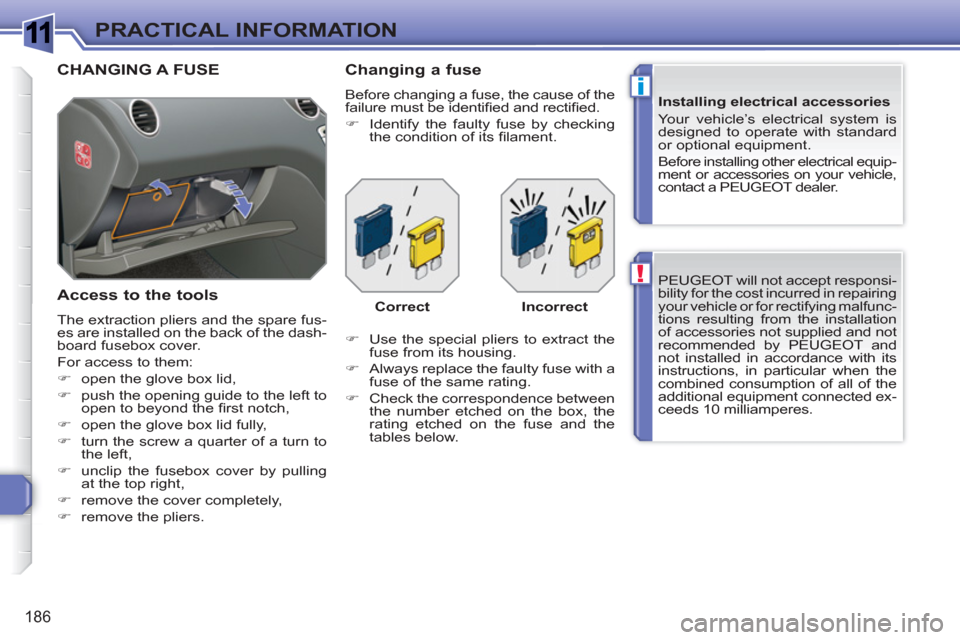

CHANGING A FUSE

Access to the tools

The extraction pliers and the spare fus-
es are installed on the back of the dash-
board fusebox cover.
For access to them:


)
open the glove box lid,

)
push the opening guide to the left to
open to beyond the fi rst notch,

)
open the glove box lid fully,

)
turn the screw a quarter of a turn to
the left,

)
unclip the fusebox cover by pulling
at the top right,

)
remove the cover completely,

)
remove the pliers.



Changing a fuse

Before changing a fuse, the cause of the
failure must be identifi ed and rectifi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.

)
Use the special pliers to extract the
fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below. Correct

Incorrect

1
187
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower
dashboard, left-hand side, inside the
glove box.

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating



Functions




F1



15 A

Rear wiper.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.


F6



30 A

Rear one-touch electric windows, trailer fusebox.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
rear reading lampd, sun visor illumination, glove
box illumination, torch.


F8



20 A

Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection.


F9



30 A

Front 12 V socket.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

1
188
PRACTICAL INFORMATION


Fuse N°



Rating



Functions




G36



30 A

Driver and passenger heated seats.


G37



5 A

Driving position memory unit, lighting rheostat.


G38



30 A

Driver’s seat memory unit.


G39



30 A

Trailer fusebox supply.


G40



-

Not used.

Fuse N°



Rating



Functions




F12



15 A

Instrument panel, seat belt and passenger’s front
airbag warning lamps display, air conditioning,
driver’s seat memory unit, 2nd row rear seat
switches, driving school module.


F13



5 A

Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.


F14



15 A

Multifunction screen, amplifi er, Bluetooth system,
rain/brightness sensor, parking sensors control
unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors defrosting.


SH



-

PARC shunt.

1
189
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure the sealing
of the fusebox.

Fuse table


Fuse N°



Rating



Functions




F1



20 A

Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).


F2



15 A

Horn.


F3



10 A

Front/rear wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP
16V), oil vapour heater (1.6 litre THP 16V), diesel
heater (1.6 litre HDI).


F6



10 A

Vehicle speed sensor, ABS/ESP control unit.


F7



10 A

Power steering control unit, automatic gearbox,
engine coolant level detector.


F8



25 A

Starter motor control.


F9



10 A

Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel).


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40 A

Air conditioning blower.

1
190
PRACTICAL INFORMATION


Fuse N°



Rating



Functions




F12



30 A

Windscreen wipers slow/fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Air pump.


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Oil vapour heater (1.4 litre 16V and 1.6 litre VTi
16V), purge canister electrovalve (1.4 litre 16V
and 1.6 litre VTi 16V), oxygen sensors (petrol), air
cooling electrovalves (Diesel).


F20



10 A

Electronic thermostat, variable timing electrovalves,
air fl ow sensor (1.6 litre THP 200, Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F21



5 A

Fan assembly relay supply, Valvetronic relay
control (1.4 litre 16V and 1.6 litre VTi 16V), Turbo
cooling (1.6 litre THP 16V), Valvetronic engine
(1.6 litre THP 200), air fl ow sensor (1.6 litre HDI 16V).
