IV
77
A C C E S S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the door lock or remotely. It is
also used to locate the vehicle, acti-
vate the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press this button to unfold
the key.
Press the open padlock
to unlock the vehicle. Complete unlocking using the
key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the door mir-
rors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lamps and exterior side spot lamps
for approximately thirty seconds.
Selective unlocking using the
remote control
Press the open pad-
lock once to unlock the
driver's door only.
Press the open padlock again to
unlock the other doors and the
boot. According to version, the door mir-
rors unfold at the same time as the
fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switch-
ing on of the welcome lighting, the
courtesy lamps and the exterior side
spotlamps for approximately thir-
ty seconds.
The complete or selec-
tive unlocking parameter
is set via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
Complete unlocking is activated by
default.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds. Selective unlocking is not available
using the key.
Page 80 of 355
IV
79
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.
First press this button to fold the
key.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, espe-
cially when the light is poor. Your ve-
hicle must be locked.
Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
a s fl a s h i n g t h e d i r e c t i o n i n d i c a t o r s
for a few seconds. Guide-me-home lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on this button op-
erates the guide-me-home
lighting (lighting of the side-
lamps, dipped beam head-
lamps, number plate lamps
and exterior side spotlamps (located
underneath the door mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
Page 83 of 355
IV
82
A C C E S S

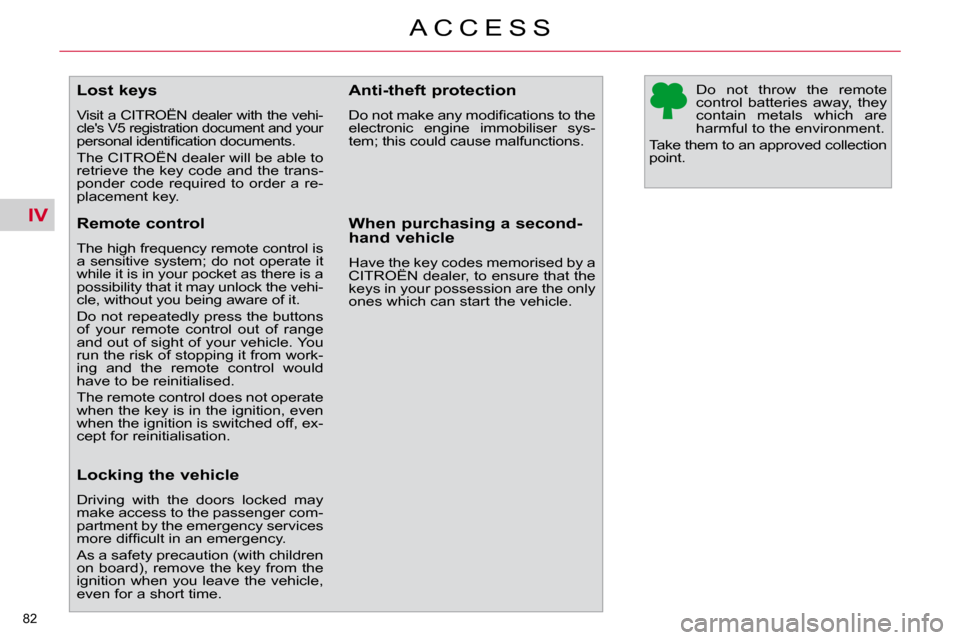

Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 84 of 355
IV
79
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.
First press this button to fold the
key.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, espe-
cially when the light is poor. Your ve-
hicle must be locked.
Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
a s fl a s h i n g t h e d i r e c t i o n i n d i c a t o r s
for a few seconds. Guide-me-home lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on this button op-
erates the guide-me-home
lighting (lighting of the side-
lamps, dipped beam head-
lamps, number plate lamps
and exterior side spotlamps (located
underneath the door mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
Page 85 of 355
IV
82
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 101 of 355
V
95
V I S I B I L I T Y
Daytime running lamps
Daytime lighting, compulsory in cer-
tain countries, which comes on auto-
matically when the engine is started
making the vehicle more visible to
other users. Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
This function is assured:
- in countries where it is imposed
by regulations,
by illumination of the dipped beam headlamps with the side-
lamps and number plate lamps.
- for other countries where it is provided,
by the use of dedicated LED lamps.
The instruments and controls (mul-
tifunction screen, air conditioning
c o n t r o l p a n e l , . . . ) a r e n o t i l l u m i n a t e d ,
except in night mode with manual or
automatic illumination of headlamps.
LED lamps
They come on when the engine is
started.
Depending on the destination coun-
try, they are used for:
- daytime running lamps in day mode and sidelamps in night
mode,
or
- sidelamps in day and night mode
W h e r e L E D l a m p s a r e fi t t e d , t h e fi l a -
ment bulbs for the sidelamps in the
front lamp units are not used.
Activation or deactivation of this
lighting is done via the vehicle con-
fi g u r a t i o n m e n u . This function can be activated or
d e a c t i v a t e d v i a t h e v e h i c l e c o n fi g u -
ration menu.
Page 355 of 355
330
FREQUENTLY ASKED QUESTIONS
The table below groups together the answers to the most frequently asked questions concerning the video pack.
QUESTIONSOLUTION
The player does not start. - Check the vehicle's fuses.
The player does not react to pressing of the remote control buttons. - T h e r e m o t e c o n t r o l b a t t e r i e s a r e fl a t . R e p l a c e t h e m .
- The remote control sensor is hampered by objects or is dirty. R emove all objects on the remote control receiver or clean the surface using a damp cloth.
- The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playing a DVD. The image remains frozen during play.
The player cannot read the disc. The disc may be damaged or di rty.
The player does not play the disc inserted. - T h e f o r m a t o f t h e d i s c d o e s n o t c o r r e s p o n d t o t h e s p e c i fi c a t i o n s o f t h e p l a y e r .
- If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allowthe humidity to evaporate.
When a DVD/VCD/SVCD is played,the image is of poor quality. - Remove the disc.
- Using the SETUP button, adjust the brightness and insert the disc again.
No image is displayed on the monitor. - Press the SOURCE button until the image appears.
- Press the SCREEN ON/OFF button.
There is no sound in the audio headphones. - Increase the volume using the VOLUME +/- buttons on the remo te control or using the dial onthe headphones.
- Check that the correct channel is selected on the headphones.
- Press the SOURCE button until the sound arrives.
- Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc. - Insert another disc.
- Switch the system off and then on again.
