V I S I B I L I T Y
OF DIRECTIONAL HEADLAMPS
This system adjusts the height of the
xenon headlamp beams automati-
cally and when stationary, according
to the load in the vehicle, so as to
avoid causing a nuisance to other
road user. If a malfunction occurs,
this warning lamp is
displayed in the instru-
ment panel, accom-
panied by an audible
signal and a message in the multi-
function screen.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
MANUAL ADJUSTMENT OF HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
dashboard to the left of the driver, to
the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum autho-
rised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position " 0 ".

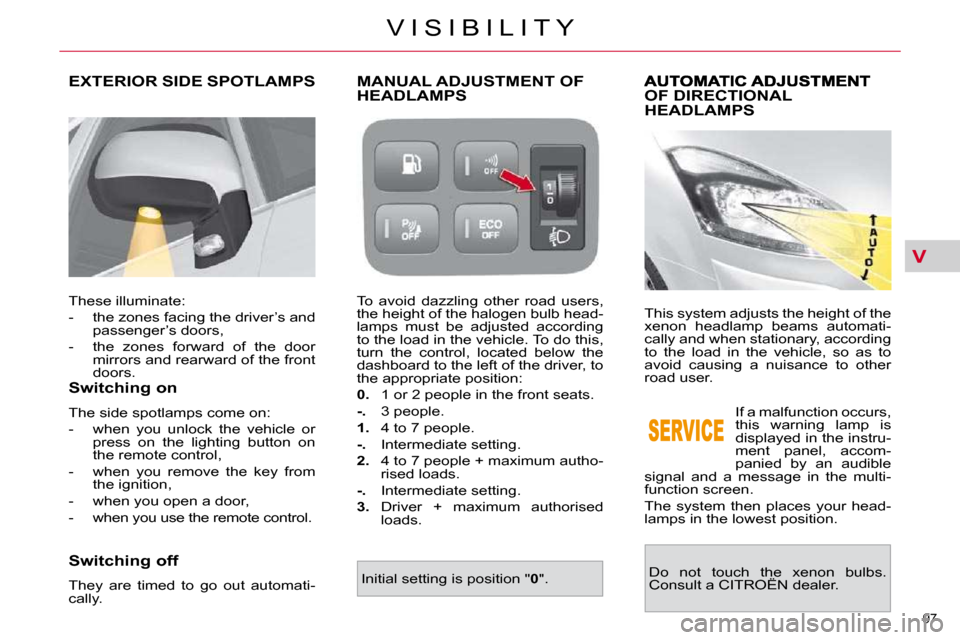

EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and
passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
