2010.5 Citroen C3 PICASSO Owner's Manual

i
i
73
VISIBILITY
The lighting time varies according
to the circumstances:
- when the ignition is off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed. Torch
This is a removable lamp, incorporated
in the boot wall, which can be used to
illuminate the boot or as a torch.
BOOT LAMP Use

 Extract the torch from its location by
pulling it from the front.

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its lo-
cation starting with the rear.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Operation
This torch operates with NiMH type
power packs.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Observe the polarities when fi tting
the power packs.
Never replace the power packs
with batteries.

74
FITTINGS
FRONT INTERIOR FITTINGS

1. Sun visor.

2. Child surveillance mirror.

3. Grab handle with coat hook.

4. Upper storage box.
Scented air freshener adjustment.

5. Storage compartments.

6. Glove box.
Fusebox.

7. Storage pockets.

8. Ticket holder.

9. 12 volt socket (100 W max).

10. USB port/auxiliary socket.

11. Cup holder.

75
FITTINGS
CHILD SURVEILLANCE MIRROR SUN VISOR
Component which protects against sun-
light from the front or the side.
The sun visors are fi tted with a courtesy
mirror with concealing fl ap and a ticket
holder.
GLOVE BOX
This permits access to the fuse box.

 To open the glove box, pull the han-
dle towards you.
A child surveillance mirror is installed
above the interior rear view mirror. This
allows you to monitor the vehicle’s rear
passengers, or it can facilitate conver-
sation between the front and rear pas-
sengers without the need to move the
rear view mirror. It can be folded away
to eliminate dazzle.

!
76
FITTINGS
STORAGE DRAWER
It is located under the front passenger
seat.
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 100 Watts), lift off the cap
and connect a suitable adaptor.
Opening


Raise the front of the drawer and pull it.
Do not place heavy objects in the
drawer.

!
77
FITTINGS
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; these fi xings must
be used,
- never fi t one mat on top of another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.
MATS
Removable carpet protection. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured
correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as
possible,

 unclip the fi xings,

 remove the mat.
TICKET HOLDER
It is located at the top of the dashboard
central panel.
It can be used to hold toll or parking
tickets.

!

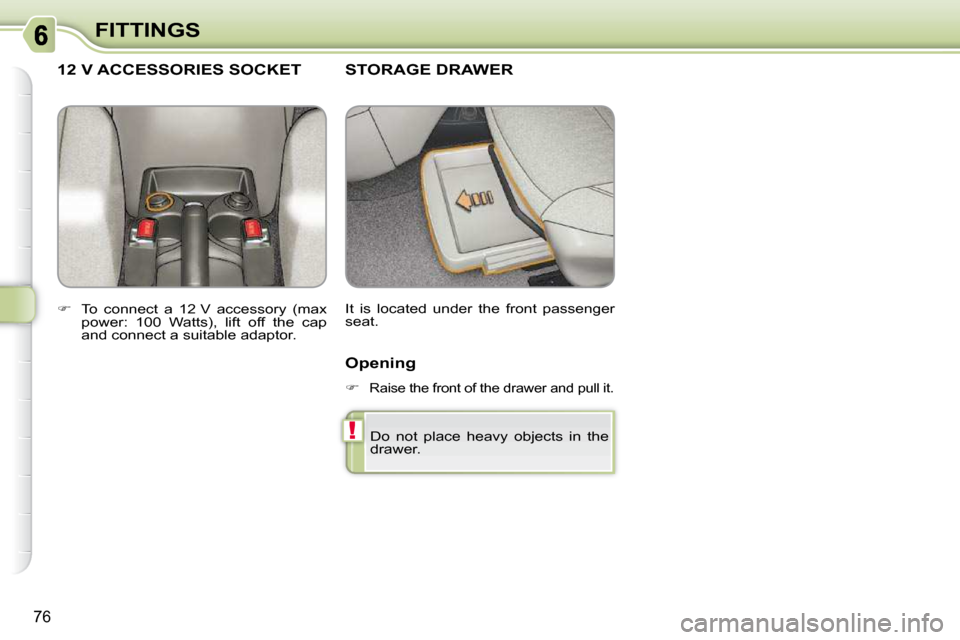

76
FITTINGS
STORAGE DRAWER
It is located under the front passenger
seat.
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 100 Watts), lift off the cap
and connect a suitable adaptor.
Opening


Raise the front of the drawer and pull it.
Do not place heavy objects in the
drawer.

!
77
FITTINGS
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; these fi xings must
be used,
- never fi t one mat on top of another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.
MATS
Removable carpet protection. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured
correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as
possible,

 unclip the fi xings,

 remove the mat.
TICKET HOLDER
It is located at the top of the dashboard
central panel.
It can be used to hold toll or parking
tickets.

FITTINGS
REAR INTERIOR FITTINGS
They are located on the back of the
front seats.
Two boxes are available, located under
the rear passenger footwells.
To open them, lift the lid using the cut-out. There is a cup holder located at the rear
of the centre console.
Storage boxes Seat pockets Cup holder
