2009 YAMAHA YFZ450 Owners Manual

7-7
1
2
3
4
5
67
8
9
10
11

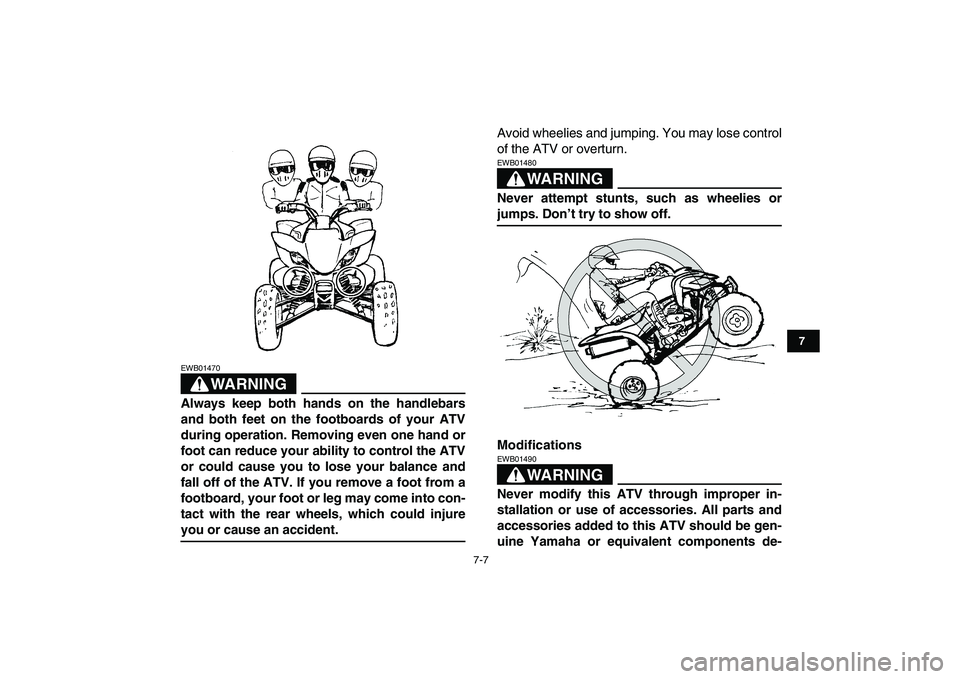

WARNING

EWB01470
Always keep both hands on the handlebars
and both feet on the footboards of your ATV
during operation. Removing even one hand or
foot can reduce your ability to control the ATV
or could cause you to lose your balance and
fall off of the ATV. If you remove a foot from a
footboard, your foot or leg may come into con-
tact with the rear wheels, which could injure
you or cause an accident.
Avoid wheelies and jumping. You may lose control
of the ATV or overturn.WARNING
EWB01480
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
ModificationsWARNING

EWB01490
Never modify this ATV through improper in-
stallation or use of accessories. All parts and
accessories added to this ATV should be gen-
uine Yamaha or equivalent components de-

7-8
1
2
3
4
5
67
8
9
10
11

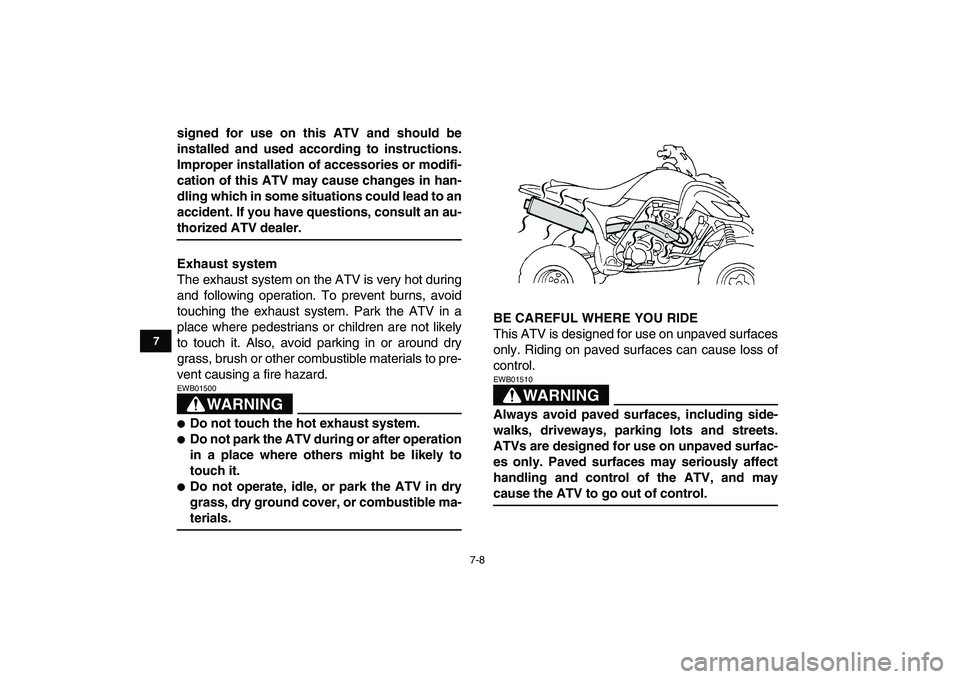

signed for use on this ATV and should be
installed and used according to instructions.
Improper installation of accessories or modifi-
cation of this ATV may cause changes in han-
dling which in some situations could lead to an
accident. If you have questions, consult an au-
thorized ATV dealer.
Exhaust system
The exhaust system on the ATV is very hot during
and following operation. To prevent burns, avoid
touching the exhaust system. Park the ATV in a
place where pedestrians or children are not likely
to touch it. Also, avoid parking in or around dry
grass, brush or other combustible materials to pre-
vent causing a fire hazard.
WARNING

EWB01500

Do not touch the hot exhaust system.

Do not park the ATV during or after operation
in a place where others might be likely to
touch it.

Do not operate, idle, or park the ATV in dry
grass, dry ground cover, or combustible ma-
terials.BE CAREFUL WHERE YOU RIDE
This ATV is designed for use on unpaved surfaces
only. Riding on paved surfaces can cause loss of
control.
WARNING

EWB01510
Always avoid paved surfaces, including side-
walks, driveways, parking lots and streets.
ATVs are designed for use on unpaved surfac-
es only. Paved surfaces may seriously affect
handling and control of the ATV, and may
cause the ATV to go out of control.

7-9
1
2
3
4
5
67
8
9
10
11

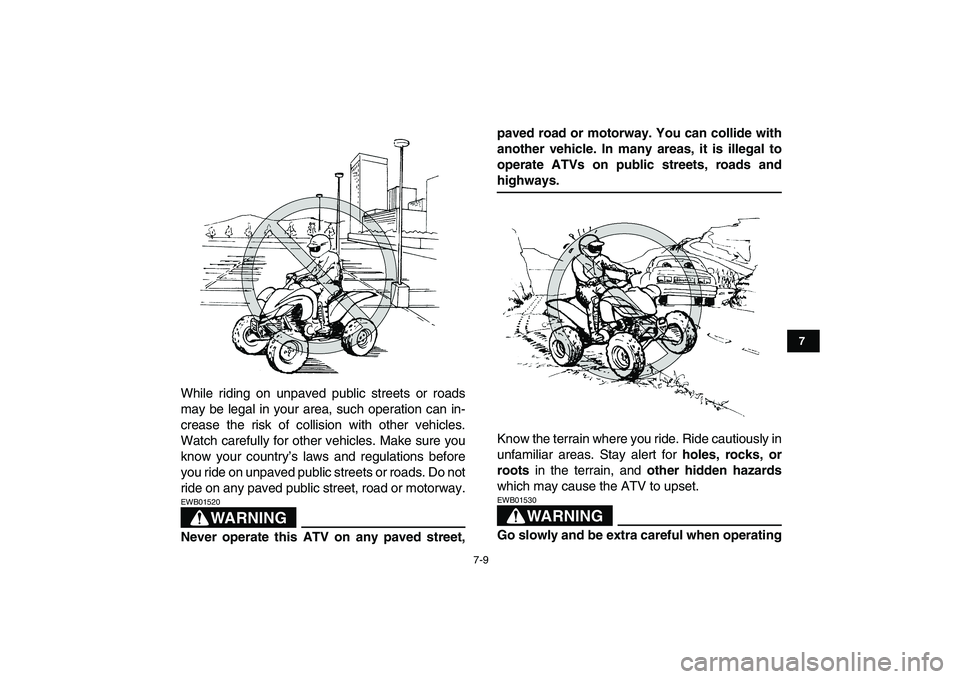

While riding on unpaved public streets or roads
may be legal in your area, such operation can in-
crease the risk of collision with other vehicles.
Watch carefully for other vehicles. Make sure you
know your country’s laws and regulations before
you ride on unpaved public streets or roads. Do not
ride on any paved public street, road or motorway.
WARNING

EWB01520
Never operate this ATV on any paved street,paved road or motorway. You can collide with
another vehicle. In many areas, it is illegal to
operate ATVs on public streets, roads and
highways.
Know the terrain where you ride. Ride cautiously in
unfamiliar areas. Stay alert for
holes, rocks, or
roots
in the terrain, and
other hidden hazards
which may cause the ATV to upset.WARNING

EWB01530
Go slowly and be extra careful when operating

7-10
1
2
3
4
5
67
8
9
10
11

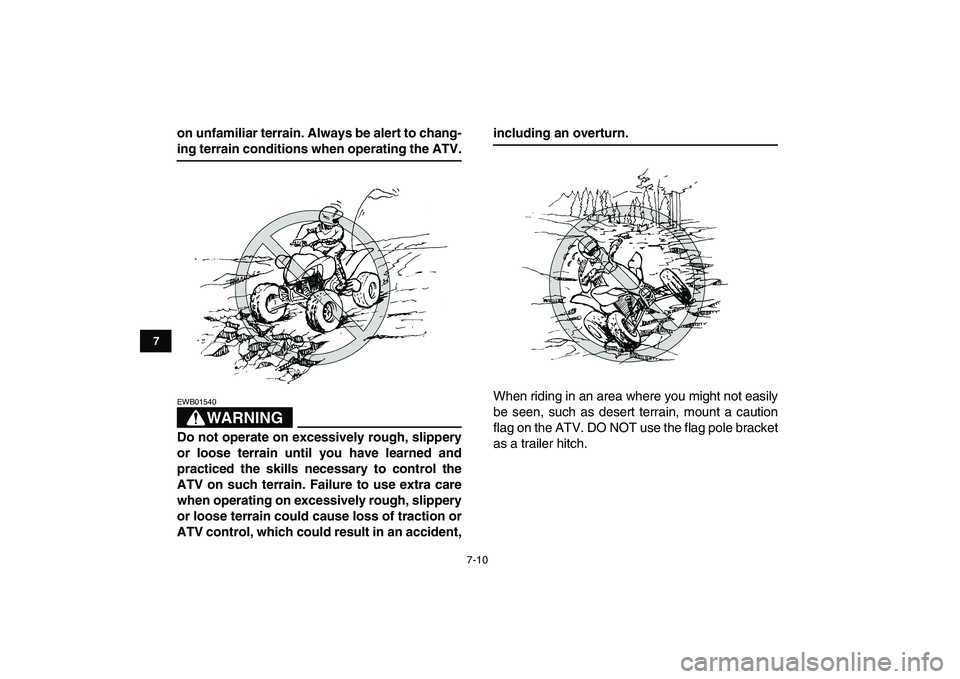

on unfamiliar terrain. Always be alert to chang-
ing terrain conditions when operating the ATV.
WARNING

EWB01540
Do not operate on excessively rough, slippery
or loose terrain until you have learned and
practiced the skills necessary to control the
ATV on such terrain. Failure to use extra care
when operating on excessively rough, slippery
or loose terrain could cause loss of traction or
ATV control, which could result in an accident,
including an overturn.
When riding in an area where you might not easily
be seen, such as desert terrain, mount a caution
flag on the ATV. DO NOT use the flag pole bracket
as a trailer hitch.

7-11
1
2
3
4
5
67
8
9
10
11

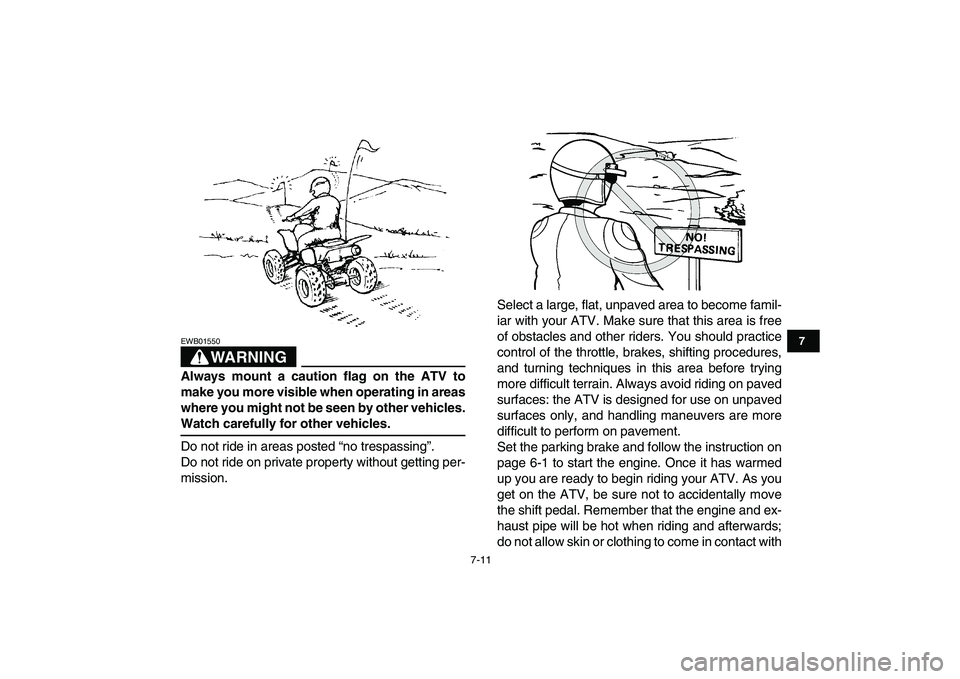

WARNING

EWB01550
Always mount a caution flag on the ATV to
make you more visible when operating in areas
where you might not be seen by other vehicles.
Watch carefully for other vehicles.
Do not ride in areas posted “no trespassing”.
Do not ride on private property without getting per-
mission.Select a large, flat, unpaved area to become famil-
iar with your ATV. Make sure that this area is free
of obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for use on unpaved
surfaces only, and handling maneuvers are more
difficult to perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
the shift pedal. Remember that the engine and ex-
haust pipe will be hot when riding and afterwards;
do not allow skin or clothing to come in contact with

7-12
1
2
3
4
5
67
8
9
10
11

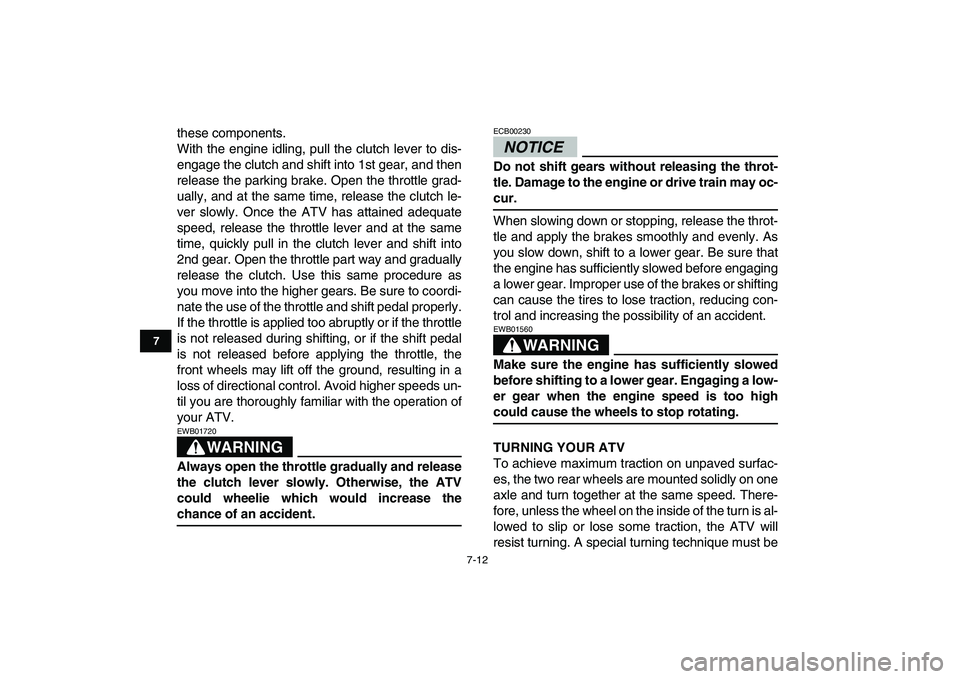

these components.
With the engine idling, pull the clutch lever to dis-
engage the clutch and shift into 1st gear, and then
release the parking brake. Open the throttle grad-
ually, and at the same time, release the clutch le-
ver slowly. Once the ATV has attained adequate
speed, release the throttle lever and at the same
time, quickly pull in the clutch lever and shift into
2nd gear. Open the throttle part way and gradually
release the clutch. Use this same procedure as
you move into the higher gears. Be sure to coordi-
nate the use of the throttle and shift pedal properly.
If the throttle is applied too abruptly or if the throttle
is not released during shifting, or if the shift pedal
is not released before applying the throttle, the
front wheels may lift off the ground, resulting in a
loss of directional control. Avoid higher speeds un-
til you are thoroughly familiar with the operation of
your ATV.
WARNING

EWB01720
Always open the throttle gradually and release
the clutch lever slowly. Otherwise, the ATV
could wheelie which would increase the
chance of an accident.
NOTICE

ECB00230
Do not shift gears without releasing the throt-
tle. Damage to the engine or drive train may oc-
cur.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.
WARNING

EWB01560
Make sure the engine has sufficiently slowed
before shifting to a lower gear. Engaging a low-
er gear when the engine speed is too high
could cause the wheels to stop rotating.
TURNING YOUR ATV
To achieve maximum traction on unpaved surfac-
es, the two rear wheels are mounted solidly on one
axle and turn together at the same speed. There-
fore, unless the wheel on the inside of the turn is al-
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be

7-13
1
2
3
4
5
67
8
9
10
11

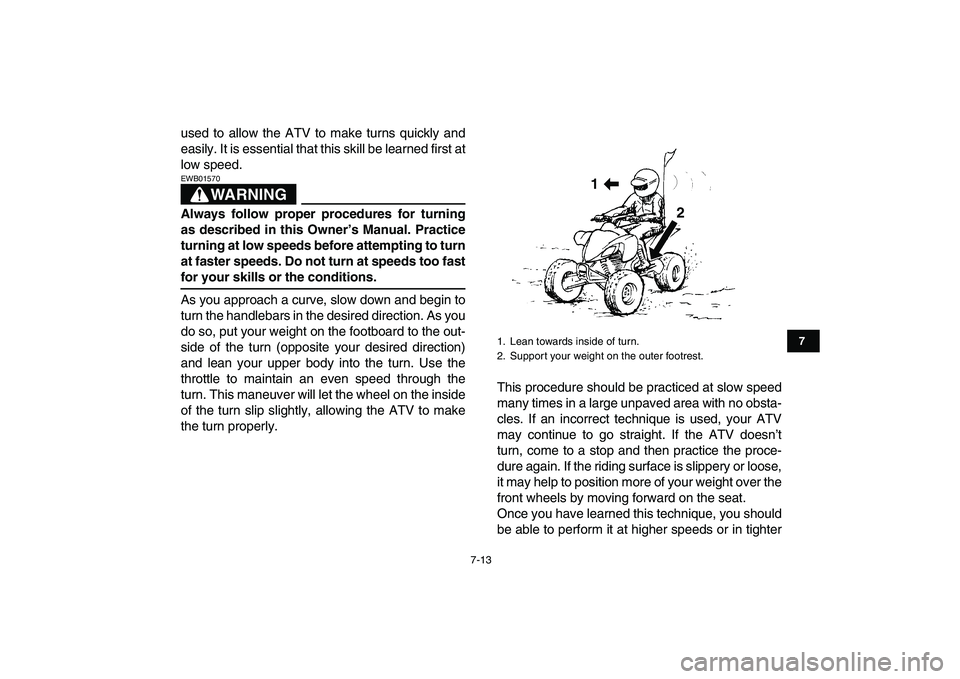

used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
WARNING

EWB01570
Always follow proper procedures for turning
as described in this Owner’s Manual. Practice
turning at low speeds before attempting to turn
at faster speeds. Do not turn at speeds too fast
for your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the out-
side of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.This procedure should be practiced at slow speed
many times in a large unpaved area with no obsta-
cles. If an incorrect technique is used, your ATV
may continue to go straight. If the ATV doesn’t
turn, come to a stop and then practice the proce-
dure again. If the riding surface is slippery or loose,
it may help to position more of your weight over the
front wheels by moving forward on the seat.
Once you have learned this technique, you should
be able to perform it at higher speeds or in tighter
1. Lean towards inside of turn.
2. Support your weight on the outer footrest.
1
2

7-14
1
2
3
4
5
67
8
9
10
11

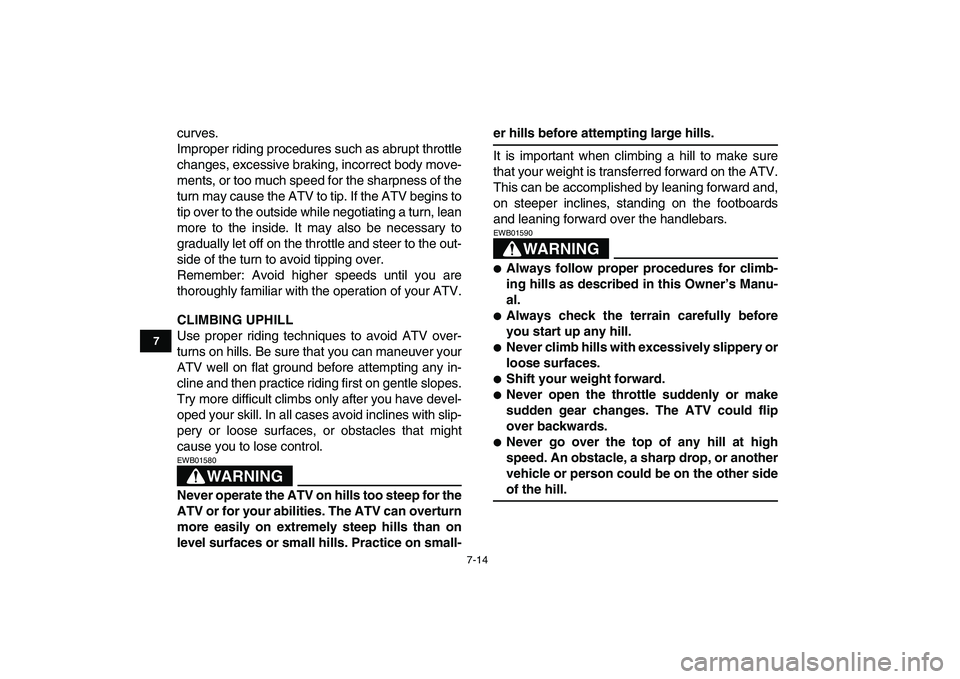

curves.
Improper riding procedures such as abrupt throttle
changes, excessive braking, incorrect body move-
ments, or too much speed for the sharpness of the
turn may cause the ATV to tip. If the ATV begins to
tip over to the outside while negotiating a turn, lean
more to the inside. It may also be necessary to
gradually let off on the throttle and steer to the out-
side of the turn to avoid tipping over.
Remember: Avoid higher speeds until you are
thoroughly familiar with the operation of your ATV.
CLIMBING UPHILL
Use proper riding techniques to avoid ATV over-
turns on hills. Be sure that you can maneuver your
ATV well on flat ground before attempting any in-
cline and then practice riding first on gentle slopes.
Try more difficult climbs only after you have devel-
oped your skill. In all cases avoid inclines with slip-
pery or loose surfaces, or obstacles that might
cause you to lose control.
WARNING

EWB01580
Never operate the ATV on hills too steep for the
ATV or for your abilities. The ATV can overturn
more easily on extremely steep hills than on
level surfaces or small hills. Practice on small-
er hills before attempting large hills.
It is important when climbing a hill to make sure
that your weight is transferred forward on the ATV.
This can be accomplished by leaning forward and,
on steeper inclines, standing on the footboards
and leaning forward over the handlebars.
WARNING

EWB01590

Always follow proper procedures for climb-
ing hills as described in this Owner’s Manu-
al.

Always check the terrain carefully before
you start up any hill.

Never climb hills with excessively slippery or
loose surfaces.

Shift your weight forward.

Never open the throttle suddenly or make
sudden gear changes. The ATV could flip
over backwards.

Never go over the top of any hill at high
speed. An obstacle, a sharp drop, or another
vehicle or person could be on the other side
of the hill.
