SPECIFICATIONS
8-2
8
5th:
21/24 (0.875)
Chassis:Frame type:
Diamond
Caster angle:
26.33 °
Trail:
90.0 mm (3.54 in)Front tire:Type:
Tubeless
Size:
2.75-18 42P
Manufacturer/model:
CHENG SHIN/C-910Rear tire:Type:
Tubeless
Size:
90/90-18 57P
Manufacturer/model:
CHENG SHIN/C-905Loading:Maximum load:
196 kg (432 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Loading condition:
90–196 kg (198–432 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
J18 x MT1.85Rear wheel:Wheel type:
Cast wheel
Rim size:
J18 x MT1.85Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX7L-BS
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
IncandescenceBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

SPECIFICATIONS
8-3
8
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
12 V, 1.7 W × 4
Neutral indicator light:
14 V, 3.0 W × 1
High beam indicator light:
14 V, 3.0 W × 1
Turn signal indicator light:
14 V, 3.0 W × 1
Engine trouble warning light:
14 V, 3.0 W × 1Fuse:Fuse:
15.0 A
U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

CONSUMER INFORMATION
9-2
9
EAU36980
Model label
The model label is affixed to the frame
behind panel B. (See page 6-6.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

INDEX
AAir filter element, cleaning .................... 6-10
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers, checking
and lubricating .................................... 6-23
Brake and shift pedals, checking
and lubricating .................................... 6-23
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ............................................. 3-5
Brake pads and shoes, checking.......... 6-18
Brake pedal ............................................ 3-6
Brake pedal free play, adjusting ........... 6-17CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Carrier................................................... 3-10
Catalytic converters ................................ 3-8
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever............................................. 3-5
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-21
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-12
Engine oil ................................................ 6-9
Engine trouble warning light ................... 3-2
FFront brake lever free play, checking .... 6-16
Front fork, checking...............................6-25
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ........ 5-2
Fuel gauge .............................................. 3-4
Fuel tank cap........................................... 3-6
Fuse, replacing...................................... 6-28HHandlebar switches ................................. 3-4
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-11
Indicator and warning lights .................... 3-2KKey identification number ........................ 9-1
Kickstarter ............................................... 3-9LLuggage strap holders .......................... 3-10MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-2NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-3
Part locations .......................................... 2-1
RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Self-diagnosis device .............................. 3-3
Shifting .................................................... 5-2
Shift pedal ............................................... 3-5
Shock absorber assemblies, adjusting ... 3-9
Sidestand .............................................. 3-10
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer unit ................................... 3-3
Starting the engine.................................. 5-1
Start switch ............................................. 3-4
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Swingarm pivots, lubricating ................. 6-25TTachometer............................................. 3-3
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, adjusting ......... 6-12
Throttle grip and cable, checking
and lubricating .................................... 6-22
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting chart ........................... 6-36
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-4VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1
U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

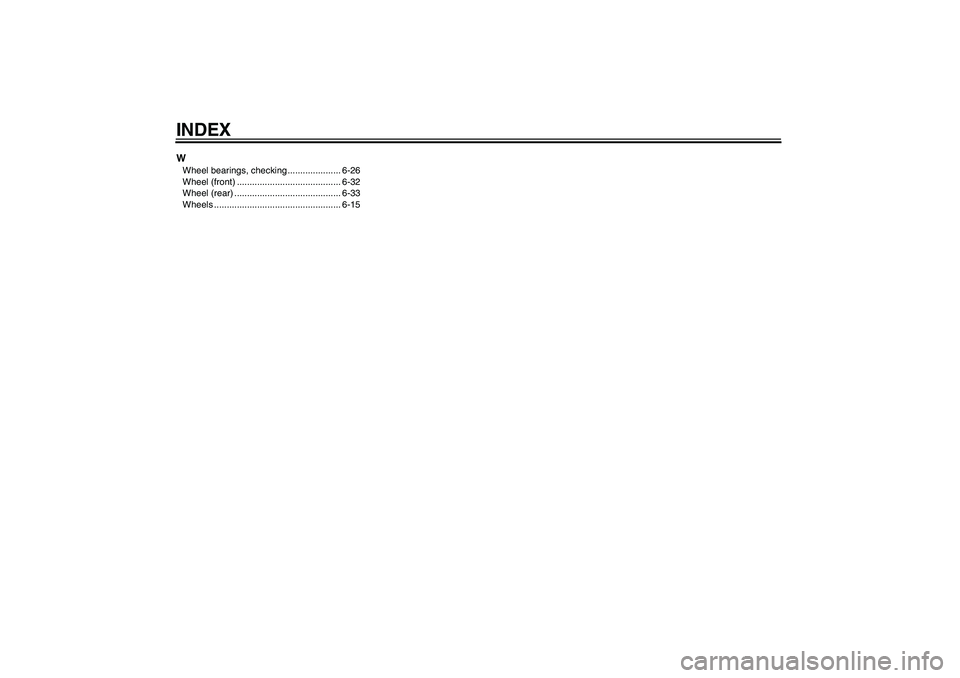

INDEXWWheel bearings, checking ..................... 6-26
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-33
Wheels .................................................. 6-15
U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM

YAMAHA MOTOR CO., LTD.
PRINTED IN CHINA
2008.11-0.3×1 CR
