PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
EAU45511
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place the vehicle on the center-
stand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU23385
Battery The battery is located behind panel B.
(See page 6-6.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.NOTICE
ECA10620
Never attempt to remove the battery
cell seals, as this would permanent-ly damage the battery.1. Battery
2. Negative battery terminal
3. Positive battery terminal
U3D9E2E0.book Page 26 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have aYamaha dealer charge your battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing thebattery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
U3D9E2E0.book Page 27 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU43212
Replacing the fuse The fuse is located behind panel B.
(See page 6-6.)
To access the fuse, remove the starter
relay coupler.The spare fuse is located on the rear of
the starter relay holder.
To access the spare fuse, remove the
starter relay (together with its holder) by
pulling it out, then turn the starter relay
over.
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Starter relay coupler
1. Fuse
1. Spare fuse
Specified fuse:
15.0 A
U3D9E2E0.book Page 28 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU43191
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-cohol or thinner.
1. Remove the headlight unit by re-
moving the screws.2. Remove the headlight bulb socket
cover.
3. Remove the headlight bulb socket
(together with the bulb) by turning
it counterclockwise.4. Remove the burnt out bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.1. Do not touch the glass part of the bulb.
1. Screw
1. Headlight bulb socket cover
1. Headlight bulb socket
1. Headlight bulb
1
U3D9E2E0.book Page 29 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6 6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the headlight bulb socket
cover.
8. Install the headlight unit by install-
ing the screws.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24133
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
1. Screw
1. Tail/brake light bulb
U3D9E2E0.book Page 30 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU37271
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the burnt out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.
1. Screw
1
1. Screw
1. Auxiliary light bulb socket
1. Auxiliary light bulb
U3D9E2E0.book Page 31 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU24360

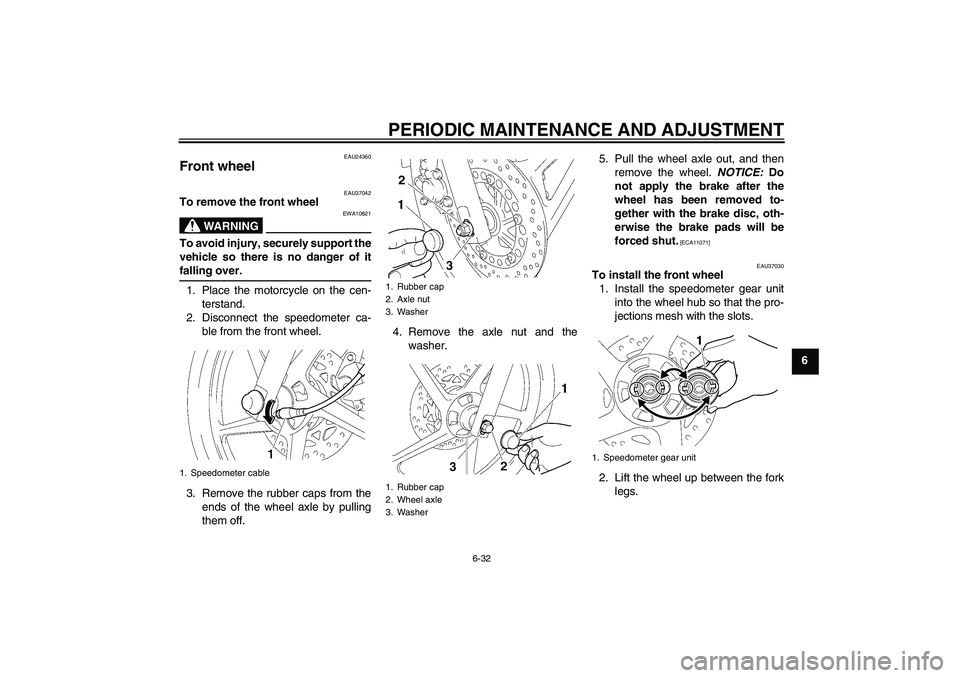

Front wheel
EAU37042
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Place the motorcycle on the cen-
terstand.
2. Disconnect the speedometer ca-
ble from the front wheel.
3. Remove the rubber caps from the
ends of the wheel axle by pulling
them off.4. Remove the axle nut and the
washer.5. Pull the wheel axle out, and then
remove the wheel. NOTICE: Do
not apply the brake after the
wheel has been removed to-
gether with the brake disc, oth-
erwise the brake pads will be
forced shut.
[ECA11071]
EAU37030
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jections mesh with the slots.
2. Lift the wheel up between the fork
legs.
1. Speedometer cable
1. Rubber cap
2. Axle nut
3. Washer
1. Rubber cap
2. Wheel axle
3. Washer
1. Speedometer gear unit
U3D9E2E0.book Page 32 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
TIPMake sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over theretainer on the fork leg.
3. Insert the wheel axle, making sure
the washer on the left side is in-
stalled with the beveled side facing
outward, and then install the axle
nut.
4. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.5. Tighten the axle nut to the speci-
fied torque, and then install both
rubber caps so that they fit over the
washers.
6. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
7. Connect the speedometer cable.
EAU25080
Rear wheel
EAU37181
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Loosen the axle nut and the brake
torque rod nut at the brake shoe
plate.
2. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut, and
the bolt.
1. Speedometer gear unit retainer
Tightening torque:
Axle nut:
59 Nm (5.9 m·kgf, 43 ft·lbf)
