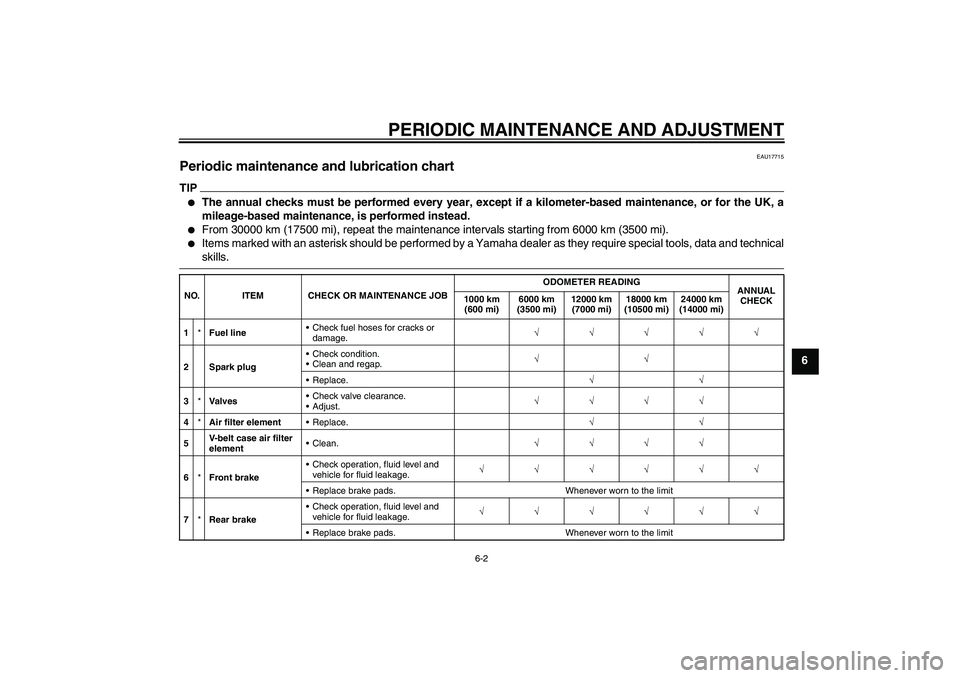

Page 41 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU17715
Periodic maintenance and lubrication chart TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√√√
4*Air filter elementReplace.√√
5V-belt case air filter
elementClean.√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U16PE1E0.book Page 2 Monday, July 28, 2008 9:57 AM

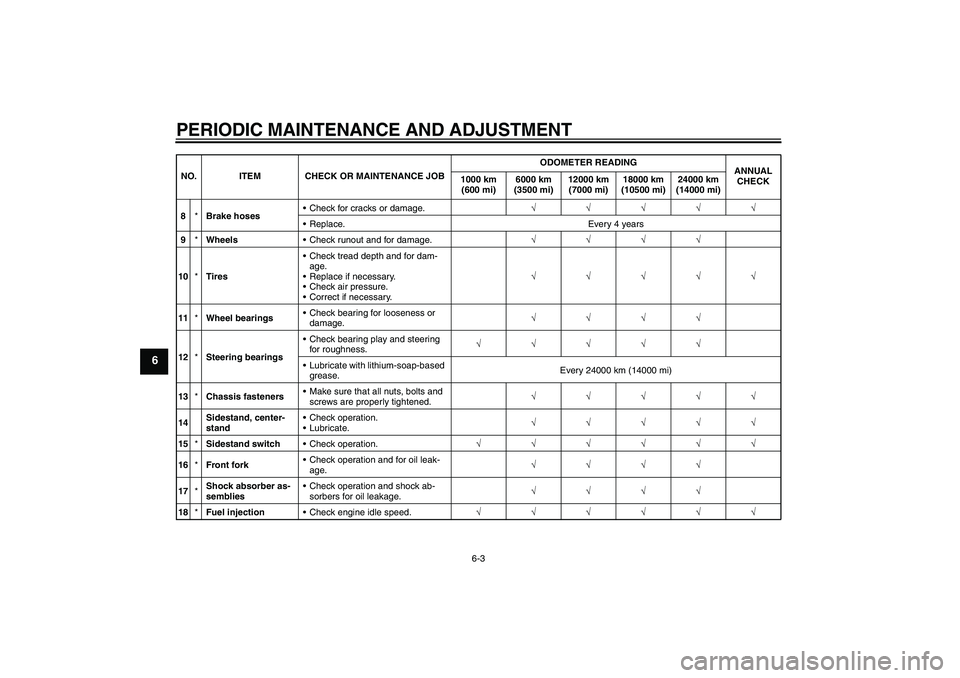

Page 42 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 24000 km (14000 mi)
13*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
14Sidestand, center-
standCheck operation.
Lubricate.√√√√√
15*Sidestand switchCheck operation.√√√√√√
16*Front forkCheck operation and for oil leak-
age.√√√√
17*Shock absorber as-
sembliesCheck operation and shock ab-
sorbers for oil leakage.√√√√
18*Fuel injectionCheck engine idle speed.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U16PE1E0.book Page 3 Monday, July 28, 2008 9:57 AM
Page 43 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
19 Engine oilChange. (See page 3-3.)√When the oil change indicator light comes on [5000 km (3000 mi)
after the initial 1000 km (600 mi) and every 6000 km (3500 mi)
thereafter]
Check oil level and vehicle for oil
leakage.Every 3000 km (1800 mi)√
20Engine oil filter ele-
mentReplace.√√√
21*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years
22Final transmission
oilCheck vehicle for oil leakage.√√ √
Change.√√√
23*V- b e l tReplace. Every 18000 km (10500 mi)
24*Front and rear brake
switchesCheck operation.√√√√√√
25Moving parts and
cablesLubricate.√√√√√
26*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U16PE1E0.book Page 4 Monday, July 28, 2008 9:57 AM

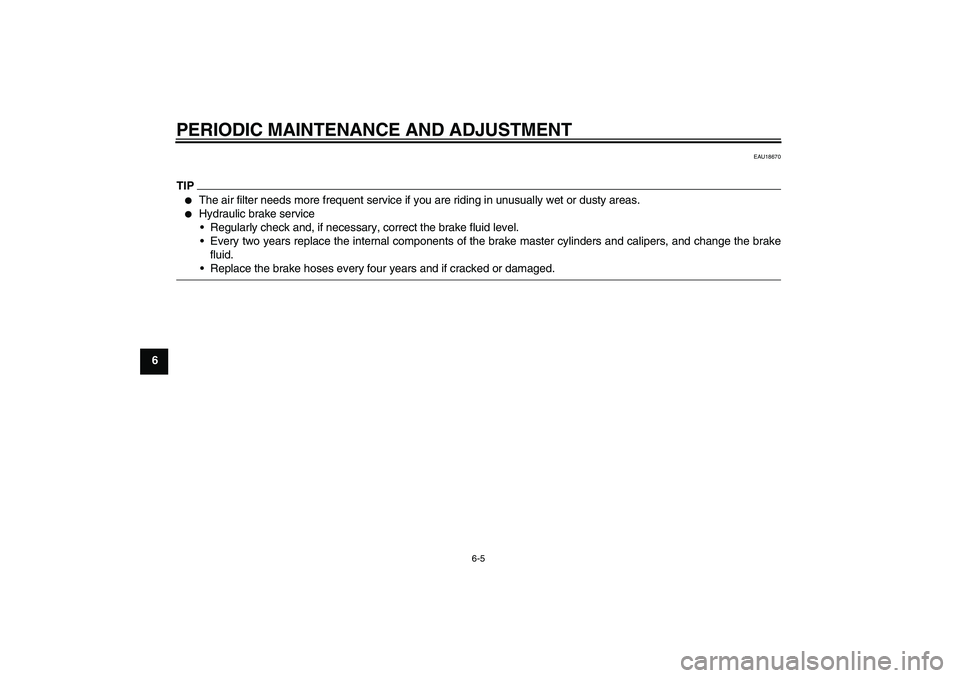

Page 44 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU18670
TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.Replace the brake hoses every four years and if cracked or damaged.
U16PE1E0.book Page 5 Monday, July 28, 2008 9:57 AM

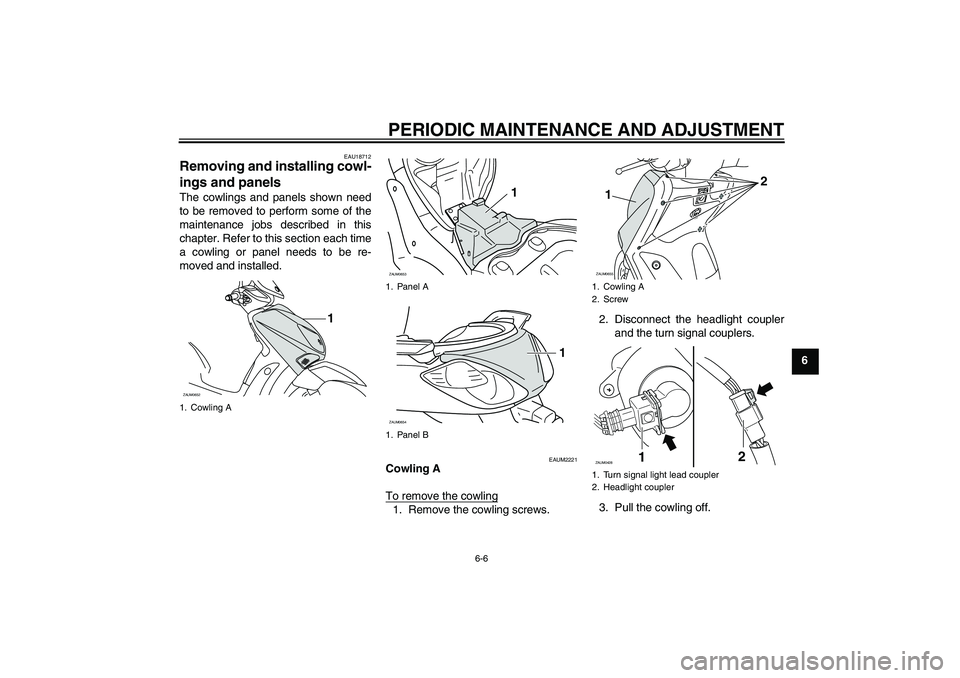

Page 45 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18712
Removing and installing cowl-
ings and panels The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAUM2221
Cowling A
To remove the cowling1. Remove the cowling screws.2. Disconnect the headlight coupler
and the turn signal couplers.
3. Pull the cowling off.
1. Cowling AZAUM0652
1
1. Panel A
1. Panel BZAUM0653
1
ZAUM0654
1
1. Cowling A
2. Screw
1. Turn signal light lead coupler
2. Headlight couplerZAUM0655
2
1
12
ZAUM0428
U16PE1E0.book Page 6 Monday, July 28, 2008 9:57 AM
Page 46 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6To install the cowling
1. Connect the headlight coupler and
the turn signal couplers.
2. Place the cowling in the original
position, and then install the
screws.
EAU19481
Panel A
To remove the panel1. Open the seat. (See page 3-12.)
2. Remove the screws, and then pull
the panel off as shown.
To install the panelPlace the panel in the original position,
and then install the screws.
EAU19210
Panel B
To remove the panelRemove the screws, and then take the
panel off.
To install the panelPlace the panel in the original position,
and then install the screws.
EAU19622
Checking the spark plug The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Screw
2. Panel AZAUM0656
1
2
1. ScrewZAUM0657
1
Specified spark plug:
NGK/CPR9EA-9
U16PE1E0.book Page 7 Monday, July 28, 2008 9:57 AM
Page 47 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6 Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
EAUM2271
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart and when the service
indicator light comes on.
To check the engine oil level
1. Place the scooter on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.TIPThe engine oil should be between theminimum and maximum level marks.
1. Spark plug gapSpark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
1
ZAUM0037
U16PE1E0.book Page 8 Monday, July 28, 2008 9:57 AM

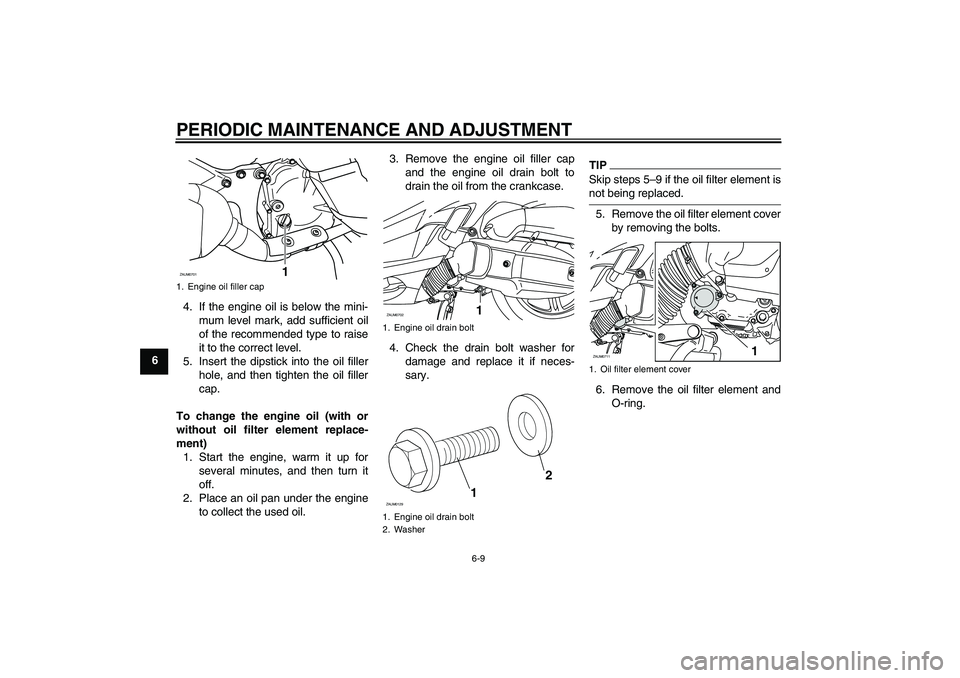

Page 48 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
64. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.
4. Check the drain bolt washer for
damage and replace it if neces-
sary.
TIPSkip steps 5–9 if the oil filter element isnot being replaced.
5. Remove the oil filter element cover
by removing the bolts.
6. Remove the oil filter element and
O-ring.
1. Engine oil filler capZAUM0701
1
1. Engine oil drain bolt
1. Engine oil drain bolt
2. WasherZAUM0702
112
ZAUM0129
1. Oil filter element coverZAUM0711
1
