2009 YAMAHA TDM 900 Owners Manual

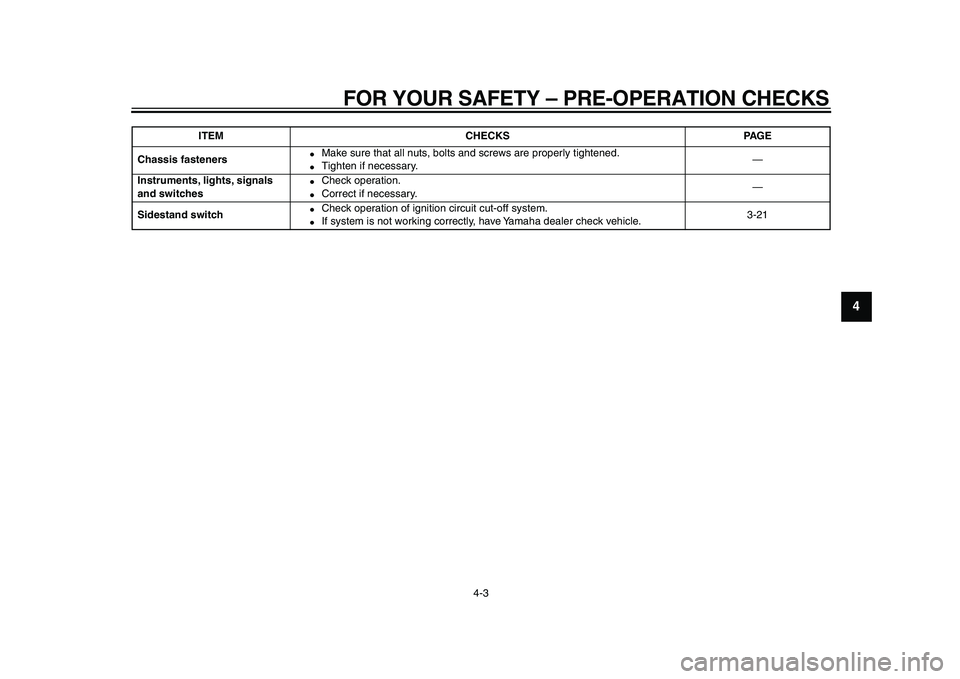

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-3
2
3
45
6
7
8
9

Chassis fasteners
●
Make sure that all nuts, bolts and screws are properly tightened.
●
Tighten if necessary.—
Instruments, lights, signals
and switches
●
Check operation.
●
Correct if necessary.—
Sidestand switch
●
Check operation of ignition circuit cut-off system.
●
If system is not working correctly, have Yamaha dealer check vehicle.3-21
ITEM CHECKS PAGE

5-1
1
2
3
4
5
6
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU45310
TIP

This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. To start the engine after a
turnover, be sure to turn the main
switch to “OFF” and then to “ON”. Fail-
ing to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAU39893
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
●
The transmission is in the neutral
position.
●
The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-21 for more information.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.
●
Oil level warning light
●
Engine trouble warning light
●
Immobilizer system indicator light
●
ABS warning light
NOTICE

ECA11831
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-

OPERATION AND IMPORTANT RIDING POINTS
5-2
2
3
4
56
7
8
9
tral position. (See page 5-2.) The
neutral indicator light should come
on. If not, ask a Yamaha dealer to
check the electrical circuit.
3. Start the engine by pushing the
start switch.
NOTICE:
For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!

[ECA11041]

If the engine fails to start, release
the start switch, wait a few sec-
onds, and then try again. Each
starting attempt should be as short
as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one at-
tempt.
EAU16671
Shifting
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.
TIP

To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE

ECA10260
●
Even with the transmission inthe neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
●
Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
1. Shift pedal
2. Neutral position
1
1 2 3
4 5 6
N2

OPERATION AND IMPORTANT RIDING POINTS
5-3
1
2
3
4
5
6
7
8
9

EAU16810
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
●
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
●
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
●
Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17101
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min.
NOTICE:
After 1000
km (600 mi) of operation, the en-
gine oil must be changed, and
the oil filter element re-
placed.

[ECA11151]

1000–1600 km (600–1000 mi)
Avoid prolonged operation above 6000
r/min.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
NOTICE

ECA10310
●
Keep the engine speed out of
the tachometer red zone.
●
If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.

OPERATION AND IMPORTANT RIDING POINTS
5-4
2
3
4
56
7
8
9

EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING

EWA10311
●
Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.
●
Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.
●
Do not park near grass or other
flammable materials which
might catch fire.

6-1
1
2
3
4
5
6
7
8
9

PERIODIC MAINTENANCE AND ADJUSTMENT
EAU17241
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING

EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
WARNING

EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.
●
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
●
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-
ide.
EAU17521
Owner’s tool kit
The owner’s tool kit is located inside the
storage compartment under the seat.
(See page 3-16.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP

If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
1. Owner’s tool kit
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
2
3
4
5
67
8
9

EAU1770A
Periodic maintenance and lubrication chart
TIP

●
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
●
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
●
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*
Fuel line
●
Check fuel hoses for cracks or
damage.
√√√√√
2*
Spark plugs
●
Check condition.
●
Clean and regap.
√√
●
Replace.
√√
3*
Valves
●
Check valve clearance.
●
Adjust.Every 40000 km (24000 mi)
4
Air filter element
●
Replace.
√
5
Clutch
●
Check operation.
●
Adjust.
√√√√√
6*
Front brake
●
Check operation, fluid level and
vehicle for fluid leakage.
√√√√√√
●
Replace brake pads. Whenever worn to the limit
7*
Rear brake
●
Check operation, fluid level and
vehicle for fluid leakage.
√√√√√√
●
Replace brake pads. Whenever worn to the limit
8*
Brake hoses
●
Check for cracks or damage.
√√√√√
●
Replace. Every 4 years

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
1
2
3
4
5
6
7
8
9

9*
Wheels
●
Check runout and for damage.
√√√√
10

*
Tires
●
Check tread depth and for
damage.
●
Replace if necessary.
●
Check air pressure.
●
Correct if necessary.
√√√√√
11

*
Wheel bearings
●
Check bearing for looseness or
damage.
√√√√
12

*
Swingarm
●
Check operation and for
excessive play.
√√√√
●
Lubricate with lithium-soap-based
grease.
Every 50000 km (30000 mi)

13

Drive chain
●
Check chain slack, alignment and
condition.
●
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain
14

*
Steering bearings
●
Check bearing play and steering
for roughness.
√√√√√
●
Lubricate with lithium-soap-based
grease.
Every 20000 km (12000 mi)

15

*
Chassis fasteners
●
Make sure that all nuts, bolts and
screws are properly tightened.
√√√√√
16

Brake lever pivot
shaft
●
Lubricate with silicone grease.
√√√√√
17

Brake pedal pivot
shaft
●
Lubricate with lithium-soap-based
grease.

√√√√√
18

Clutch lever pivot
shaft
●
Lubricate with lithium-soap-based
grease.

√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
