2009 YAMAHA GIGGLE50 Owners Manual

7-65
1
2
3
4
5
6
7
8
9
EAU25991

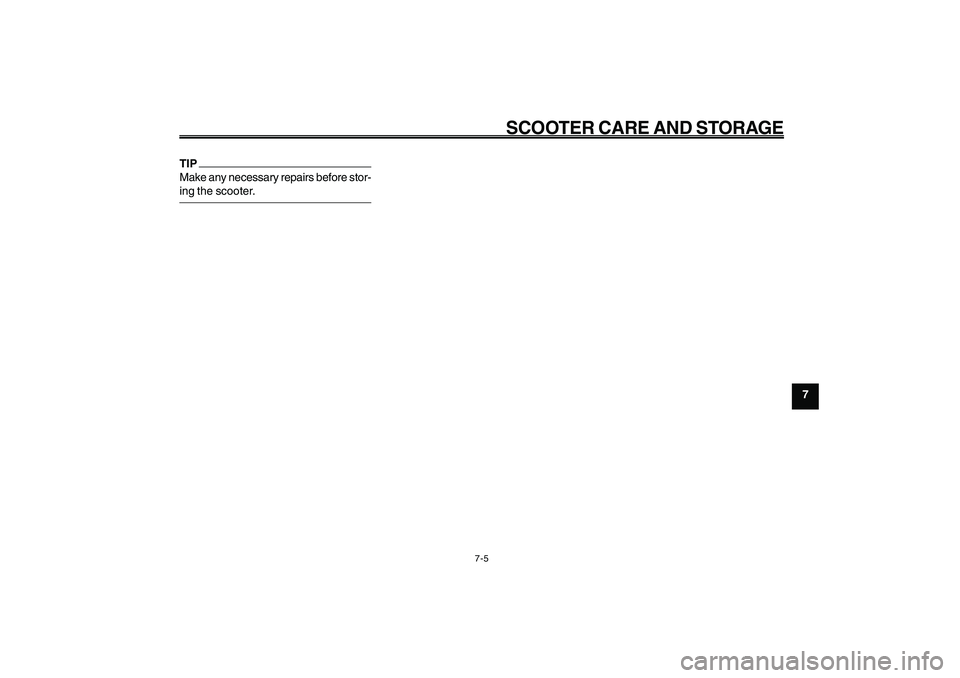

SCOOTER CARE AND STORAGE
7-5
TIP
Make any necessary repairs before stor-
ing the scooter.

8-66
1
2
3
4
5
6
7
8
9
EAU26320
SPECIFICATIONS
8-1
EAU26320
SPECIFICATIONSSpecificationsDimensionsOverall length
1915 mm (75.4 in)
Overall width
695 mm (27.4 in)
Overall height
1040 mm (40.9 in)
Seat height
750 mm (29.5 in)
Wheelbase
1280 mm (50.4 in)
Ground clearance
115 mm (4.53 in)
Minimum turning radius
2000 mm (78.7 in)WeightWith oil and fuel
93.0 kg (205 lb)EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
49.0 cm
3
Bore x stroke
38.0 x 43.6 mm (1.50 x 1.72 in)
Compression ratio
12.00 :1
Starting system
Electric starter and kickstarter
Lubrication system
Wet sump
Engine oilType
SAE 10W-40
-10 0 10 20 30
40 -20
50
C
SAE 10W-30
SAE 10W-40
SAE 15W-40SAE 20W-40SAE 20W-50
Recommended engine oil grade
API service SG type or higher, JASO
standard MA
Periodic oil change
0.78 L (0.82 US qt, 0.69 Imp.qt)Final transmission oilType
SAE 10W-30 type SE motor oil
Quantity
0.10 L (0.11 US qt, 0.09 Imp.qt)Cooling systemCoolant reservoir capacity (up to the
maximum level mark)
0.26 L (0.27 US qt, 0.23 Imp.qt)
Radiator capacity (including all routes)
0.50 L (0.53 US qt, 0.44 Imp.qt)Air filterAir filter element
Wet elementFuelRecommended fuel
Regular unleaded gasoline onlyFuel tank capacity
4.5 L (1.19 US gal, 0.99 Imp.gal)
Throttle bodyType/quantity
3B31 00(SE AC19-1) / 1
Manufacturer
MIKUNISpark plug (s)Manufacturer/mode
NGK/CR7E
Spark plug gap
0.7-0.8 mm (0.028-0.031 in)ClutchClutch type
Dry, centrifugal automaticTransmissionPrimary reduction system
Helical gear
Primary reduction ratio
50/13 (3.846)
Secondary reduction system
Helical gear
Secondary reduction ratio
43/12 (3.583)
Transmission type
V-belt automatic
Operation
Centrifugal automatic typeChassisFrame type
Steel tube backbone
Caster angle
26.00 degree

8-67
1
2
3
4
5
6
7
8
9
EAU26320
SPECIFICATIONS
8-2 Trail
84.0 mm (3.31 in)
Front tireType
Tubeless
Size
120/90-10 57J
Manufacturer/model
CHENG SHIN / C-6022Rear tireType
Tubeless
Size
120/90-10 57J
Manufacturer/model
CHENG SHIN / C-6022LoadingMaximum load
177 kg (390 lb)Tire air pressure (measured on cold
tires)Front
175 kPa (1.75 kgf/cm
2, 25 psi, 1.75 bar)
Rear
175 kPa (1.75 kgf/cm2, 25 psi, 1.75 bar)
Front wheelWheel type
Cast wheel
Rim size
10 x 3.00Rear wheelWheel type
Cast wheelRim size
10 x 3.00
Front brakeType
Drum brake
Operation
Right hand operationRear brakeType
Drum brake
Operation
Left hand operationFront suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring
Wheel travel
65.0 mm (2.56 in)Rear suspensionType
Unit swing
Spring/shock absorber type
Coil spring
Wheel travel
56.0 mm (2.20 in)Electrical systemIgnition system
TCI
Charging system
AC magnetoBatteryModel
GTX5L-BSVoltage, capacity
12 V, 4.0 Ah
HeadlightBulb type
Halogen bulbBulb voltage, wattage x quantityHeadlight
12 V, 35 W/35.0 W x 1
Tail/brake light
12 V, 5.0 W/21.0 W x 1
Front turn signal light
12 V, 10.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
Meter lighting
12 V, 1.7 W x 1
High beam indicator light
12 V, 1.7 W x 1
Turn signal indicator light
14 V, 3.0 W x 1
Coolant temperature warning light
12 V, 1.7 W x 1
Engine trouble warning light
12 V, 1.7 W x 1FusesMain fuse
15.0 A

9-68
1
2
3
4
5
6
7
8
9
EAU26343
CONSUMER INFORMATION
EAU26351
Identification numbersRecord the key identification number,
vehicle identification number and model
label information in the spaces provided
below for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION: Identification numbers
Key identification number
Vehicle identification number
EAU26410
Vehicle identification numberZAUM00**
1
1. Vehicle identification numberThe vehicle identification number is
stamped into the frame.TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcycle
with the licensing authority in your area.
EAU26343
CONSUMER INFORMATION
9-1
EAU26381
Key identification numberZAUM00**
1
1. Key identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when or-
dering a new key.

9-69
1
2
3
4
5
6
7
8
9
EAU26343
CONSUMER INFORMATION
Model label
9-2
EAUT1440
Model labelZAUM00**
1
1. Model labelThe model label is affixed to the inside
of the storage compartment. (See page
3-11.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering spare
parts from a Yamaha dealer.

1
2
3
4
5
6
7
8
9
INDEXAAcceleration and deceleration.................. 5-2
Air filter element, replacing .....................6-11BBattery.....................................................6-19
Brake lever, front ...................................... 3-6
Brake lever, rear....................................... 3-7
Brake levers, lubricating.........................6-16
Brake shoes, checking ..........................6-15
Braking...................................................... 5-2CCare.......................................................... 7-1
Catalytic converters................................. 3-9
Centerstand, checking and lubricating ..6-17
Coolant....................................................6-10
Coolant temperature warning light ........... 3-3DDimmer switch.......................................... 3-6EEngine break-in ......................................... 5-3
Engine oil ................................................... 6-7
Engine trouble warning light ..................... 3-4FFinal transmission oil................................ 6-9
Front and rear brake lever free play,
adjusting...............................................6-14
Front fork, checking...............................6-17
Fuel........................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge ................................................ 3-5
Fuel tank cap ............................................ 3-7
Fuse, replacing.......................................6-20
HHandlebar switches.................................. 3-5
Headlight bulb, replacing........................6-21
Helmet holder..........................................3-10
High beam indicator light .......................... 3-3
Horn switch............................................... 3-6IIdentification numbers.............................. 9-1
Indicator and warning lights ..................... 3-3KKey identification number......................... 9-1
Keyhole cover........................................... 3-2
Kickstarter..............................................3-10LLuggage hook .........................................3-12MMain switch/steering lock......................... 3-1
Matte color, caution .................................. 7-1
Model label................................................ 9-2PPanels, removing and installing................ 6-5
Parking...................................................... 5-4
Part locations............................................ 2-1
Periodic maintenance and lubrication
chart ....................................................... 6-2
Pre-operation check list........................... 4-2SSafe-riding points...................................... 1-5
Safety information..................................... 1-1
Seat .........................................................3-10
Spark plug, checking................................ 6-6
Specifications............................................ 8-1Speedometer unit..................................... 3-4
Start switch............................................... 3-6
Starting off ................................................. 5-2
Starting the engine.................................... 5-1
Steering, checking..................................6-18
Storage..................................................... 7-4
Storage compartment.............................3-11
TTail/brake light bulb, replacing ................6-22
Throttle cable free play, checking ..........6-12
Throttle grip and cable, checking and
lubricating.............................................6-16
Tires........................................................6-12
Troubleshooting......................................6-23
Troubleshooting charts...........................6-24
Turn signal indicator light.......................... 3-3
Turn signal light bulb, replacing ..............6-22
Turn signal switch ..................................... 3-6VValve clearance......................................6-12
Vehicle identification number .................... 9-1WWheel bearings, checking ......................6-18
Wheels....................................................6-14

1
2
3
4
5
6
7
8
9
INDEX
