INSTRUMENT AND CONTROL FUNCTIONS
3-9

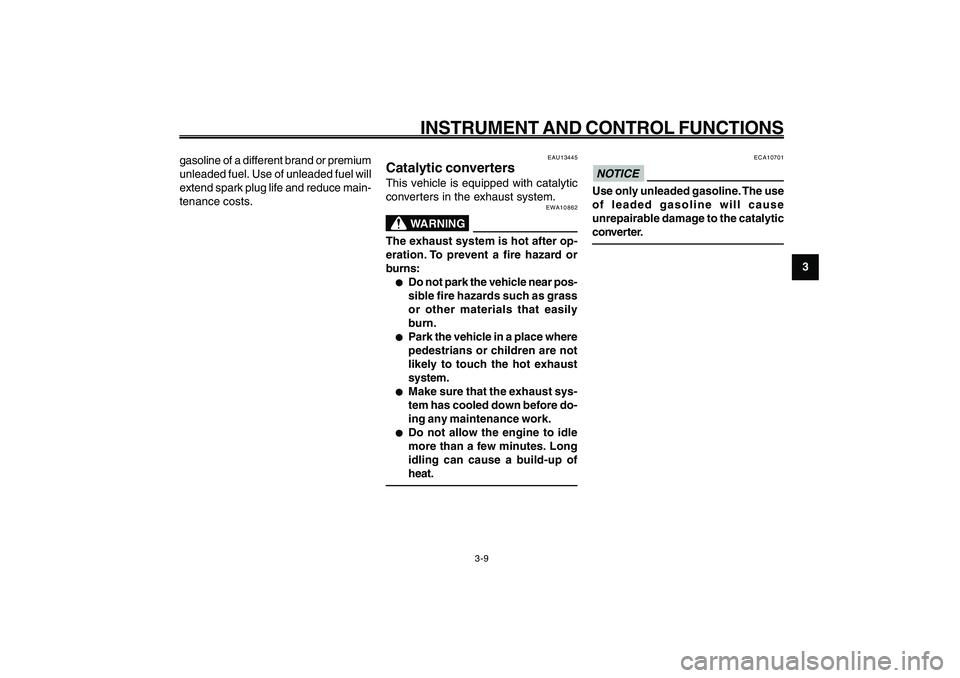

Catalytic converters
EAU13445
Catalytic convertersThis vehicle is equipped with catalytic
converters in the exhaust system.
EWA10862
WARNING
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:● ●● ●
●
Do not park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
● ●● ●
●
Park the vehicle in a place where
pedestrians or children are not
likely to touch the hot exhaust
system.
● ●● ●
●
Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.
● ●● ●
●
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
NOTICEUse only unleaded gasoline. The use
of leaded gasoline will cause
unrepairable damage to the catalytic
converter.
gasoline of a different brand or premium
unleaded fuel. Use of unleaded fuel will
extend spark plug life and reduce main-
tenance costs.

3-26
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
3-10
Kickstarter
Seat
Helmet holder
EAU13891
SeatZAUM00**To open the seat
1. Insert the key in the lock, and then
turn it as shown.
2. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key.TIP
Make sure that the seat is properly se-
cured before riding.
EAUT2041
Helmet holderZAUM00**
1
1. Helmet holderThe helmet holder is located under the
seat.
To secure a helmet to the helmet
holder
1. Open the seat. (See page 3-10.)
2. Pull the helmet holder up.
3. Attach the helmet to the helmet
holder and then push the helmet
holder down.
4. Securely close the seat. WARNING!
Never ride with a helmet attached
to the helmet holder, since the
EAU13680
KickstarterZAUM00**
1
1. KickstarterTo start the engine, fold out the
kickstarter lever, move it down lightly
with your foot until the gears engage,
and then push it down smoothly but
forcefully.

3-27
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
3-11
EAUT2470

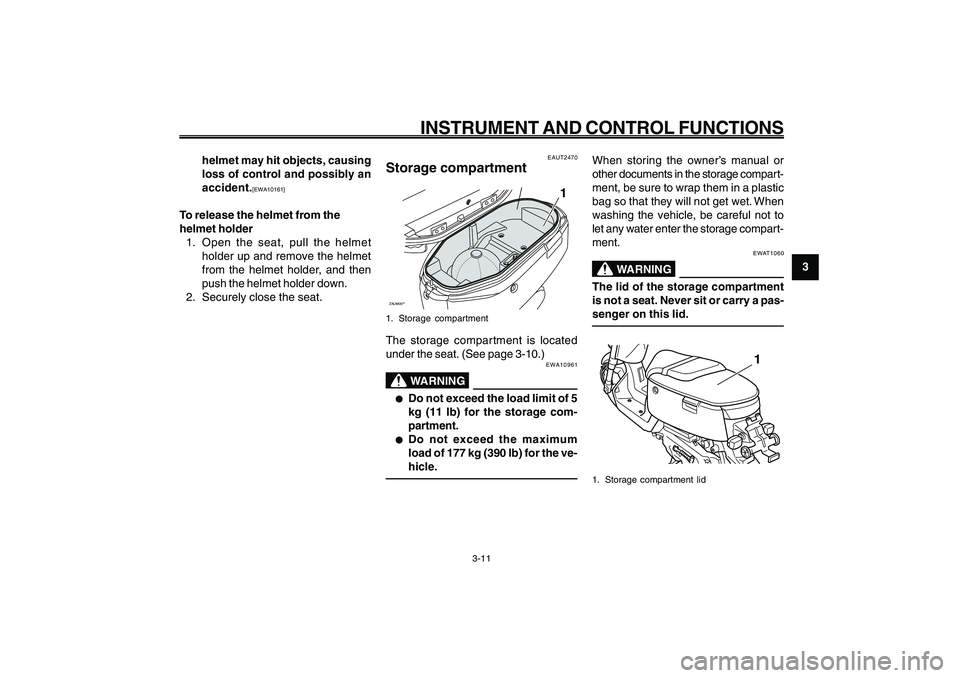

Storage compartmentZAUM00**
1
1. Storage compartmentThe storage compartment is located
under the seat. (See page 3-10.)
EWA10961
WARNING
● ●● ●
●
Do not exceed the load limit of 5
kg (11 lb) for the storage com-
partment.
● ●● ●
●
Do not exceed the maximum
load of 177 kg (390 lb) for the ve-
hicle.
Storage compar tment
When storing the owner’s manual or
other documents in the storage compart-
ment, be sure to wrap them in a plastic
bag so that they will not get wet. When
washing the vehicle, be careful not to
let any water enter the storage compart-
ment.
EWAT1060
WARNING
The lid of the storage compartment
is not a seat. Never sit or carry a pas-
senger on this lid.
1
1. Storage compartment lid
helmet may hit objects, causing
loss of control and possibly an
accident.
[EWA10161]
To release the helmet from the
helmet holder
1. Open the seat, pull the helmet
holder up and remove the helmet
from the helmet holder, and then
push the helmet holder down.
2. Securely close the seat.

3-28
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
3-12
EAUT2051

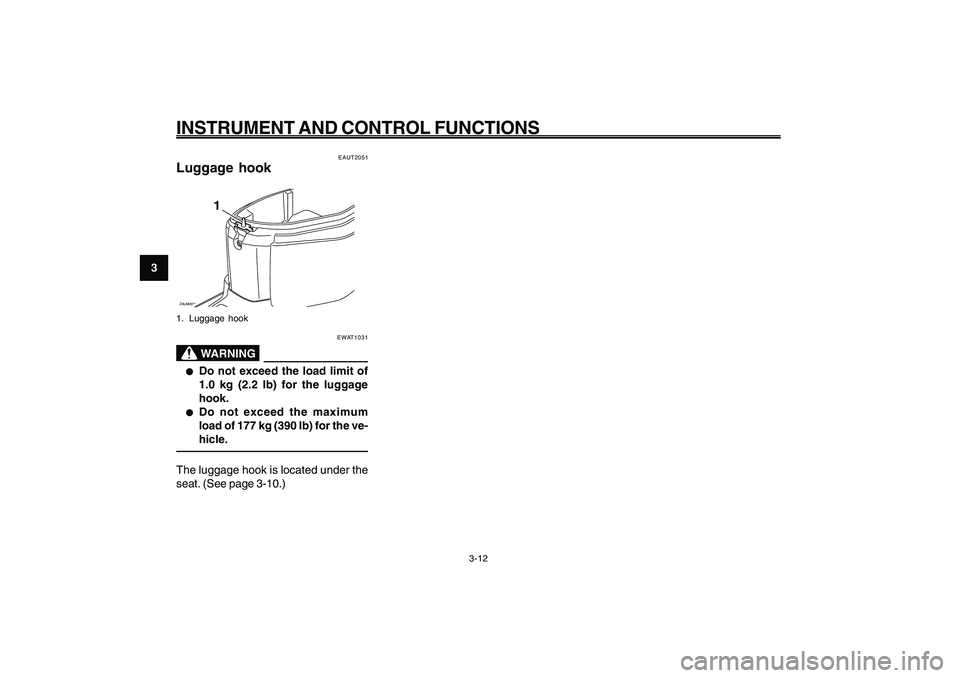

Luggage hookZAUM00**
1
1. Luggage hook
EWAT1031
WARNING
● ●● ●
●
Do not exceed the load limit of
1.0 kg (2.2 lb) for the luggage
hook.
● ●● ●
●
Do not exceed the maximum
load of 177 kg (390 lb) for the ve-
hicle.
The luggage hook is located under the
seat. (See page 3-10.) Luggage hook

4-29
1
2
3
4
5
6
7
8
9
EAU15582
FOR YOUR SAFETY - PRE-OPERATION CHECKS
4-1
EAU15582
FOR YOUR SAFETY - PRE-OPERATION CHECKS
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
WARNING
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do
not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this
manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:

4-30
1
2
3
4
5
6
7
8
9
EAU15582
FOR YOUR SAFETY - PRE-OPERATION CHECKS
4-2
EAU15605
Pre-operation check listPre-operation check list
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-5, 3-7
~3-8
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-7
Final transmission oil• Check vehicle for oil leakage. 6-9
Coolant• Check coolant level in reservoir
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.6-10
Front brake• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-14
~6-15
Rear brake• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-14~6-15
Throttle grip• Make sure that operation is smooth.
• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-16
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-12~6-14
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-16

4-31
1
2
3
4
5
6
7
8
9
EAU15582
FOR YOUR SAFETY - PRE-OPERATION CHECKS
4-3

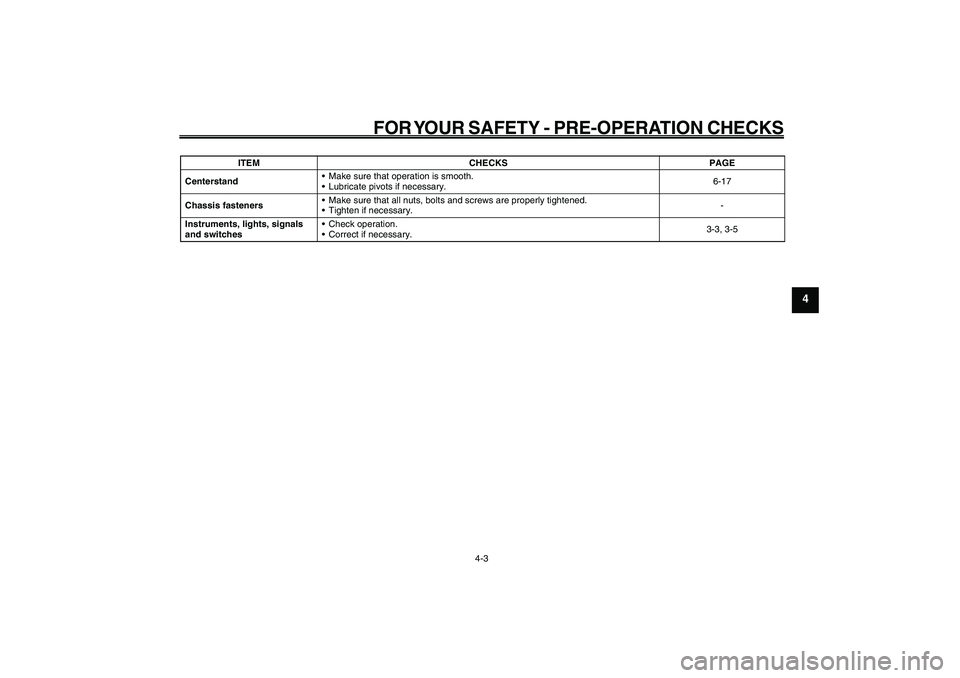

Centerstand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-17
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.-
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.3-3, 3-5 ITEM CHECKS PAGE

5-32
1
2
3
4
5
6
7
8
9
EAU15943
OPERATION AND IMPORTANT RIDING POINTS
EAU15943
OPERATION AND IMPORTANT RIDING POINTS
5-1
Starting the engine
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If there
is a control or function you do not un-
derstand, ask your Yamaha dealer.
EWA10271
WARNING
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU45310
TIP
This model is equipped with a lean angle
sensor to stop the engine in case of a
turnover. To start the engine after a turn-
over, be sure to turn the main switch to
“OFF” and then to “ON”. Failing to do so
will prevent the engine from starting
even though the engine will crank when
pushing the start switch.
EAUT2251
Starting the engine
ECA10250
NOTICESee page 5-3 for engine break-in in-
structions prior to operating the ve-
hicle for the first time.1. Turn the key to “ON”.
ECAT1070
NOTICEThe engine trouble warning light and
coolant temperature warning light
should come on for a few seconds,
then go off. If these warning lights do
not go off, have a Yamaha dealer check
their electrical circuits.2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the front
or rear brake.
NOTICE:
For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!
[ECA11041]
If the engine does not start, release
the start switch, wait a few sec-
onds, and then try again. Each
starting attempt should be as short
as possible to preserve the battery.
Do not crank the engine more than
5 seconds on any one attempt. If
the engine does not start with the
starter motor, try using the
kickstar ter.
