2009 TOYOTA YARIS SEDAN Owners Manual

25
1-2. Opening, closing and locking the doors
1
Before driving
n
Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations.
lNear a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
l When carrying a portable radio, cell ular phone or other wireless commu-
nication device
l When multiple wireless keys are in the vicinity
l When the wireless key has come into contact with, or is covered by a
metallic object
l When a wireless key (that emits radio waves) is being used nearby
l When the wireless key has been left near an electrical appliance such as
a personal computer
n Customization that can be co nfigured at Toyota dealer
l Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 354)
nCertification for wireless remote control
For vehicles sold in U.S.A.
FCC ID:MOZB41TG
FCC ID:MOZB21RG
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

26
1-2. Opening, closing and locking the doors
Doors
The vehicle can be locked/unlocked using the wireless remote con-
trol, key or door lock switch.
n Wireless remote control (if equipped)
→P. 2 4
n Key
Vehicles with power door lock
Locks all doors
Unlocks all doors
Turning the key a single
time in the driver’s door
unlocks the driver’s door,
and turning the key again
unlocks the other doors.

27
1-2. Opening, closing and locking the doors
1
Before driving

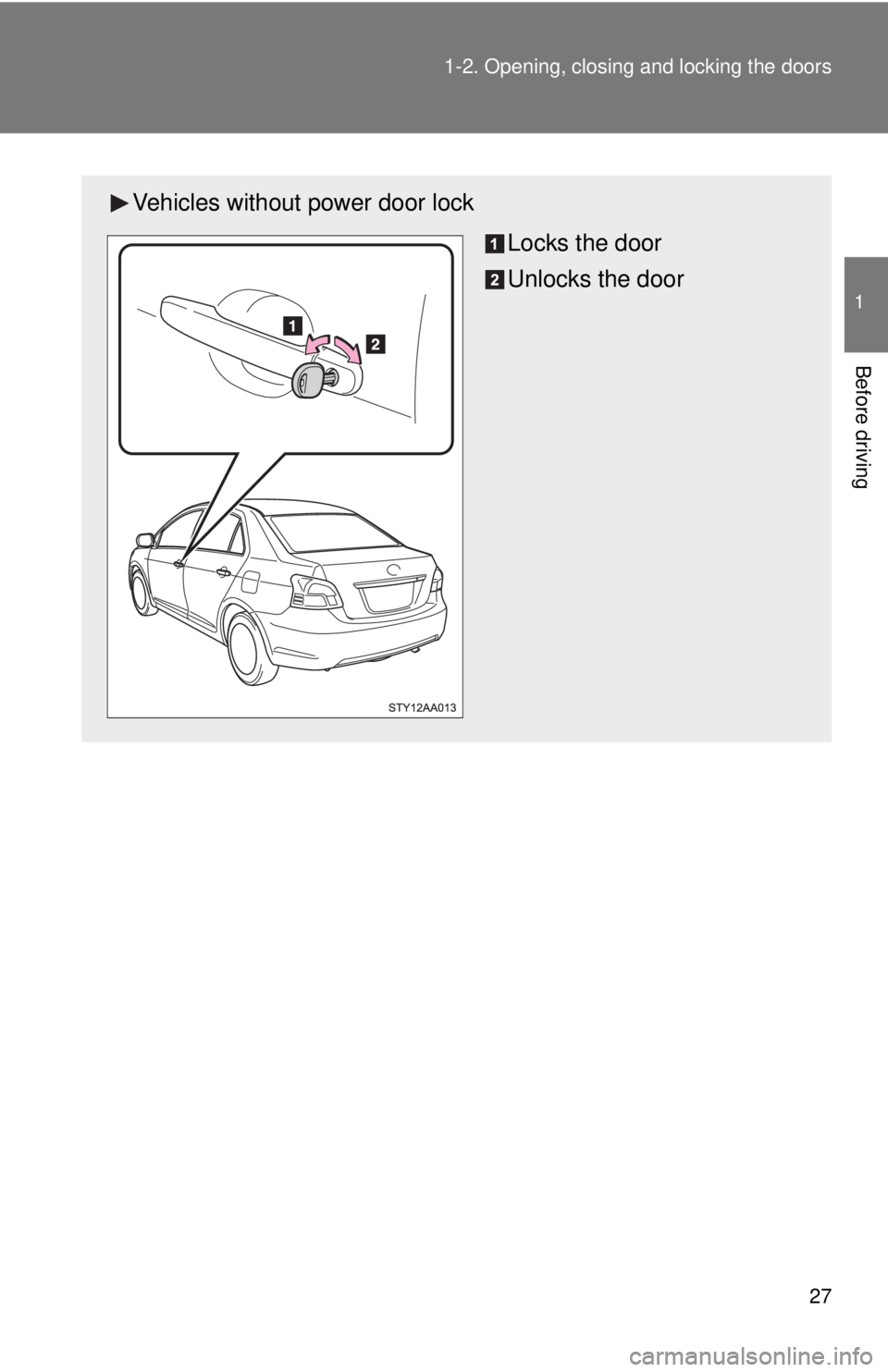

Vehicles without power door lock
Locks the door
Unlocks the door

28 1-2. Opening, closing and locking the doors
nDoor lock switch (if equipped)
Driver’s door lock switch
Unlocks all doors
Locks all doors
Passenger’s door lock switch Locks all doors
Unlocks all doors
n Inside door lock button
Locks the door
Unlocks the door
Pulling the inside handle can
open the front door even if the
lock button is in the lock posi-
tion.

29
1-2. Opening, closing and locking the doors
1
Before driving
Locking the front doors from the outside without a key
Move the inside door lock button to the lock position.
Close the door.
Vehicles with power door lock
The door cannot be locked if the driver’s door is open and the key
is in the engine switch.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
nKey reminder buzzer
A buzzer sounds if the driver’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
n Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 354)

30 1-2. Opening, closing and locking the doors
CAUTION
nTo prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
lAlways use a seat belt.
l Always lock all doors.
l Ensure that all doors are properly closed.
l Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, the doors may be opened even if
the inside lock buttons are in locked position.
l Set the rear door child protector locks when children are seated in the rear
seat.

31
1
1-2. Opening, closing and locking the doors
Before driving
Trunk
The trunk can be opened using the key or trunk opener.
nKey
Turn the master key clockwise
to release the trunk lid.
n Trunk opener
Release the trunk lid.

32 1-2. Opening, closing and locking the doors
Luggage security systemTo protect luggage stored in the trunk against theft, do the following
procedures. Vehicles with split rear seats:
Move the security lock levers to
lock the rear seatbacks.
Turn the master key counter-
clockwise to lock the trunk
opener feature.
nInternal trunk release lever
The trunk lid can be opened by pulling up
on the glow-in-the-dark lever located on
the inside of trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.
