2009 TOYOTA SEQUOIA tow

5
When trouble arises
553
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off the VSC. ( P. 222, 223)
Shift the shift lever to D or R and carefully apply the accel-
erator to free the vehicle.

557
6-1. Specifications
6
Vehicle specifications
Weight
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
Towing capacity
(Trailer weight + cargo)
UCK60L-GKASKA
4.7L V8
(2UZ-FE)
engine
2WD
1215 lb. (550 kg)6300 lb. (2855 kg)*2
7800 lb. (3535 kg)*3
UCK60L-GKALKA1240 lb. (560 kg)6200 lb. (2810 kg)*2
7700 lb. (3490 kg)*3
UCK65L-GKASKA
4WD
1275 lb. (575 kg)6000 lb. (2720 kg)*2
7500 lb. (3400 kg)*3
UCK65L-GKALKA1300 lb. (585 kg)5600 lb. (2540 kg)*2
7100 lb. (3220 kg)*3
USK60L-GKTSKA
5.7L V8
(3UR-FE)
engine
2WD
1310 lb. (590 kg)8300 lb. (3760 kg)*2
10000 lb. (4535 kg)*3
USK60L-GKTLKA1330 lb. (600 kg)8200 lb. (3715 kg)*2
9500 lb. (4305 kg)*3
USK60L-GKTZKA1315 lb. (595 kg)8100 lb. (3670 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTSKA
4WD
1210 lb. (545 kg)8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLKA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZKA1220 lb. (550 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3
USK65L-GKTSGA
5.7L V8
(3UR-FBE)
engine 1210 lb. (545 kg)
8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLGA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZGA1210 lb. (545 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3

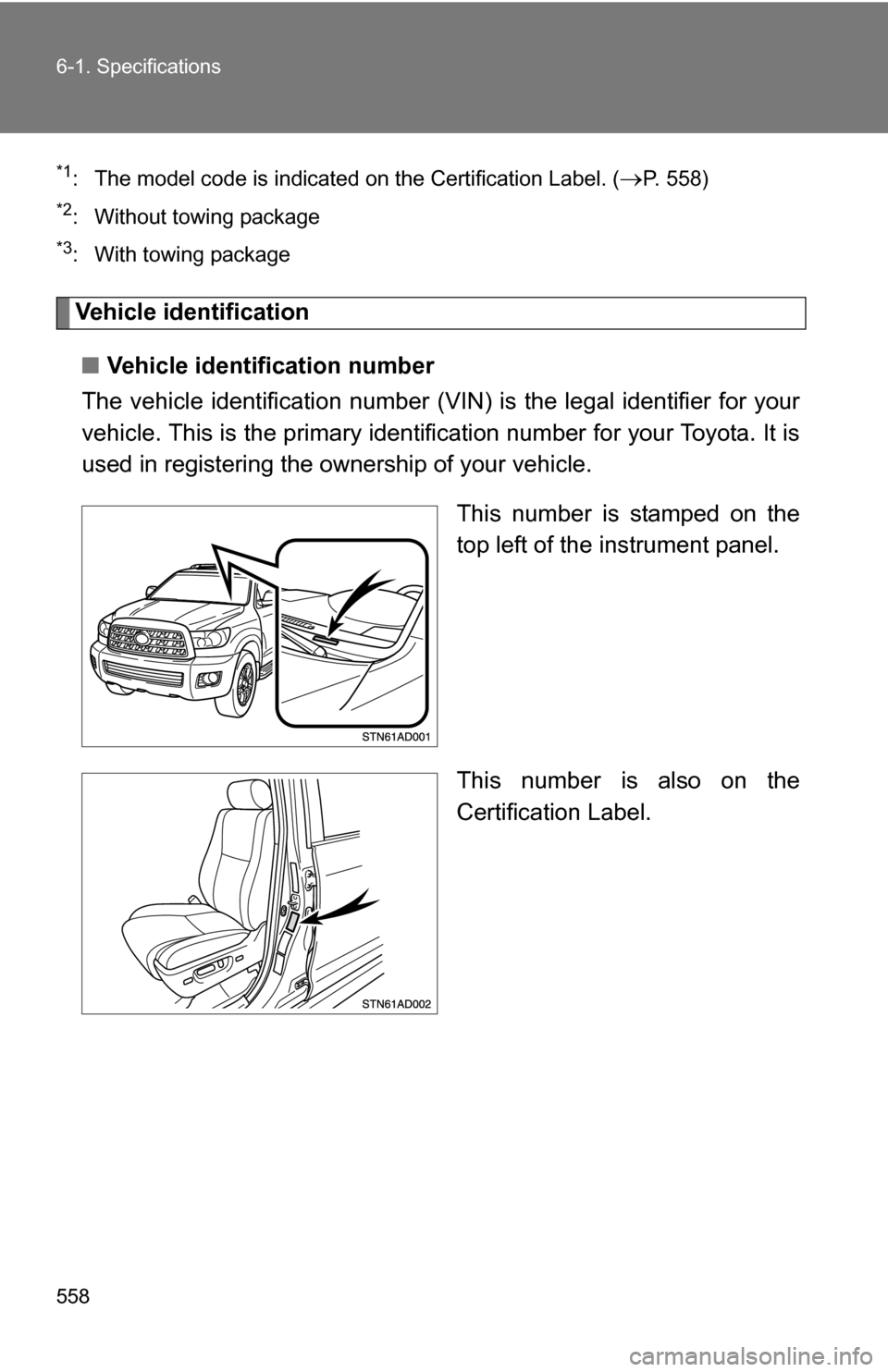

558 6-1. Specifications
*1: The model code is indicated on the Certification Label. (P. 558)
*2: Without towing package
*3: With towing package
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.

563
6-1. Specifications
6
Vehicle specifications
Cooling system
Ignition system
Capacity
4.7 L V8
(2UZ-FE)
engine
13.3 qt. (12.6 L, 11.0 Imp.qt.)
5.7 L V8
(3UR-FE,
3UR-FBE)
engine Vehicles without towing package
14.5 qt. (13.7 L, 12.0 Imp.qt.)
Vehicles with towing package
15.4 qt. (14.6 L, 12.8 Imp. qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
4.7 L V8 (2UZ-FE) engine
Make DENSO NGK
Gap
5.7 L V8 (3UR-FE,
3UR-FBE) engine
Make DENSO
Gap SK20R11
IFR6A11
0.043 in. (1.1 mm)
SK20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

565
6-1. Specifications
6
Vehicle specifications
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
Transfer (4WD models)
Fluid
capacity
*
4.7 L V8
(2UZ-FE)
engine Vehicles without towing package
11.1 qt. (10.5 L, 9.2 Imp.qt.)
Vehicles with towing package
11.7 qt. (11.1 L, 9.8 Imp.qt.)
5.7 L V8
(3UR-FE,
3UR-FBE)
engineVehicles without towing package
11.7 qt. (11.1 L, 9.8 Imp.qt.)
Vehicles with towing package
12.4 qt. (11.7 L, 10.3 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
Oil capacity 1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil typeGear oil API GL-5
Recommended oil viscosity SAE 75W-90

599
Alphabetical index
Brakes
Fluid...................................... 458
Parking brake ....................... 159
Brake assist ............................. 221
Break-in tips ............................ 143
Card holder .............................. 379
Care Exterior ................................. 434
Interior .................................. 436
Seat belts ............................. 437
Cargo capacity ........................ 236
Cargo hooks ............................ 419
CD changer .............................. 285
CD player ................................. 285
Chains ...................................... 237
Child restraint system Booster seats, definition ....... 125
Booster seats, installation .... 135
Convertible seats, definition............................. 125
Convertible seats,
installation .......................... 134
Front passenger occupant classification system .......... 120
Infant seats, definition .......... 125
Infant seats, installation ........ 133
Installing CRS with LATCH system................................ 130
Installing CRS with seat belts ................................... 133
Installing CRS with top tether straps ....................... 136
Child safety
Airbag precautions ............... 114
Battery precautions ...... 463, 548
Child restraint system ........... 125
Child-protectors ...................... 38
How your child should wear the seat belt ......................... 73
Installing child restraints ....... 129
Moon roof precautions............ 94
Power window lock switch ...... 88 Power window precautions .....89
Removed key battery
precautions .........................483
Seat belt extender precautions ...........................75
Seat belt precautions ..............74
Seat heater precautions ........410
Child-protectors .........................38
Cigarette lighter .......................400
Cleaning Exterior ..................................434
Interior ...................................436
Seat belts ..............................437
Climate control seat.................411
Clock ........................................ 396
Coin holder ...............................377
Compass ...................................428
Condenser ................................458
Console box .....................377, 382
Conversation mirror ................401
Cooling system
Engine overheating ...............550
CRS ...........................................125
Cruise control
Cruise control ........................188
Dynamic radar cruise control .................................191
Cup holders ..............................386
Curtain shield airbags .............107
Customizable features.............584
Daytime running light system ....................................181
Defogger
Rear window .........................272
Side mirrors ...........................272
Dimension.................................556
Dinghy towing ..........................257
Display Trip information .....................171
Warning message .................527
Do-it-yourself main tenance.....445
C
D

600 Alphabetical index
Door courtesy lightsDoor courtesy lights .............. 371
Wattage ................................. 568
Doors Back door ................................42
Door glasses ...........................88
Door lock ...........................33, 37
Side doors ...............................37
Side mirrors .............................82
Driver's seat belt reminder light ......................................... 520
Driving Break-in tips .......................... 143
Correct posture ..................... 105
Procedures ............................ 142
Winter driving tips.................. 237
Driving position memory...........61
DVD player ................................ 314
Electronically modulated air
suspension............................. 208
Emergency flashers
Switch.................................... 508
Emergency, in case of If the engine will not start ...... 542
If the shift lever cannot be
shifted ................................. 544
If the vehicle has discharged
battery ................................. 546
If the warning buzzer sounds ................................ 518
If the warning light turns on ........................................ 518
If the warning message is
displayed............................. 527
If you have a flat tire ............. 532
If you lose your keys ............. 545
If you think something is wrong .................................. 514
If your vehicle becomes
stuck ................................... 553
If your vehicle needs to be towed .................................. 509 If your vehicle overheats ....... 550
Engine
Compartment ........................ 450
Engine switch ........................ 151
Hood ..................................... 449
How to start the engine ................................. 151
Identification number............. 558
If the engine will not start ...... 542
Ignition switch ...................... 151
Overheating .......................... 550
Engine coolant Capacity ................................ 563
Checking ............................... 457
Preparing and checking before winter .................................. 237
Engine coolan t temperature
gauge ...................................... 161
Engine immobilizer system .... 100
Engine oil Capacity ................................ 561
Checking ............................... 452
Preparing and checking before winter .................................. 237
Engine oil maintenance data ......................................... 455
Engine switch........................... 151
Event data recorder ................. 516
FFV ...................................... 95, 569
Flex-fuel .............................. 95, 569
Flexible fuel vehicle ........... 95, 569
Floor mat .................................. 417
Fluid Brake..................................... 458
Washer.................................. 464
Fog lights
Replacing light bulbs ............. 495
Switch ................................... 183
Wattage................................. 568
Four-wheel drive system......... 214
Front air conditioning system .................................... 260
E
F

605
Alphabetical index
Towing
Dinghy towing ....................... 257
Emergency towing ................ 509
Trailer towing ........................ 241
Traction control ....................... 221
TRAC ........................................ 221
Trip information....................... 171
Trip meter................................. 161
Turn signal lights
Replacing light bulbs ............ 495
Switch ................................... 158
Wattage ................................ 568
Valet key..................................... 32
Vanity lights Vanity lights .......................... 395
Wattage ................................ 568
Vanity mirrors .......................... 395
Vehicle identification number................................... 558
Vehicle stability control .......... 221
VSC ........................................... 221
Warning buzzers Brake system........................ 518
Open door ............................ 520
Seat belt reminder ................ 520
Warning lights ABS ...................................... 519
Airbag system....................... 519
Anti-lock brake system ......... 519
Brake assist system ............. 519
Brake system........................ 518
Charging system .... .............. 518
Electronic engine control system................................ 519
Engine oil pressure............... 519
Malfunction indicator lamp.... 519
Master warning light ............. 521
Open door ............................ 520
Pretensioners ....................... 519
Seat belt reminder light ........ 520 SRS airbags ..........................519
Tire pressure warning light ....521
Warning messages ..................527
Washer Checking ...............................464
Preparing and checking
before winter .......................237
Switch............................184, 186
Washing and waxing ...............434
Weight Cargo capacity ......................232
Load limits .............................236
Weight ...................................557
Wheels ......................................477
Window glasses ..................88, 90
Window lock switch ...................88
Windows
Power back window ................90
Power windows .......................88
Rear window defogger ..........272
Washer ..........................184, 186
Windshield wiper de-icer.........273
Windshield wipers ...................184
Wireless remote control key Replacing the battery ............482
Wireless remote control ..........33
WMA disc ..................................292
V
W
