2009 TOYOTA SEQUOIA Owners Manual

449
4-3. Do-it-yourself maintenance
4
Maintenance and care

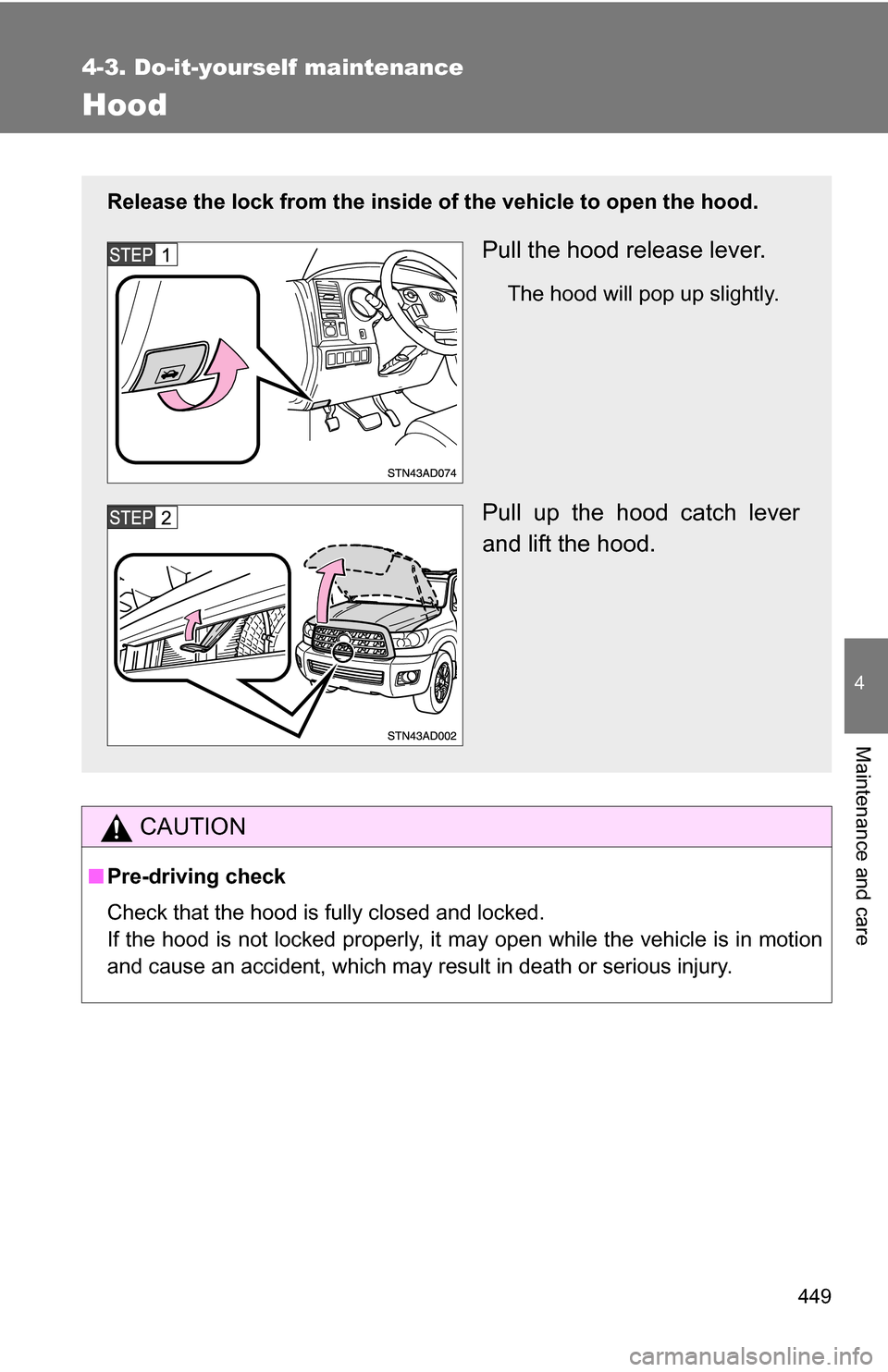

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Pull up the hood catch lever
and lift the hood.

450
4-3. Do-it-yourself maintenance
Engine compar tment
4.7 L V8 (2UZ-FE) engine
Washer fluid tank (P. 464)
Engine oil level dipstick ( P. 452)
Engine coolant reservoir ( P. 457)
Engine oil filler cap ( P. 453)Brake fluid reservoir
( P. 458)
Fuse box ( P. 484)
Battery ( P. 461)
Radiator ( P. 458)
Condenser ( P. 458)
Power steering fluid reservoir ( P. 460)

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
5.7 L V8 (3UR-FE, 3UR-FBE) engine
Washer fluid tank (
P. 464)
Engine oil level dipstick ( P. 452)
Engine coolant reservoir ( P. 457)
Engine oil filler cap ( P. 453)Brake fluid reservoir
( P. 458)
Fuse box ( P. 484)
Battery ( P. 461)
Radiator ( P. 458)
Condenser ( P. 458)
Power steering fluid reservoir ( P. 460)

452 4-3. Do-it-yourself maintenance
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait a few minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
4.7 L V8 (2UZ-FE) engine
Low
Full

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
5.7 L V8 (3UR-FE, 3UR-FBE) engine
Low
Full
■ Adding engine oil
4.7 L V8 (2UZ-FE) engine
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
5.7 L V8 (3UR-FE, 3UR-FBE) engine If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Oil grade ILSAC multigrade engine oil
ItemsClean funnel

454 4-3. Do-it-yourself maintenance
Remove the oil filler cap, turning it counterclockwise.
Add engine oil slowly.
Checking the dipstick.
Reinstall the filler cap, turning it clockwise.
The approximate quantity of oil needed to raise the level between low and
full on the dipstick is indicated as follows:
4.7 L V8 (2UZ-FE) engine
1.6 qt. (1.5 L, 1.3 lmp. qt.)
5.7 L V8 (3UR-FE, 3UR-FBE) engine
1.2 qt. (1.1 L, 1.0 lmp. qt.)
■ Recommended viscosity
4.7 L V8 (2UZ-FE) engine
SAE 5W-30 is the best choice,
for good fuel economy, and good
starting in cold weather.
*: If SAE 5W-30 oil is not avail-able, SAE 10W-30 oil may be
used. However, it should be
replaced with SAE 5W-30 at
the next oil change.
5.7 L V8 (3UR-FE, 3UR-FBE) engine
SAE 5W-20 or 0W-20
*: SAE 5W-20 or 0W-20 engineoil may be used. However,
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
Outside temperature
Outside temperature

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
How to read oil container labels
Some oil containers are labeled with ILSAC certification marks that
help you to select the proper oil.
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
■ After changing the engine oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures:
Turn the engine switch off with the trip meter A reading shown.
While pressing the trip meter reset button ( P. 161), turn the
engine switch on.
Without multi-information display
Continue to press and hold the button until the trip meter displays
000000.
With multi-information display
Continue to press and hold the button until “MAINT REQD RESET
MODE COMPLETE” appears on the multi-information display.

456 4-3. Do-it-yourself maintenance
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
