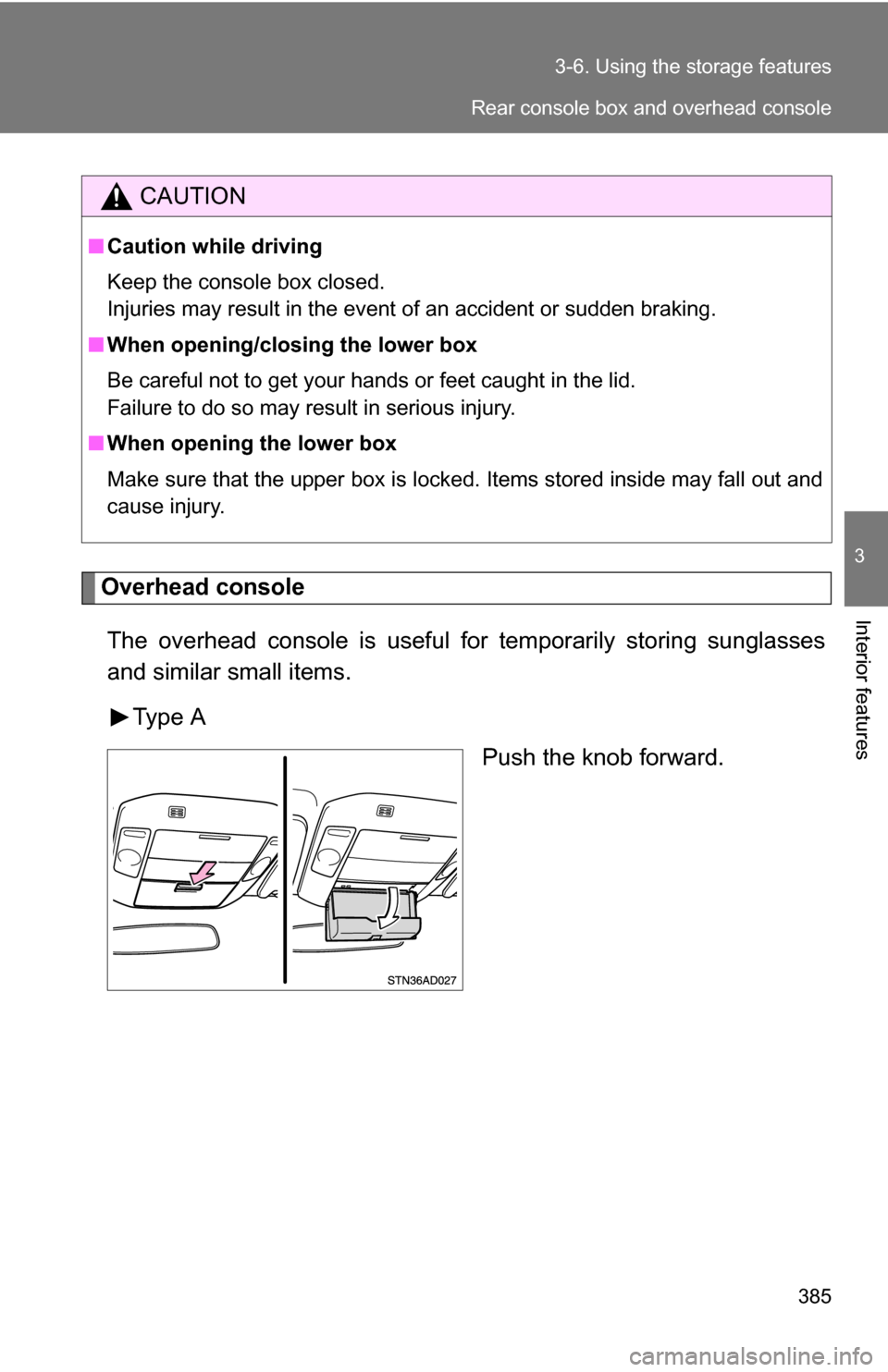

2009 TOYOTA SEQUOIA Owners Manual

385
3-6. Using the
storage features
3
Interior features
Overhead console
The overhead console is useful for temporarily storing sunglasses
and similar small items.
Type A Push the knob forward.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
■ When opening/closing the lower box
Be careful not to get your hands or feet caught in the lid.
Failure to do so may result in serious injury.
■ When opening the lower box
Make sure that the upper box is locked. Items stored inside may fall out and
cause injury.
Rear console box and overhead console

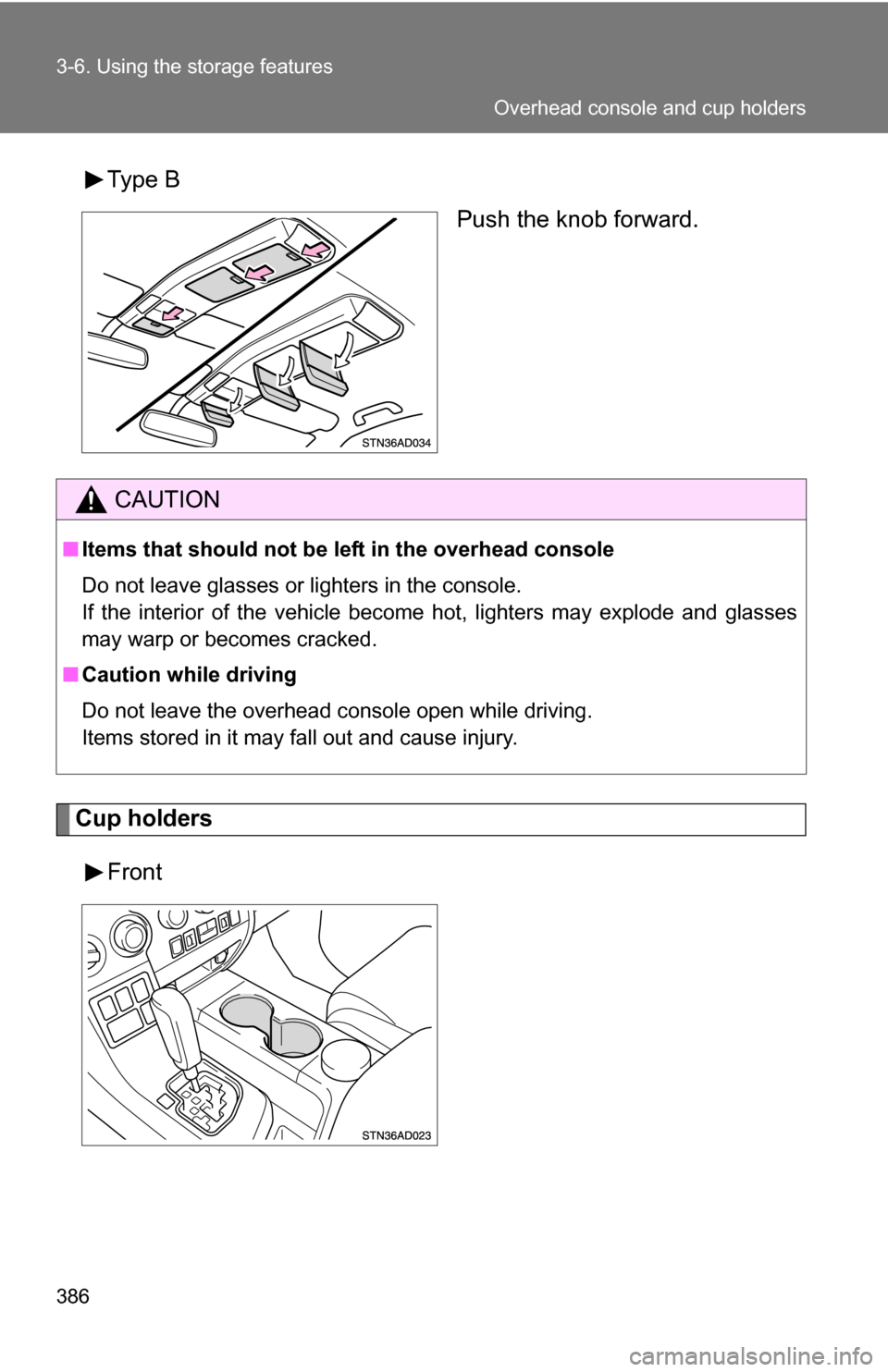

386 3-6. Using the storage features
Type BPush the knob forward.
Cup holders
Front
CAUTION
■Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle become hot, lighters may explode and glasses
may warp or becomes cracked.
■ Caution while driving
Do not leave the overhead console open while driving.
Items stored in it may fall out and cause injury.
Overhead console and cup holders

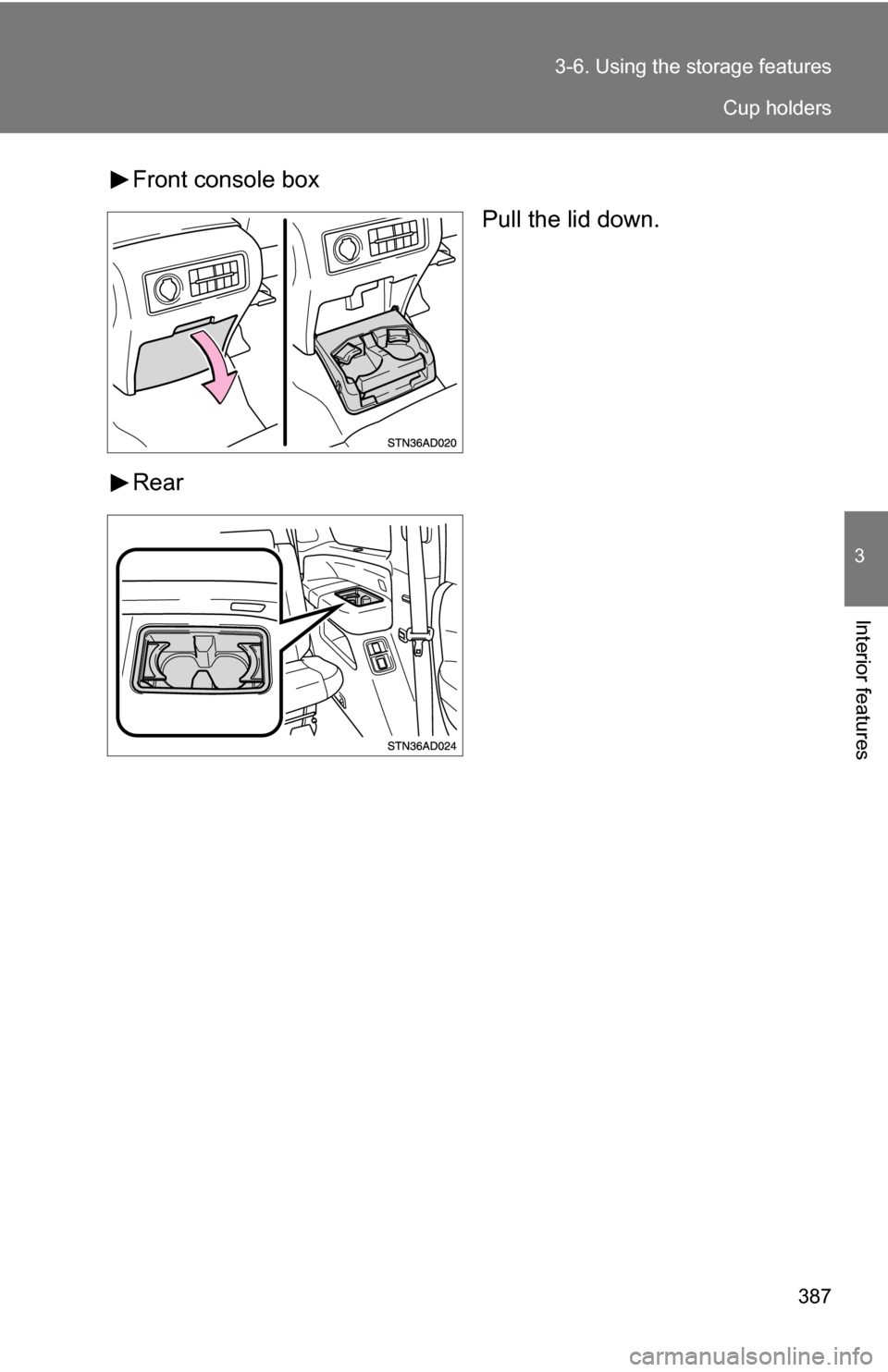

387
3-6. Using the
storage features
3
Interior features
Front console box
Pull the lid down.
Rear
Cup holders

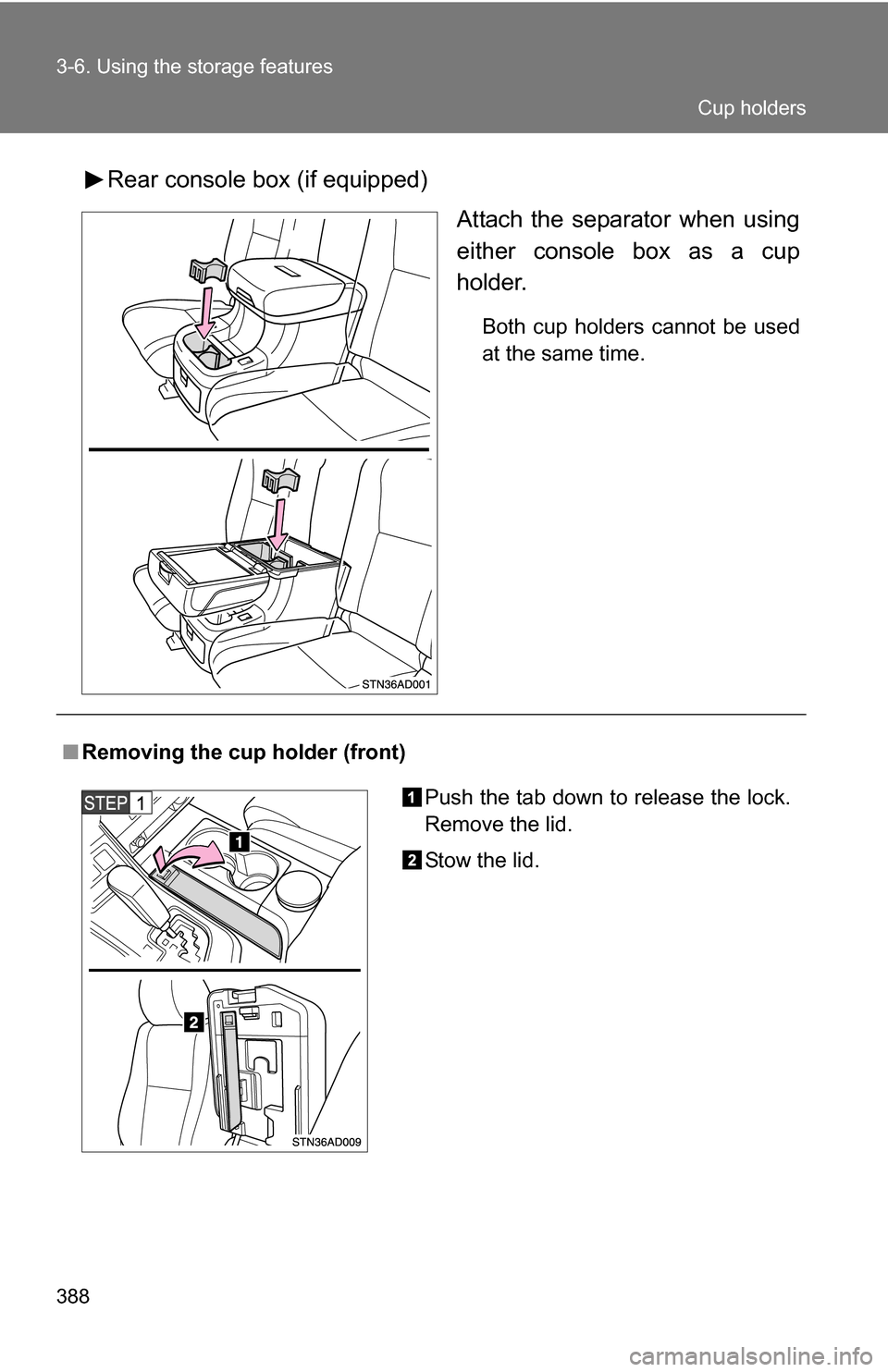

388 3-6. Using the storage features
Rear console box (if equipped)Attach the separator when using
either console box as a cup
holder.
Both cup holders cannot be used
at the same time.
■Removing the cup holder (front)
Push the tab down to release the lock.
Remove the lid.
Stow the lid.
Cup holders

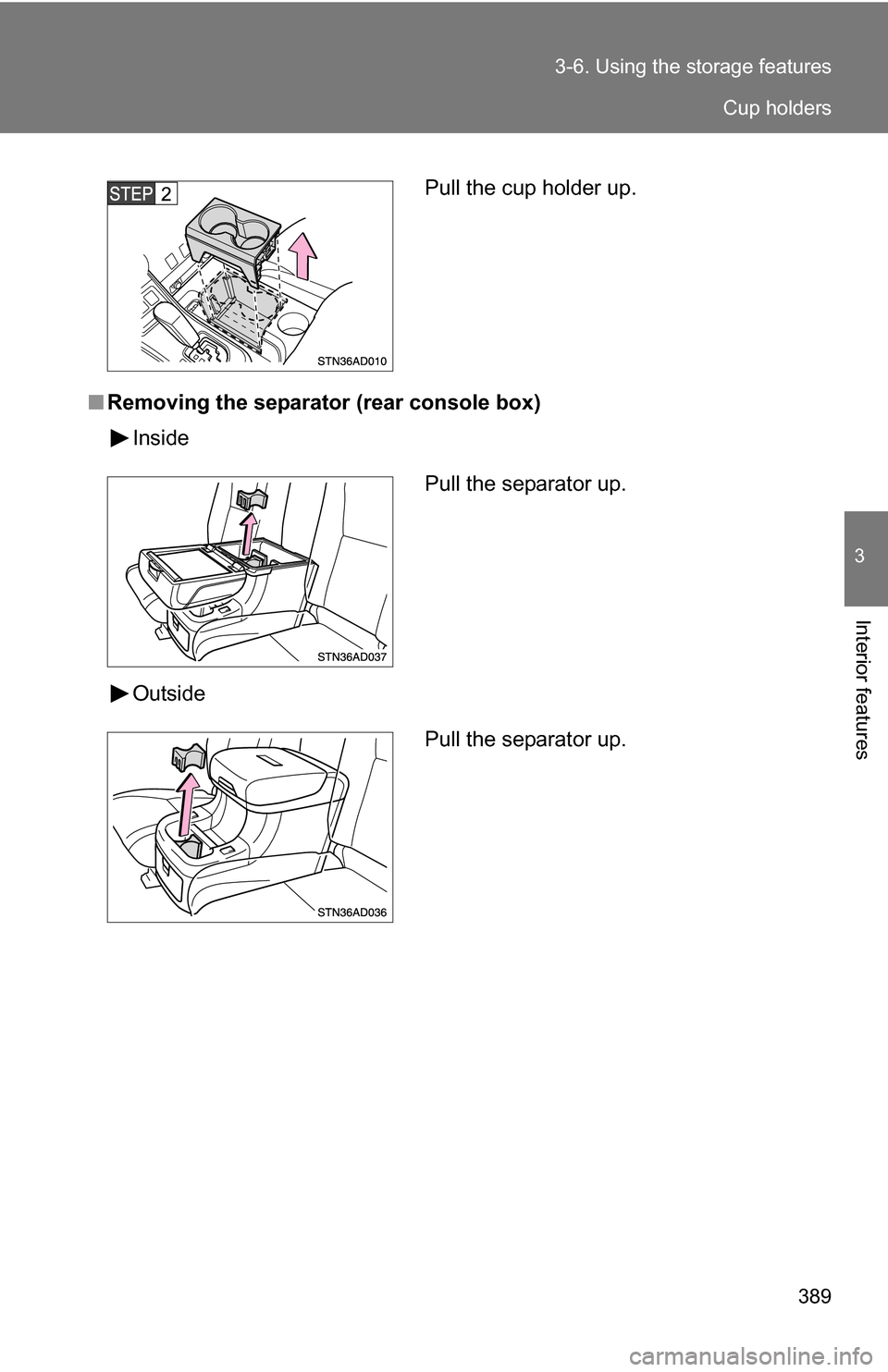

389
3-6. Using the
storage features
3
Interior features
■Removing the separator (rear console box)
Inside
Outside
Pull the cup holder up.
Pull the separator up.
Pull the separator up.
Cup holders

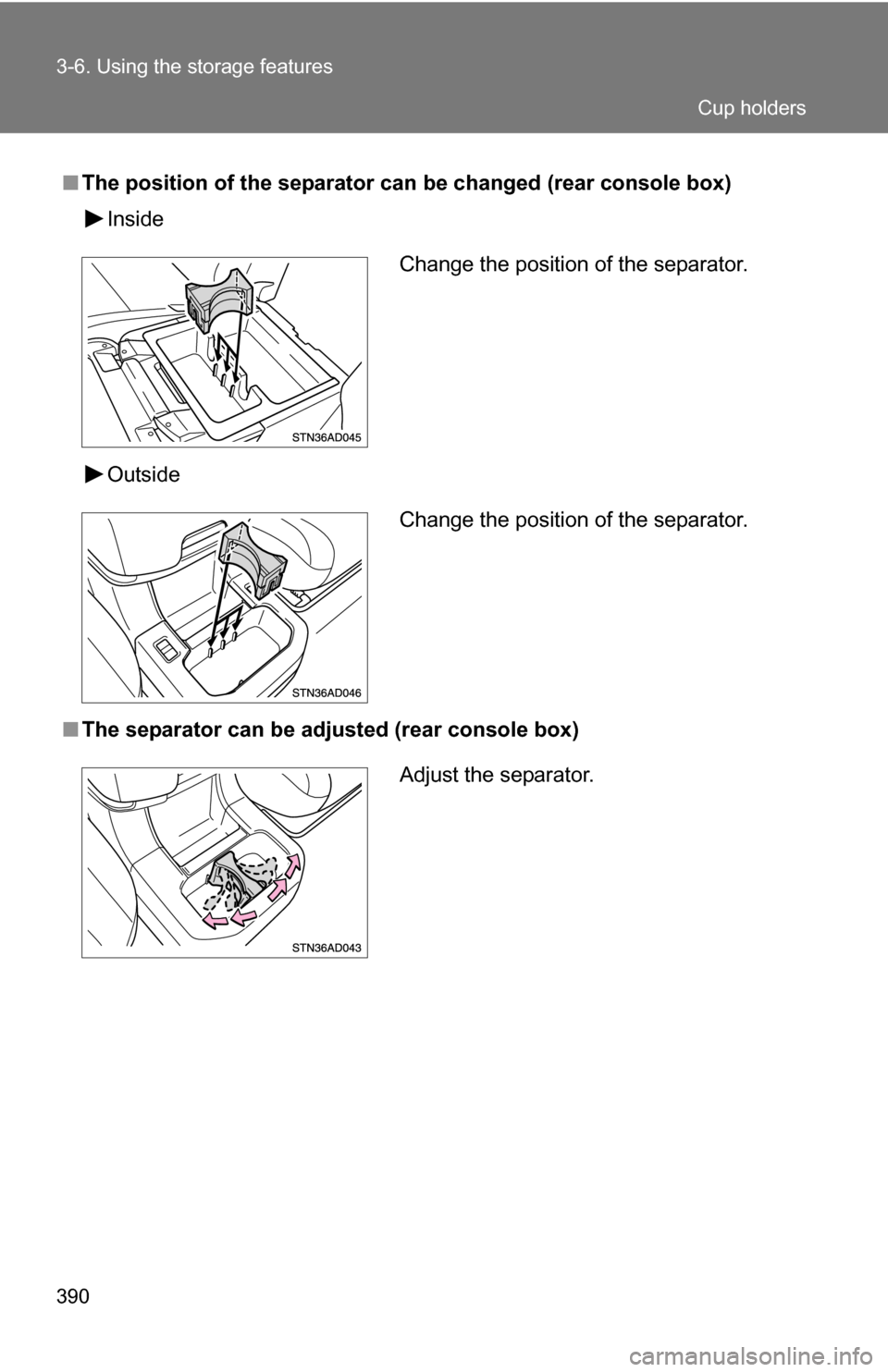

390 3-6. Using the storage features
■The position of the separator can be changed (rear console box)
Inside
Outside
■ The separator can be adjusted (rear console box)
Change the position of the separator.
Change the position of the separator.
Adjust the separator.
Cup holders

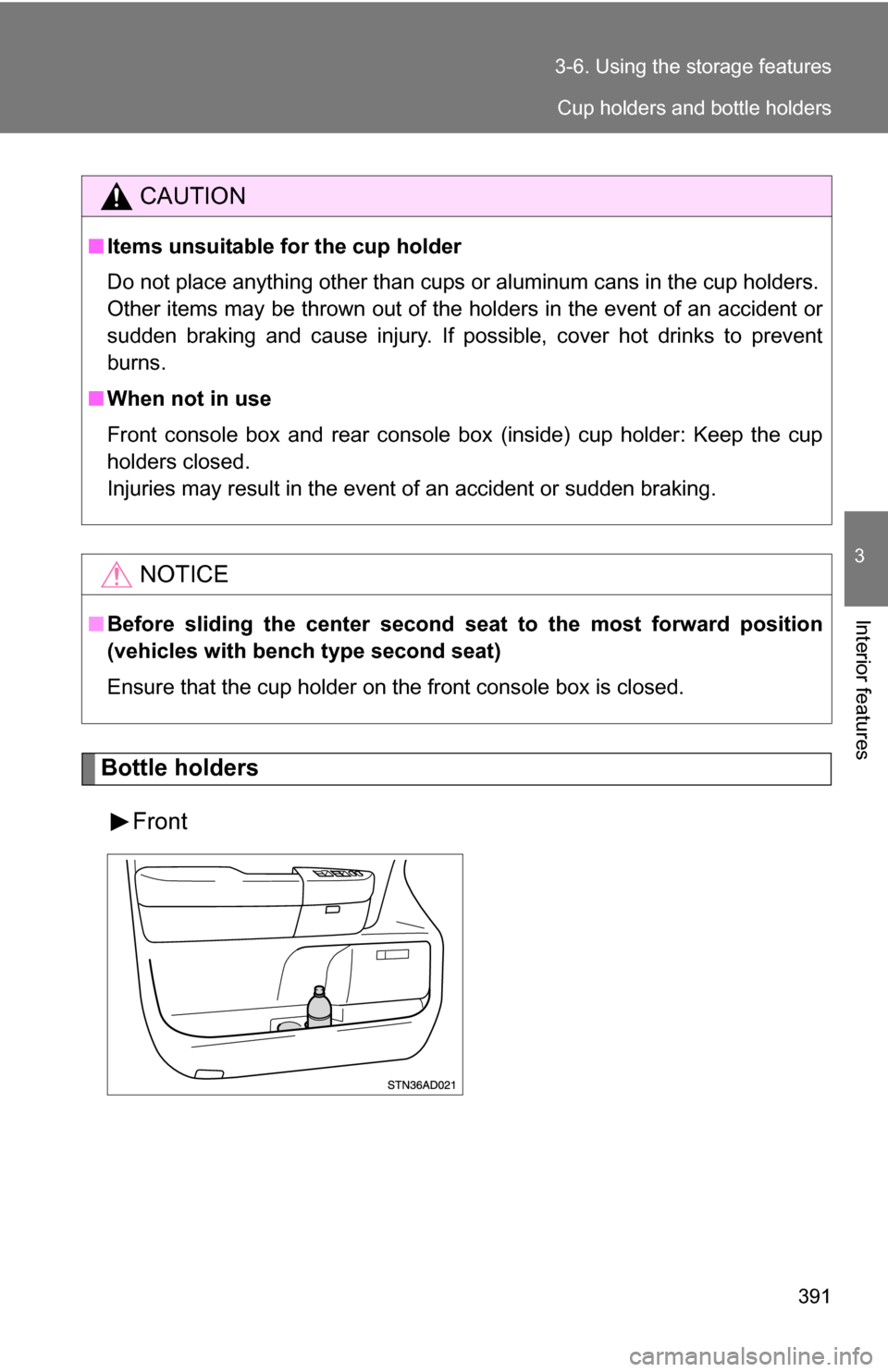

391
3-6. Using the
storage features
3
Interior features
Bottle holders
Front
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Front console box and rear console box (inside) cup holder: Keep the cup
holders closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■ Before sliding the center second seat to the most forward position
(vehicles with bench type second seat)
Ensure that the cup holder on the front console box is closed.
Cup holders and bottle holders

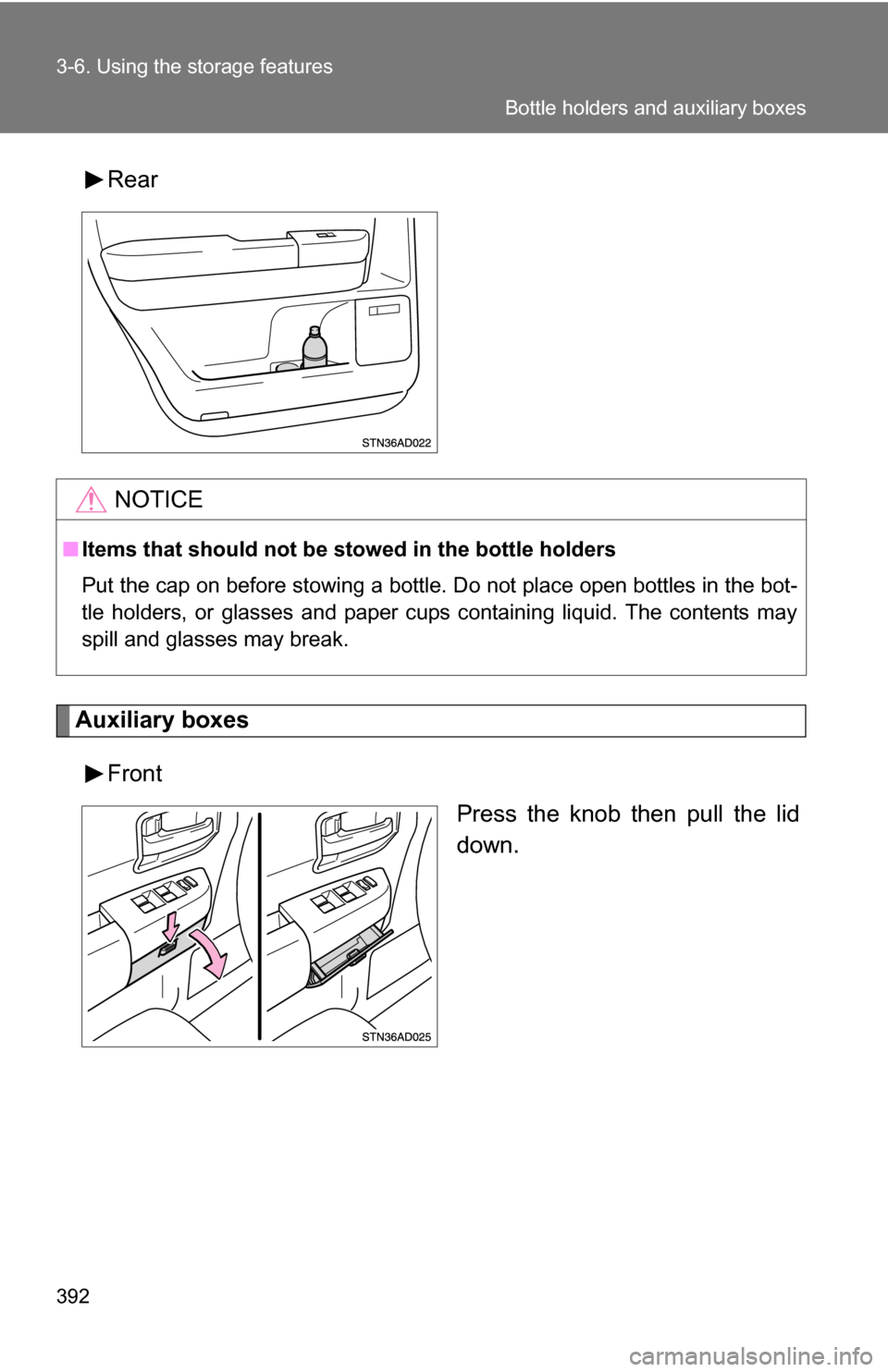

392 3-6. Using the storage features
Rear
Auxiliary boxesFront Press the knob then pull the lid
down.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders and auxiliary boxes
