2009 TOYOTA LAND CRUISER fuel

508
L/C200_U (OM60D97U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*:Unladen vehicle
Overall length194.9 in. (4950 mm)
Overall width77.6 in. (1970 mm)
Overall height *74.0 in. (1880 mm)
Wheelbase112.2 in. (2850 mm)
TreadFront64.6 in. (1640 mm)
Rear64.4 in. (1635 mm)
Vehicle capacity weight
(Occupants + luggage)1235 lb. (560 kg)
Towing capacity
(trailer weight + cargo weight)8500 lb. (3856 kg)

510 6-1. Specifications
L/C200_U (OM60D97U)

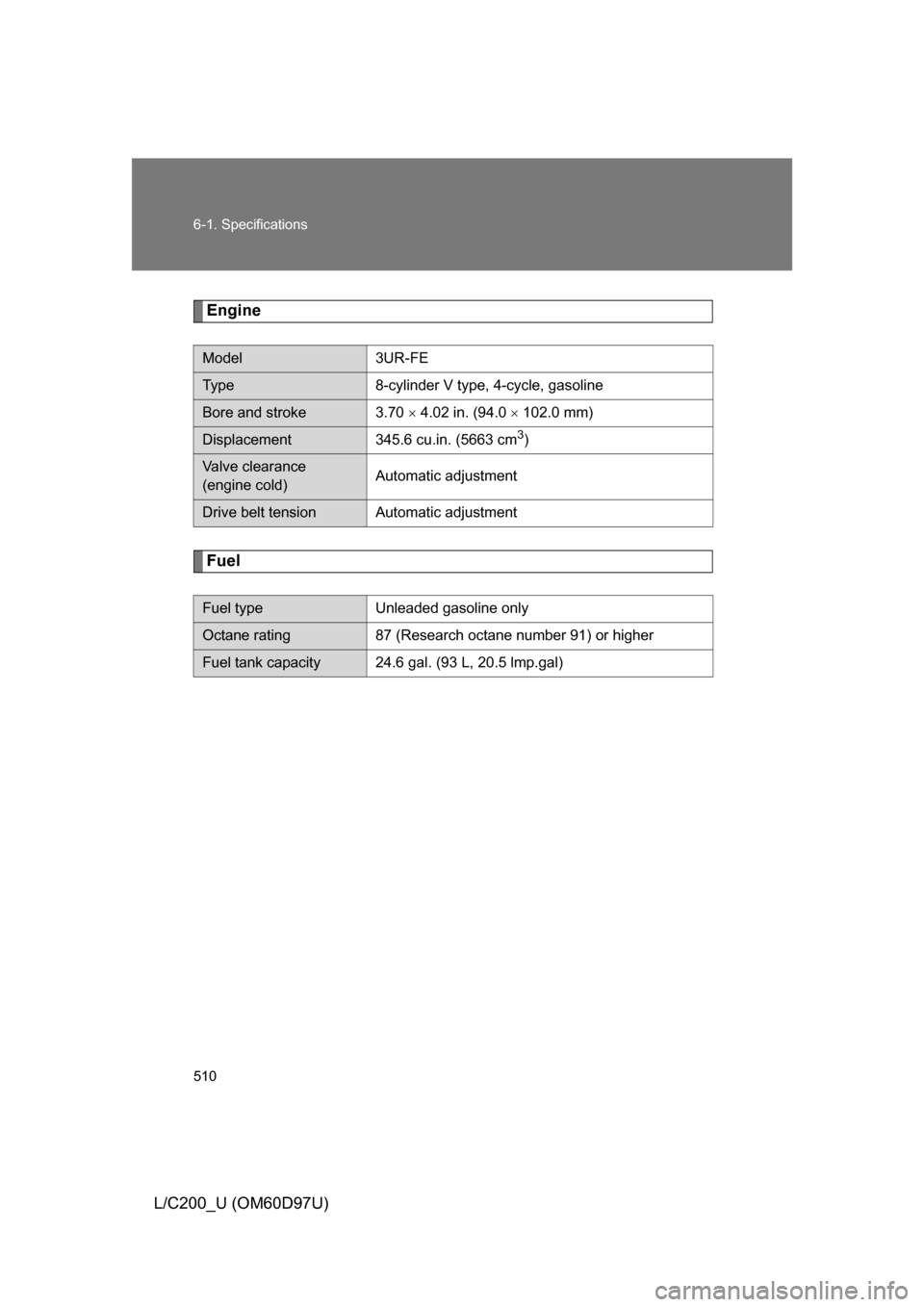

Engine
Fuel
Model3UR-FE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  4.02 in. (94.0  102.0 mm)
Displacement345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity24.6 gal. (93 L, 20.5 lmp.gal)

518
6-1. Specifications
L/C200_U (OM60D97U)

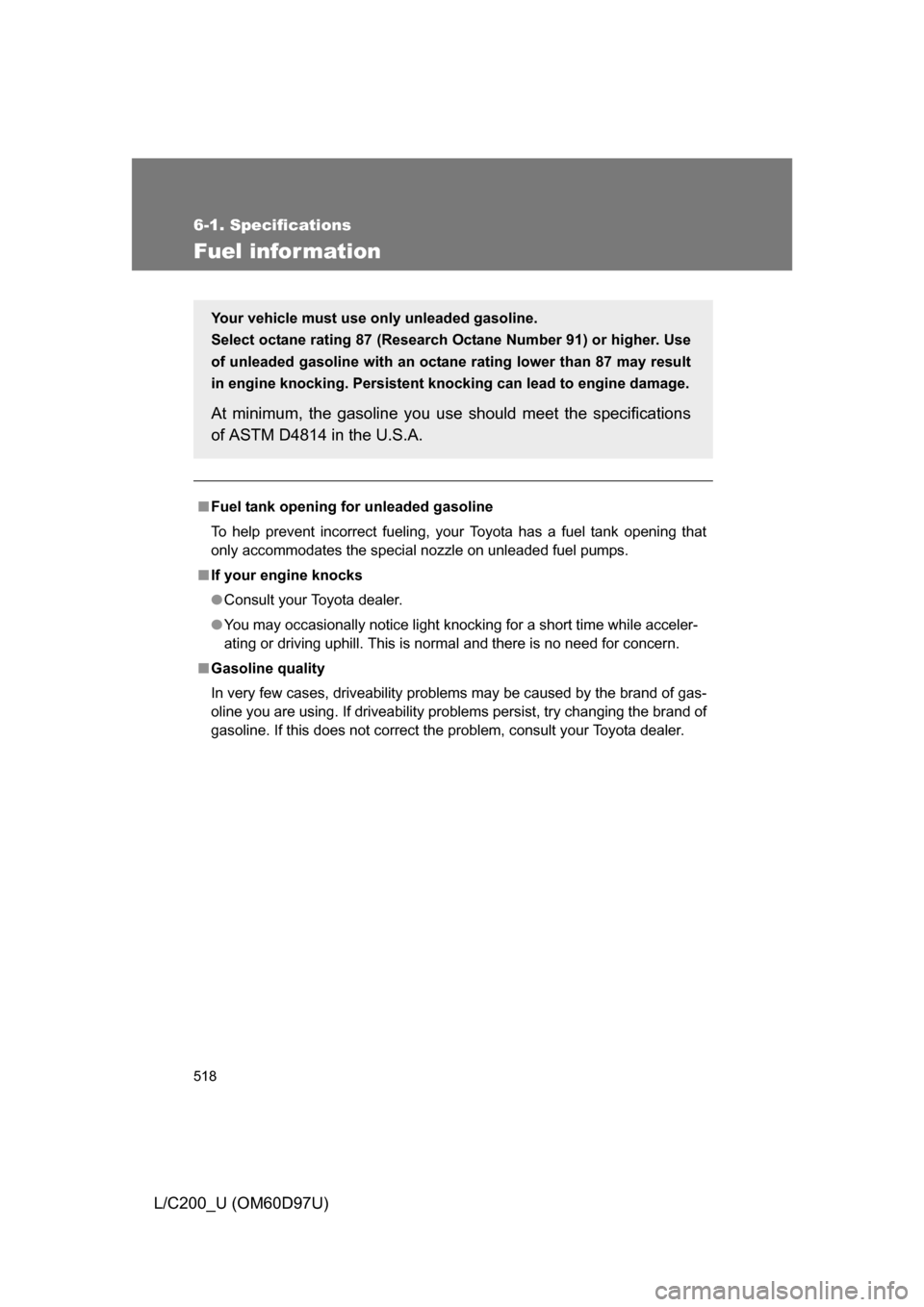

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
Your vehicle must use only unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A.

519
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
■

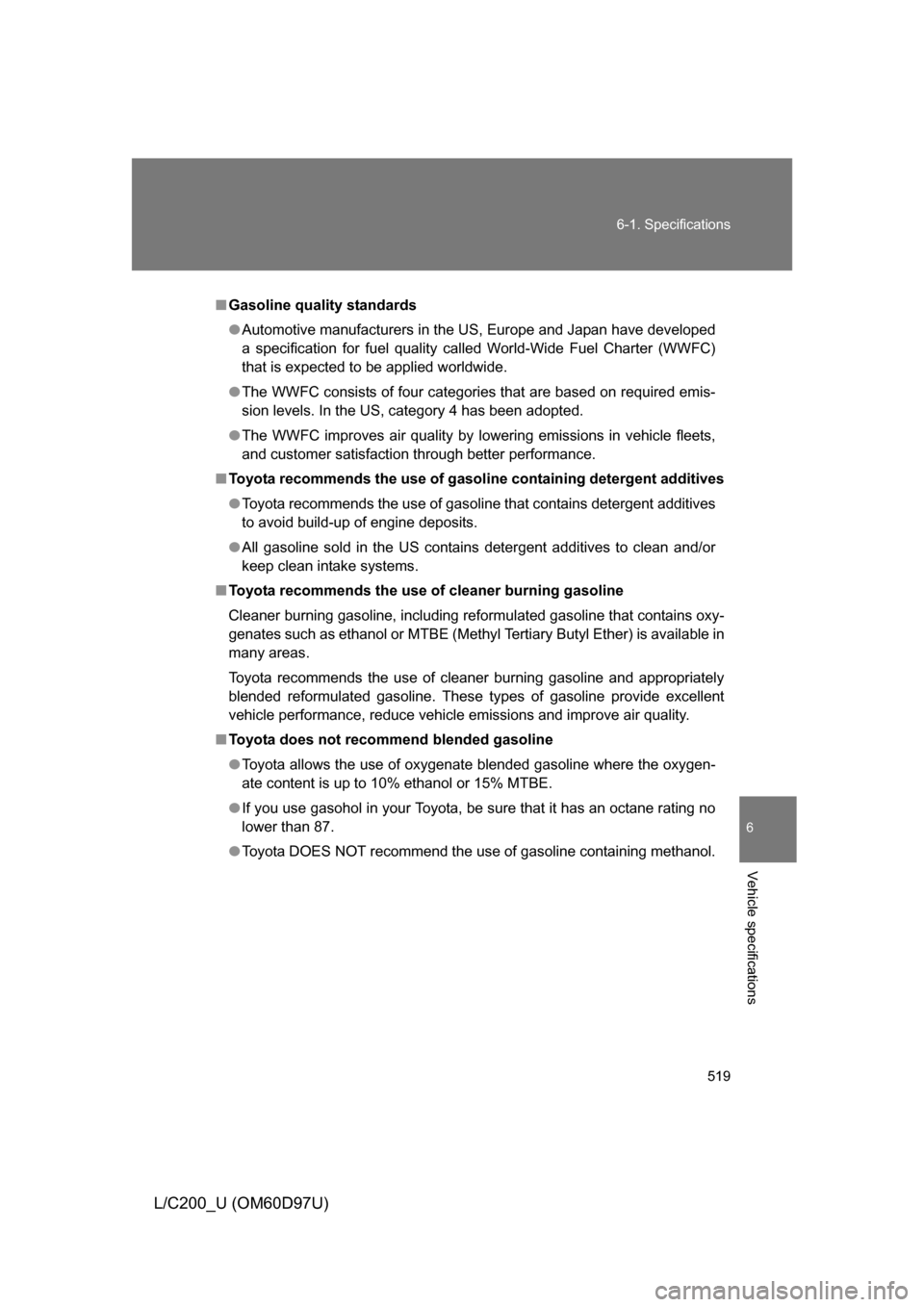

Gasoline quality standards
● Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
■ Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
● Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota DOES NOT recommend the use of gasoline containing methanol.

520 6-1. Specifications
L/C200_U (OM60D97U)

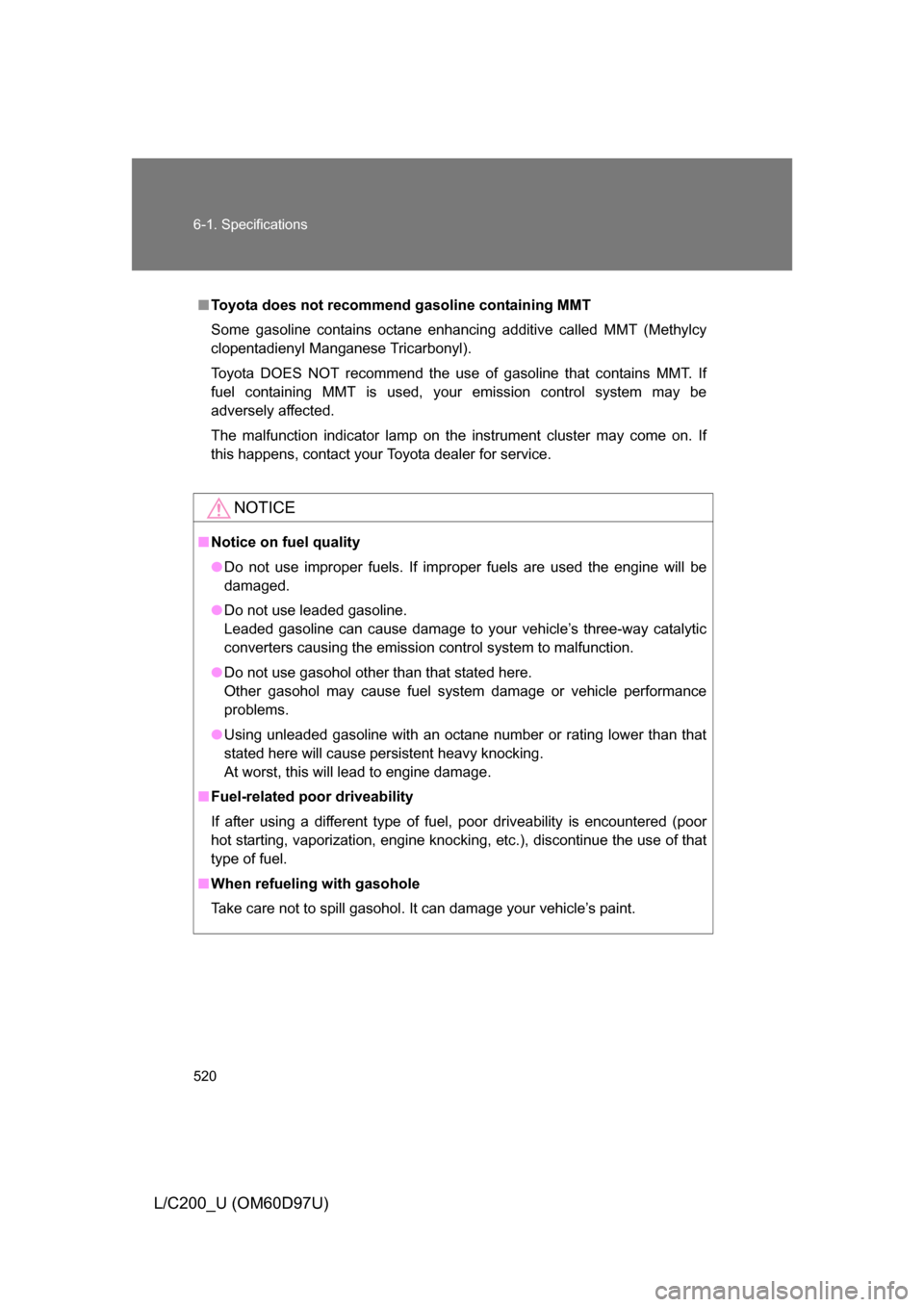

■Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related p oor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.

526 6-1. Specifications
L/C200_U (OM60D97U)
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

547
Alphabetical index
L/C200_U (OM60D97U)
Wattage ................................ 517
Front passenger’s seat belt reminder light ........................ 465
Front seats Adjustment ............................. 51
Driving position memory ......... 62
Front side marker light Replacing light bulbs ............ 439
Wattage ................................ 517
Front turn signal lights Replacing light bulbs ............ 439
Wattage ................................ 517
Fuel Capacity ............................... 510
Fuel gauge ........................... 164
Fuel pump shut off system ... 459
Gas station information ........ 556
Information ........................... 518
Refueling ................................ 91
Type ..................................... 518
Fuel door .................................... 91
Fuel filler door ........................... 91
Fuel pump shut off system ................................... 459
Fuses ........................................ 426
Garage door opener ................ 366
Gas station information .......... 556
Gauges ..................................... 164
Glove box ................................. 342
Glove box light ........................ 342
Head restraints
Adjusting................................. 66
Headlight cleaner .................... 187
Headlights
Replacing light bulbs ............ 439
Switch ................................... 174
Wattage ................................ 517
Heaters Seat heaters ......................... 360 Hill-start assist control ............212
Hood ..........................................388
Hooks
Cargo hook............................364
Tie-down hooks .....................364
Horn...........................................163
I/M test.......................................384
Identification
Engine ...................................509
Vehicle ..................................509
Ignition Engine switch ........................151
Keys ........................................24
Ignition switch........................151
Ignition switch ..........................151
Illuminated entry system .........338
Indicator lights .........................167
Initialization
Items to initialize....................537
Inside rear view mirror ..............81
Instrument panel light
control ....................................165
Interior lights
Interior lights..........................338
Switch....................................339
Wattage .................................517
Jack Replacing the wheel ..............476
Jack handle ..............................476
KDSS .........................................212
Keyless entry..............................26
Keys Electronic key ..........................24
If you lose your keys .............492
If your electronic key battery is discharged...423, 494
Ignition switch........................151
Keyless entry...........................26
Key number .............................24
G
H
I
J
K

548 Alphabetical index
L/C200_U (OM60D97U)
Keys ........................................24
Mechanical key ....................... 24
Wireless remote control key .... 40
Language Multi-information display.........................170, 536
Licence plate lights
Replacing light bulbs ............. 439
Wattage .................................517
Light bulbs
Replacing ..............................439
Wattage .................................517
Lights
Door courtesy lights ..............338
Fog light switch ..................... 177
Headlights switch .................. 174
Interior light switch ................339
Personal light switch ............. 340
Replacing light bulbs ............. 439
Turn signal lever.................... 161
Vanity lights ...........................352
Wattage .................................517
Load capacity ...........................232
Maintenance
Do-it-yourself maintenance ...385
General maintenance ............381
Maintenance data.................. 508
Maintenance requirements....379
Meter Instrument panel light
control .................................165
Meters ...................................164
Micro dust and pollen filter ..... 260
Mirrors
Inside rear view mirror.............81
Side mirror heater .................268
Side mirrors .............................82
Vanity mirrors ........................352 Moon roof ................................... 88
MP3 disc ................................... 285
Multi-information display ........ 170
Odometer .................................. 164
Off-road precautions ............... 220
Oil
Engine oil .............................. 391
Opener Fuel filler door ......................... 91
Hood ..................................... 388
Outside rear view mirrors Adjusting and folding............... 82
Mirror position memory ........... 62
Outside temperature display .................................... 354
Overhead console.................... 344
Overheating, Engine ................ 501
Parking brake ........................... 162
Parking lights
Replacing light bulbs ............. 439
Switch ................................... 174
Wattage................................. 517
Personal lights Personal lights ...................... 340
Switch ................................... 340
Wattage................................. 517
Power outlet ............................. 358
Power steering
Fluid ...................................... 400
Power windows .......................... 85
Radiator .................................... 397
Radio ......................................... 272
RDS ........................................... 274
Rear seats
Adjustment .............................. 53
Tumbling second seats ........... 54
Tumbling third seats................ 57
L
M
O
P
R
