2009 TOYOTA LAND CRUISER fuel

93

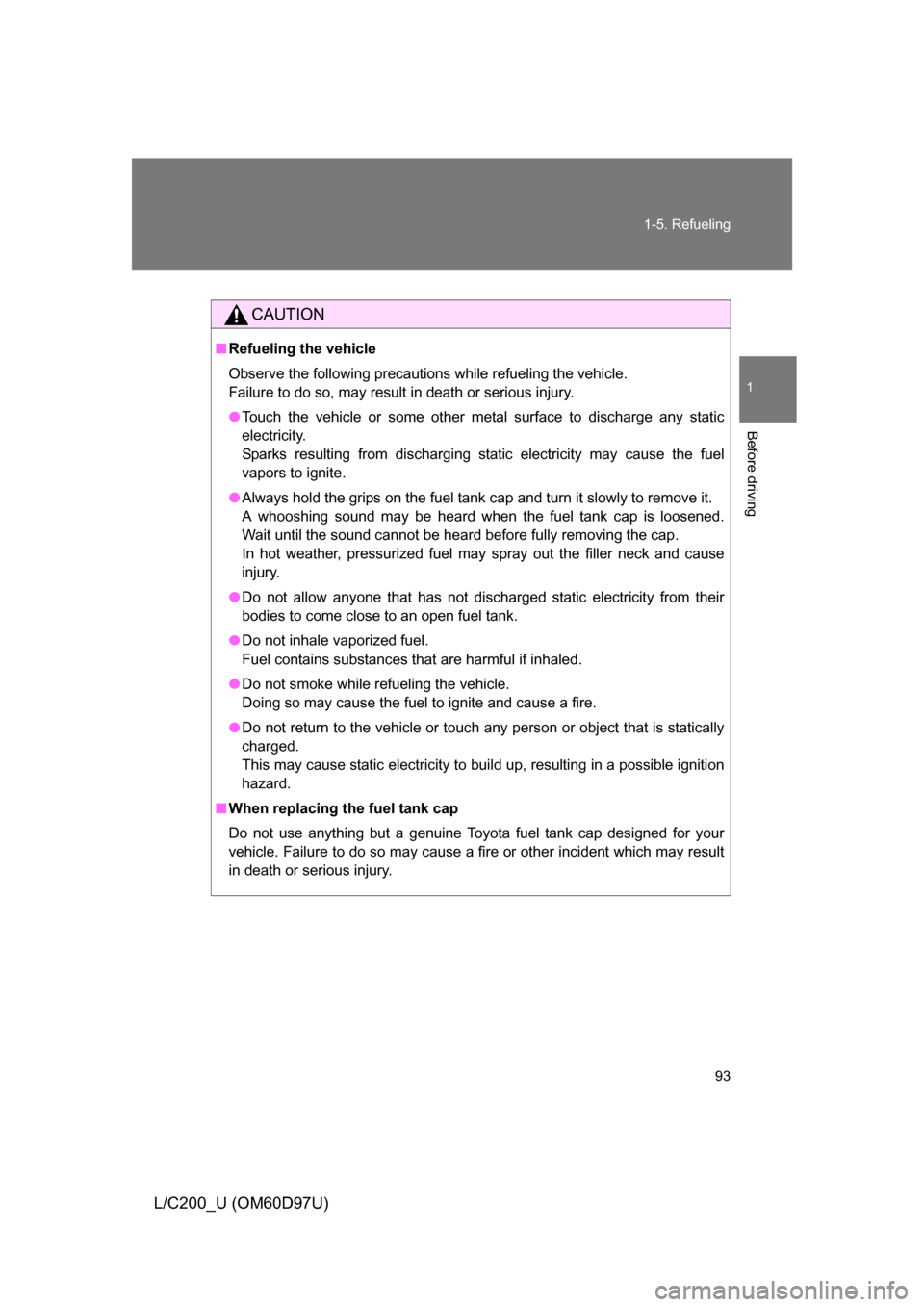

1-5. Refueling
1
Before driving
L/C200_U (OM60D97U)
CAUTION
■
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so, may result in death or serious injury.
● Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.

94 1-5. Refueling
L/C200_U (OM60D97U)

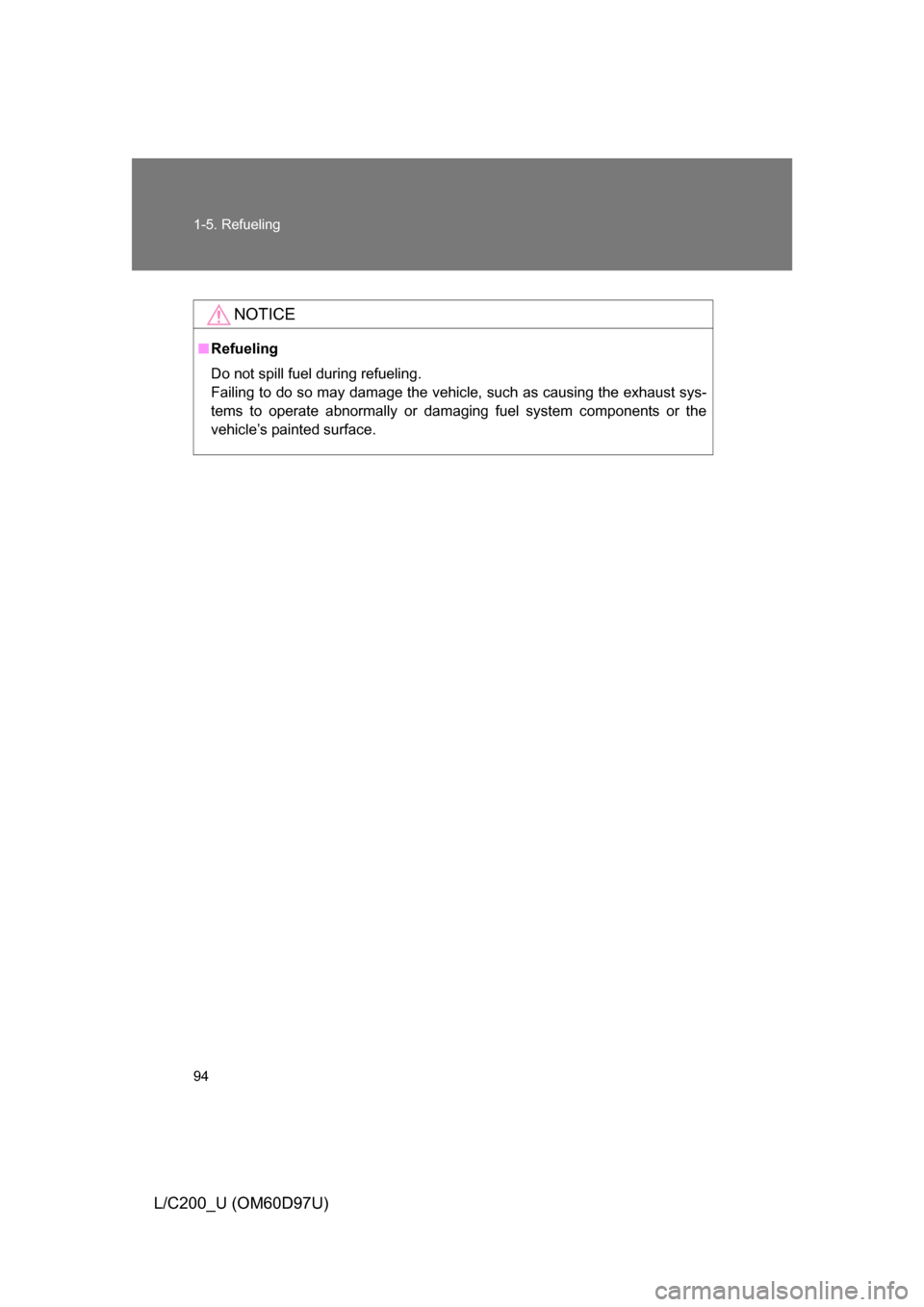

NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust sys-
tems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

143
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)
■
Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
● For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 500 miles (800 km):
Do not tow a trailer.
● For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■ Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system.
This type of brake system needs bedding-down of the brake shoes periodi-
cally or whenever the parking brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bedding-down.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 510)

156 2-1. Driving procedures
L/C200_U (OM60D97U)

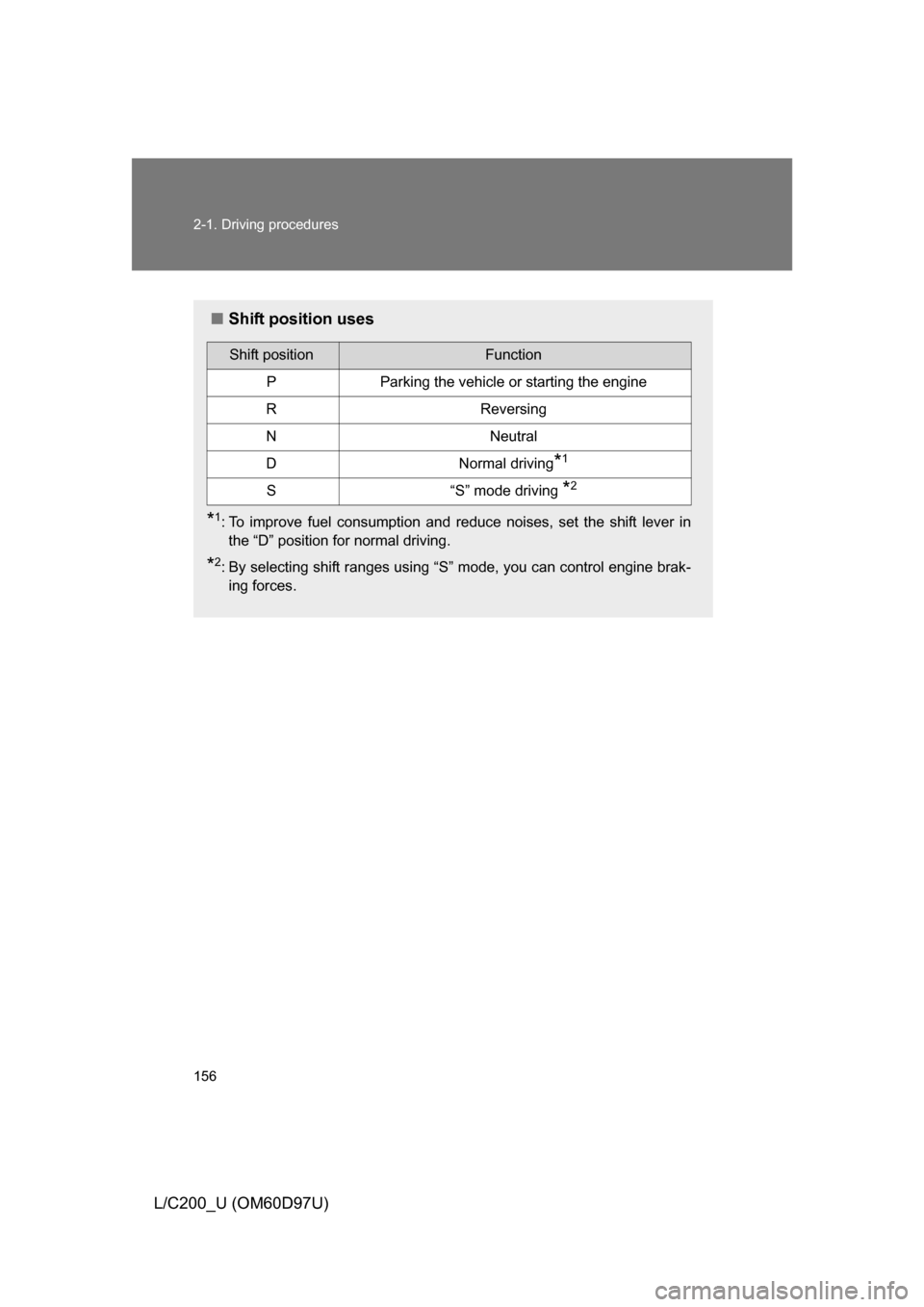

■Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in
the “D” position for normal driving.
*2: By selecting shift ranges using “S” mode, you can control engine brak-ing forces.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving *2

164
L/C200_U (OM60D97U)
2-2. Instrument cluster
Gauges and meters
The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Vo l t m e t e r
Displays the charge state.
Multi-informat ion display
P. 170

170
2-2. Instrument cluster
L/C200_U (OM60D97U)

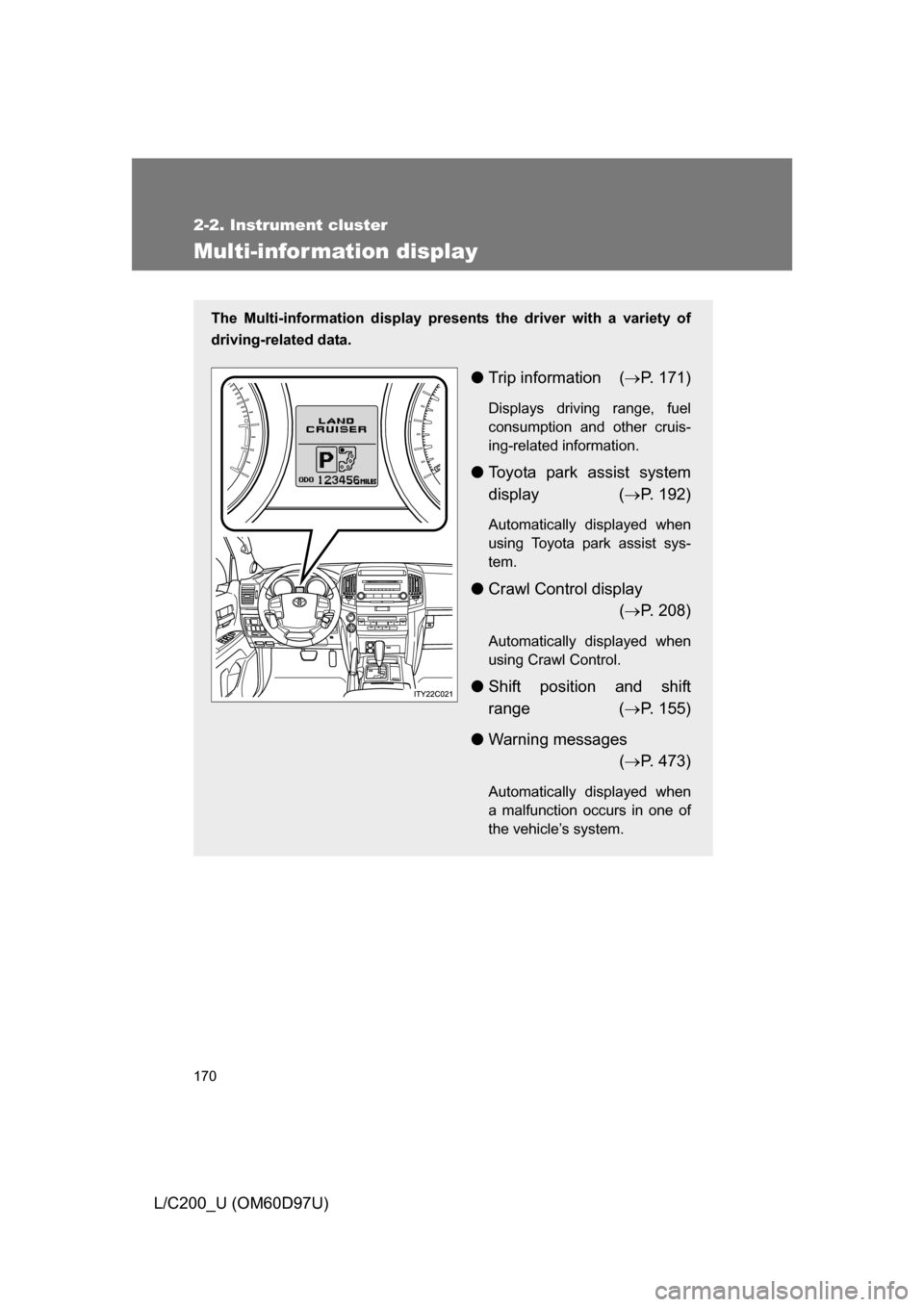

Multi-information display
The Multi-information display presents the driver with a variety of
driving-related data.
● Trip information ( P. 171)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Toyota park assist system
display ( P. 192)
Automatically displayed when
using Toyota park assist sys-
tem.
● Crawl Control display
( P. 208)
Automatically displayed when
using Crawl Control.
● Shift position and shift
range ( P. 155)
● Warning messages
( P. 473)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s system.

171
2-2. Instrument cluster
2
When driving
L/C200_U (OM60D97U)

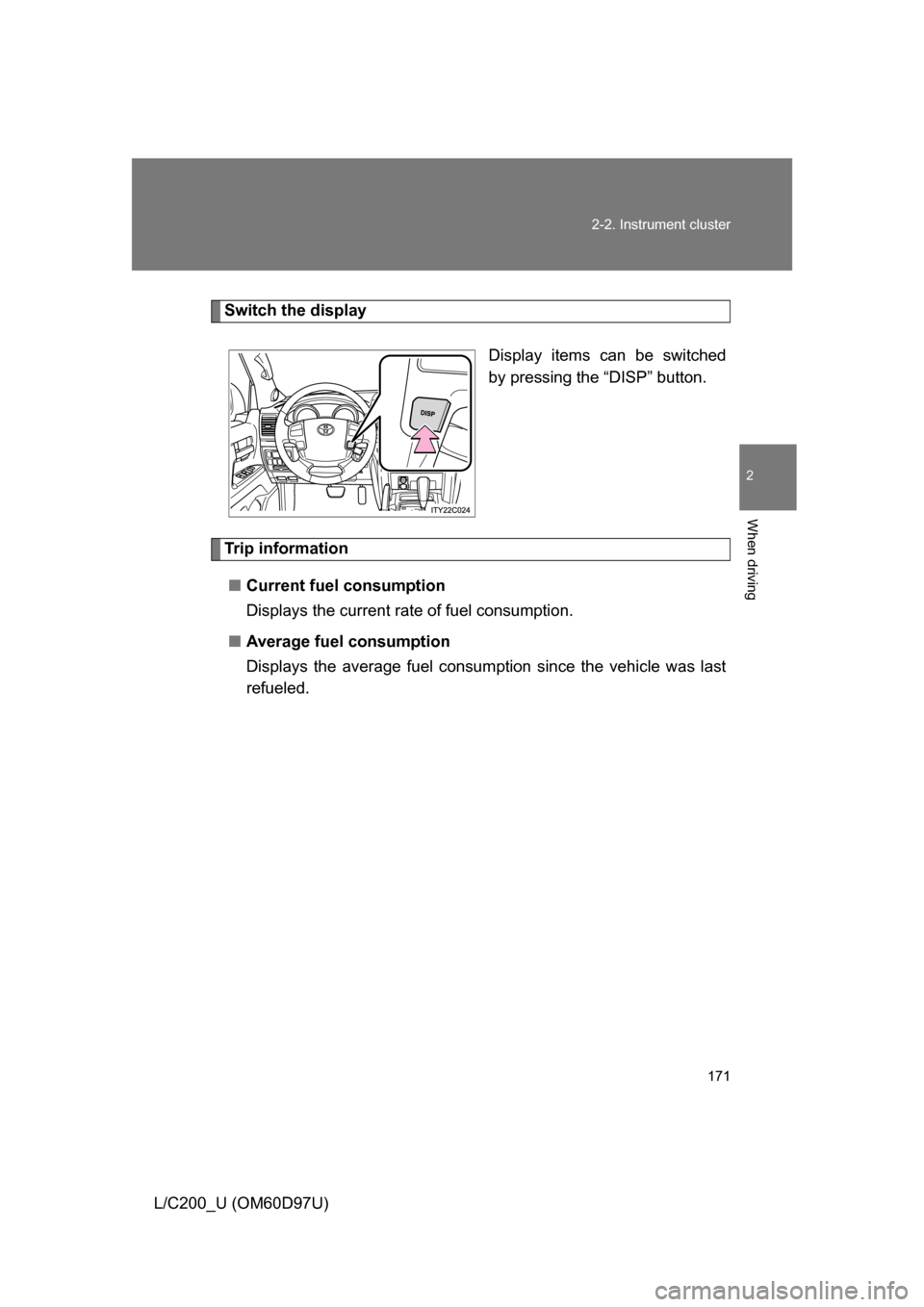

Switch the display
Display items can be switched
by pressing the “DISP” button.
Trip information■ Current fuel consumption
Displays the current rate of fuel consumption.
■ Average fuel consumption
Displays the average fuel consum ption since the vehicle was last
refueled.

172 2-2. Instrument cluster
L/C200_U (OM60D97U)■

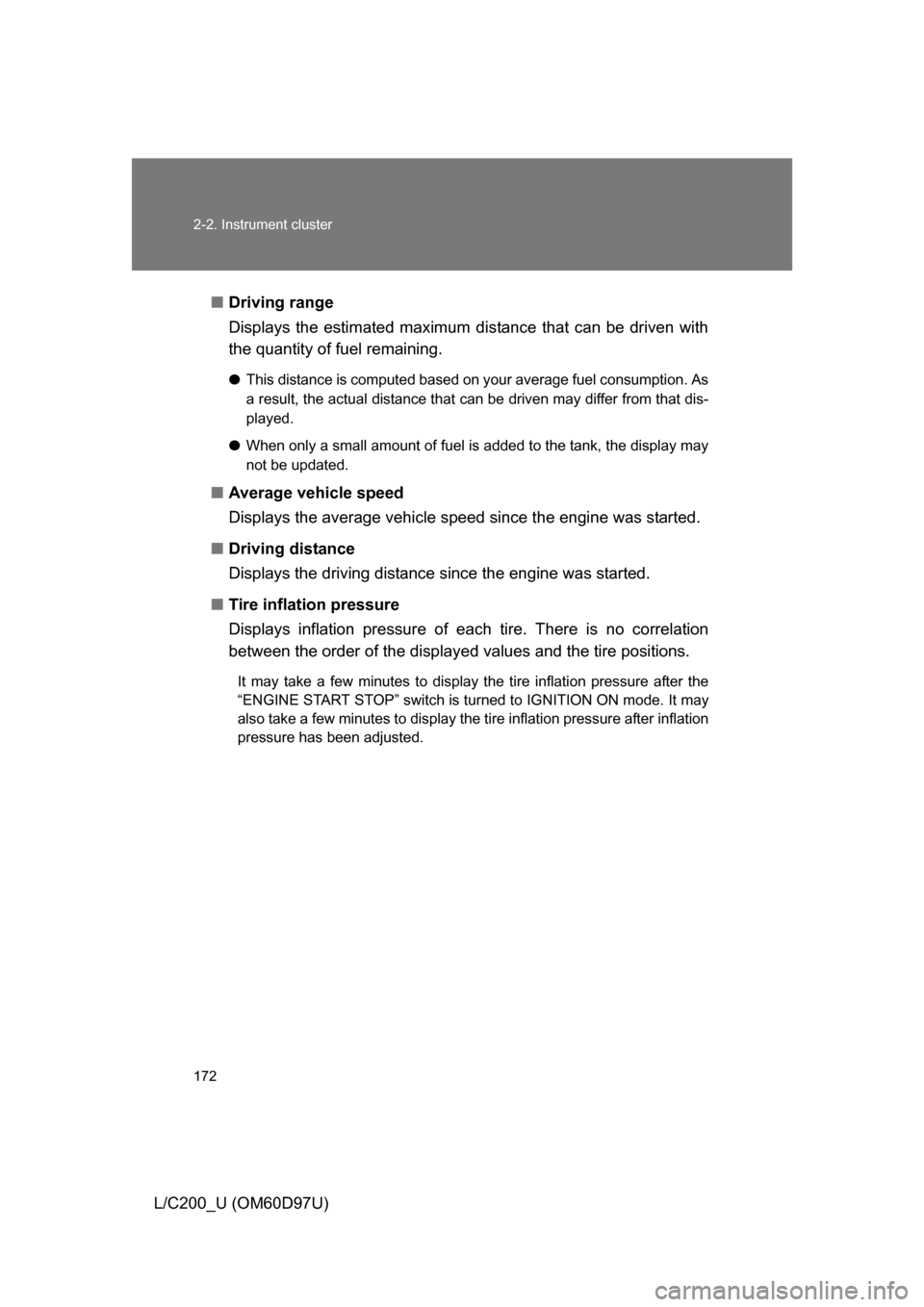

Driving range
Displays the estimated maximum di stance that can be driven with
the quantity of fuel remaining.
● This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
● When only a small amount of fuel is added to the tank, the display may
not be updated.
■Average vehicle speed
Displays the average vehicle speed since the engine was started.
■ Driving distance
Displays the driving distance since the engine was started.
■ Tire inflation pressure
Displays inflation pressure of ea ch tire. There is no correlation
between the order of the display ed values and the tire positions.
It may take a few minutes to display the tire inflation pressure after the
“ENGINE START STOP” switch is turned to IGNITION ON mode. It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.
