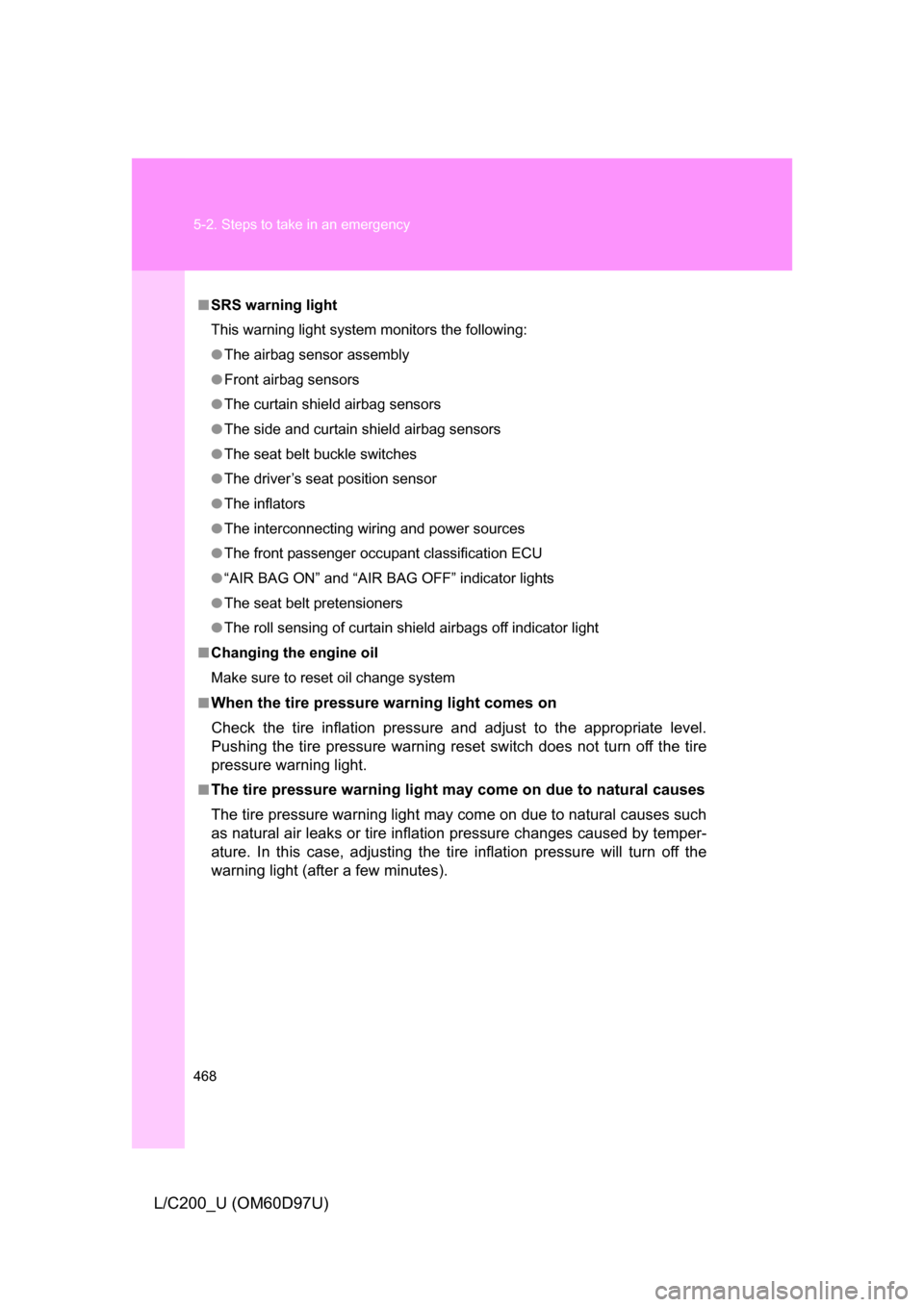

468 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■SRS warning light
This warning light system monitors the following:
● The airbag sensor assembly
● Front airbag sensors
● The curtain shield airbag sensors
● The side and curtain shield airbag sensors
● The seat belt buckle switches
● The driver’s seat position sensor
● The inflators
● The interconnecting wiring and power sources
● The front passenger occupant classification ECU
● “AIR BAG ON” and “AIR BA G OFF” indicator lights
● The seat belt pretensioners
● The roll sensing of curtain shield airbags off indicator light
■ Changing the engine oil
Make sure to reset oil change system
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
Pushing the tire pressure warning reset switch does not turn off the tire
pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the ti re inflation pressure will turn off the
warning light (after a few minutes).

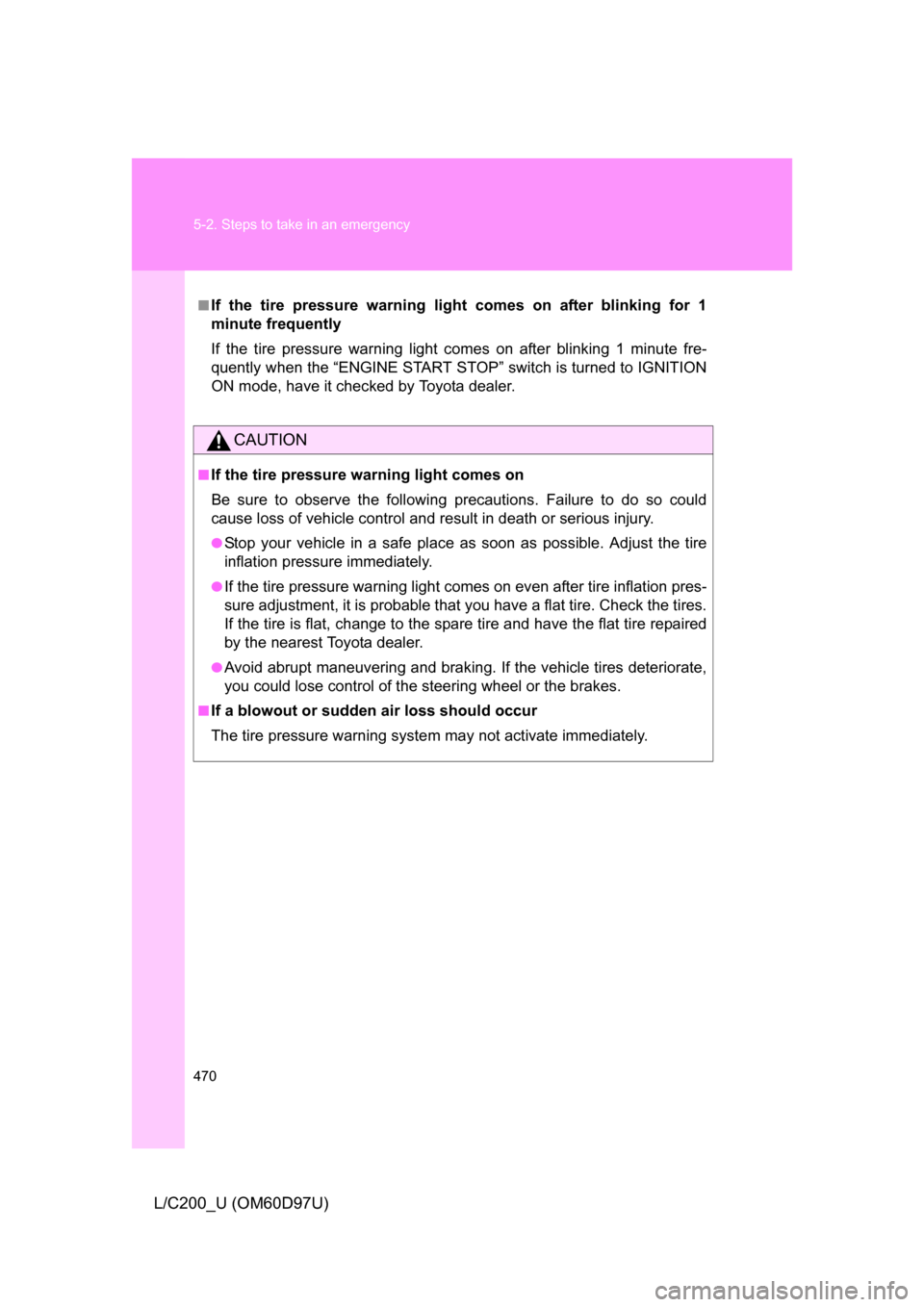

470 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking 1 minute fre-
quently when the “ENGINE START STOP” switch is turned to IGNITION
ON mode, have it checked by Toyota dealer.
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and re sult in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air loss should occur
The tire pressure warning syste m may not activate immediately.

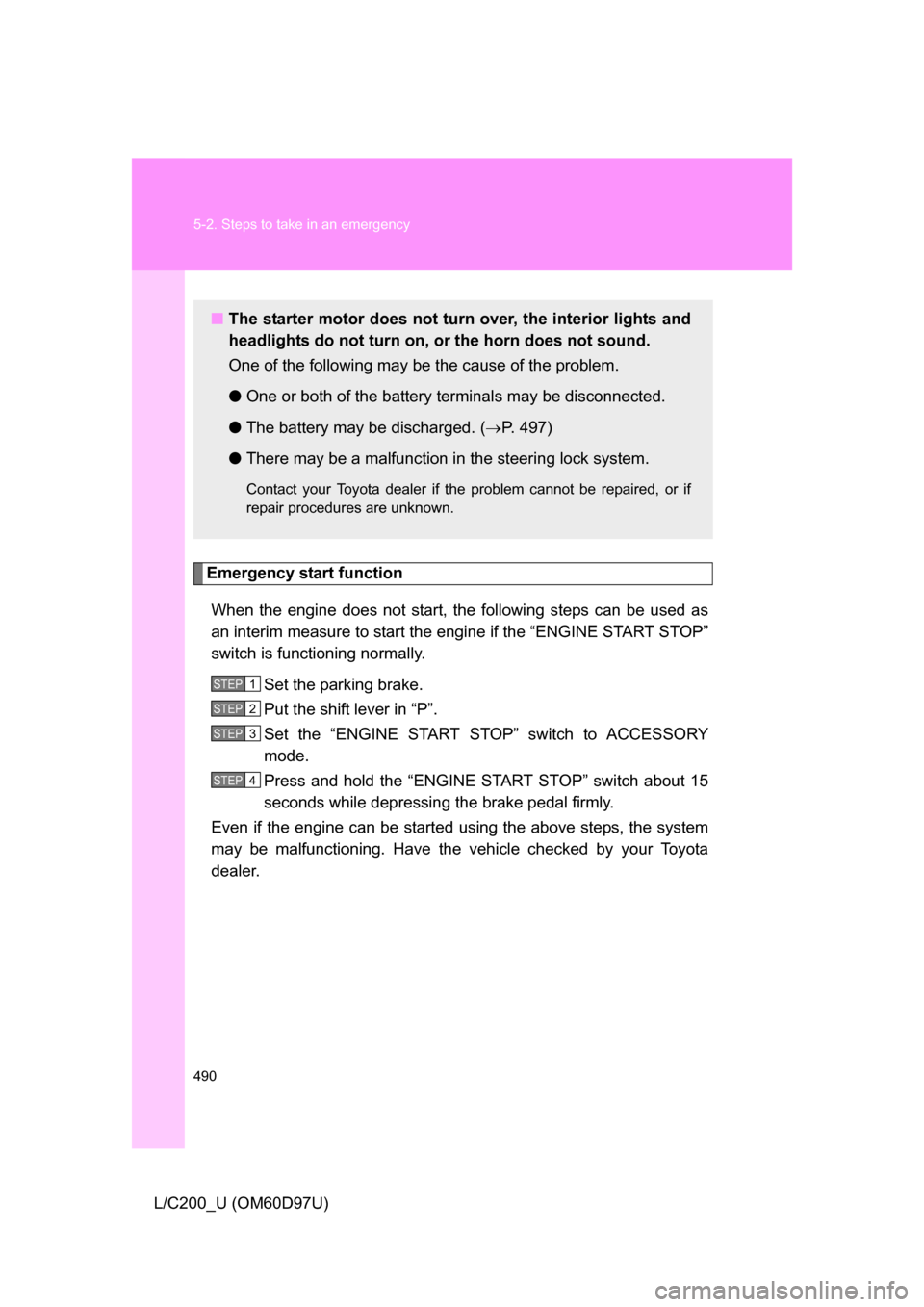

490 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
Emergency start functionWhen the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally. Set the parking brake.
Put the shift lever in “P”.
Set the “ENGINE START ST OP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be start ed using the above steps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 497)
● There may be a malfunction in the steering lock system.
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4

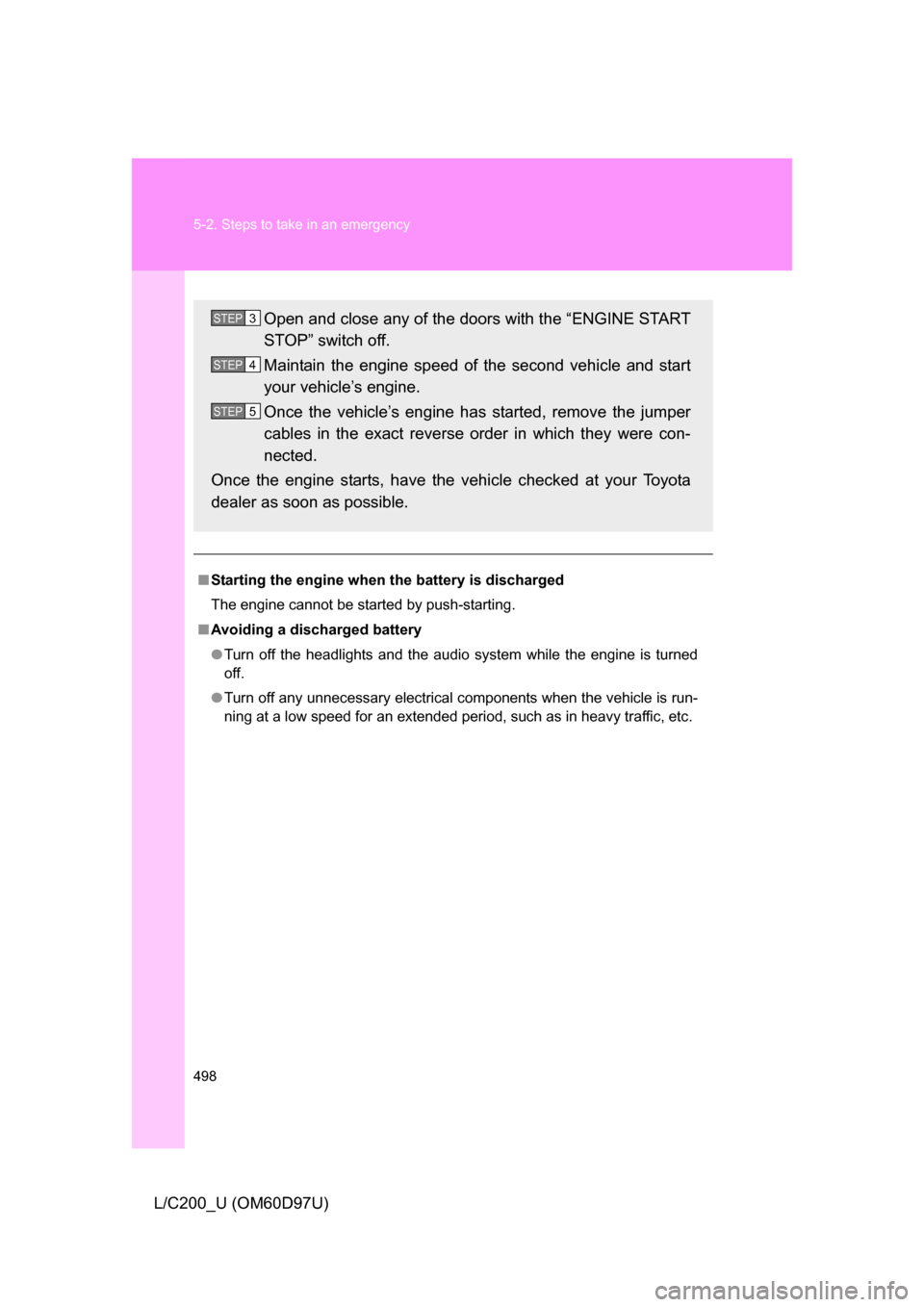

498 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ Avoiding a discharged battery
● Turn off the headlights and the audio system while the engine is turned
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Open and close any of the doors with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and start
your vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.STEP3
STEP4
STEP5

546 Alphabetical index
L/C200_U (OM60D97U)
Wireless remote control key .... 40
Doors Back door ................................48
Side door ................................. 43
Side mirrors .............................82
Driver’s seat belt reminder
light ......................................... 465
Driving Break-in tips .......................... 143
Correct posture ..................... 100
Off-road precautions ............. 220
Procedures............................ 142
Winter driving tips.................. 233
Driving position memory...........62
Electronic key If your electronic key
battery is discharged...423, 494
Emergency flashers .................452
Emergency, in case of If a warning message is
displayed............................. 473
If the electronic key does not operate properly............ 494
If the engine will not start ......489
If the shift lever cannot be shifted from P......................491
If the vehicle has discharged battery ................................497
If the warning buzzer
sounds ................................462
If the warning light turns on ...462
If you cannot operate back door opener ........................493
If you have a flat tire ............. 476
If you lose your keys ............. 492
If you think something is wrong .................................. 458
If your vehicle becomes
stuck ...................................504
If your vehicle needs to be towed .................................. 453
If your vehicle overheats ....... 501 Engine
Compartment ........................ 389
Engine switch ........................ 151
Hood ..................................... 388
How to start the engine ......... 151
Identification number............. 509
If the engine will not start ...... 489
Ignition switch ....................... 151
Overheating .......................... 501
Engine coolant Capacity ................................ 512
Checking ............................... 396
Preparing and checking before winter ....................... 233
Engine coolan t temperature
gauge ...................................... 164
Engine immobilizer system ...... 95
Engine oil Capacity ................................ 511
Checking ............................... 391
Preparing and checking before winter ....................... 233
Engine oil maintenance data ......................................... 394
Engine switch........................... 151
Event data recorder ................. 460
First-aid kit holder ................... 365
Floor mat .................................. 363
Fluid
Brake..................................... 398
Power steering ...................... 400
Washer.................................. 404
Fog lights Replacing light bulbs ............. 439
Switch ................................... 177
Wattage................................. 517
Four-wheel drive system......... 201
Front fog lights Replacing light bulbs ............. 439
Switch ................................... 177
E
F

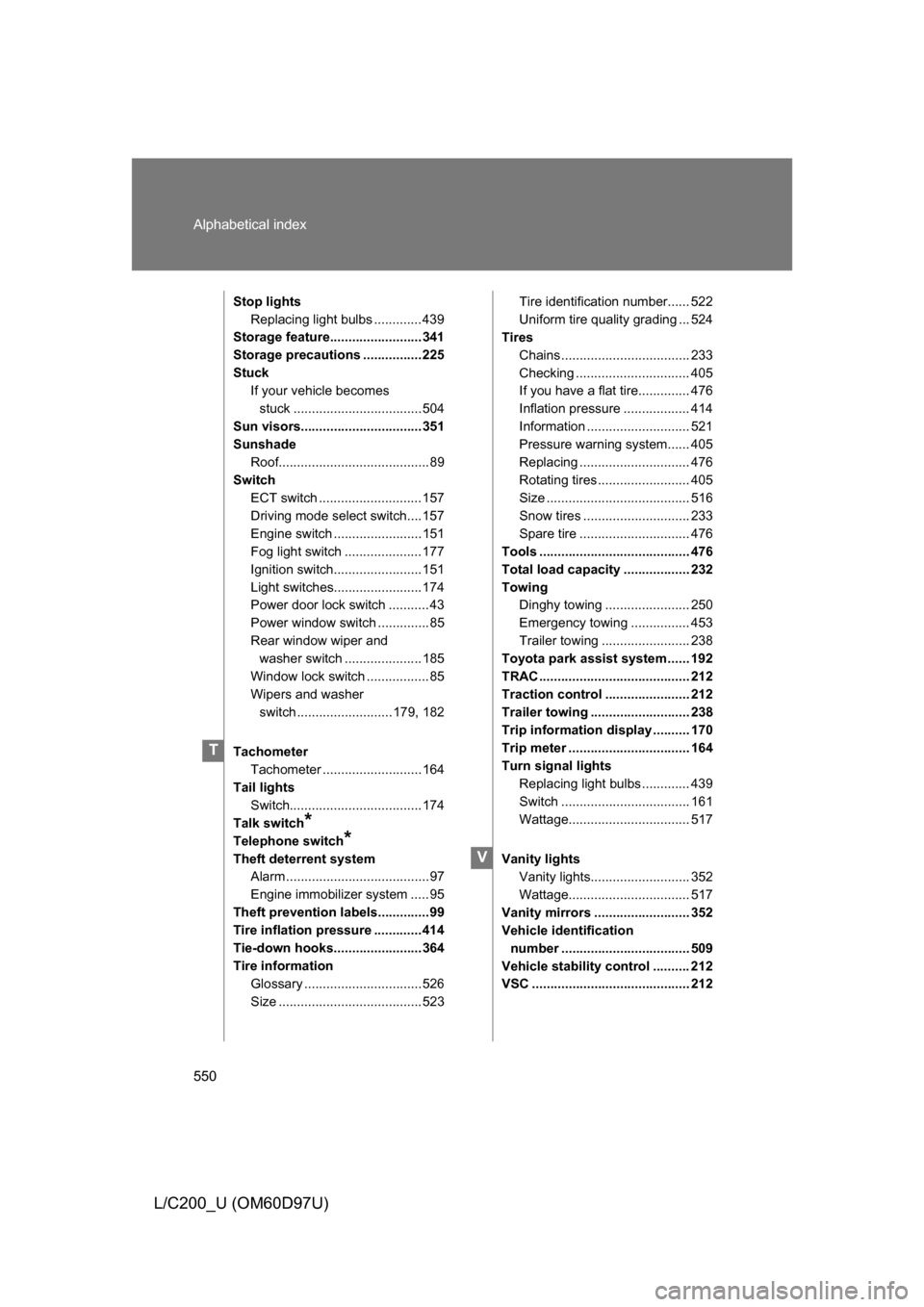

550 Alphabetical index
L/C200_U (OM60D97U)
Stop lights Replacing light bulbs ............. 439
Storage feature.........................341
Storage precautions ................225
Stuck If your vehicle becomes
stuck ...................................504
Sun visors.................................351
Sunshade Roof......................................... 89
Switch ECT switch ............................ 157
Driving mode select switch....157
Engine switch ........................151
Fog light switch ..................... 177
Ignition switch........................151
Light switches........................ 174
Power door lock switch ...........43
Power window switch ..............85
Rear window wiper and
washer switch ..................... 185
Window lock switch ................. 85
Wipers and washer
switch .......................... 179, 182
Tachometer Tachometer ...........................164
Tail lights Switch.................................... 174
Talk switch
*
Telephone switch*
Theft deterrent system Alarm .......................................97
Engine immobilizer system .....95
Theft prevention labels..............99
Tire inflation pressure ............. 414
Tie-down hooks........................364
Tire information Glossary ................................526
Size ....................................... 523 Tire identification number...... 522
Uniform tire quality grading ... 524
Tires
Chains ................................... 233
Checking ............................... 405
If you have a flat tire.............. 476
Inflation pressure .................. 414
Information ............................ 521
Pressure warning system...... 405
Replacing .............................. 476
Rotating tires ......................... 405
Size ....................................... 516
Snow tires ............................. 233
Spare tire .............................. 476
Tools ......................................... 476
Total load capacity .................. 232
Towing Dinghy towing ....................... 250
Emergency towing ................ 453
Trailer towing ........................ 238
Toyota park assist system ...... 192
TRAC ......................................... 212
Traction control ....................... 212
Trailer towing ........................... 238
Trip information display .......... 170
Trip meter ................................. 164
Turn signal lights Replacing light bulbs ............. 439
Switch ................................... 161
Wattage................................. 517
Vanity lights Vanity lights........................... 352
Wattage................................. 517
Vanity mirrors .......................... 352
Vehicle identification number ................................... 509
Vehicle stability control .......... 212
VSC ........................................... 212
T
V
