2009 TOYOTA LAND CRUISER Cool

254
L/C200_U (OM60D97U)
3-1. Using the air conditioning system and defogger
Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool box is on. ( P. 349)
Driver’s side temperature control
Changes the air outlets used Off *Airflow display
Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting display Passenger’s side temperature control
Changes the air
outlets usedOutside air or
recirculated
air mode
Outside air
mode Recirculated
air mode
Rear air conditioning operation mode Micro dust and pollen filter
Air conditioning on/off switch
4-zone operation switch
Windshield
defogger
Automatic
mode
Driver’s side
temperature
setting display
A
B

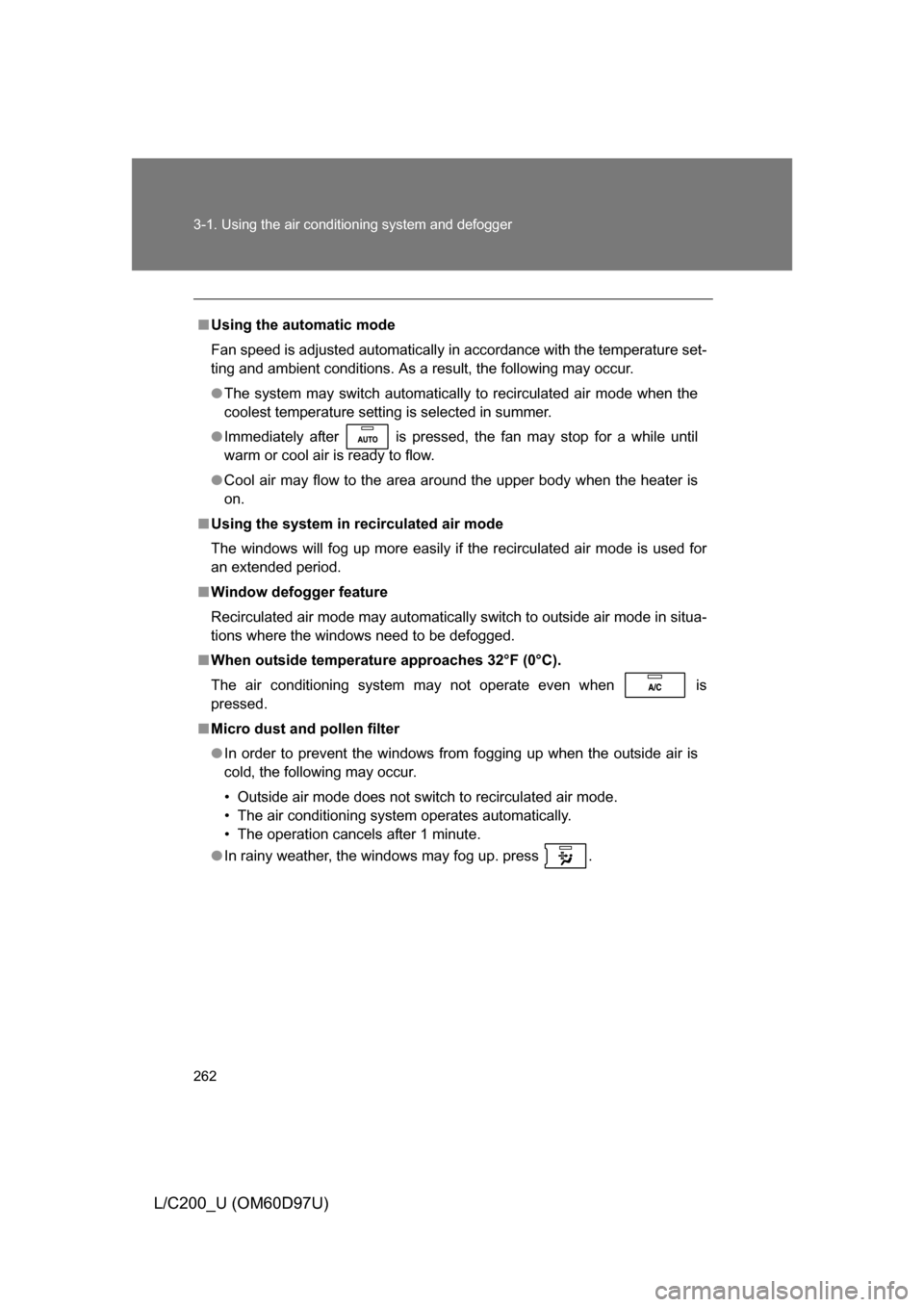

262 3-1. Using the air conditioning system and defogger
L/C200_U (OM60D97U)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
● The system may switch automatically to recirculated air mode when the
coolest temperature setting is selected in summer.
● Immediately after is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temperatur e approaches 32°F (0°C).
The air conditioning system may not operate even when is
pressed.
■ Micro dust and pollen filter
● In order to prevent the windows from fogging up when the outside air is
cold, the following may occur.
• Outside air mode does not switch to recirculated air mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
● In rainy weather, the windows may fog up. press .

263
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60D97U)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

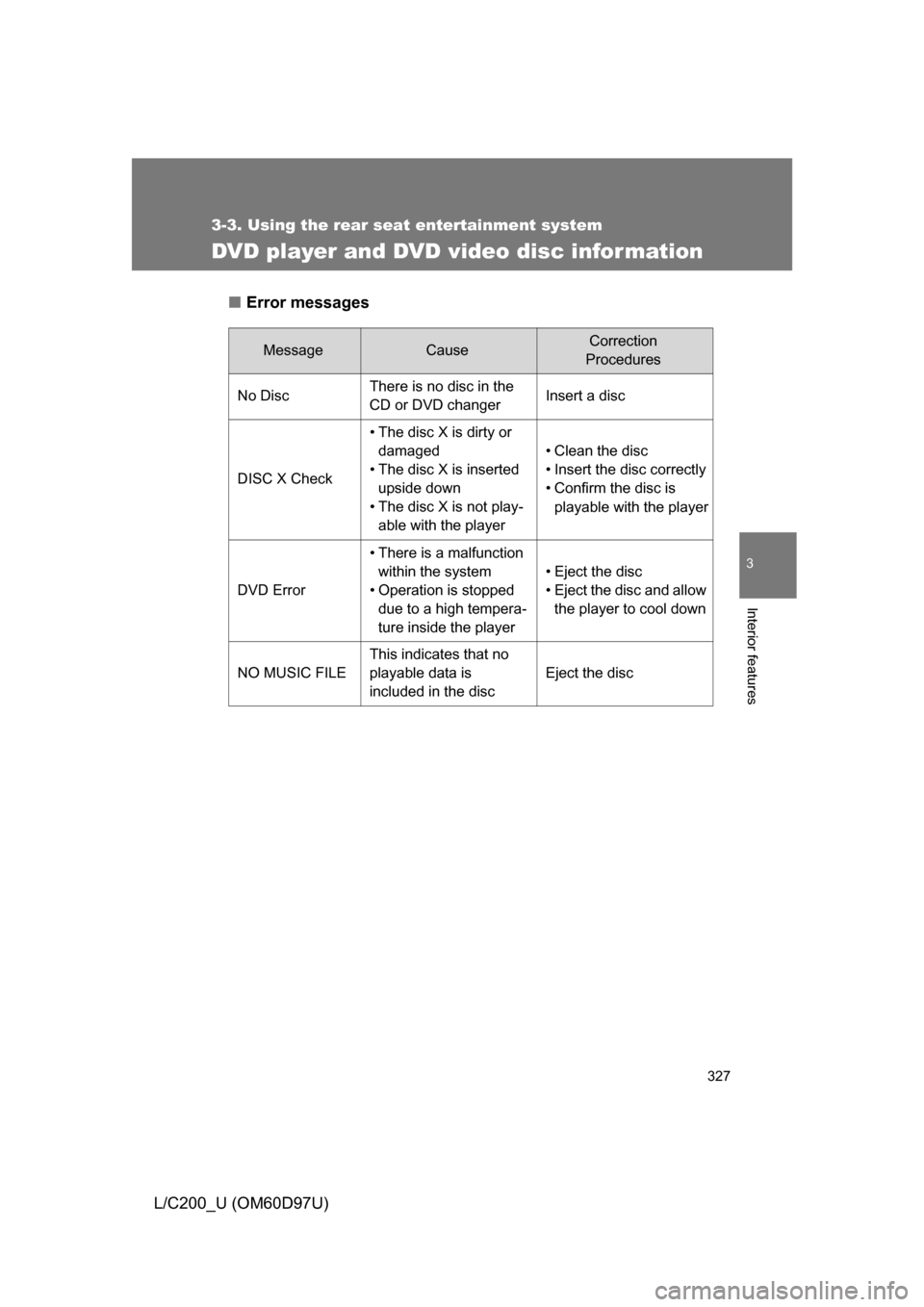

327
3-3. Using the rear seat entertainment system
3
Interior features
L/C200_U (OM60D97U)
DVD player and DVD video disc information
■Error messages
MessageCauseCorrection
Procedures
No Disc There is no disc in the
CD or DVD changer Insert a disc
DISC X Check • The disc X is dirty or
damaged
• The disc X is inserted upside down
• The disc X is not play- able with the player • Clean the disc
• Insert the disc correctly
• Confirm the disc is
playable with the player
DVD Error • There is a malfunction
within the system
• Operation is stopped due to a high tempera-
ture inside the player • Eject the disc
• Eject the disc and allow
the player to cool down
NO MUSIC FILE This indicates that no
playable data is
included in the disc Eject the disc

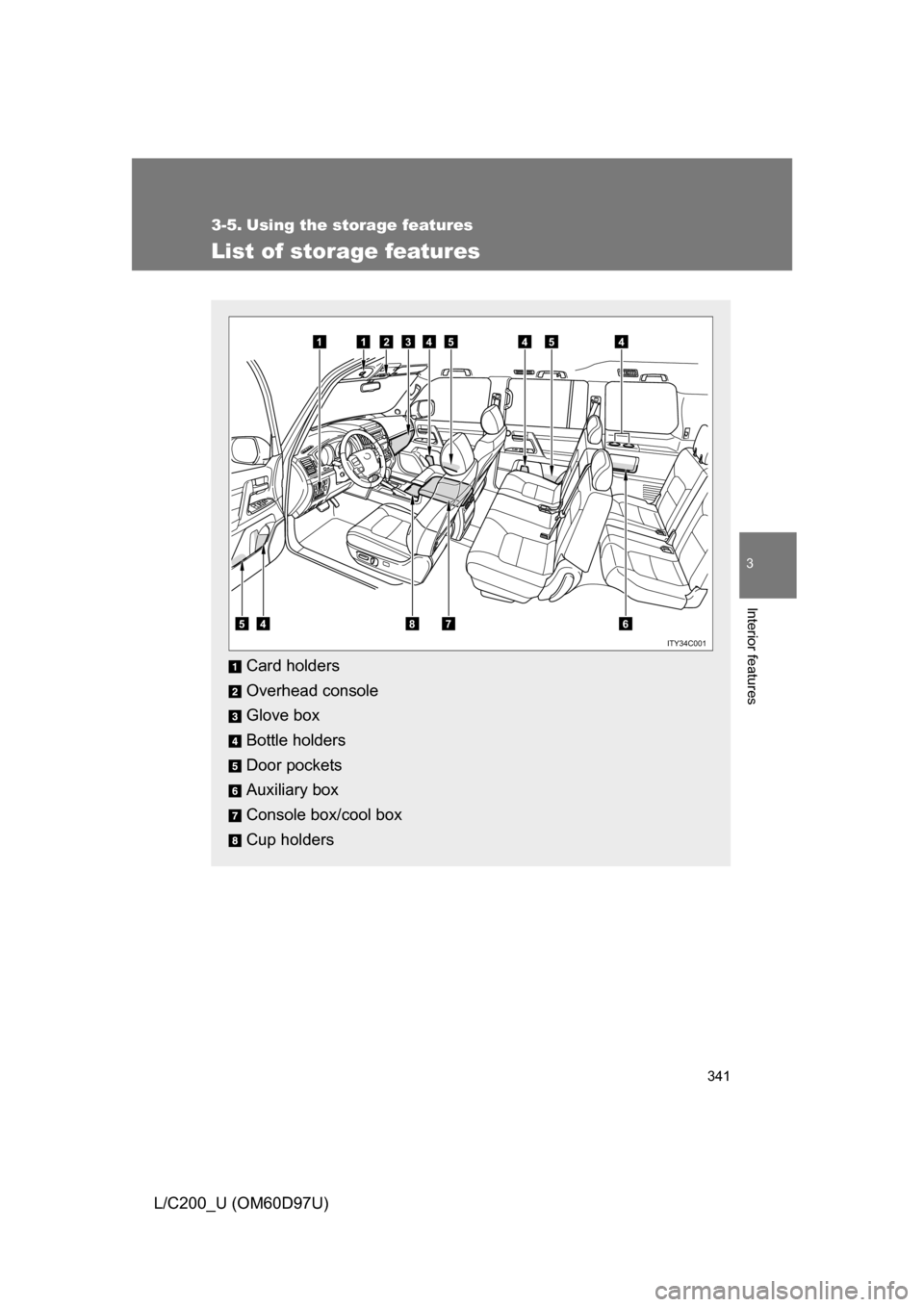

341
3
Interior features
L/C200_U (OM60D97U)
3-5. Using the storage features
List of storage features
Card holders
Overhead console
Glove box
Bottle holders
Door pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001

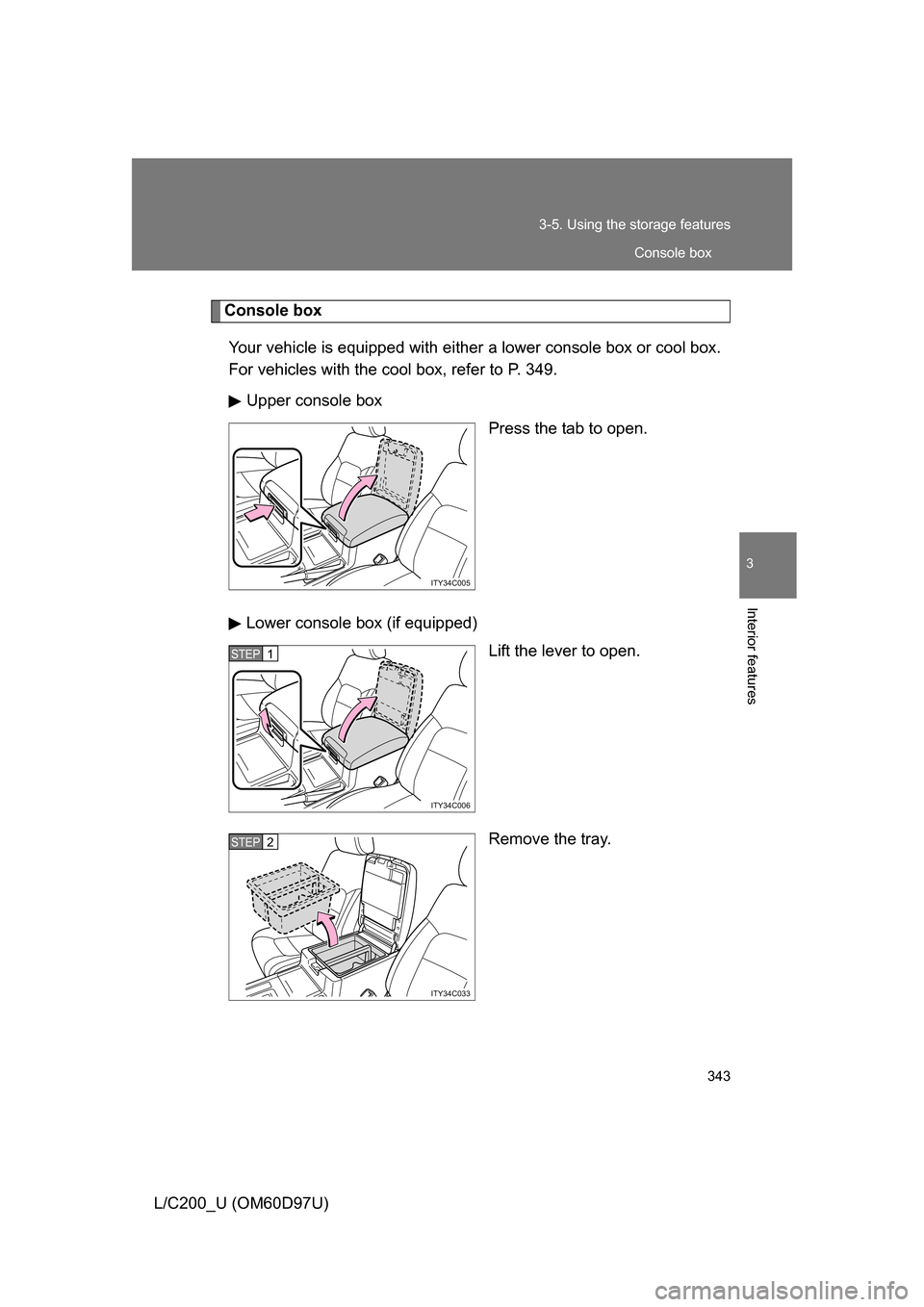

343
3-5. Using the
storage features
3
Interior features
L/C200_U (OM60D97U)
Console box
Your vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to P. 349.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box

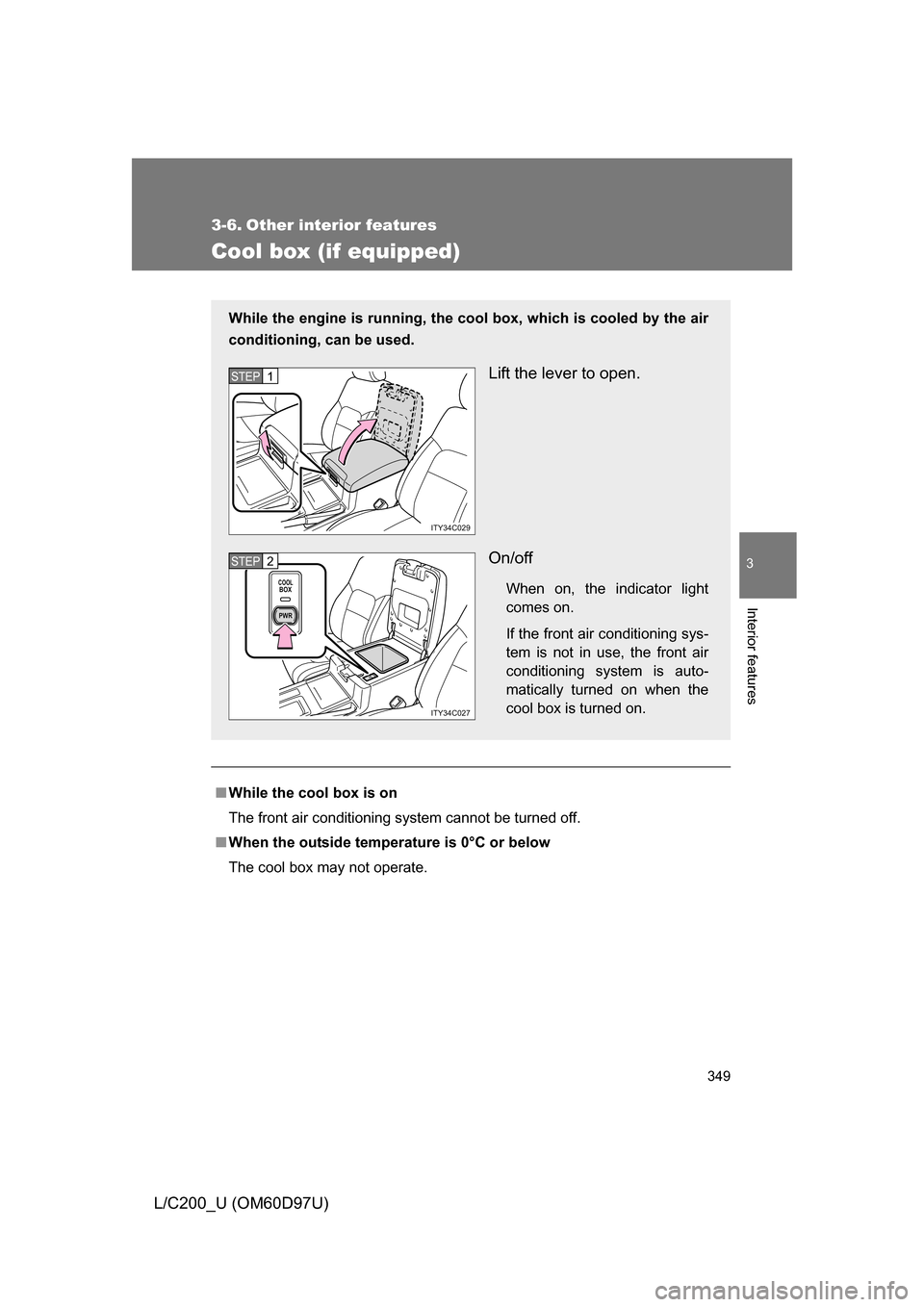

349
3
Interior features
L/C200_U (OM60D97U)
3-6. Other interior features
Cool box (if equipped)
■While the cool box is on
The front air conditioning system cannot be turned off.
■ When the outside temperature is 0°C or below
The cool box may not operate.
While the engine is running, the co ol box, which is cooled by the air
conditioning, can be used.
Lift the lever to open.
On/off
When on, the indicator light
comes on.
If the front air conditioning sys-
tem is not in use, the front air
conditioning system is auto-
matically turned on when the
cool box is turned on.
ITY34C029
STEP1
COOLBOX
PWR
ITY34C027
STEP2

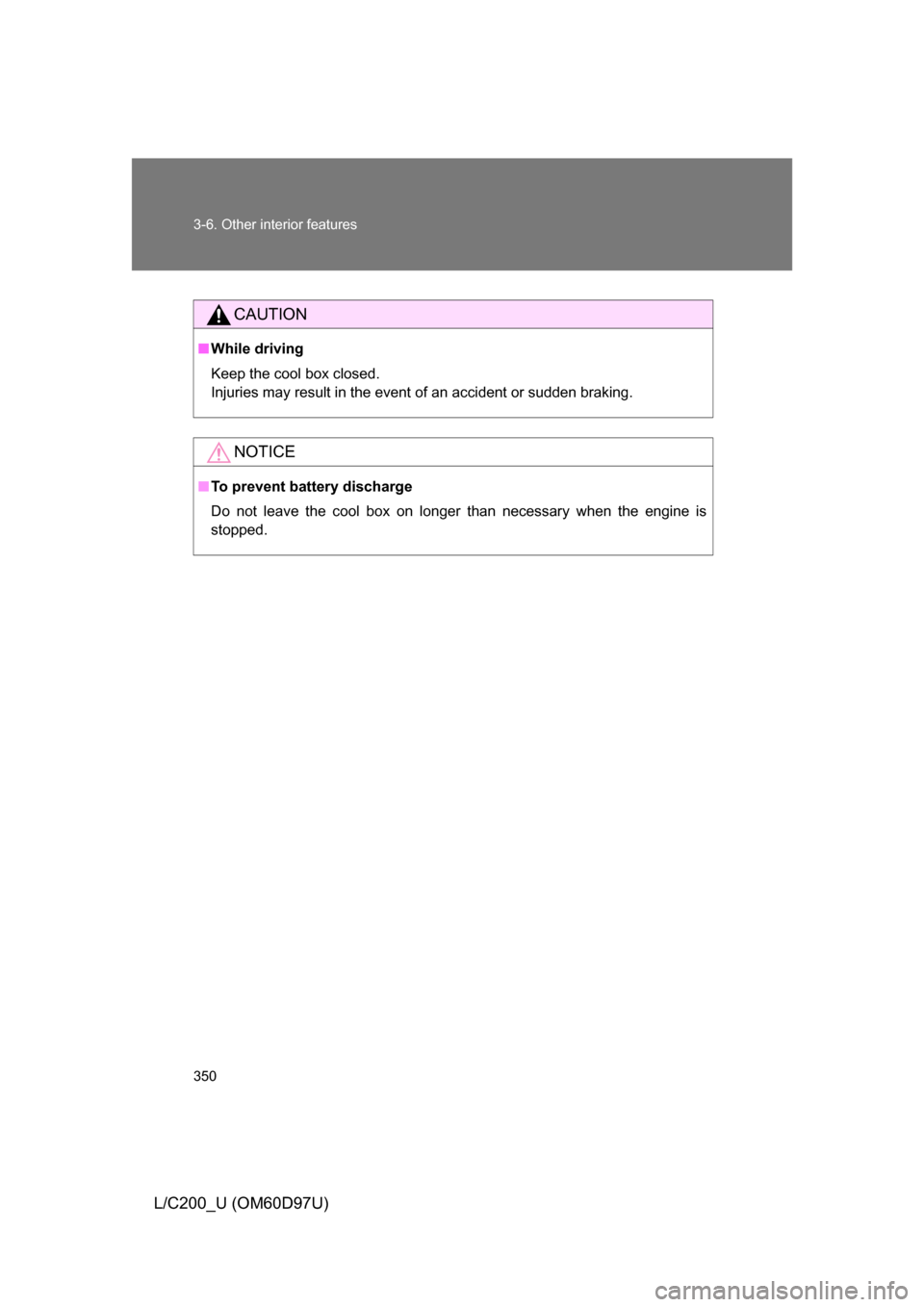

350 3-6. Other interior features
L/C200_U (OM60D97U)
CAUTION
■While driving
Keep the cool box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is
stopped.
