2009 TOYOTA LAND CRUISER Cool

512 6-1. Specifications
L/C200_U (OM60D97U)
Cooling system
Ignition system
Capacity16.3 qt. (15.4 L, 13.6 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO
GapSK20HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

514 6-1. Specifications
L/C200_U (OM60D97U)

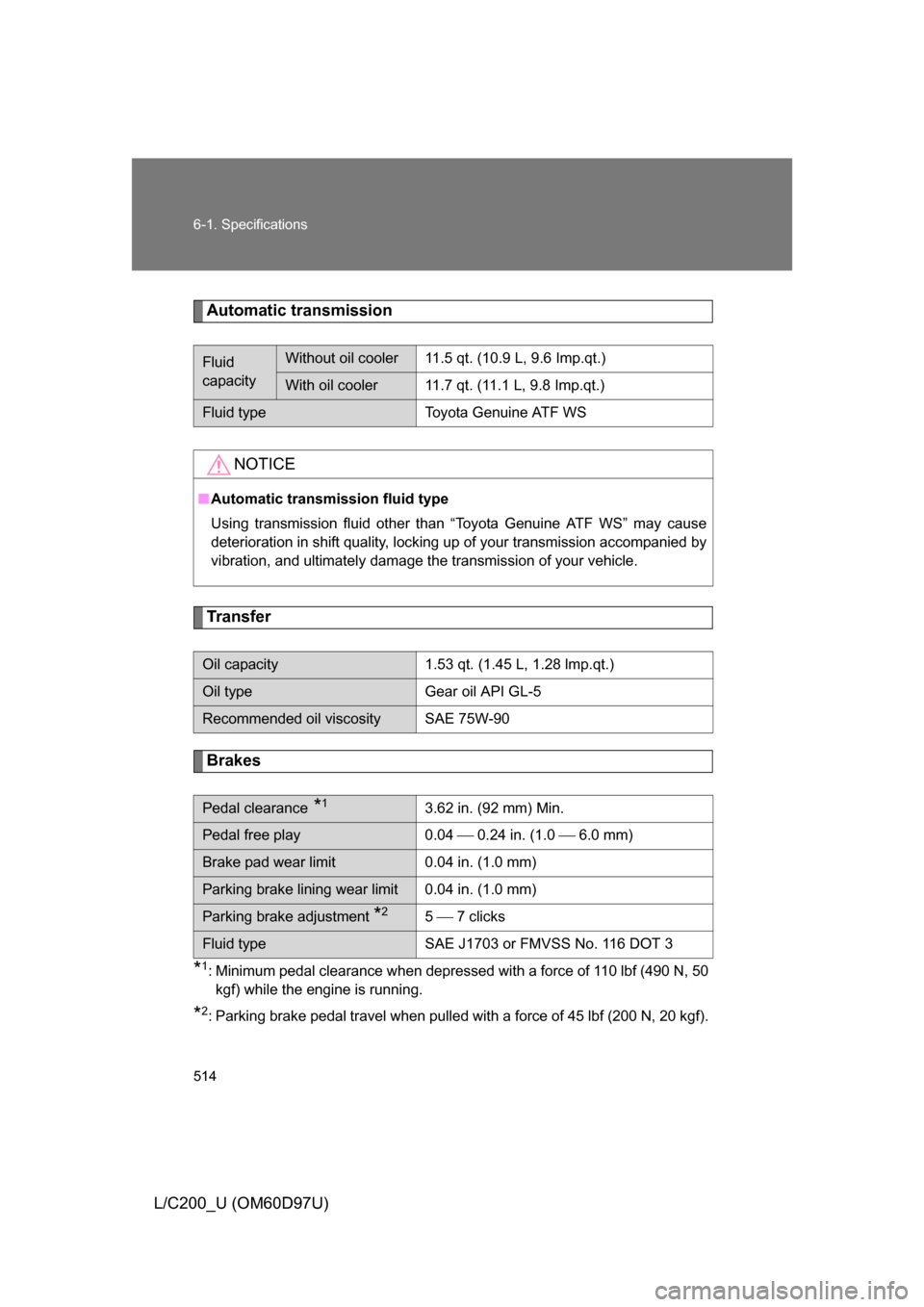

Automatic transmission
Transfer
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50kgf) while the engine is running.
*2: Parking brake pedal travel when pulled with a force of 45 lbf (200 N, 20 kgf).
Fluid
capacityWithout oil cooler11.5 qt. (10.9 L, 9.6 Imp.qt.)
With oil cooler11.7 qt. (11.1 L, 9.8 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.
Oil capacity1.53 qt. (1.45 L, 1.28 lmp.qt.)
Oil typeGear oil API GL-5
Recommended oil viscositySAE 75W-90
Pedal clearance *13.62 in. (92 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment *25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

526 6-1. Specifications
L/C200_U (OM60D97U)

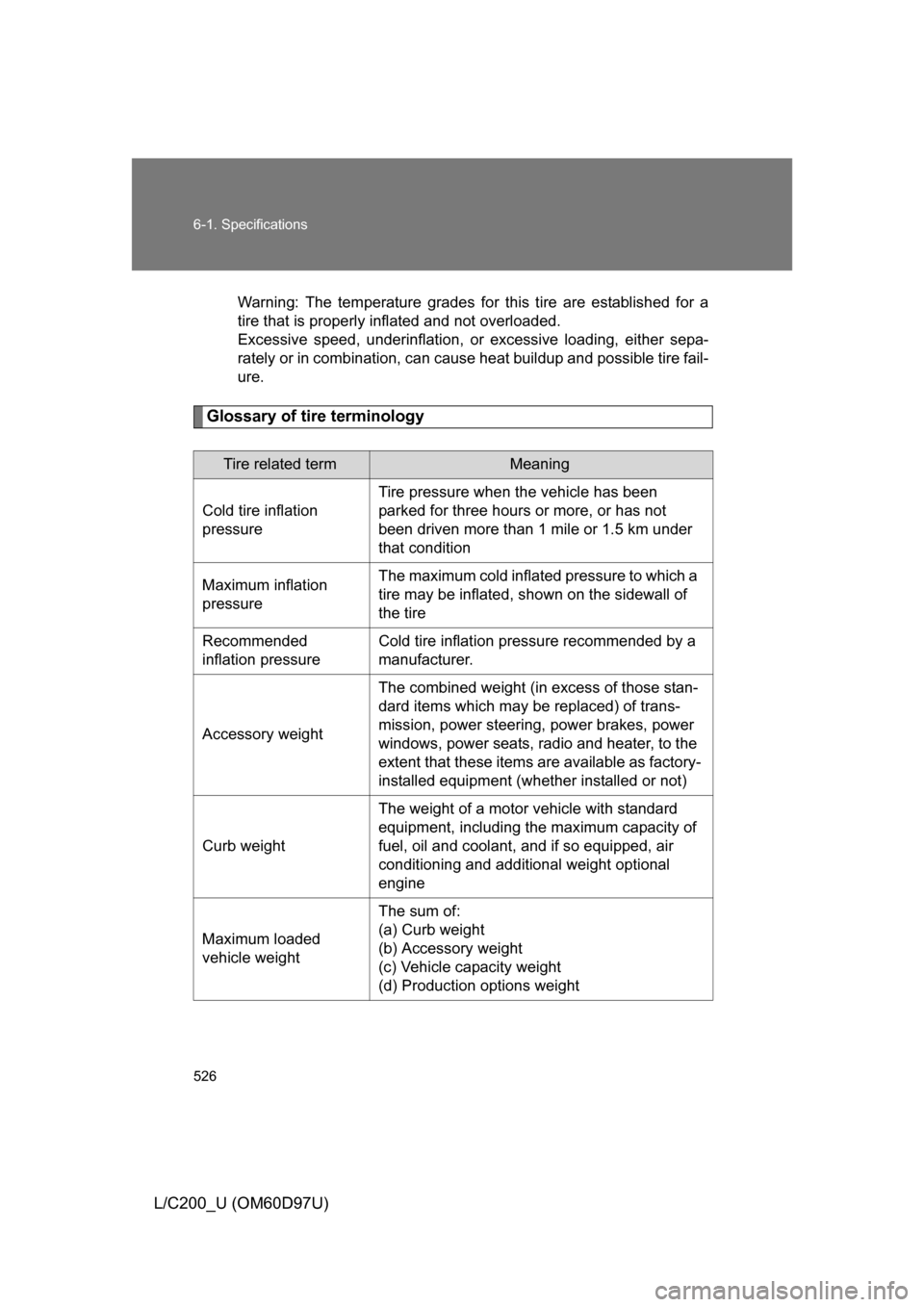

Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

545
Alphabetical index
L/C200_U (OM60D97U)
Care
Exterior ................................. 374
Interior .................................. 376
Seat belts ............................. 377
Card holder .............................. 348
Cargo capacity ........................ 225
Cargo net hooks ...................... 364
CD player/changer .................. 277
Center differential lock/unlock switch ................ 201
Chains ...................................... 235
Child-protectors ........................ 44
Child restraint system Booster seats, definition ....... 123
Booster seats, installation .... 127
Convertible seats, definition............................. 123
Convertible seats,
installation .......................... 127
Front passenger occupant classification system .......... 117
Infant seats, definition .......... 123
Infant seats, installation ........ 127
Installing CRS with LATCH system ..... .............. 128
Installing CRS with seat belts............................ 130
Installing CRS with top
straps ................................. 135
Child safety Airbag precautions ............... 110
Battery precautions ...... 403, 425
Child-protectors ...................... 44
Child restraint system ........... 123
How your child should wear
the seat belt ......................... 75
Installing child restraints ....... 127
Moon roof precautions............ 90
Power window lock switch ...... 85
Power window precautions..... 87
Removed key battery
precautions ........................ 423 Seat belt extender
precautions ...........................78
Seat belt precautions ..............76
Seat heater precautions ........360
Cigarette lighter .......................357
Cleaning Exterior ..................................374
Interior ...................................376
Seat belts ..............................377
Clock .........................................353
Condenser ................................397
Console box .............................343
Cool box....................................349
Cooling system Engine overheating ...............501
Cruise control...........................188
Cup holder ................................345
Crawl Control ...........................208
Curtain shield airbags .............102
Customizable features.............533
Daytime running light system ....................................176
Defogger
Rear window .........................268
Dimension.................................508
Dinghy towing ..........................250
Display Crawl Control display ............208
Trip information .....................171
Toyota park assist system display.................................192
Shift position and shift
range...................................158
Warning messages ...............473
Do-it-yourself main tenance.....385
Door courtesy lights Door courtesy lights ..............338
Wattage .................................517
Door lock Back door ................................48
Side door .................................43C
D

546 Alphabetical index
L/C200_U (OM60D97U)
Wireless remote control key .... 40
Doors Back door ................................48
Side door ................................. 43
Side mirrors .............................82
Driver’s seat belt reminder
light ......................................... 465
Driving Break-in tips .......................... 143
Correct posture ..................... 100
Off-road precautions ............. 220
Procedures............................ 142
Winter driving tips.................. 233
Driving position memory...........62
Electronic key If your electronic key
battery is discharged...423, 494
Emergency flashers .................452
Emergency, in case of If a warning message is
displayed............................. 473
If the electronic key does not operate properly............ 494
If the engine will not start ......489
If the shift lever cannot be shifted from P......................491
If the vehicle has discharged battery ................................497
If the warning buzzer
sounds ................................462
If the warning light turns on ...462
If you cannot operate back door opener ........................493
If you have a flat tire ............. 476
If you lose your keys ............. 492
If you think something is wrong .................................. 458
If your vehicle becomes
stuck ...................................504
If your vehicle needs to be towed .................................. 453
If your vehicle overheats ....... 501 Engine
Compartment ........................ 389
Engine switch ........................ 151
Hood ..................................... 388
How to start the engine ......... 151
Identification number............. 509
If the engine will not start ...... 489
Ignition switch ....................... 151
Overheating .......................... 501
Engine coolant Capacity ................................ 512
Checking ............................... 396
Preparing and checking before winter ....................... 233
Engine coolan t temperature
gauge ...................................... 164
Engine immobilizer system ...... 95
Engine oil Capacity ................................ 511
Checking ............................... 391
Preparing and checking before winter ....................... 233
Engine oil maintenance data ......................................... 394
Engine switch........................... 151
Event data recorder ................. 460
First-aid kit holder ................... 365
Floor mat .................................. 363
Fluid
Brake..................................... 398
Power steering ...................... 400
Washer.................................. 404
Fog lights Replacing light bulbs ............. 439
Switch ................................... 177
Wattage................................. 517
Four-wheel drive system......... 201
Front fog lights Replacing light bulbs ............. 439
Switch ................................... 177
