2009 TOYOTA COROLLA battery

TABLE OF CONTENTSIndex
4
3-5. Using the storage features ........................... 264
List of storage features....... 264
• Glove box ......................... 265
• Console box ..................... 265
• Cup holders ...................... 267
• Auxiliary boxes ................. 269
• Bottle holders ................... 271
3-6. Other interior features ..... 272 Sun visors .......................... 272
Vanity mirrors ..................... 273
Grocery bag hook............... 274
Ashtrays ............................. 275
Cigarette lighter .................. 276
Power outlet ....................... 277
Seat heaters ....................... 279
Armrest............................... 281
Floor mat ............................ 282
Trunk features .................... 283
Compass ............................ 284 4-1. Maintenance and care ...... 290
Cleaning and protecting the vehicle exterior ........... 290
Cleaning and protecting the vehicle interior ............ 292
4-2. Maintenance ...................... 295 Maintenance requirements .................... 295
General maintenance ......... 297
Emission inspection and maintenance (I/M)
programs .......................... 300
4-3. Do-it-yourself maintenance ................... 301
Do-it-yourself service precautions ....................... 301
Hood ................................... 305
Positioning a floor jack........ 307
Engine compartment .......... 310
Tires.................................... 326
Tire inflation pressure ......... 335
Wheels................................ 339
Air conditioning filter ........... 341
Key battery ......................... 343
Checking and replacing fuses ................................. 347
Light bulbs .......................... 357
4Maintenance and care

1
2
3
4
5
6
7
5
5-1. Essential information ....... 368If your vehicle needs to be towed ........................... 368
If you think something is wrong ............................ 373
Fuel pump shut off system...... 374
Event data recorder ............ 375
5-2. Steps to take in an emergency ....................... 377
If a warning light turns on or a warning buzzer
sounds... .......................... 377
If you have a flat tire............ 388
If the engine will not start .... 399
If the shift lever cannot be shifted from P
(automatic
transmission) .................... 401
If you lose your keys ........... 402
If the electronic key does not operate properly
(vehicles with smart
key system)....................... 403
If the battery is discharged ........................ 405
If your vehicle overheats ..... 411
If the vehicle becomes stuck ................................. 414 6-1. Specifications ................... 416
Maintenance data (fuel, oil level, etc.) ........... 416
Fuel information.................. 428
Tire information .................. 431
6-2. Customization................... 443 Customizable features........ 443
6-3. Initialization....................... 447 Items to initialize ................. 447
Reporting safety defects for U.S. owners ................ 450
Seat belt instructions for Canadian owners
(in French) ........................ 451
Abbreviation list ........................ 456
Alphabetical index .................... 457
What to do if... .......................... 465
5When trouble arises6Vehicle specifications
7For owners
Index

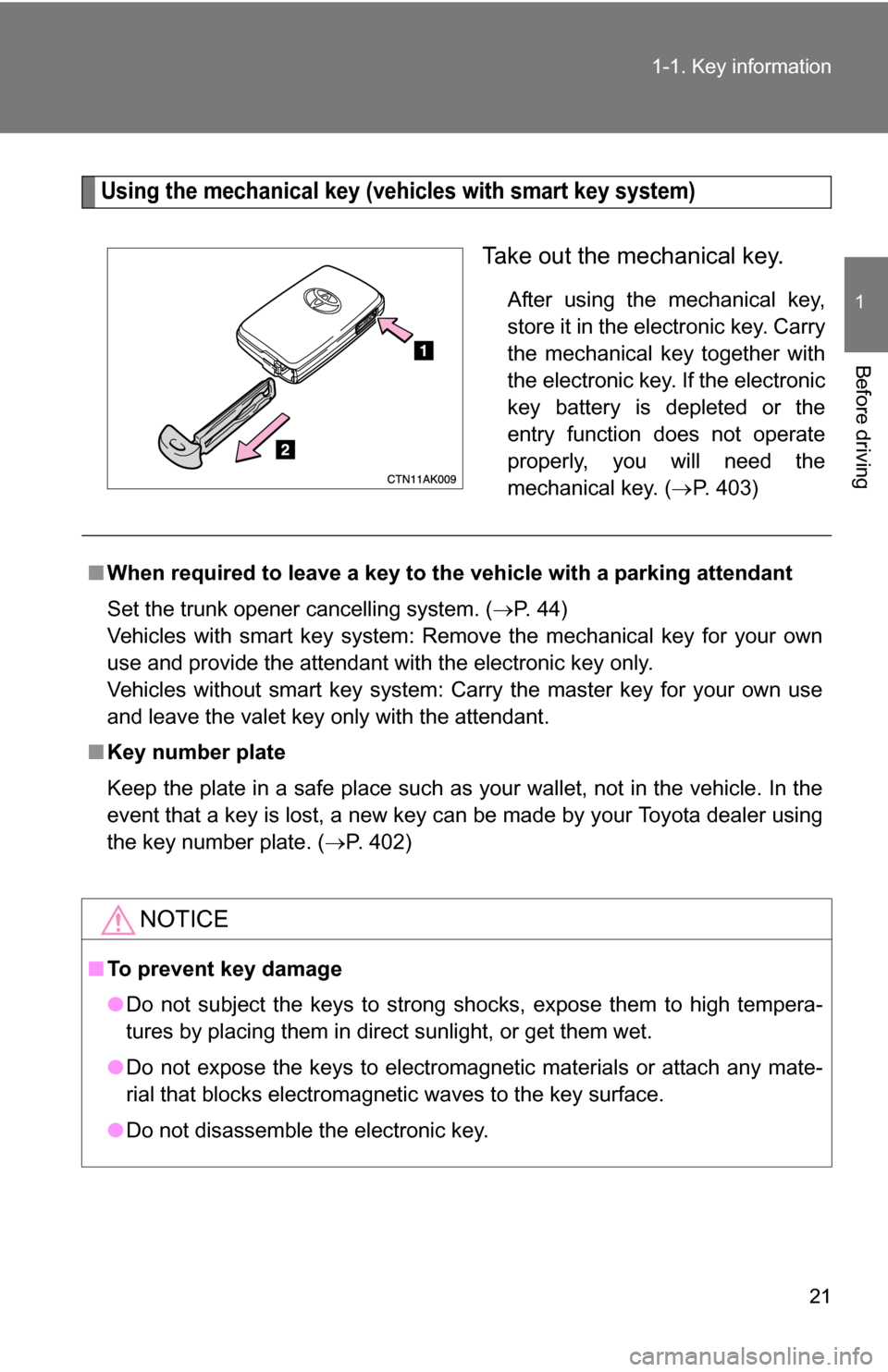

21
1-1. Key information
1
Before driving
Using the mechanical key (vehicles with smart key system)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (
P. 403)
■When required to leave a key to th e vehicle with a parking attendant
Set the trunk opener cancelling system. ( P. 44)
Vehicles with smart key system: Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
Vehicles without smart key system: Carry the master key for your own use
and leave the valet key only with the attendant.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( P. 402)
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.

26 1-2. Opening, closing and locking the doors and trunk
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Ways of coping: P. 403)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle's electronic key or a wireless key that emits radio
waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to
the rear window

27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is off, press and
hold , , or for approximately 5 seconds while
pressing on the key.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)
■ Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 weeks or more
● When the electronic key has been left within approximately 6 ft. (2 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked using the door handle lock switch.
● The vehicle is locked/unlocked using the wireless remote control func-
tion. ( P. 34)
● The vehicle is locked/unlocked using the mechanical key. ( P. 403)
STEP1
STEP2
Unlocking doorsBeep
Hold the driver's door handle to unlock
only the driver's door. Exterior: Beeps three times
Interior: Pings once
Hold the front passenger's door han-
dle to unlock all doors
Hold either front door handle to unlock
all doors Exterior: Beeps twice
Interior: Pings once

28 1-2. Opening, closing and locking the doors and trunk
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● The battery becomes depleted even if the electronic key is not used
because the key always transmits radio waves. If the smart key system
or the wireless remote control function does not operate, or the detection
area becomes smaller, the battery may be depleted. Replace the battery
when necessary. ( P. 343)
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func-
tion.)
■ Note for the smart key system
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, package tray, floor, or in the auxiliary box of the driver's side instrument panel or glove box
when the engine is started or “ENGINE START STOP” switch modes
are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.

31
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
If the smart key system does not operate properly
● Locking and unlocking the doors and trunk: Use the mechanical key.
( P. 403)
● Starting the engine: P. 404
■ When the electronic key battery is fully depleted
P. 343
■ Customization that can be co nfigured at Toyota dealer
It is possible to deactivate the smart key system, etc.
(Customizable features P. 443)
AlarmSituationCorrection procedure
Interior alarm
sounds once The electronic key battery
is low Replace the battery.
(
P. 343)

35
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously for 10 seconds if
an attempt to lock the door is made. Fully close the door to stop the buzzer,
and lock the vehicle once more.
■ Panic mode
Vehicles with smart key system
Vehicles without smart key system
■Key battery depletion
Vehicles with smart key system
P. 2 8 Vehicles without smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 344)
When is pressed for longer
than about one second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person from
trying to break into or damage your
vehicle.
To stop the alarm, press any button on
the wireless remote control.
When is pressed for longer
than about one second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person from
trying to break into or damage your
vehicle.
To stop the alarm, press any button on
the wireless remote control.
