2009 TOYOTA COROLLA glove box

TABLE OF CONTENTSIndex
4
3-5. Using the storage features ........................... 264
List of storage features....... 264
• Glove box ......................... 265
• Console box ..................... 265
• Cup holders ...................... 267
• Auxiliary boxes ................. 269
• Bottle holders ................... 271
3-6. Other interior features ..... 272 Sun visors .......................... 272
Vanity mirrors ..................... 273
Grocery bag hook............... 274
Ashtrays ............................. 275
Cigarette lighter .................. 276
Power outlet ....................... 277
Seat heaters ....................... 279
Armrest............................... 281
Floor mat ............................ 282
Trunk features .................... 283
Compass ............................ 284 4-1. Maintenance and care ...... 290
Cleaning and protecting the vehicle exterior ........... 290
Cleaning and protecting the vehicle interior ............ 292
4-2. Maintenance ...................... 295 Maintenance requirements .................... 295
General maintenance ......... 297
Emission inspection and maintenance (I/M)
programs .......................... 300
4-3. Do-it-yourself maintenance ................... 301
Do-it-yourself service precautions ....................... 301
Hood ................................... 305
Positioning a floor jack........ 307
Engine compartment .......... 310
Tires.................................... 326
Tire inflation pressure ......... 335
Wheels................................ 339
Air conditioning filter ........... 341
Key battery ......................... 343
Checking and replacing fuses ................................. 347
Light bulbs .......................... 357
4Maintenance and care

8
Glove box P. 265
Grocery bag hook
P. 274
SRS side airbags  P. 80
Power window
switches
 P. 66
SRS front
passenger
airbag
P. 80
SRS driver airbag P. 80
A
Console box P. 265
InteriorPictorial index
Floor mat P. 282
Head restraints P. 51
Armrest  P. 281
Seat belts P. 53
Auxiliary boxes P. 269
Parking brake lever P. 137
Shift lever P. 130, 135
Front seats P. 46
Cup holders P. 267
Cup holders P. 267

28 1-2. Opening, closing and locking the doors and trunk
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● The battery becomes depleted even if the electronic key is not used
because the key always transmits radio waves. If the smart key system
or the wireless remote control function does not operate, or the detection
area becomes smaller, the battery may be depleted. Replace the battery
when necessary. ( P. 343)
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func-
tion.)
■ Note for the smart key system
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, package tray, floor, or in the auxiliary box of the driver's side instrument panel or glove box
when the engine is started or “ENGINE START STOP” switch modes
are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.

Interior features3
183
3-3. Using the hands-free phone system
(for cellular phone) ...... 228
Hands-free phone system (for cellular phone)
features .......................... 228
Using the hands-free phone system
(for cellular phone) ......... 231
Making a phone call ......... 240
Setting a cellular phone ... 244
Security and system setup .............................. 249
Using the phone book ...... 253
3-4. Using the interior lights ............................. 260
Interior lights list ............... 260
• Interior light .................... 262
• Personal lights ............... 262
• Personal/interior lights ... 263 3-5. Using the storage
features ......................... 264
List of storage features .... 264
• Glove box....................... 265
• Console box ................... 265
• Cup holders ................... 267
• Auxiliary boxes ............... 269
• Bottle holders ................. 271
3-6. Other interior features ... 272 Sun visors ........................ 272
Vanity mirrors ................... 273
Grocery bag hook ............ 274
Ashtrays ........................... 275
Cigarette lighter................ 276
Power outlet ..................... 277
Seat heaters..................... 279
Armrest ............................ 281
Floor mat .......................... 282
Trunk features .................. 283
Compass .......................... 284

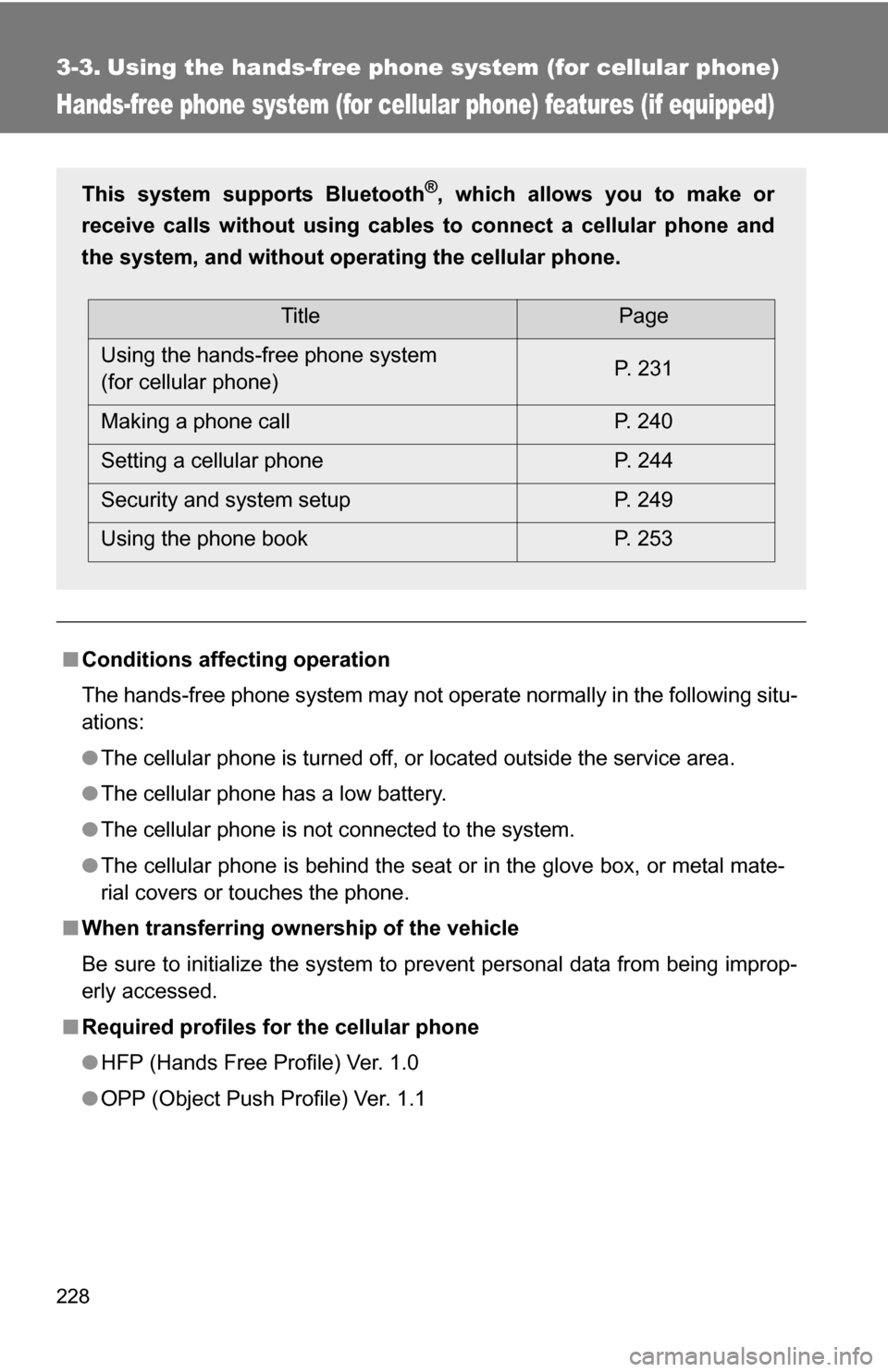

228
3-3. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone) features (if equipped)
■Conditions affecting operation
The hands-free phone system may not operate normally in the following situ-
ations:
●The cellular phone is turned off, or located outside the service area.
● The cellular phone has a low battery.
● The cellular phone is not connected to the system.
● The cellular phone is behind the seat or in the glove box, or metal mate-
rial covers or touches the phone.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed.
■ Required profiles for the cellular phone
●HFP (Hands Free Profile) Ver. 1.0
● OPP (Object Push Profile) Ver. 1.1
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
TitlePage
Using the hands-free phone system
(for cellular phone) P. 231
Making a phone call P. 240
Setting a cellular phone P. 244
Security and system setup P. 249
Using the phone book P. 253

264
3-5. Using the storage features
List of storage features
Auxiliary boxes
Glove box
Bottle holders
Cup holders
Console box

265
3-5. Using the
storage features
3
Interior features
Glove box
Pull up the lever.
Console box
Type A Lift the lid while pulling the lever.
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

341
4-3. Do-it-yourself maintenance
4
Maintenance and care
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch OFF.
Vehicles without smart key system: Turn the engine switch
OFF.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
STEP1
STEP2
STEP3
STEP4
