Before driving1
19
1-1. Key information................ 20Keys ................................... 20
1-2. Opening, closing and locking the doors and
trunk ................................ 22
Smart key system .............. 22
Wireless remote control ..... 34
Doors ................................. 38
Trunk .................................. 43
1-3. Adjustable components (seats, mirrors,
steering wheel)............... 46
Front seats ......................... 46
Rear seats.......................... 49
Head restraints................... 51
Seat belts ........................... 53
Steering wheel ................... 61
Anti-glare inside rear view mirror ............................... 62
Outside rear view mirrors.............................. 64 1-4. Opening and closing the
windows.......................... 66
Power windows .................. 66
Moon roof ........................... 68
1-5. Refueling........................... 71 Opening the fuel tank cap ................................... 71
1-6. Theft deterrent system .... 75 Engine immobilizer system ............................. 75
Theft prevention labels (for U.S.A.) ....................... 77
1-7. Safety information ........... 78 Correct driving posture....... 78
SRS airbags ....................... 80
Front passenger occupant classification system ........ 92
Child restraint systems....... 97
Installing child restraints ........................ 101

22
1-2. Opening, closing and locking the doors and trunk

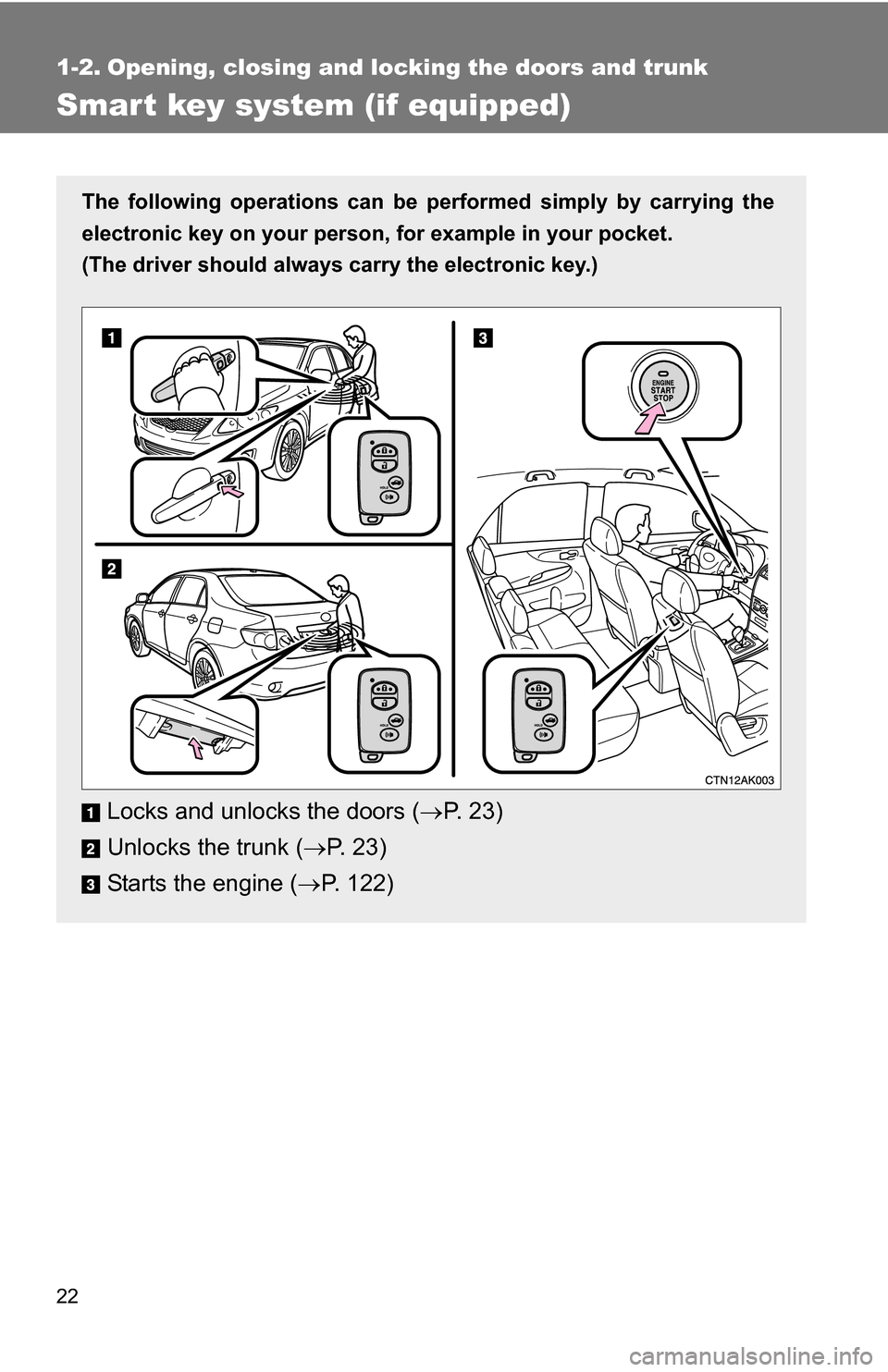

Smart key system (if equipped)
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( P. 2 3 )
Unlocks the trunk ( P. 2 3 )
Starts the engine ( P. 122)

25
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■

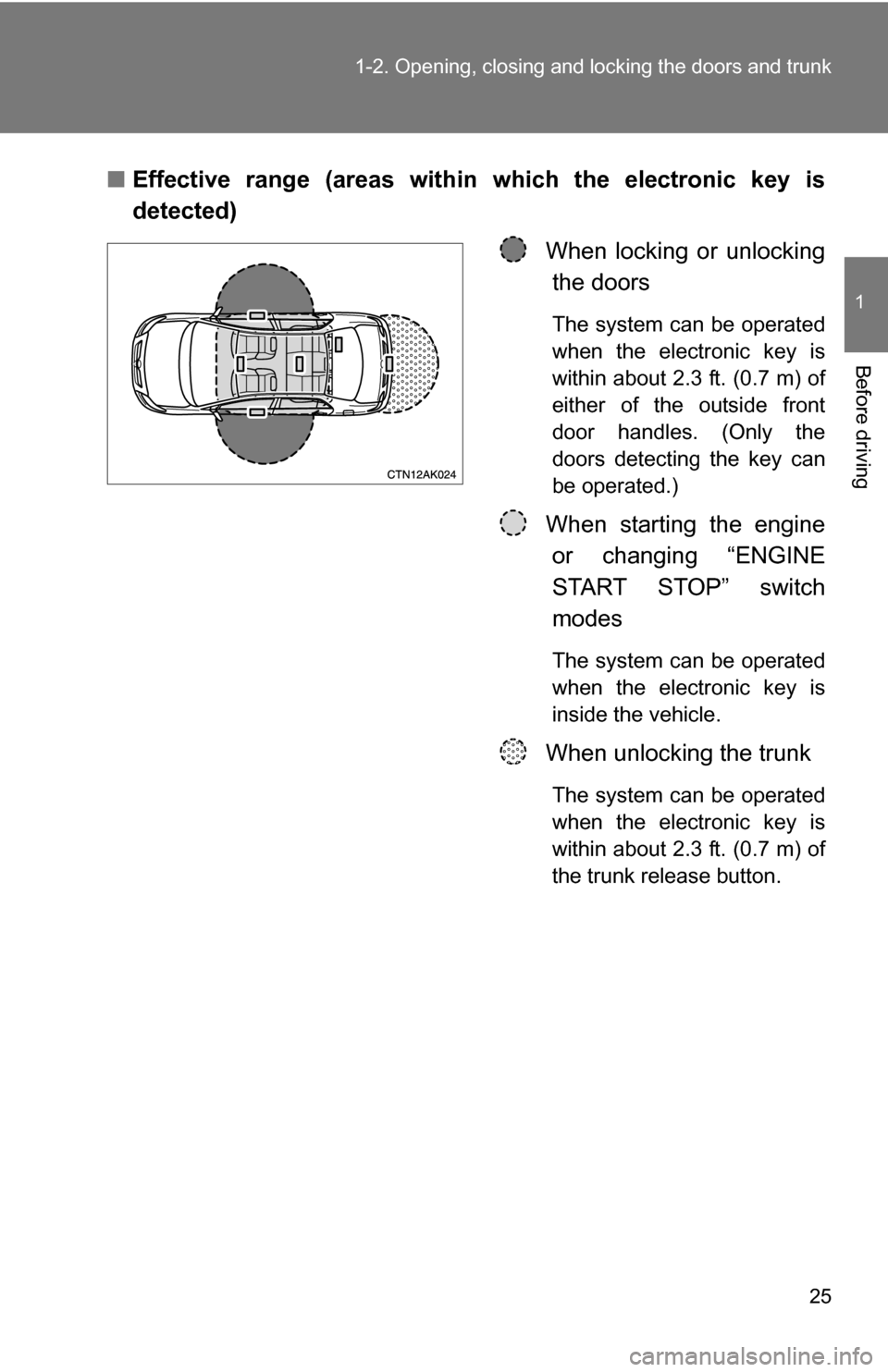

Effective range (areas within which the electronic key is
detected)
When locking or unlockingthe doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handles. (Only the
doors detecting the key can
be operated.)
When starting the engineor changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When unlocking the trunk
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the trunk release button.

27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is off, press and
hold , , or for approximately 5 seconds while
pressing on the key.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)
■ Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 weeks or more
● When the electronic key has been left within approximately 6 ft. (2 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked using the door handle lock switch.
● The vehicle is locked/unlocked using the wireless remote control func-
tion. ( P. 34)
● The vehicle is locked/unlocked using the mechanical key. ( P. 403)
STEP1
STEP2
Unlocking doorsBeep
Hold the driver's door handle to unlock
only the driver's door. Exterior: Beeps three times
Interior: Pings once
Hold the front passenger's door han-
dle to unlock all doors
Hold either front door handle to unlock
all doors Exterior: Beeps twice
Interior: Pings once
