2009 TOYOTA COROLLA navigation

10
Gauges and meters
Multi-information display P. 138
P. 146
Tilt and telescopic
steering control lever
P. 61
Pictorial index
Trunk opener P. 43
Headlight switch
Turn signal lever
Fog light switch

P. 150
P. 136
P. 152
Instrument panel
Audio system
Navigation system *P. 198
Windshield wiper and washer switch P. 153
Hood lock release
lever
P. 305
Fuel filler door opener
P. 71
Emergency flasher switch
Shift lock override
button
 P. 401
Cigarette lighter 
Power outlet

Ashtray

P. 276
P. 277
P. 275
Tire pressure warning
reset switch
 P. 327

11
A
Air conditioning
system
P. 184
Air conditioning
system
P. 190
Automatic air conditioning system
Manual air conditioning system
Security indicator
P. 75
Seat heater switches 
P. 279
AUX adapter P. 224
AUX adapter P. 224
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Rear window and outside rear view mirror defogger
switch
/rear window defogger switch  P. 197
Rear window and outside rear view mirror defogger
switch
/rear window defogger switch  P. 197
Security indicator
P. 75

13
C
Cruise control switch  P. 155
Talk switch  P. 232
Engine (ignition) switch
(vehicles without smart
key system)
 P. 126
Engine (ignition) switch
(vehicles with smart
key system)
 P. 122
Audio remote control
switches*2  P. 225
Telephone switches 
P. 232
: If equipped
*2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

198
3-2. Using the audio system
Audio system types
With navigation system
Owners of models equipped with a navigation system should refer
to the “Navigation Sy stem Owner's Manual”.
Without navig ation system
Type A: CD player with changer controller and AM/FM radio
Type B: CD player with changer and AM/FM radio

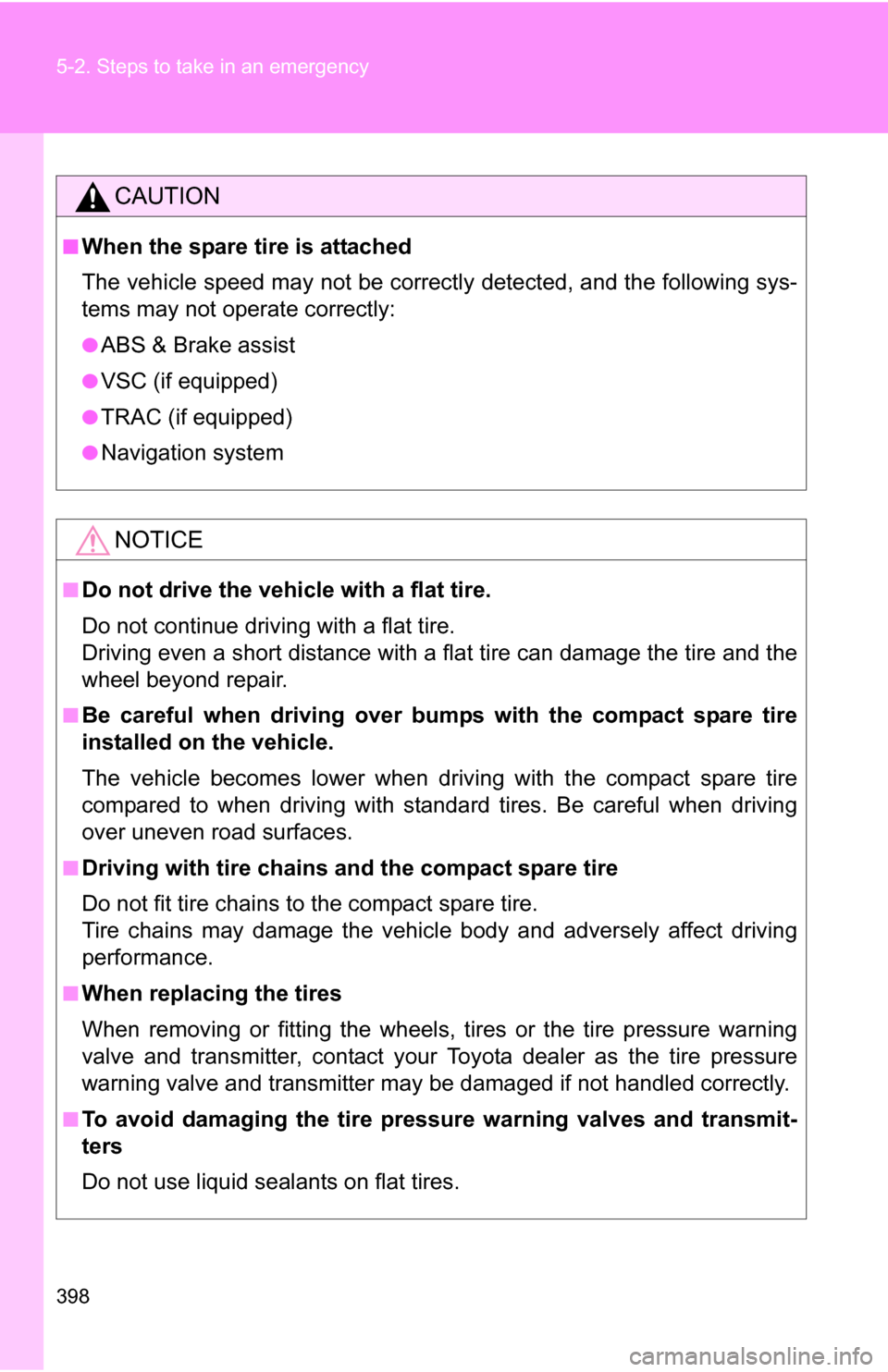

398 5-2. Steps to take in an emergency
CAUTION
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC (if equipped)
●TRAC (if equipped)
●Navigation system
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damaging the tire pressure warning valves and transmit-
ters
Do not use liquid sealants on flat tires.

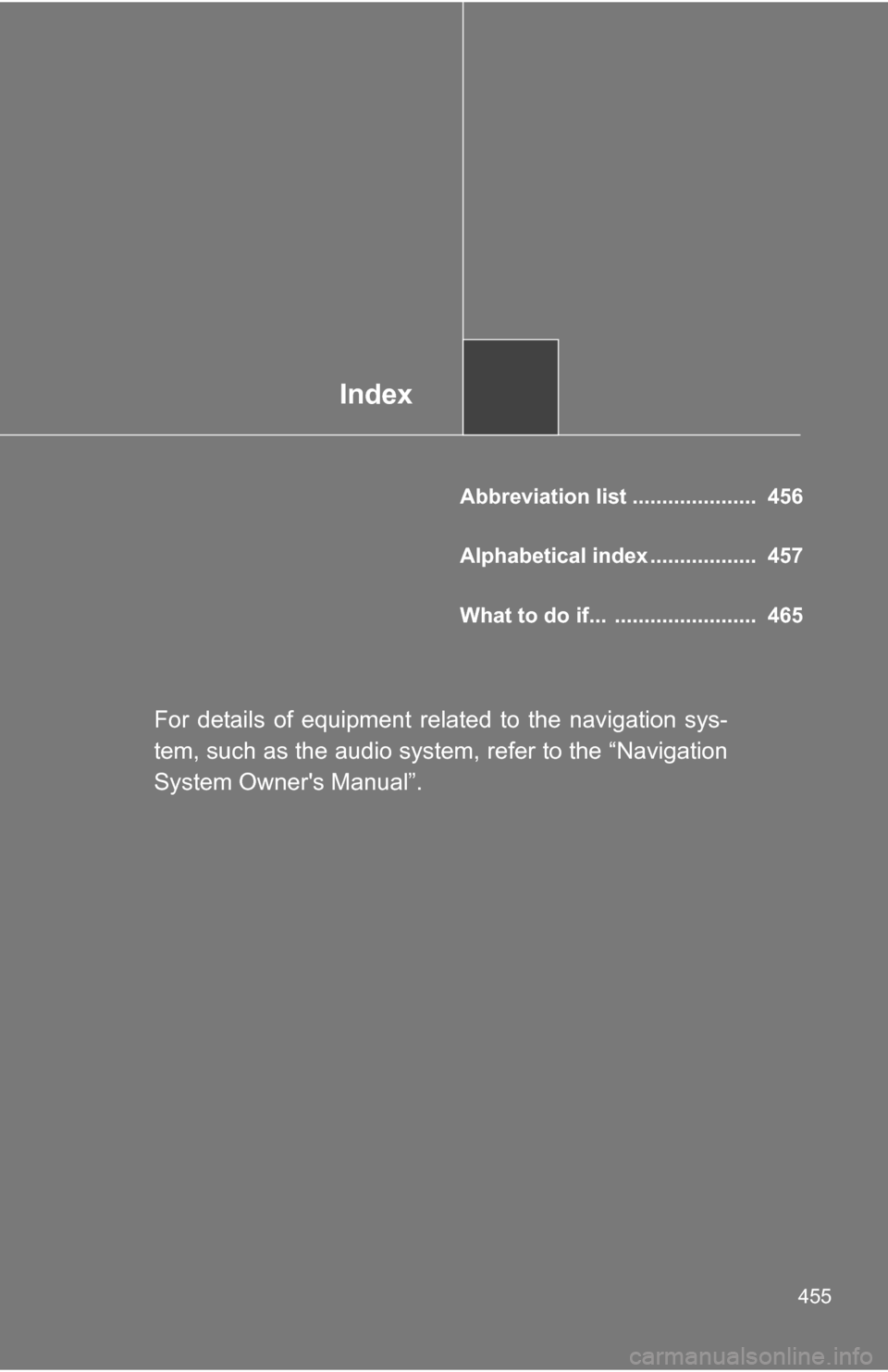

Index
455
Abbreviation list ..................... 456
Alphabetical index .................. 457
What to do if... ........................ 465
For details of equipment related to the navigation sys-
tem, such as the audio system, refer to the “Navigation
System Owner's Manual”.
