4Maintenance and care

310
4-3. Do-it-yourself maintenance
Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine coolant reservoir( P. 317)
Engine oil filler cap ( P. 313)
Brake fluid reservoir ( P. 318)
Fuse box ( P. 347)Battery ( P. 321)
Radiator ( P. 318)
Electric cooling fan
Condenser ( P. 318)
Engine oil level dipstick ( P. 312)
Washer fluid tank ( P. 324)

311
4-3. Do-it-yourself maintenance
4
Maintenance and care

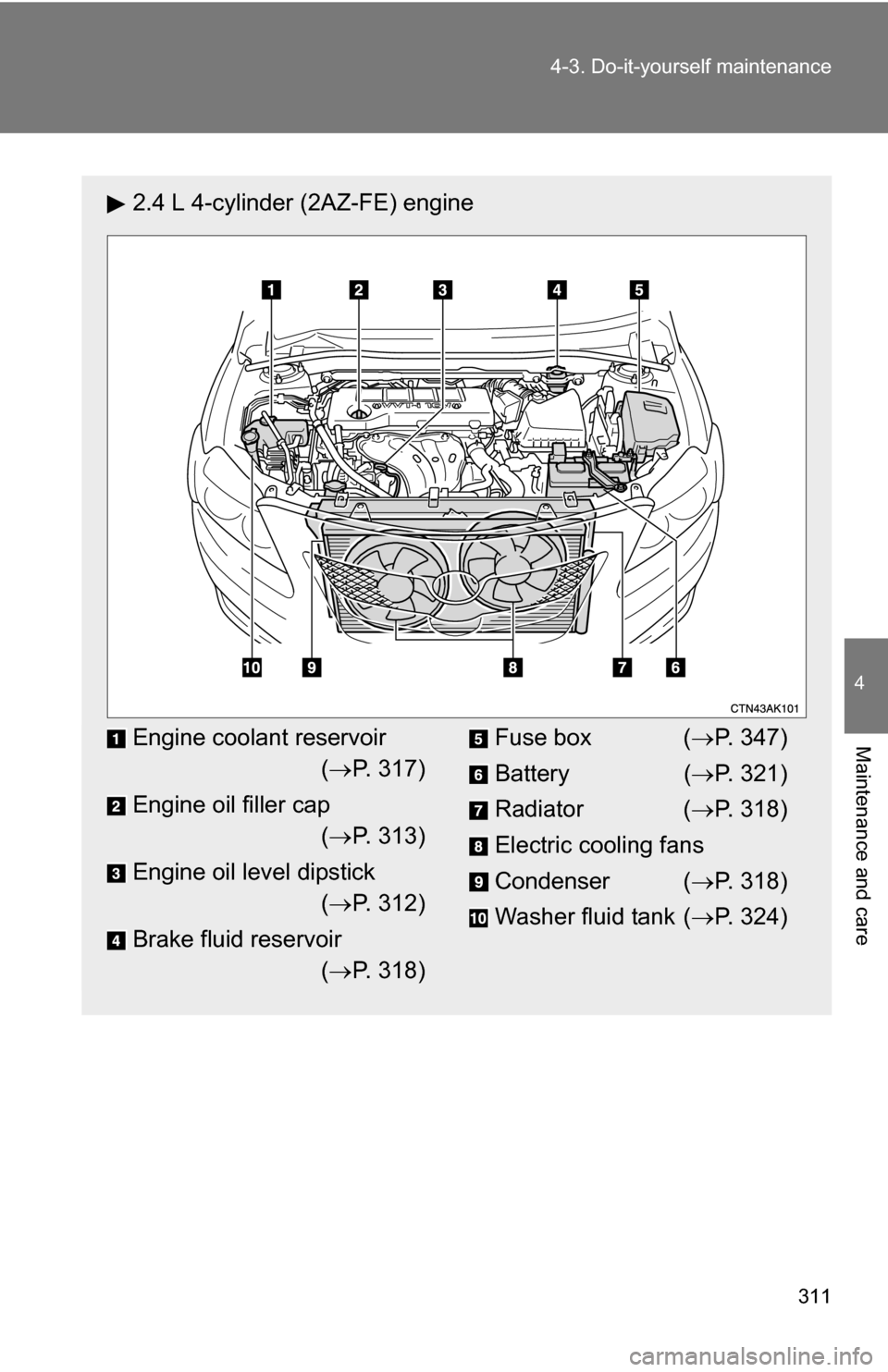

2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
( P. 317)
Engine oil filler cap ( P. 313)
Engine oil level dipstick ( P. 312)
Brake fluid reservoir ( P. 318)Fuse box ( P. 347)
Battery ( P. 321)
Radiator ( P. 318)
Electric cooling fans
Condenser ( P. 318)
Washer fluid tank ( P. 324)

347
4-3. Do-it-yourself maintenance
4
Maintenance and care

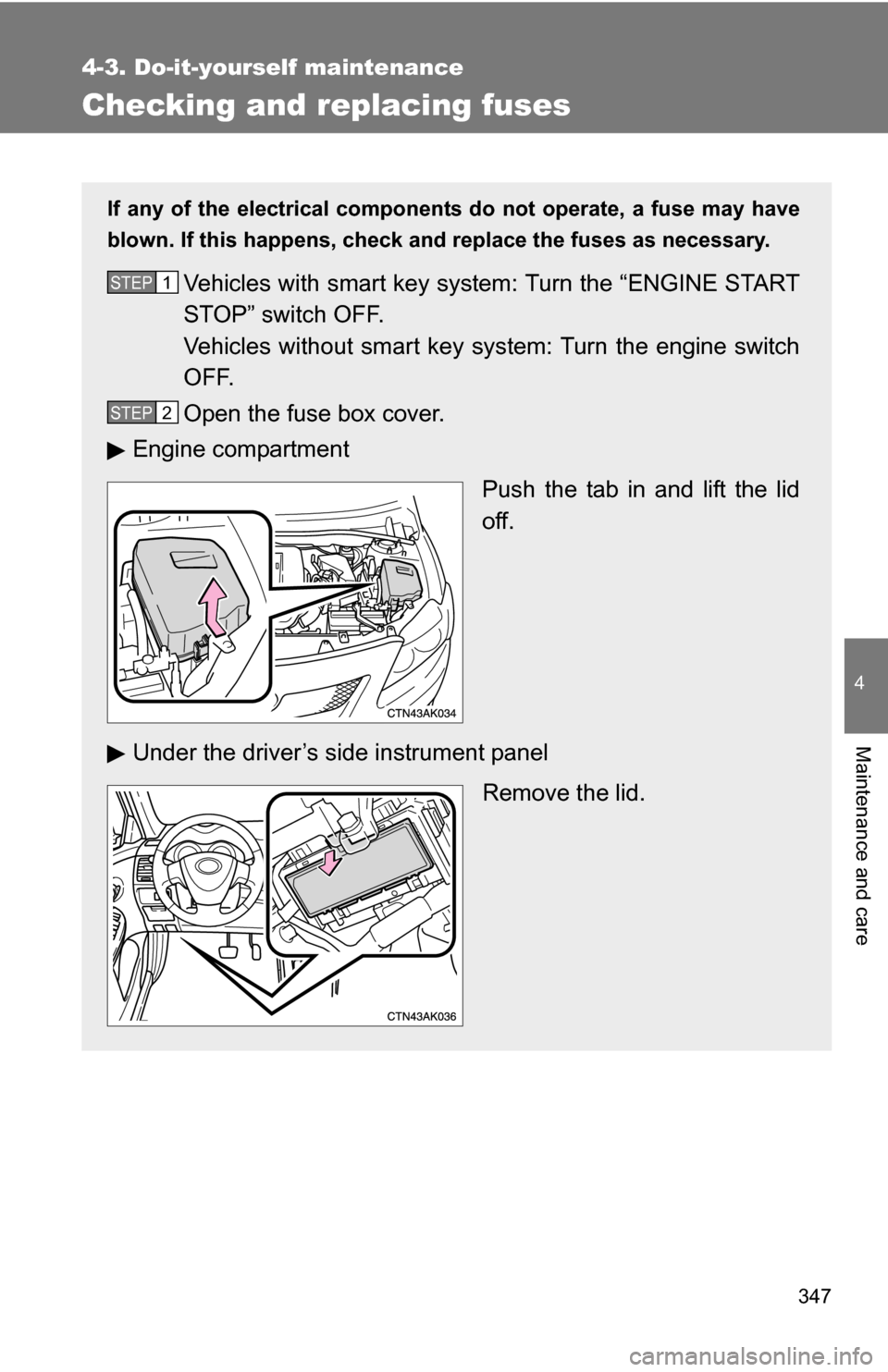

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch OFF.
Vehicles without smart key system: Turn the engine switch
OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.STEP1
STEP2

349
4-3. Do-it-yourself maintenance
4
Maintenance and care

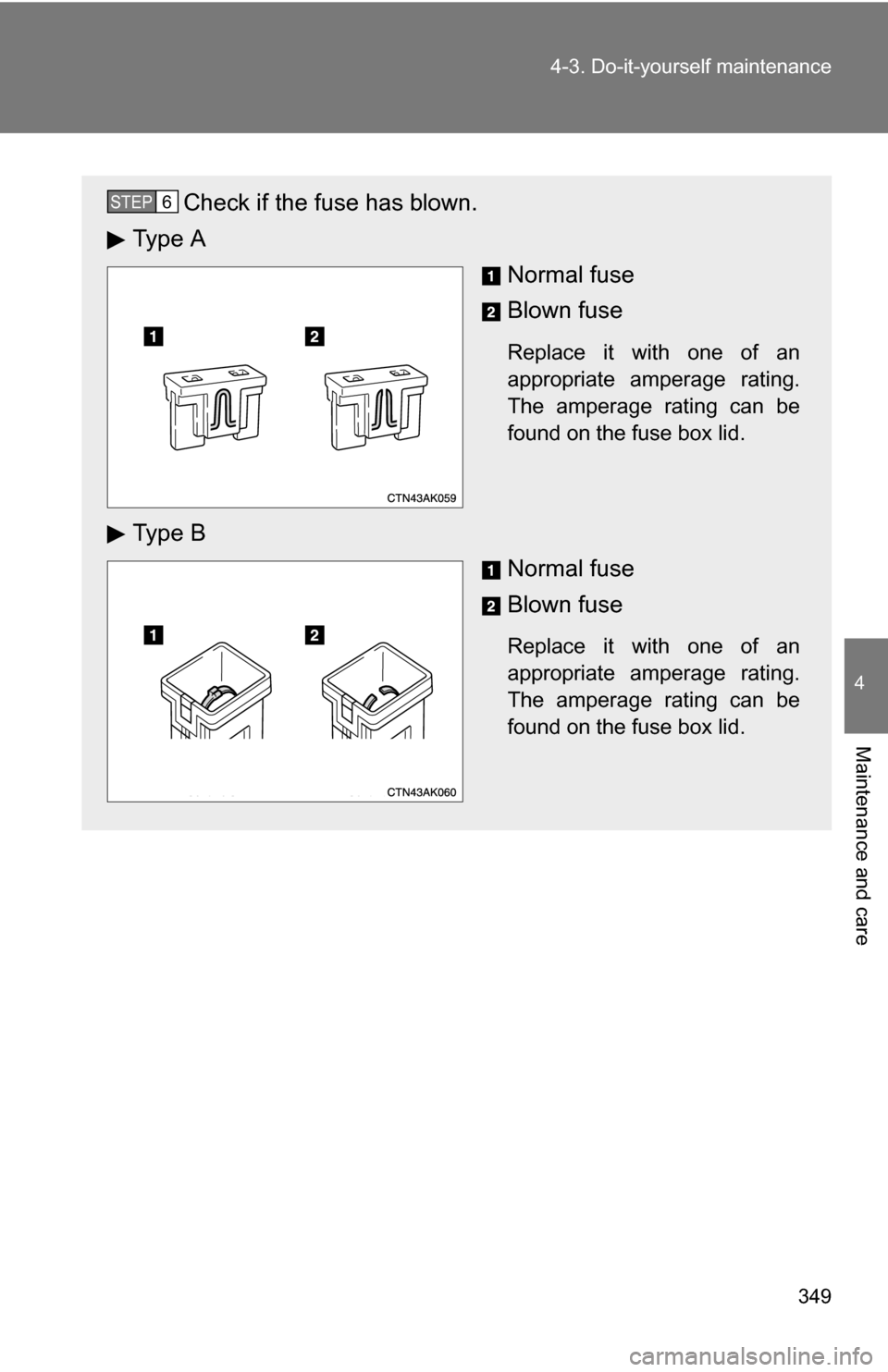

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP6

356 4-3. Do-it-yourself maintenance

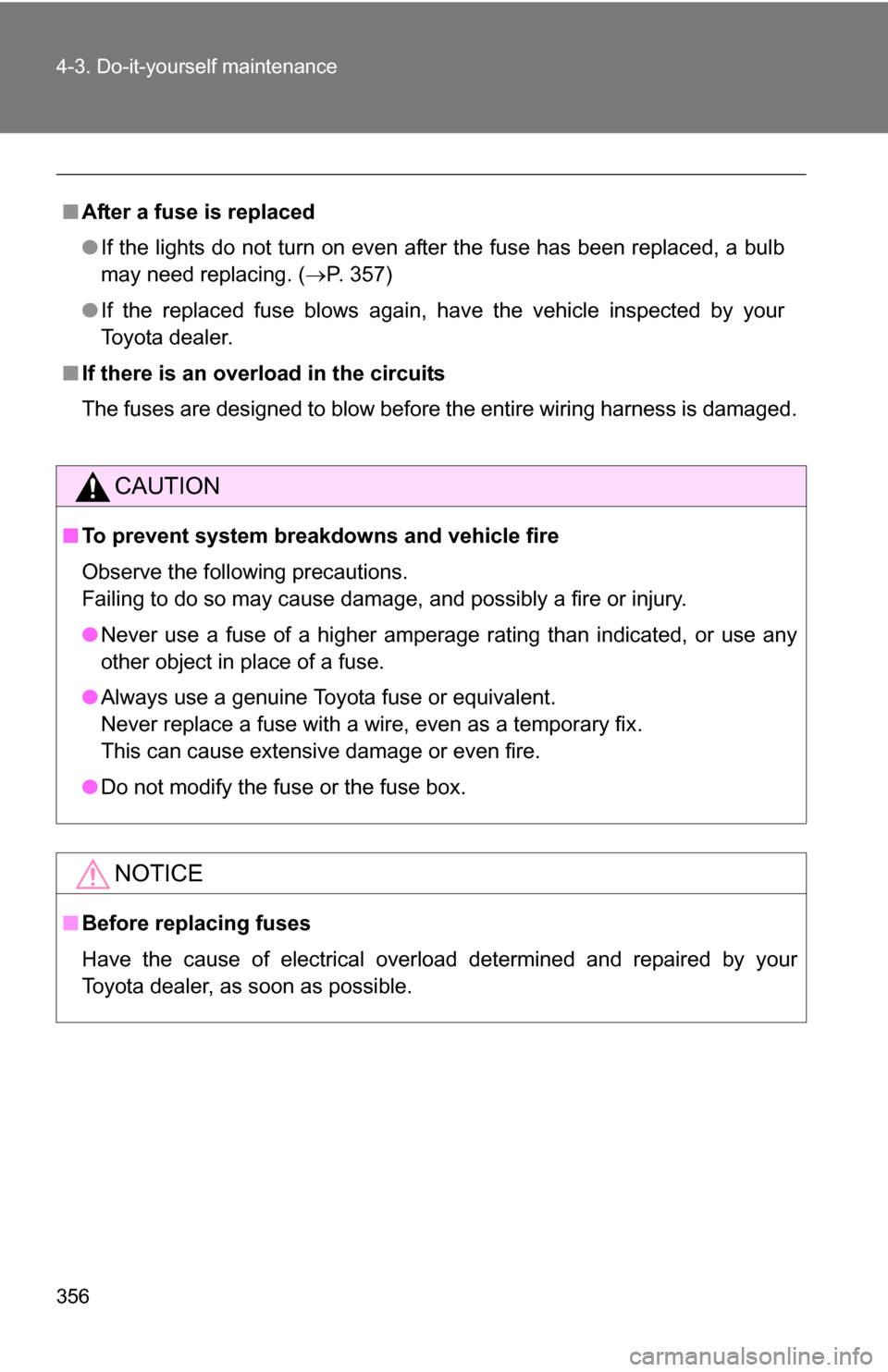

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 357)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
