2009 TOYOTA COROLLA Owners Manual

465
What to do if...
What to do if...
A tire puncturesP. 388If you have a flat tire
The engine does not start
P. 399If the engine will not start
P. 7 5Engine immobilizer system
P. 405If the battery is discharged
P. 403If the electronic key does not oper-
ate properly
The shift lever cannot be
moved outP. 401If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 4 1 1If your vehicle overheats
The key is lostP. 402If you lose your keys
The battery runs outP. 405If the battery is discharged
The doors cannot be lockedP. 3 8Doors
The vehicle is stuck in
mud or sandP. 414If the vehicle becomes stuck
A warning light or indicator light
comes onP. 377If a warning light turns on or a
warning buzzer sounds...

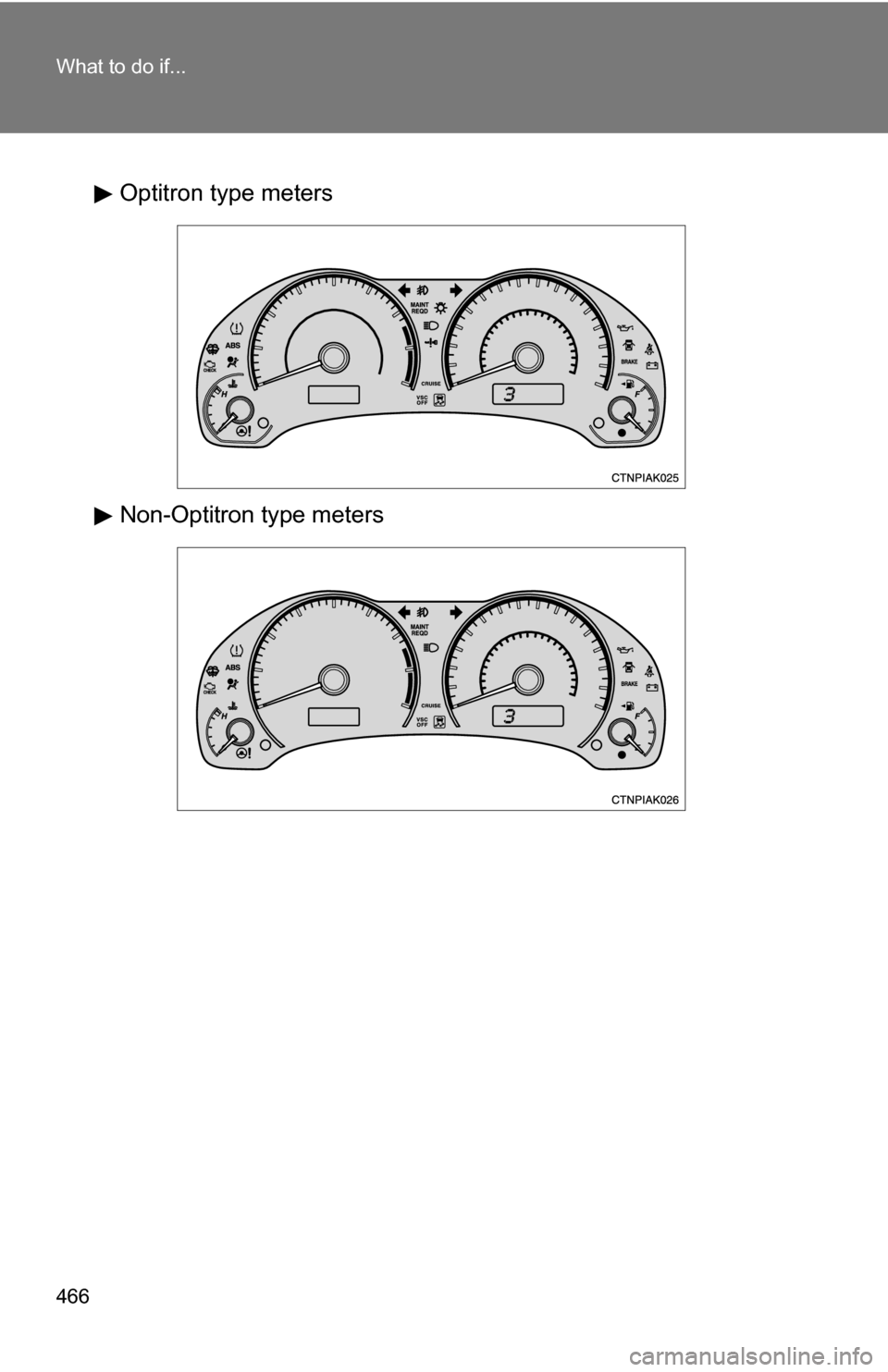

466 What to do if...
Optitron type meters
Non-Optitron type meters

467
What to do if...
■
Warning lights
P. 379
or
P. 3 7 7P. 379
P. 3 7 7P. 378
P. 3 7 7P. 379
P. 379
or
P. 3 7 8P. 379
P. 3 7 8P. 379
P. 386
or
P. 3 7 8
P. 3 7 9
Brake system warning
lightTire pressure warning
light
Low windshield washer fluid level
warning light
Charging system warn-
ing lightElectric power steering
warning light
Low engine oil pressure
warning lightOpen door warning light
Malfunction indicator
lampLow fuel level warning
light
Driver’s seat belt
reminder light
SRS warning lightFront passenger’s seat belt
reminder light
ABS warning lightSmart key system warn-
ing light
Engine oil replacement
reminder light

468
GAS STATION INFORMATION
Auxiliary catch leverP. 305Trunk openerP. 4 3Fuel filler door P. 7 1
Hood lock release lever
P. 3 0 5
Fuel filler door opener P. 7 1Tire inflation pressure
P. 425
Fuel tank capacity 13.2 gal. (50 L, 10.9 lmp.gal.)
Fuel typeUnleaded gasoline only P. 72, 420
Cold tire inflation pressure P. 425
Engine oil
capacity
(Drain and refill)
1.8 L 4-cyl-
inder (2ZR-
FE) engineqt. (L, lmp.qt)
With filter 4.4 (4.2, 3.7)
Without filter 4.1 (3.9, 3.4)
2.4 L 4-cyl-
inder (2AZ-
FE) engine With filter 4.0 (3.8, 3.3)
Without filter 3.8 (3.6, 3.2)
Engine oil type
P. 421
