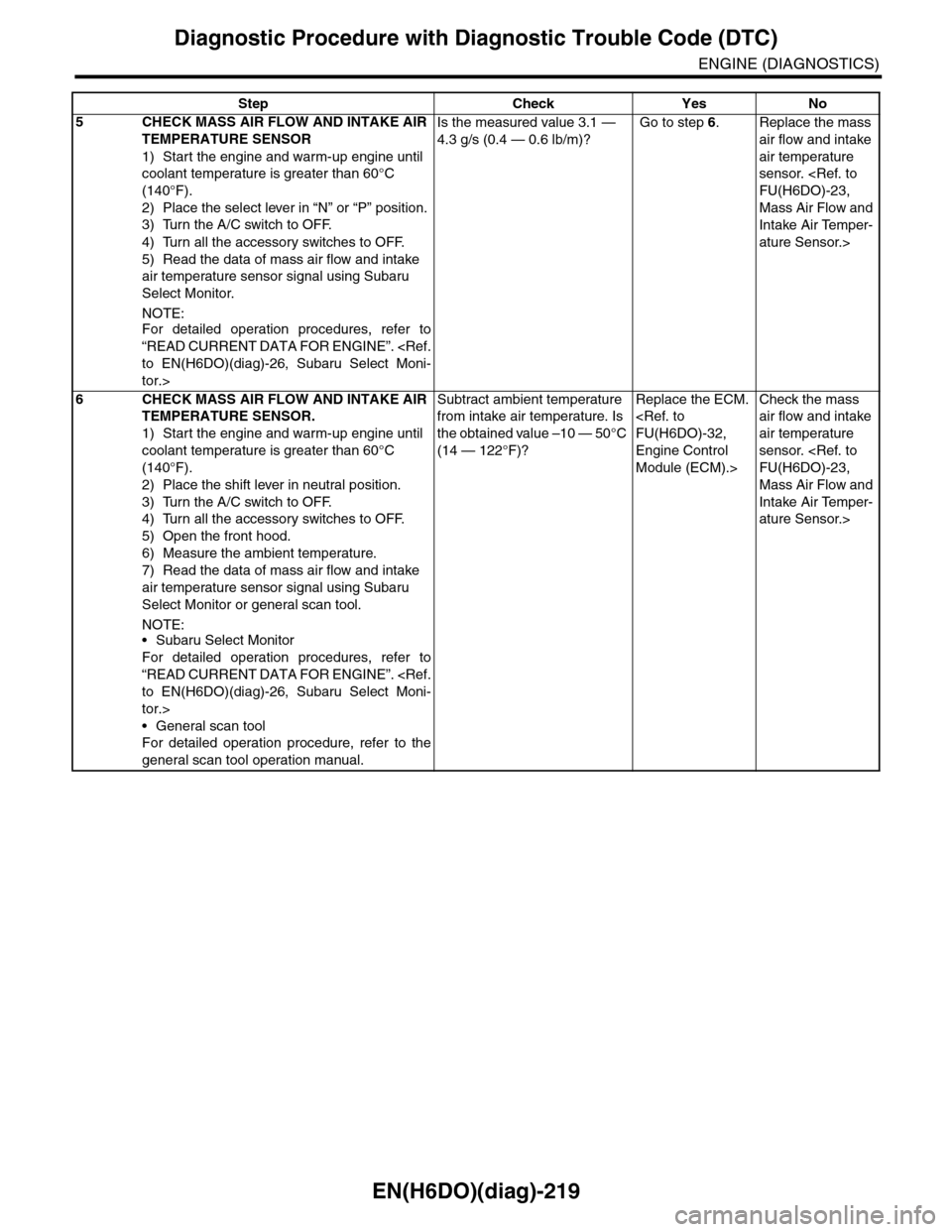

EN(H6DO)(diag)-219
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
5CHECK MASS AIR FLOW AND INTAKE AIR
TEMPERATURE SENSOR
1) Start the engine and warm-up engine until
coolant temperature is greater than 60°C
(140°F).
2) Place the select lever in “N” or “P” position.
3) Turn the A/C switch to OFF.
4) Turn all the accessory switches to OFF.
5) Read the data of mass air flow and intake
air temperature sensor signal using Subaru
Select Monitor.
NOTE:
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
Is the measured value 3.1 —
4.3 g/s (0.4 — 0.6 lb/m)?
Go to step 6.Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
6CHECK MASS AIR FLOW AND INTAKE AIR
TEMPERATURE SENSOR.
1) Start the engine and warm-up engine until
coolant temperature is greater than 60°C
(140°F).
2) Place the shift lever in neutral position.
3) Turn the A/C switch to OFF.
4) Turn all the accessory switches to OFF.
5) Open the front hood.
6) Measure the ambient temperature.
7) Read the data of mass air flow and intake
air temperature sensor signal using Subaru
Select Monitor or general scan tool.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Subtract ambient temperature
from intake air temperature. Is
the obtained value –10 — 50°C
(14 — 122°F)?
Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>
Check the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
Step Check Yes No

EN(H6DO)(diag)-220
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
BE:DTC P0181 FUEL TEMPERATURE SENSOR “A” CIRCUIT RANGE/PERFOR-
MANCE
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION CIRCUIT RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03740
B424
3017
ECMB135
R58
R60
R15
R1
B98
23
FUEL TEMPERATURESENSOR
FUEL TANK
R58
123456
B424
34561278
: TERMINAL NO. OPTIONAL ARRANGEMENT*
**
R233
**
12
1620
R60
12
10115634897131412
1234
R233B98
3412 8910 1112 13 14 15 16 17 18 19 20 21 22 23 2456 7
B135
5672134
29
101112131415252416
30
98171819202821222332312627333435

EN(H6DO)(diag)-222
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
BF:DTC P0182 FUEL TEMPERATURE SENSOR “A” CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION CIRCUIT LOW INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03740
B424
3017
ECMB135
R58
R60
R15
R1
B98
23
FUEL TEMPERATURESENSOR
FUEL TANK
R58
123456
B424
34561278
: TERMINAL NO. OPTIONAL ARRANGEMENT*
**
R233
**
12
1620
R60
12
10115634897131412
1234
R233B98
3412 8910 1112 13 14 15 16 17 18 19 20 21 22 23 2456 7
B135
5672134
29
101112131415252416
30
98171819202821222332312627333435

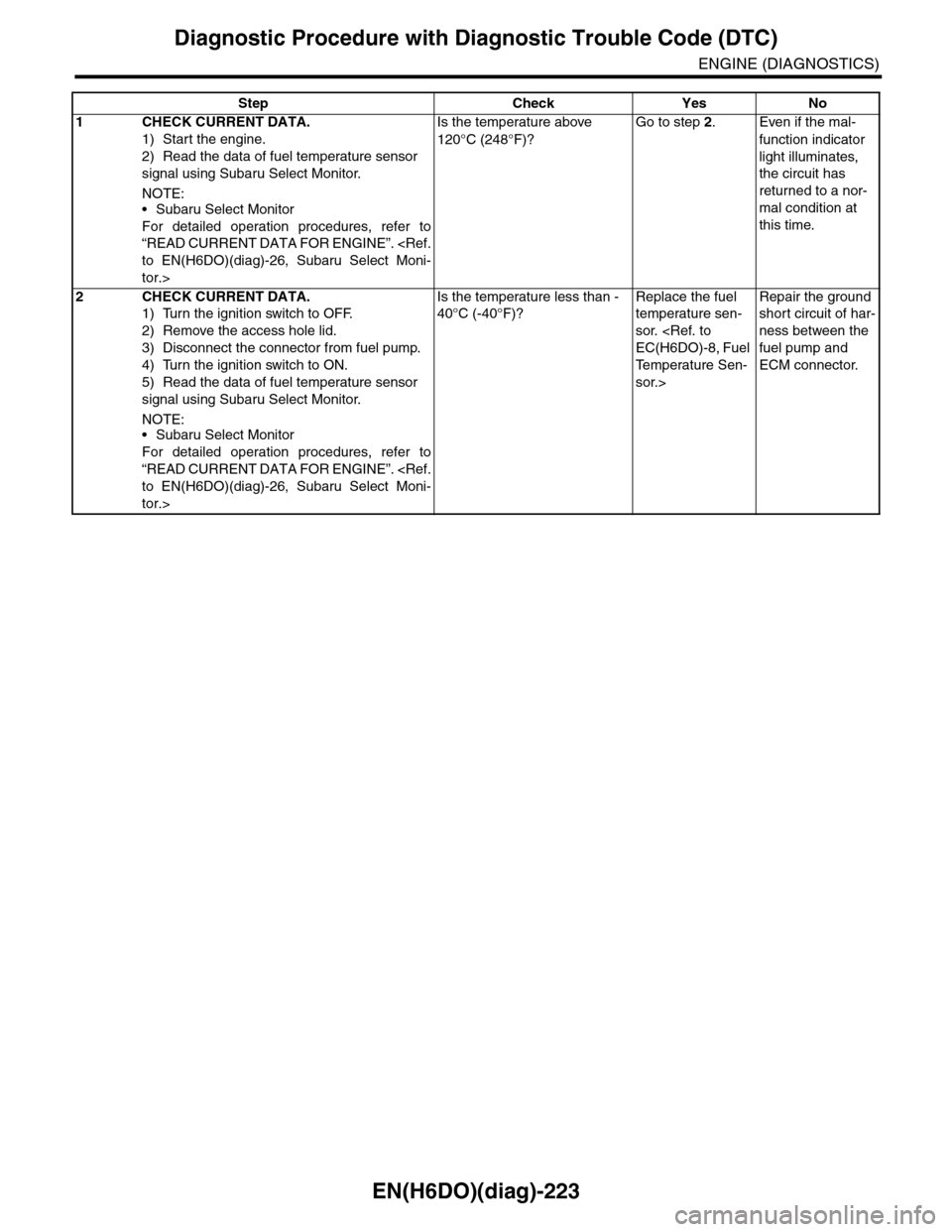

EN(H6DO)(diag)-223
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of fuel temperature sensor
signal using Subaru Select Monitor.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
Is the temperature above
120°C (248°F)?
Go to step 2.Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time.
2CHECK CURRENT DATA.
1) Turn the ignition switch to OFF.
2) Remove the access hole lid.
3) Disconnect the connector from fuel pump.
4) Turn the ignition switch to ON.
5) Read the data of fuel temperature sensor
signal using Subaru Select Monitor.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
Is the temperature less than -
40°C (-40°F)?
Replace the fuel
temperature sen-
sor. EC(H6DO)-8, Fuel
Te m p e r a t u r e S e n -
sor.>
Repair the ground
short circuit of har-
ness between the
fuel pump and
ECM connector.

EN(H6DO)(diag)-224
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
BG:DTC P0183 FUEL TEMPERATURE SENSOR “A” CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION CIRCUIT HIGH INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03740
B424
3017
ECMB135
R58
R60
R15
R1
B98
23
FUEL TEMPERATURESENSOR
FUEL TANK
R58
123456
B424
34561278
: TERMINAL NO. OPTIONAL ARRANGEMENT*
**
R233
**
12
1620
R60
12
10115634897131412
1234
R233B98
3412 8910 1112 13 14 15 16 17 18 19 20 21 22 23 2456 7
B135
5672134
29
101112131415252416
30
98171819202821222332312627333435

EN(H6DO)(diag)-225
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of fuel temperature sensor
signal using Subaru Select Monitor.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
Is the temperature less than -
40°C (-40°F)?
Go to step 2.Repair the poor
contact.
NOTE:
In this case, repair
the following item:
•Poor contact
in fuel pump
connector
•Poor contact
in ECM connec-
tor
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
2 CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Remove the access hole lid.
3) Disconnect the connector from fuel pump.
4) Measure the voltage between fuel pump
connector and chassis ground.
Connector & terminal
(R58) No. 2 (+) — Chassis ground (–):
Is the voltage more than 10 V? Repair the battery
short circuit of har-
ness between
ECM and fuel
pump connector.
Go to step 3.
3 CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to ON.
2) Measure the voltage between fuel pump
connector and chassis ground.
Connector & terminal
(R58) No. 2 (+) — Chassis ground (–):
Is the voltage more than 10 V? Repair the battery
short circuit of har-
ness between
ECM and fuel
pump connector.
Go to step 4.
4 CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CONNEC-
TOR.
Measure the voltage between fuel pump con-
nector and chassis ground.
Connector & terminal
(R58) No. 2 (+) — Chassis ground (–):
Is the voltage more than 4 V? Go to step 5.Repair the har-
ness and connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
fuel pump con-
nector
•Poor contact
in fuel pump
connector
•Poor contact
in ECM connec-
tor
•Poor contact
of coupling con-
nector

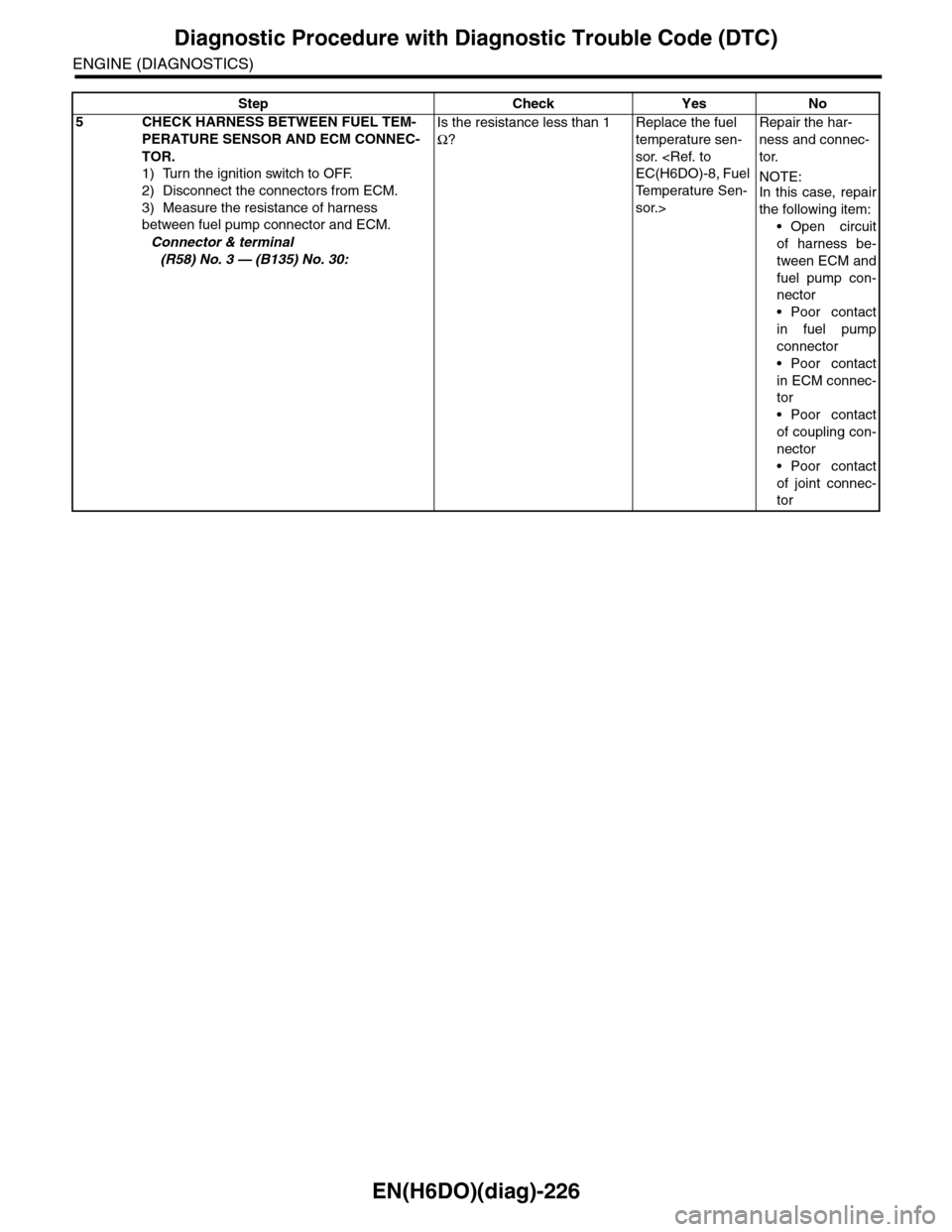

EN(H6DO)(diag)-226
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
5 CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM.
3) Measure the resistance of harness
between fuel pump connector and ECM.
Connector & terminal
(R58) No. 3 — (B135) No. 30:
Is the resistance less than 1
Ω?
Replace the fuel
temperature sen-
sor. EC(H6DO)-8, Fuel
Te m p e r a t u r e S e n -
sor.>
Repair the har-
ness and connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
fuel pump con-
nector
•Poor contact
in fuel pump
connector
•Poor contact
in ECM connec-
tor
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
Step Check Yes No

EN(H6DO)(diag)-227
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
BH:DTC P0196 ENGINE OIL TEMPERATURE SENSOR CIRCUIT RANGE/PER-
FORMANCE
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION CIRCUIT RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Hard to start
•Erroneous idling
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03662
E75
E2
B21
B134 ECM
1
19
29
E1
B20
2
3
23
E75
12
B20
1234567891011 121314 15 16
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
OILTEMPERATURESENSOR
B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
