2009 Seat Ibiza ST Owner's manual

General notes on the technical data

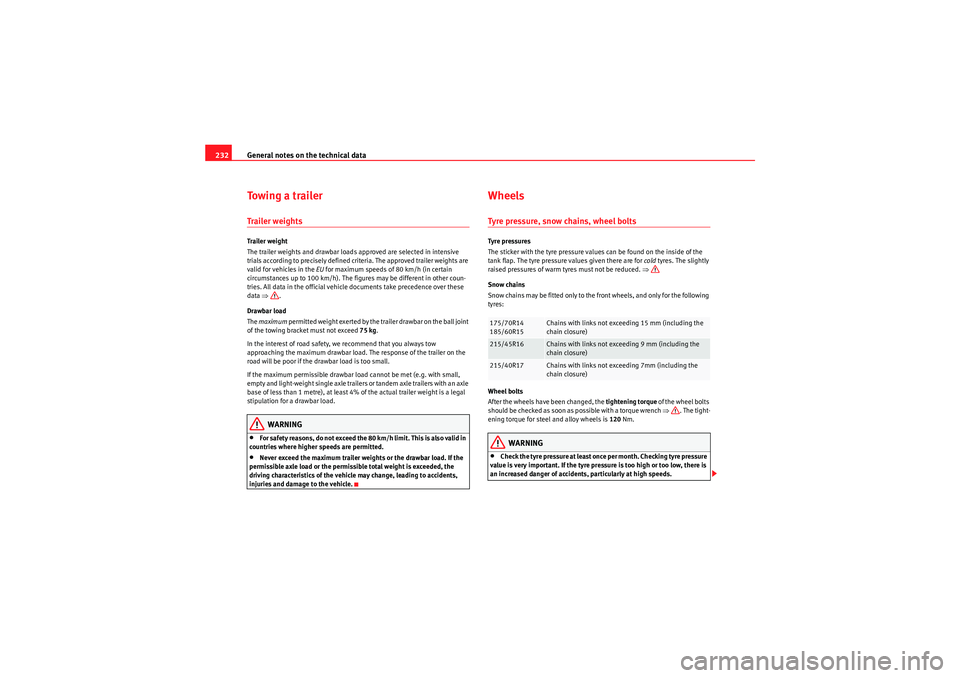

232Towing a trailerTrailer weightsTrailer weight
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒ .
Drawbar load
The maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers o r ta n d e m a x l e t r a i l e r s wi t h a n a x le
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•For safet y reas ons , d o not excee d the 8 0 k m/h limit . Th is is als o valid in
countries where higher speeds are permitted.•Never exceed the maximum trailer weights or the drawbar load. If the
permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
WheelsTyre pressure, snow chains, wheel boltsTyre pressures
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
raised pressures of warm tyres must not be reduced. ⇒
Snow chains
Snow chains may be fitted only to the front wheels, and only for the following
tyres:
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel bolts
s ho uld b e che cke d as s o on as p ossible wit h a to rqu e w re nch ⇒ . The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
•Check the tyre pressure at least once per month. Checking tyre pressure
value is very important. If the tyre pressure is too high or too low, there is
an increased danger of accidents, particularly at high speeds.175/70R14
185/60R15
Chains with links not exceeding 15 mm (including the
chain closure)
215/45R16
Chains with links not exceeding 9 mm (including the
chain closure)
215/40R17
Chains with links not exceeding 7mm (including the
chain closure)
Ibiza ST_EN.book Seite 232 Dienstag, 12. Januar 2010 4:03 16

General notes on the technical data233
Safety First
Operating instructions
Practical tips
Technical Data

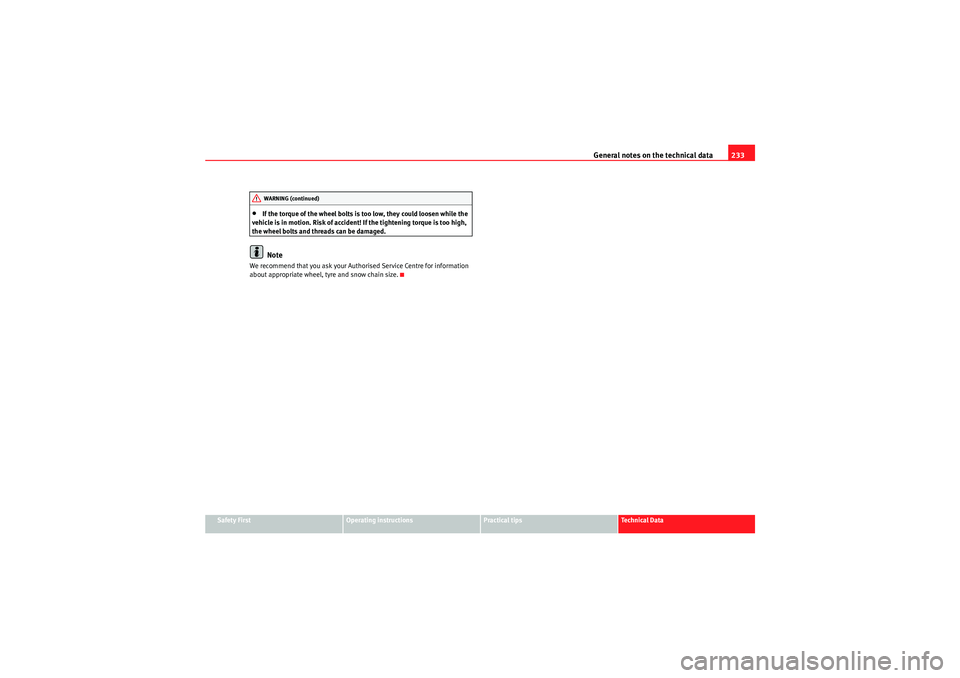

•If the torque of the wheel bolts is too low, they could loosen while the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads can be damaged.Note
We recommend that you ask your Authorised Service Centre for information
about appropriate wheel, tyre and snow chain size.
WARNING (continued)
Ibiza ST_EN.book Seite 233 Dienstag, 12. Januar 2010 4:03 16

Technical Data

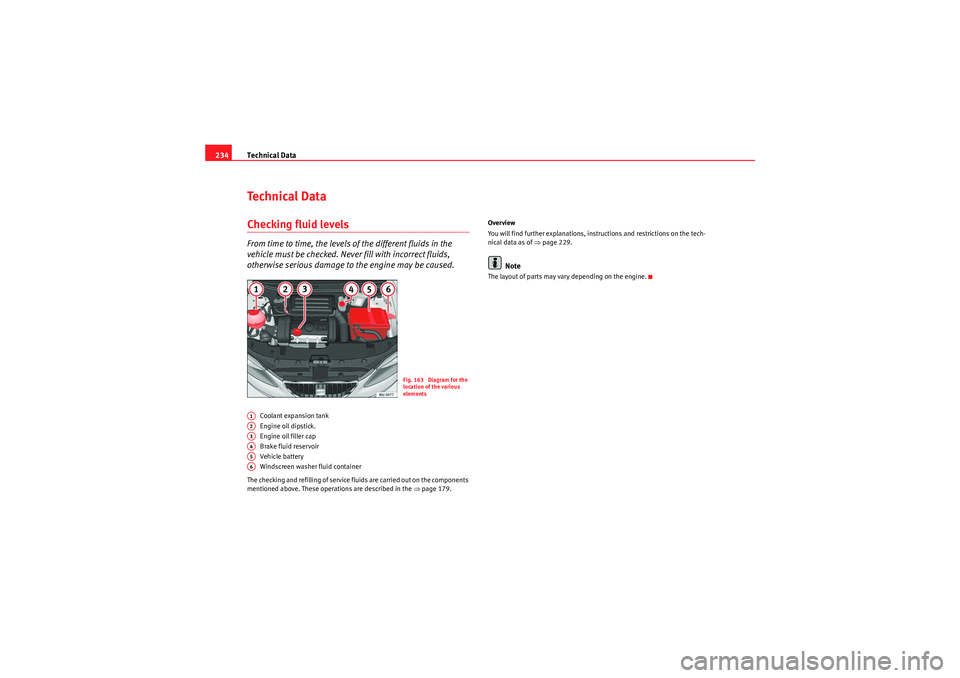

234Technical DataChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Coolant expansion tank
Engine oil dipstick.
Engine oil filler cap
Brake fluid reservoir
Vehicle battery
Windscreen washer fluid container
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in the ⇒page 179. Overview
You will find further explanations, instructions and restrictions on the tech-
nical data as of
⇒page 229.
Note
The layout of parts may vary depending on the engine.
Fig. 163 Diagram for the
location of the various
elements
A1A2A3A4A5A6
Ibiza ST_EN.book Seite 234 Dienstag, 12. Januar 2010 4:03 16

Technical Data235
Safety First
Operating instructions
Practical tips
Technical Data
Petrol engine 1.2 51 kW (70 bhp)Engine specifications
Performance figures
Weights
Trailer weightPower output in kW (bhp)
rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders/ capacity in cm
3
3/ 1198
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.Maximum speed in km/h 163
Acceleration from 0-80 km/h in sec. 9,5
Acceleration from 0-100 km/h in sec. 14,8
Gross vehicle weight in kg 1500
Weight in running order (with driver) in kg 1074
Gross front axle weight in kg 810
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 560
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
Ibiza ST_EN.book Seite 235 Dienstag, 12. Januar 2010 4:03 16

Technical Data
236Engine oil capacityPetrol engine 1.4 63 kW (85 bhp)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
2.75 litres
Power output in kW (bhp) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/ capacity in cm
3
4/ 1390
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.Maximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12,3
Gross vehicle weight in kg 1526
Weight in running order (with driver) in kg 1100
Gross front axle weight in kg 860
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Ibiza ST_EN.book Seite 236 Dienstag, 12. Januar 2010 4:03 16

Technical Data237
Safety First
Operating instructions
Practical tips
Technical Data
Trailer weight
Engine oil capacity
Diesel engine 1.6 TDI CR 66 kW (90 bhp)Engine specifications
Performance figures
Trailer without brakes
560
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 2.8 litres
Power output in kW (bhp) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12,2
Ibiza ST_EN.book Seite 237 Dienstag, 12. Januar 2010 4:03 16

Technical Data
238Weights
Trailer weight
Engine oil capacityDiesel engine 1.6 TDI CR 77 kW (105 bhp)Engine specifications Gross vehicle weight
in kg 1621
Weight in running order (with driver) in kg 1195
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Ibiza ST_EN.book Seite 238 Dienstag, 12. Januar 2010 4:03 16

Technical Data239
Safety First
Operating instructions
Practical tips
Technical Data

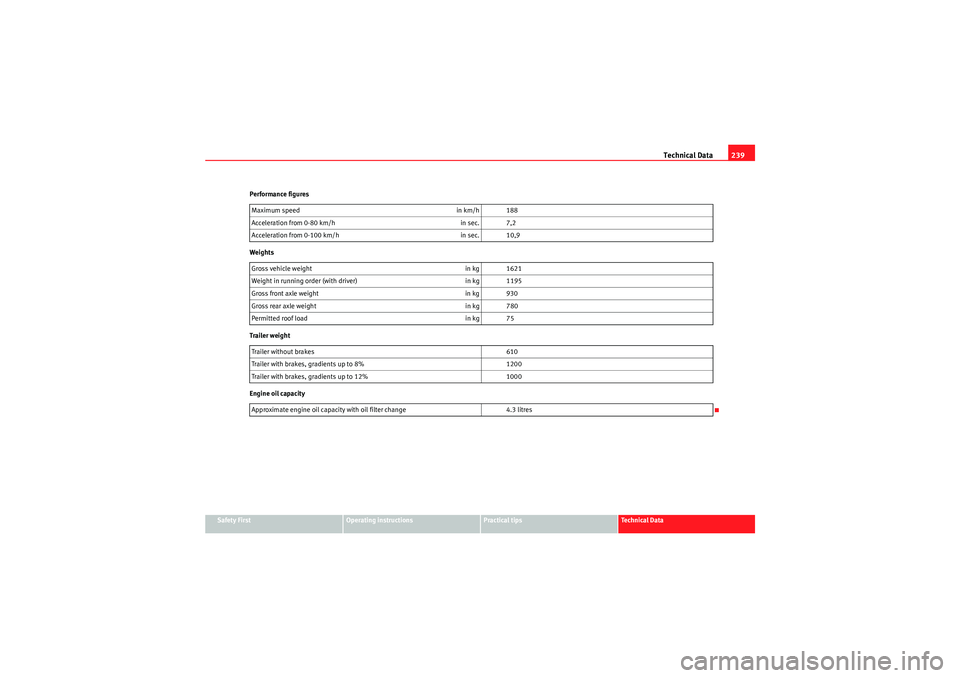

Performance figures
Weights
Trailer weight
Engine oil capacity
Maximum speed
in km/h 188
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 10,9
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1195
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.3 litres
