•The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Failure to comply could result in fire.
Engine oil pressure

This warning lamp indicates that the engine oil pressure is
too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If the oil level is too
low, top up with oil.
If the symbol flashes although the oil level is correct, do not continue driving.
The engine must not even run at idle speed. Obtain technical assistance.Bulb defect*

The indicator lights up when a bulb is not functioning.The warning lamp
 lights up when there is a fault in the indicator lights,
headlights, position light or fog lights.
Rear fog light*

This warning lam p lights up when the rear fog light is switched on
. Further
information ⇒page 87.
Anti-lock brake system (ABS)

A warning lamp system monitors the ABS.
The warning lamp
 should light up for a few seconds when the ignition is
switched on. It goes out again after the system has run through an automatic
test sequence.
There is a fault in the ABS if:
•The warning lamp
 does not light up when the ignition is switched on.
•The warning lamp does not go out again after a few seconds.•The warning lamp lights up when the vehicle is moving.
The vehicle can still be braked in the normal way (except that the ABS control
function will not function). Please take the vehicle to a qualified workshop as
soon as possible. For further information on the ABS see the ⇒page 150.
If there is a fault in the ABS, the ESP* and the tyre pressure warning lamp will
also light up.
Brake system fault
If the ABS warning lamp
 lights up together with the brake warning lamp
, this indicates not only a fault in the ABS function, but also a possible fault
in the brake system ⇒.
WARNING
•Before opening the bonnet, read and observe the warnings on
⇒ page 178, “Working in the engine compartment”.•If the brake warning lamp
 should light up together with the ABS
warning lamp
, stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒ page 190, “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
WARNING (continued)
Ibiza_EN.book Seite 59 Montag, 14. September 2009 6:19 18

Cockpit63
Safety First
Controls and equipment
Practical tips
Technical Data
Ta i l g a t e o p e n *

The warning lamp
 should switch off when the tailgate is fully closed.
Main beam headlights

This warning lamp lights up when the main beams are on.The warning lamp
 is switched on once main beams are on or once the
headlight flasher is operating.
Further information ⇒ page 92.
Electro-hydraulic steering*

The level of steering assistance depends on the vehicle speed and on the
steering wheel turning speed.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
There is a fault in the electro-hydraulic steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. Take the vehicle to the
Authorised Service Centre as soon as possible.
Note
When towing the vehicle with the engine stopped or due to a fault in the
power steering, this will not operate. The vehicle can still be steered, but it
will require greater force to turn the steering wheel.
Emission control system*

This warning lamp monitors the exhaust system.
Warning lamp
 flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest qualified workshop to have the
engine checked.
Warning lamp  is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest qualified workshop to have the engine checked.
Coolant Level* / temperature

The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•The warning symbol does not go out again after a few seconds.•The warning lamp lights up or flashes while the vehicle is moving, while
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 207.
Ibiza_EN.book Seite 63 Montag, 14. September 2009 6:19 18

Lights and visibility87
Safety First
Controls and equipment
Practical tips
Technical Data
Lights and visibilityLightsSwitching lights on and off

Switching on the side lights
– Turn the light switch ⇒fig. 52 to position
.
Switching on dipped headlights
– Turn the light switch to position
.
Switching off the lights
– Turn the light switch to position 0. Switching on the front fog lights*
– Turn the switch from position
 or  to the first stop and pull
out. The symbol
 in the light switch lights up.
Switching on the rear fog light (vehicles with front fog lights)
– Turn the lights control from position
 or  to the second stop
and pull out ⇒. A warning lamp placed in the warning and
control lamp panel lights up.
Switching on the rear fog light (vehicles with no front fog lights)
– Turn the light control right around from position  or  and
pull out. A warning lamp placed in the warning and control lamp
panel lights up.
WARNING
Never drive with just the side lights on. Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.
Fig. 52 Detailed view of
dash panel: lights, fog
light and rear fog light
control
Ibiza_EN.book Seite 87 Montag, 14. September 2009 6:19 18

Lights and visibility
88•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer will sound while the driver door remains open. This is a reminder to
switch the lights off.•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.•The use of the lighting described here is subject to the relevant statutory
requirements.Instrument and switch lighting / Headlight range controlInstrument and switch lighting
When the headlights are switched on, the brightness of the instruments and
switch lighting can be regulated to suit your requirements by turning the
thumb wheel ⇒fig. 53 .
Those vehicles fitted with xenon gas discharge headlights are fitted with an
automatic headlight range system. Headlight range control
By using the electrical headlight range control, you can adjust the head-
light range to the load level that is being carried in the vehicle. This way, it is
possible to avoid dazzling oncoming traffic more than necessary. At the same
time, by using the correct headlight settings, the driver has the best possible
lighting for the road ahead.
The headlights can only be adjusted when the dipped beam is switched on.
To lower the beam, turn the thumb wheel down from the basic setting
0.
Dynamic headlight range control
Ve hi cle s wi th gas discharge lamps (xenon lamps) are equipped with dynamic
headlight range control . When you switch on the lights, their range regulates
itself according to the vehicle load.
Vehicles with gas discharge lamps do not have headlight range control.
Daytime running lights*
Daylight driving lights light up automatically when the igni-
tion is switched on (only with AFS headlamps)Daylight driving lights switch off automatically when the street lighting
comes on.
Note
See legal requirements for each country.
Fig. 53 Dash panel: regu-
lation for instrument and
switch illumination and
headlight range control
A1
A1
A2
A2A2
Ibiza_EN.book Seite 88 Montag, 14. September 2009 6:19 18

Lights and visibility89
Safety First
Controls and equipment
Practical tips
Technical Data
Adaptive headlights* (for driving through bends)
When driving around bends, the headlights will light the
most important areas of the road.Cornering light gives better illumination of the side of the road and the corner
area. The dynamic lighting is controlled automatically according to speed and
the steering wheel angle.
The two main headlights move at different angles to prevent the area in front
of the vehicle being completely in the dark.
Note
The system operates after a speed of about 10 km/h.
Fog lights with cornering function*
This is an additional light source to dipped headlights to light
up the road as a bend is taken.The cornering light operates with the lights switched on and when driving at
less than 40 Km/h. It lights up when the steering wheel is turned or the indi-
cators are operated.
Forward gear•If the steering wheel is turned to the right, or the right-hand indicator
operated, the right-hand headlamp lights up.•If the steering wheel is turned to the left, or the left-hand flasher operated,
the left-hand headlamp lights up.
In reverse gear both headlamps light up.Note
When the fog lamps are on, the cornering function is activated and both
headlamps are continuously on.Coming home function*
When it is dark, the area around the car is lit up with the aid
of the coming home / leaving home function.To activate the function
– Remove key from ignition switch.
– Switch the light off.
– Open the driver door.
Fig. 54 Cornering
lighting using self-direc-
tional headlights
Ibiza_EN.book Seite 89 Montag, 14. September 2009 6:19 18

Lights and visibility
90
– Push the headlight lever to the main beam position
.
– Dipped headlights come on when the door is opened.
You have 2 mins. from when the key is taken out of the ignition switch to when
the lights flash; after this, the Coming home function will not activate. To acti-
vate it again, repeat the operation.
When the system is activated, dipped headlights remain on for 30 seconds.
after closing the door. If the door is open for more than 3 mins., the system
will not remain active after the 3 mins., which means that the dipped lights
will not light up.
Note
•If the vehicle is often used during the night for short trips and the Coming
home function is used, this will discharge the battery considerably. To avoid
this, make longer journeys whenever possible.•Observe all relevant statutory requirements when using the lighting
systems described here.
Rear window heating

The rear window heating only works when the engine is running. When it is
switched on, a lamp lights up on the switch.
After approx. 8 minutes, the heating device of the rear window switches off
automatically.
For the sake of the environment
The rear window heater should be disconnected as soon as the glass is
demisted. By saving electrical power you can also save fuel.
Note
To avoid possible damage to the battery, an automatic temporary disconnec-
tion of this function is possible, coming back on when normal operating
conditions are re-established.
Fig. 55 Centre console:
heated rear window
switch
Ibiza_EN.book Seite 90 Montag, 14. September 2009 6:19 18

Lights and visibility

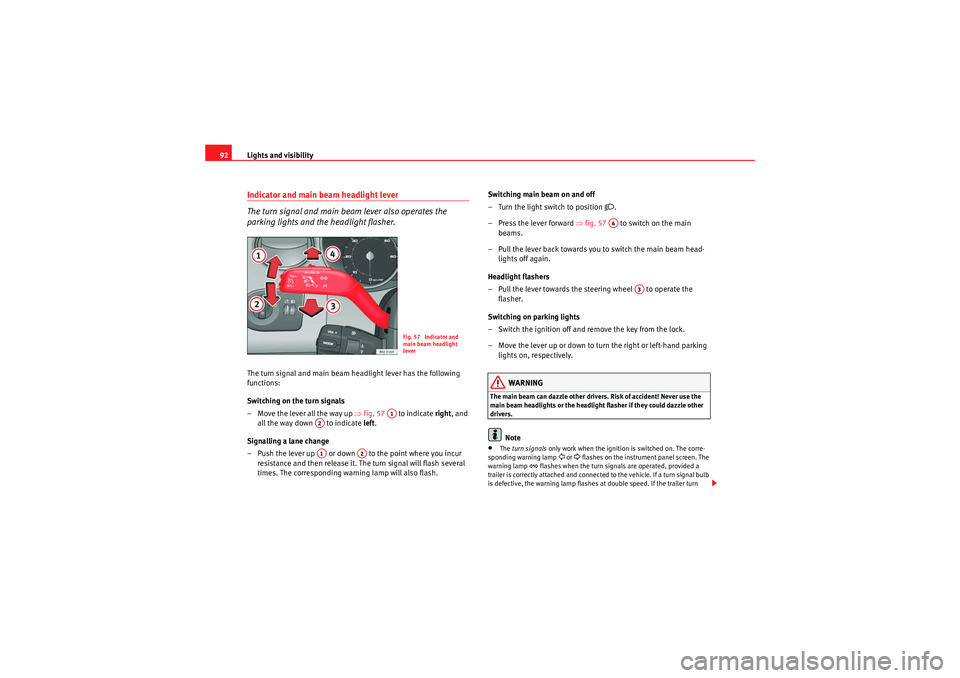

92Indicator and main beam headlight lever
The turn signal and main beam lever also operates the
parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Switching on the turn signals
– Move the lever all the way up ⇒fig. 57 to indicate right , and
all the way down to indicate left .
Signalling a lane change
– Push the lever up or down to the point where you incur resistance and then release it. The turn signal will flash several
times. The corresponding warning lamp will also flash. Switching main beam on and off
– Turn the light switch to position
.
–Press the lever forward ⇒fig. 57 to switch on the main
beams.
– Pull the lever back towards you to switch the main beam head- lights off again.
Headlight flashers
– Pull the lever towards the steering wheel to operate the flasher.
Switching on parking lights
– Switch the ignition off and remove the key from the lock.
– Move the lever up or down to turn the right or left-hand parking lights on, respectively.
WARNING
The main beam can dazzle other drivers. Risk of accident! Never use the
main beam headlights or the headlight flasher if they could dazzle other
drivers.
Note
• The turn signals only work when the ignition is switched on. The corre-
sponding warning lamp
 or  flashes on the instrument panel screen. The
warning lamp
 flashes when the turn signals are operated, provided a
trailer is correctly attached and connected to the vehicle. If a turn signal bulb
is defective, the warning lamp flashes at double speed. If the trailer turn
Fig. 57 Indicator and
main beam headlight
lever
A1
A2A1
A2
A4
A3
Ibiza_EN.book Seite 92 Montag, 14. September 2009 6:19 18

Lights and visibility93
Safety First
Controls and equipment
Practical tips
Technical Data
signal bulbs are damaged, warning lamp
 does not light up. Change the
bulb.
•The main beam headlights can only be switched on if the dipped beam
headlights are already on. The warning lamp
 then comes on in the combi-
instrument.
•The headlight flasher comes on for as long as you pull the lever – even if
no other lights are switched on. The warning lamp
 then comes on in the
combi-instrument.
•When the parking lights are switched on, the headlight and the rear light
on the corresponding side of the vehicle light up. The parking lights will only
work if the key is removed from the ignition. If the lights are switched on, a
buzzer gives an audible warning while the driver door is open.•If the turn signal lever is left on after the key has been taken out of the
ignition lock, an acoustic signal sounds when the driver door is opened. This
is a reminder to switch off the turn signal, unless of course you wish to leave
the parking light on.
Interior lightsFront interior light The switch ⇒fig. 58 is used to select the following positions:
Courtesy light position

Sliding switch in central position The interior lights are automatically
switched on when the vehicle is unlocked or the key removed from the igni-
tion lock And turn off approx. 20 seconds after closing the doors. The interior
lights are switched off when the vehicle is locked or when the ignition is
switched on.
Interior light switched on

Move the knob to the position
.
Interior light switched off O
Move the knob to position O ⇒fig. 58.
Fig. 58 Interior roof trim:
front interior lights
AA
Ibiza_EN.book Seite 93 Montag, 14. September 2009 6:19 18
