Replacing Brake System Parts
The braking system on a vehicle
is complex. Its many parts have to
be of top quality and work well
together if the vehicle is to have
really good braking. The vehicle was
designed and tested with top-quality
brake parts. When parts of the
braking system are replaced — for
example, when the brake linings
wear down and new ones are
installed — be sure to get new
approved replacement parts. If this
is not done, the brakes might
not work properly. For example, if
someone puts in brake linings
that are wrong for the vehicle, the
balance between the front and
rear brakes can change — for the
worse. The braking performance
expected can change in many other
ways if the wrong replacement
brake parts are installed.
Battery
This vehicle has a maintenance free
battery. When it is time for a new
battery, see your dealer/retailer for
one that has the replacement
number shown on the original
battery’s label. SeeEngine
Compartment Overview on
page 5-12for battery location.
Warning:Battery posts, terminals,
and related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm. Wash hands
after handling.
Vehicle Storage
{CAUTION
Batteries have acid that can burn
you and gas that can explode.
You can be badly hurt if you are
not careful. SeeJump Starting
on page 5-31for tips on working
around a battery without
getting hurt.
Infrequent Usage: If the vehicle is
driven infrequently, remove the
black, negative (−) cable from the
battery. This helps keep the battery
from running down.
Extended Storage: For extended
storage of the vehicle, remove the
black, negative (−) cable from the
battery or use a battery trickle
charger. This helps maintain the
charge of the battery over an
extended period of time.
5-30 Service and Appearance Care
ProCarManuals.com
Page 280 of 386

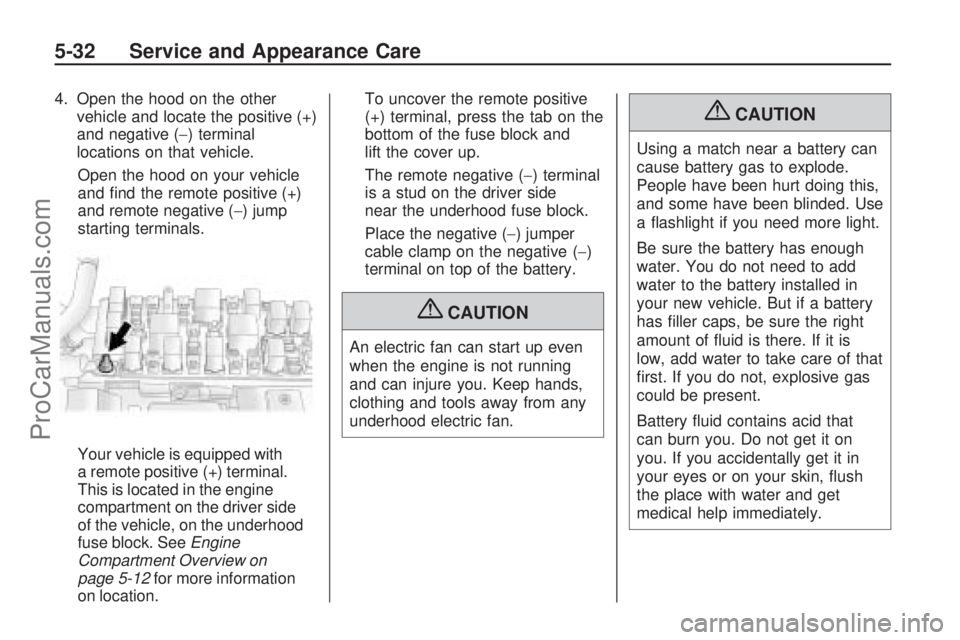

4. Open the hood on the other
vehicle and locate the positive (+)
and negative (−) terminal
locations on that vehicle.
Open the hood on your vehicle
and nd the remote positive (+)
and remote negative (−) jump
starting terminals.
Your vehicle is equipped with
a remote positive (+) terminal.
This is located in the engine
compartment on the driver side
of the vehicle, on the underhood
fuse block. SeeEngine
Compartment Overview on
page 5-12for more information
on location.To uncover the remote positive
(+) terminal, press the tab on the
bottom of the fuse block and
lift the cover up.
The remote negative (−) terminal
is a stud on the driver side
near the underhood fuse block.
Place the negative (−) jumper
cable clamp on the negative (−)
terminal on top of the battery.
{CAUTION
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{CAUTION
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded. Use
a ashlight if you need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has ller caps, be sure the right
amount of uid is there. If it is
low, add water to take care of that
rst. If you do not, explosive gas
could be present.
Battery uid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, ush
the place with water and get
medical help immediately.
5-32 Service and Appearance Care
ProCarManuals.com
Page 282 of 386
10. Now start the vehicle with the
good battery and run the
engine for a while.
11. Press the unlock symbol on the
remote keyless entry transmitter
to disarm your security system, if
equipped.
12. Try to start the vehicle that had
the dead battery. If it will not
start after a few tries, it probably
needs service.
Notice:If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct order,
making sure that the cables do not
touch each other or other metal.A. Heavy, Unpainted Metal Engine
Part or Remote Negative (−)
Terminal
B. Good Battery or Remote
Positive (+) and Remote
Negative (−) Terminals
C. Dead Battery or Remote
Positive (+) TerminalTo disconnect the jumper cables
from both vehicles, do the following:
1. Disconnect the black negative (−)
cable from the vehicle that had
the dead battery.
2. Disconnect the black negative (−)
cable from the vehicle with the
good battery.
3. Disconnect the red positive (+)
cable from the vehicle with the
good battery.
4. Disconnect the red positive (+)
cable from the other vehicle.
5. Return the underhood fuse block
