2009 RENAULT TWINGO RS General Vehicle Information Workshop Manual

03B-2
COLLISION
Vehicle involved in an impact: Impact fault finding
03B
2 - Detailed view of inspection points
Point A, Ad: Front subframe rear mounting
Points B, Bd: Rear axle leader pinPoints G, Gd: Front side member rear mounting
Points C, Cd: Front side member front mounting
121747
121746
121750
121752

03B-3
COLLISION
Vehicle involved in an impact: Impact fault finding
03B
Points J, Jd: Rear side member rear leader pin
a
121748
121749

03B-4
COLLISION
Vehicle involved in a frontal impact: Description
03B
COMBINATIONS FOR REPLACING WELDED
STRUCTURAL PARTS IN ACCORDANCE WITH
IMPACT SUSTAINED
121903

03B-5
COLLISION
Vehicle involved in a frontal impact: Description
03B
1st degree
- (1) front end cross member
- (2) front side member closure panel
- (3) front side member front section
- (4) front wheel arch, front section
121904

03B-6
COLLISION
Vehicle involved in a frontal impact: Description
03B
2nd Degree
- (5) front right-hand wheel arch
- (6) front left-hand wheel arch
- (7) front side member front section
- (8) front side member closure panel
- (9) front side cross member
- (10) scuttle side panel
- (11) scuttle side panel upper reinforcement3rd Degree
- (12) right-hand half unit
- (13) front side member rear section
- (14) left-hand half unit
121905
121906

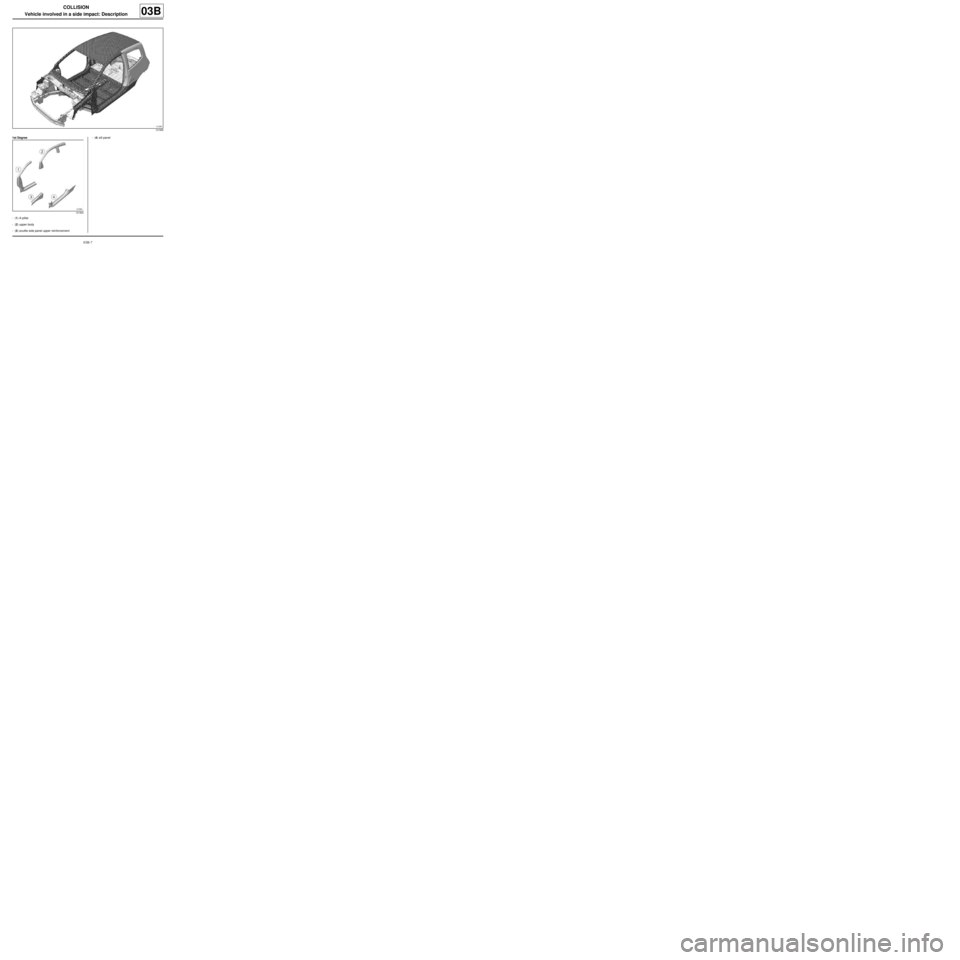

03B-7
COLLISION
Vehicle involved in a side impact: Description
03B
1st Degree
- (1) A-pillar
- (2) upper body
- (3) scuttle side panel upper reinforcement- (4) sill panel
121899
121900

03B-8
COLLISION
Vehicle involved in a side impact: Description
03B
2nd Degree
- (5) scuttle side panel
- (6) windscreen pillar lining
- (7) side roof rail lining
- (8) A-pillar reinforcement
- (9) scuttle side panel upper reinforcement
- (10) sill panel reinforcement
- (11) sill panel stiffener
- (12) B-pillar reinforcement
121901

03B-9
COLLISION
Vehicle involved in a side impact: Description
03B
3rd Degree
- (13) roof
- (14) windscreen aperture lower cross member clo-
sure panel
- (15) roof front section
- (16) roof front cross member
- (17) roof centre cross member
- (18) roof rear cross member
- (19) roof rear section
- (20) front cross member under front seat
- (21) rear cross member under front seat
- (22) rear floor
- (23) inner sill panel
- (24) centre floor
121902
