2009 RENAULT TWINGO RS General Vehicle Information Workshop Manual

© Renault s.a.s 2007 "The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the manufacturer in
the production of the various component units and accessories from which the vehicles are
constructed".All rights reserved by Renault.
Copying or translating, in part or in full, of this document or use of the service part reference
numbering system is forbidden without the prior written authority of Renault.
NOVEMBER 2009 EDITION ANGLAISE
X44
0General vehicle information
01AVEHICLE MECHANICAL SPECIFICATIONS
01CVEHICLE BODYWORK SPECIFICATIONS
01DMECHANICAL INTRODUCTION
02ALIFTING EQUIPMENT
03BCOLLISION
04BCONSUMABLES - PRODUCTS
04EPAINT

TWINGO - Chapitre 0
Contents
Pages
TWINGO - Chapitre 0ContentsPages
01A VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications 01A-1
01C VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification 01C-1
Vehicle panel gaps:
Adjustment value 01C-3
01D MECHANICAL INTRODUCTION
Vehicle: Precautions for the
repair 01D-1
Tightening torques: General
infor mation 01D-3
02A LIFTING EQUIPMENT
Vehicle: Towing and lifting 02A-1
03B COLLISION
Vehicle involved in an
impact: Impact fault finding 03B-1
Vehicle involved in a frontal
impact: Description 03B-4
Vehicle involved in a side
impact: Description 03B-7
Vehicle involved in a rear
impact: Description 03B-10
04B CONSUMABLES - PRODUCTS
Vehicle: Parts and
consumables for the repair 04B-1
04E PAINT
Anti-corrosion protection
product: Description 04E-1 03B COLLISION

01A-1
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
01A
122555
Dimensions in metres
A0.710 / 0.714 (RS)
B2.367
C0.525
D3.602
E1.400 / 1.414 (GT, RS)
F1.470 (unladen)
G1.386 / 1.400 (GT) / 1.430 (RS)
H1.655

01A-2
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
01A
Engine typeEngine suf-
fixCubic
capacity(cc)Gearbox Gearbox
suffixEmissions
standard
D4F772
1149JB1521
523
524EURO 4
525 EURO 5
JH1020 EURO 4
021 EURO 5
780
JH3169 EURO 4
782 309 EURO 5
D7F 800 JB1 520
EURO 4 K4M 854 1598 JR5 176
K9K718
1461JR5 193
740 JH3 166

01C-1
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification
01C
I - LOCATION OF VEHICLE IDENTIFICATION
PLATE
II - LOCATION OF THE VEHICLE IDENTIFICATION
NUMBERIII - DETAILED VIEW OF THE VEHICLE
IDENTIFICATION PLATE
Plate (A)
120451
120452
19031
(1) Vehicle type and type number;
this information also appears on
mar king (B)
(2) MPAW (Vehicle's Maximum Per-
missible All-up Weight)
(3) GTW (Gross train weight, vehi-
cle under load with trailer)
(4) Maxim um permissible front axle
load
(5) Maxim um permissible rear axle
load
(6) Technical vehicle specifications
(7) Paintwork reference number
(8) Equipment level
(9) Vehicle type
(10) Upholstery code
(11) Additional equipment details
(12) Production number
(13) Interior tr im code

01C-2
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification
01C

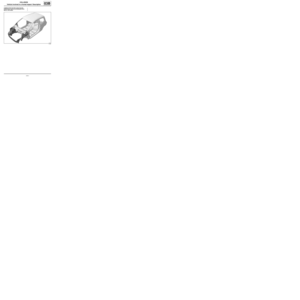

IV - COLD-MARKING OF THE BODY
Marking (B)
121197
Note:
If the complete body is being replaced, it must be
mar ked in compliance with the current regulations.

01C-3
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value
01C
All values are given in millimetres.Section 1
(X1) = 3.5 ±± ± ±
1.5
120453
WARNING
The clearance values are given for information pur-
poses.
When adjusting clearances, certain rules have to be
followed:
-maintain symmetry with respect to the opposite
side,
-ensure the flush fitting is correct,
-check correct operation of the opening, and water/
air-tightness.
120385

01C-4
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value
01C
Section 2
(X2) = 2 ±± ± ±
1.5
Section 3
(X3) = 3 ±± ± ±
1.5Section 4
(X4) = 3.5 ±± ± ±
1.5
Section 5
(X5) = 2 ±± ± ±
1.3
120382
120381120383
120384
