2009 RENAULT TWINGO RS steering wheel

Contents
82A ENGINE IMMOBILISER
Immobiliser system: List and
location of components 82A-1
Ignition switch: Removal -
Refitting 82A-3
Transponder ring: Removal -
Refitting 82A-6
Battery for remote door
locking control: Removal -
Refitting 82A-8
82B HORN
Audible warning: Removal -
Refitting 82B-1
83A INSTRUMENT PANEL
Instr ument panel: Removal -
Refitting 83A-1
Rev counter: Removal -
Refitting 83A-3
83D CRUISE CONTROL
Cruise control - speed
limiter: List and location of
components 83D-1
Switch: Removal - Refitting 83D-2
Steering wheel switch:
Removal - Refitting 83D-384A CONTROL - SIGNALS
Steering column switch
assembly: List and location
of components 84A-1
Steering column switch
assembly: Removal -
Refitting 84A-2
Screen wiper switch:
Removal - Refitting 84A-6
Signals and lighting switch:
Removal - Refitting 84A-8
Hazard warning lights and
central door control:
Removal - Refitting 84A-10
Lighting dimmer: Removal -
Refitting 84A-12
Exter ior rear view mirror
control switch: Removal -
Refitting 84A-13
Heated rear screen: Repair 84A-14
85A WIPING - WASHING
Wiping and washing: List and
location of components 85A-1
Windscreen wiper blade:
Removal - Refitting 85A-5
Windscreen wiper arm:
Removal - Refitting 85A-6
Windscreen wiper
mechanism: Removal -
Refitting 85A-10
Windscreen wiper motor:
Removal - Refitting 85A-12
Rear screen wiper blade:
Removal - Refitting 85A-16
Rear screen wiper arm:
Removal - Refitting 85A-17
Rear screen wiper motor :
Removal - Refitting 85A-19
Rain and light sensor:
Removal - Refitting 85A-20

82A-3
ENGINE IMMOBILISER
Ignition switch: Removal - Refitting
82A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aSet the wheels straight ahead.
aLock the airbag computer using the Diagnostic tool
(see MR 413 Fault finding, 88C, Airbags and pre-
tensioners, Fault finding - Replacement of com-
ponents).
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .
aRemove:
-the driver's front airbag (see 88C, Air bag and Pre-
tensioners, Driver's frontal airbag: Removal -
Refitting, page 88C-6)
-the steering wheel ( (see Steering wheel: Remo-
val - Refitting) ),
-the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) ,
-the antenna/transponder ring (see 82A, Engine
immobiliser, Transponder ring: Removal - Re-
fitting, page 82A-6) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aMake a saw mark on the shear bolt.
aRemove the bolt (1) .
aLoosen the connector at (2) .
aDisconnect the starter switch connector. Equipment required
Diagnostic tool
ENGINE REV COUNTER
119489
119490

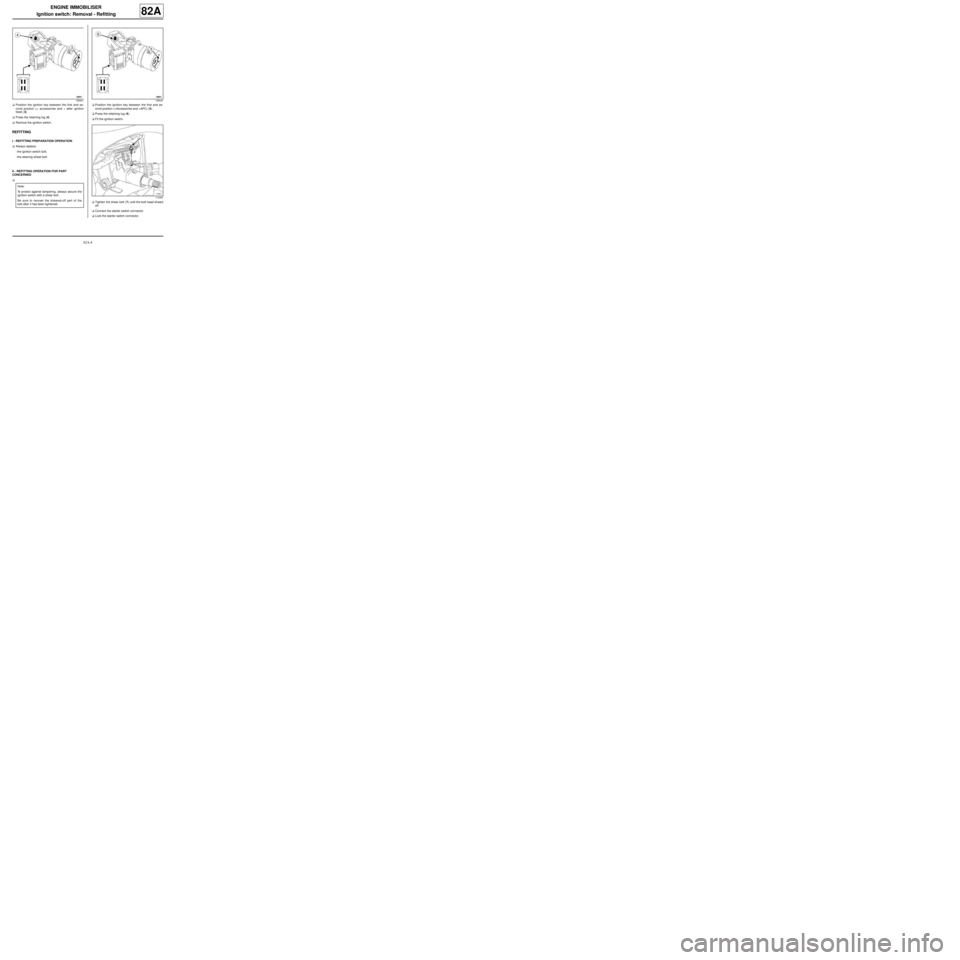

82A-4
ENGINE IMMOBILISER
Ignition switch: Removal - Refitting
82A
aPosition the ignition key between the first and se-
cond position (+ accessories and + after ignition
feed) (3) .
aPress the retaining lug (4) .
aRemove the ignition switch.
REFITTING
I - REFITTING PREPARATION OPERATION
aAlways replace:
-the ignition switch bolt,
-the steering wheel bolt.
II - REFITTING OPERATION FOR PART
CONCERNED
aaPosition the ignition key between the first and se-
cond position (+Accessories and +APC) (5) .
aPress the retaining lug (6) .
aFit the ignition switch.
aTighten the shear bolt (7) until the bolt head shears
off.
aConnect the starter switch connector.
aLock the starter switch connector.
108441
Note:
To protect against tampering, always secure the
ignition switch with a shear bolt.
Be sure to recover the sheared-off part of the
bolt after it has been tightened.
108441
119491

82A-5
ENGINE IMMOBILISER
Ignition switch: Removal - Refitting
82A
III - FINAL OPERATION.
aRefit:
-the antenna/transponder ring (see 82A, Engine
immobiliser, Transponder ring: Removal - Re-
fitting, page 82A-6) ,
-the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) ,
-the steering wheel ( (see Steering wheel: Remo-
val - Refitting) ),
-the driver's front airbag (see 88C, Air bag and Pre-
tensioners, Driver's frontal airbag: Removal -
Refitting, page 88C-6) .
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer using the Diagnostic
tool (see MR 413 Fault finding, 88C, Airbags and
pretensioners, Fault finding - Replacement of
components). ENGINE REV COUNTER

83D-2
CRUISE CONTROL
Switch: Removal - Refitting
CRUISE CONTROL
83D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the storage compartment (1) under the
steering wheel.
aUnclip the trim under the steering wheel (2) .
aDisconnect the various connectors from the plate.
aRemove the trim under the steering wheel.II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the switch (4) from the trim under the steering
wheel by pressing the clips (3) .
REMOVAL
I - REFITTING OPERATION FOR PART
CONCERNED
aClip the switch onto the trim under the steering
wheel.
II - FINAL OPERATION.
aConnect the various connectors.
aRefit the trim under the steering wheel.
aRefit the storage compartment under the steering
wheel.
119506
120279
120277

83D-3
CRUISE CONTROL
Steering wheel switch: Removal - Refitting
CRUISE CONTROL
83D
The steering column switches cannot be separated
from the steering wheel.
In the event of any faults, replace the steering wheel
(see Steering wheel: Removal - Refitting) (MR 411,
36B, Power-assisted steering).

84A-2
CONTROL - SIGNALS
Steering column switch assembly: Removal - Refitting84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a
Set the wheels straight ahead.
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(88C, Airbags and pretensioners).
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .aRemove the lower cover bolts (1) .
aUnclip the upper cover at (2) .
aRemove the upper cover (3) . Equipment required
Diagnostic tool
WARNING
To prevent damaging the rotar y switch, do not turn
the mobile section of the rotary switch.
WARNING
Incorrect wheel alignment could ruin the rotary
switch.
ENGINE REV COUNTER
127437
127438

84A-3
CONTROL - SIGNALS
Steering column switch assembly: Removal - Refitting84A
aRemove the lower cover (4) .
aRemove:
-the driver's side front airbag (see 88C, Air bag and
Pretensioners, Driver's frontal airbag: Removal
- Refitting, page 88C-6) ,
-the steering wheel (see Steering wheel: Removal
- Refitting) (36B, Power-assisted steering),II - OPERATION FOR REMOVAL OF PART
CONCERNED
aLock the driver's front airbag (5) connector in the
housing of the radio satellite connector to immobilise
the rotary switch throughout the removal operation.
