2009 RENAULT TWINGO RS fuse box

80B-1
HEADLIGHTS
Front lighting: List and location of components
80B
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - Signalling light switch
To remove the signalling light switch (see 84A, Con-
trol - Signals, Signals and lighting switch: Removal
- Refitting, page 84A-8) .2 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay/fuse box, for removal (see
87B, Passenger compartment connection unit,
UCH: Removal - Refitting, page 87B-1) .
3 - Passenger compartment fuse and relay box No. Description
(1) Signalling light switch
(2) UCH
(3) Passenger compartment fuse and relay
box
(4) Halogen headlight
(5) Fog light
(6) Side indicator
121133
119507
119504

81A-1
REAR LIGHTING
Rear lighting: List and location of components
81A
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - Signalling light switch
To remove the signalling light switch (see 84A, Con-
trol - Signals, Signals and lighting switch: Removal
- Refitting, page 84A-8) .2 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay/fuse box, for removal (see
87B, Passenger compartment connection unit,
UCH: Removal - Refitting, page 87B-1) .
3 - Passenger compartment fuse and relay box No. Description
(1) Signalling light switch
(2) UCH
(3) Passenger compartment fuse and relay
box
(4) Rear light on wing
(5) High level brake light
(6) License plate light
121133
119507
119504

81C-1
FUSES
Fuses: List and location of components
81C
I - LIST OF COMPONENTS
II - POSITION OF THE COMPONENTS
1 - Passenger compartment fuse and relay box
2 - Additional relay/fuse box No. Description
(1) Passenger compartment fuse and relay
box
(2) Additional relay/fuse box
(3) Battery protection fuses
(4) Engine interconnection unit
LEFT-HAND DRIVE
119504
RIGHT-HAND DRIVE
125233
LEFT-HAND DRIVE
121209

85A-1
WIPING - WASHING
Wiping and washing: List and location of components85A
I - LIST OF COMPONENTS II - POSITION OF THE COMPONENTS
1 - Windscreen wiper switch
To remove the windscreen wiper switch (see 84A,
Control - Signals, Screen wiper switch: Removal -
Refitting, page 84A-6) .
2 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay/fuse box; to remove it (see
87B, Passenger compartment connection unit,
UCH: Removal - Refitting, page 87B-1) . No. Description
(1) Windscreen wiper switch
(2) UCH
(3) Passenger compartment fuse and relay
box
(4) Windscreen wiper blade
(5) Windscreen wiper blade arm
(6) Windscreen wiper mechanism
(7) Windscreen wiper motor
(8) Windscreen wiper jet
(9) Rear screen wiper blade
(10) Rear screen wiper blade arm
(11) Rear screen wiper motor
(12) Rear screen wiper jet
(13) Windscreen washer bottle
(14) Windscreen washer pump
(15) Rain and light sensor
121134
119507

85A-2
WIPING - WASHING
Wiping and washing: List and location of components85A
3 - Passenger compartment fuse and relay box
4 - Windscreen wiper blade5 - Windscreen wiper blade arm
6 - Windscreen wiper mechanism
7 - Windscreen wiper motor
119504
119382
119382
119389
119389

87C-1
OPENING ELEMENT MANAGEMENT
Opening elements management: List and location of components87C
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay/fuse box; to remove it (see
87B, Passenger compartment connection unit,
UCH: Removal - Refitting, page 87B-1) .2 - Passenger compartment fuse and relay box
3 - Remote door locking control
To replace the battery (see 82A, Engine immobiliser,
Battery for remote door locking control: Removal -
Refitting, page 82A-8) . No. Description
(1) UCH
(2) Passenger compartment fuse and relay
box
(3) Remote door locking control
(4) Centr al door locking switch
(5) Tailgate opening switch
119507
119504
107733

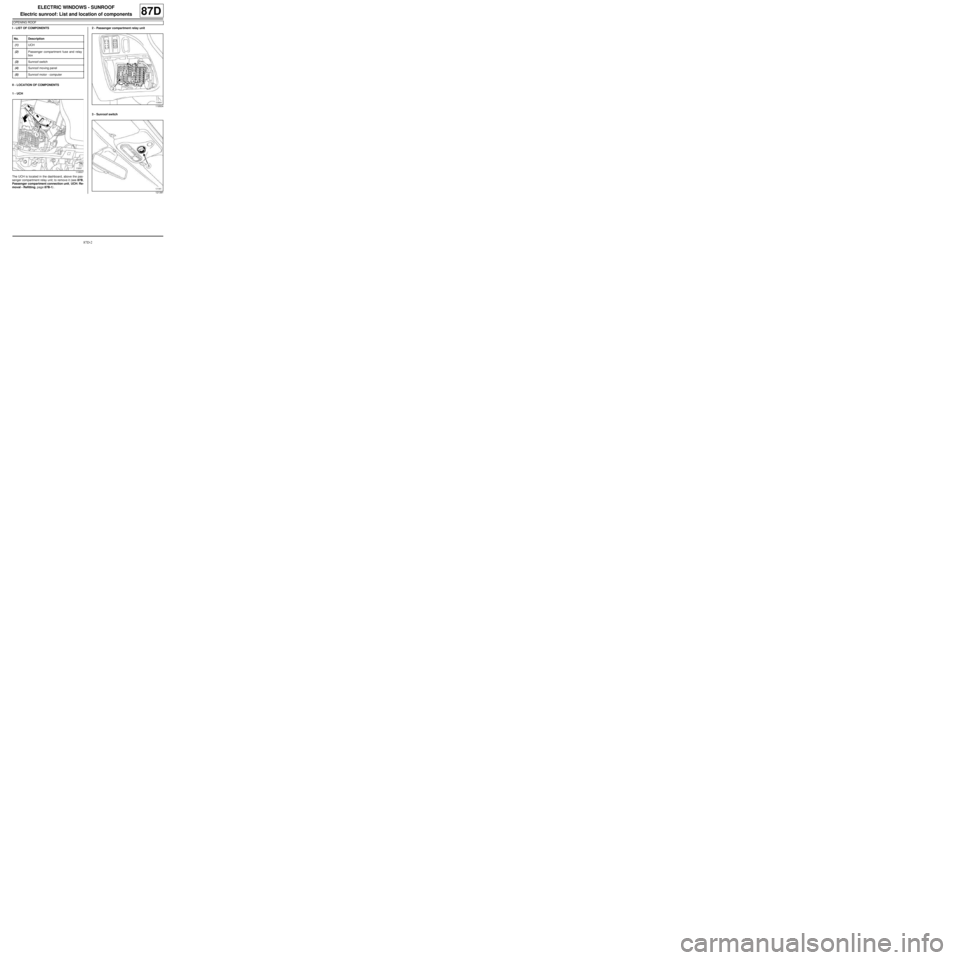

87D-2
ELECTRIC WINDOWS - SUNROOF
Electric sunroof: List and location of components
OPENING ROOF
87D
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay unit; to remove it (see 87B,
Passenger compartment connection unit, UCH: Re-
moval - Refitting, page 87B-1) .2 - Passenger compartment relay unit
3 - Sunroof switch No. Description
(1) UCH
(2) Passenger compartment fuse and relay
box
(3) Sunroof switch
(4) Sunroof moving panel
(5) Sunroof motor - computer
119507
119504
121391

88A-8
WIRING HARNESS
Front left-hand wiring: Removal - Refitting
LEFT-HAND DRIVE
88A
-the front left-hand indicator connector,
-the front left-hand headlight connector,
-the front left-hand side light connector,
-the windscreen washer pump connector,
-the horn connector,
-the front right-hand side light connector,
-the front right-hand headlight connector,
-the front right-hand indicator connector.
aConnect the regulated additional heater connector.
aRefit the additional heater earth wiring nut.
aConnect the gearbox pump assembly relay connec-
tor.
aRefit:
-the windscreen wiper mechanism (see 85A, Wi-
ping - Washing, Windscreen wiper mechanism:
Removal - Refitting, page 85A-10) ,
-the earth wiring nut on the bodywork,
-the earth wiring nut on the negative battery termi-
nal,
-the hydraulic brake unit earth wiring nut,
-the earth wiring nut on the body,
-the earth wiring nut on the front left-hand side
member,
-the earth wiring nut on the front right-hand side
member,
aClip:
-the section of wiring onto the dashboard cross
member,
-the section of wiring onto the windscreen washer
reservoir
-the section of wiring onto the front bumper cross
member,
-the section of wiring onto the bulkhead.
aRefit the engine compartment connection unit nuts.aClip on:
-the fuse holders,
-the front left-hand wiring/engine harness connec-
tor.
aConnect the front left-hand wiring/engine harness
connector.
aRefit:
-the engine compartment connection unit supply wi-
ring nut,
-the fuses.
aClip on the engine compartment connection unit
board.
III - FINAL OPERATION
aRefit:
-the cover from the engine compartment connection
unit,
-the bolts.
aConnect the cruise control switch connector.
aRefit the dashboard lower trim.
aClip the glovebox in position.
aRefit:
-the left-hand suspended engine mounting (see
Left-hand suspended engine mounting: Remo-
val - Refitting) (MR 411, 19D, Engine mounting),
-the brake servo (see Brake servo: Removal - Re-
fitting) (MR 411, 37A, Mechanical component con-
trols),
-the master cylinder (see Master cylinder: Remo-
val - Refitting) (MR 411, 37A, Mechanical compo-
nent controls),
-the side indicators (see 80B, Headlights, Side in-
dicator: Removal - Refitting, page 80B-13) ,
-the front bumper (see Front bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection), CLIMATE CONTROL
JH1
WARNING
To prevent damage to the wiring har ness when
refitting, obser ve the original routing.
CRUISE CONTROL
