88A-14
WIRING HARNESS
Engine wiring: Connector access
88A
Accessing the R 37 connector
aDisconnect the R 37 connector.
Accessing the R 37 connector
aRemove the air filter unit (3) (see Air filter unit: Re-
moval - Refitting) (MR 411, 12A, Fuel mixture).aDisconnect the R 37 connector. D7F
121737
D4F
120409
D4F, and 740 or 772
121733

88A-15
WIRING HARNESS
Engine wiring: Connector access
88A
aDisconnect the R 37 connector.
Accessing the R 22 connector
aRemove:
-the air filter unit (3) (see Air filter unit: Removal -
Refitting) (MR 411, 12A, Fuel mixture),
-the battery (see 80A, Battery, Battery: Removal -
Refitting, page 80A-2) ,-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6)
aDisconnect the injection computer connectors (4) .
aRemove:
-the injection computer support bolts,
-the engine harness nut,
-the injection computer mounting with the computer.
aDisconnect the R 22 connector. D4F, and 780
121765
JH1
120409
120779
114157

88A-16
WIRING HARNESS
Engine wiring: Removal - Refitting
K9K
88A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aSwitch off the ignition.
aRemove:
-the engine cover,
-the battery (see 80A, Battery, Battery: Removal -
Refitting, page 80A-2) ,
-the air filter unit (see Air filter unit: Removal - Re-
fitting) (MR 411, 12A, Fuel mixture),
-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6) ,
aRemove:
-the bolts (1) ,
-the cover to the engine compartment connection
unit.II - REMOVAL OPERATION FOR PART
CONCERNED
a IMPORTANT
Consult the safety and cleanliness advice and ope-
ration recommendations before carrying out any
repair (see 88A, Wiring harness, Wiring: Precau-
tions for the repair, page 88A-2) .
121212
WARNING
To prevent any risk of noise, premature wear,
shor t circuits, etc. after the refitting operation,
mark the wiring routing and how to connect the
connectors.

88A-18
WIRING HARNESS
Engine wiring: Removal - Refitting
K9K
88A
-the connector from the water detection sensor on
the fuel filter (4) ,
-the camshaft position sensor connector (5) ,
-the pinking sensor connector (6) ,
-the turbocharging pressure sensor connector (7) ,
-the air temperature sensor connector (8) ,
-the injector connector (9) ,
-the heater plugs connector (10) ,
-the fuel temperature sensor connector (11) ,
-the fuel rail pressure sensor connector (12) ,
-the diesel injection computer connectors (13) ,
-the pre-postheating unit connector (14) ,
-the exhaust gas recirculation solenoid valve con-
nector (15) ,
-the coolant temperature sensor connector (16) ,
-the crankshaft position sensor connector (17) ,
-the reversing lights switch connector (18) ,
-the front of engine wiring/engine harness connec-
tor (19) .
aDisconnect the cooling fan assembly connector (20)
.aDisconnect:
-the engine cooling fan assembly connector (21) ,
-the engine cooling fan assembly resistor connector
(22) ,
-the refrigerant fluid pressure sensor connector (23)
,
-the air conditioning compressor connector (24) .
aRemove:
-the alternator earth wiring nut (25) ,
-the nuts from the starter supply and earth terminals
(26) ,
-the engine earth wiring nut (27) ,
-the positive battery terminal wiring nut (28) ,
-the earth wiring nut on the front left-hand side
member (29) ,
-the battery protection fuse wiring nuts (30) ,
-the wiring mounting nut on the battery protection
fuse board (31) ,
-the engine compartment connection unit supply wi-
ring nut (32) .
aUnclip:
-the section of wiring on the cylinder head, STANDARD HEATING
122359
AIR CONDITIONING
125249

88A-19
WIRING HARNESS
Engine wiring: Removal - Refitting
K9K
88A
-the section of wiring on the cylinder block and sub-
frame,
-the section of wiring on the engine cooling fan as-
sembly.
aRemove the engine harness.
REFITTING
I - REFITTING PREPARATIONS OPERATION
aIf replacing with a complete wiring harness, lock the
unused connectors (see Connectors: Sealing and
locking) (Technical Note 6015A, 88A, Wiring).
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the engine harness.
aConnect the engine cooling fan assembly connector.
aConnect:
-the air conditioning compressor connector,
-the refrigerant fluid pressure sensor connector,
-the engine cooling fan assembly resistor connec-
tor,
-the engine cooling fan assembly connector.
aConnect:
-the engine harness/front of engine wiring connec-
tor,
-the reversing lights switch connector,
-the crankshaft position sensor connector,
-the coolant temperature sensor connector,
-the air inlet temperature sensor connector,-the exhaust gas recirculation solenoid valve con-
nector,
-the connector to the pre-postheating unit,
-the diesel injection computer connectors,
-the fuel rail pressure sensor connector,
-the fuel temperature sensor connector,
-the heater plugs connector,
-the injector connectors,
-the air temperature sensor connector,
-the turbocharging pressure sensor connector,
-the pinking sensor connector,
-the camshaft position sensor connector,
-the connector from the water detection sensor on
the fuel filter,
-the alternator connector,
-the oil pressure sensor connector.
aRefit:
-the engine compartment connection unit supply wi-
ring nut,
-the wiring mounting nut on the battery protection
fuse board,
-the battery protection fuse wiring nuts,
-the earth wiring nut on the front left-hand side
member,
-the positive battery terminal wiring nut,
-the engine earth wiring nut,
-the starter supply and earth terminal nuts,
-the alternator earth wiring nut.
aClip:
-the section of wiring on the cylinder head,
-the section of wiring on the cylinder block and sub-
frame,
-the section of wiring on the engine cooling fan as-
sembly.
III - FINAL OPERATION.
aRefit:
-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6) ,
-the air filter unit (see Air filter unit: Removal - Re-
fitting) (MR 411, 12A, Fuel mixture), WARNING
To prevent any damage during the removal ope-
ration, check that the wiring is free from its moun-
tings (retaining clip, plastic clip, adhesive tape,
connector, etc.).
STANDARD HEATING
AIR CONDITIONING

88A-21
WIRING HARNESS
Engine wiring: Removal - Refitting
D4F, and 780
88A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aSwitch off the ignition.
aRemove:
-the engine cover,
-the battery (see 80A, Battery, Battery: Removal -
Refitting, page 80A-2) ,
-the air filter unit (see Air filter unit: Removal - Re-
fitting) (MR 411, 12A, Fuel mixture),
-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6) .
aRemove:
-the bolts (1) ,
-the cover to the engine compartment connection
unit.II - REMOVAL OPERATION FOR PART
CONCERNED
a IMPORTANT
Consult the safety and cleanliness advice and ope-
ration recommendations before carrying out any
repair (see 88A, Wiring harness, Wiring: Precau-
tions for the repair, page 88A-2) .
121212
WARNING
To prevent any risk of noise, premature wear,
shor t circuits, etc. after the refitting operation,
mark the wiring routing and how to connect the
connectors.

88A-24
WIRING HARNESS
Engine wiring: Removal - Refitting
D4F, and 780
88A
-the section of wiring on the cylinder block and sub-
frame,
-the section of wiring on the engine cooling fan as-
sembly.
aRemove the engine harness.
REFITTING
I - REFITTING PREPARATION OPERATION
aIf replacing with a complete wiring harness, lock the
unused connectors (see Connectors: Sealing and
locking) (Technical Note 6015A, 88A, Wiring).
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the engine harness.
aConnect the engine cooling fan assembly connector.
aConnect:
-the air conditioning compressor connector,
-the refrigerant fluid pressure sensor connector,
-the engine cooling fan assembly connector,
-the engine cooling fan assembly resistor connec-
tor.
aConnect:
-the engine harness/front of engine wiring connec-
tor,
-the connectors to the petrol injection computer,
-the reversing lights switch connector,
-the downstream oxygen sensor connector,
-the turbocharger solenoid valve connector,-the ignition coil connector,
-the motorised throttle valve connector,
-the turbocharger pressure sensor connector,
-the air temperature sensor connector,
-the pinking sensor connector,
-the alternator connector,
-the oil pressure sensor connector,
-the crankshaft position sensor connector,
-the coolant temperature sensor connector,
-the engine harness/injection wiring connector,
-the oil vapour recirculation hose reheater connec-
tor,
-the air inlet pressure sensor connector,
-upstream oxygen sensor connector,
-the fuel vapour absorber connector.
aRefit:
-the engine compartment connection unit supply
terminal nut,
-the wiring mounting nut on the battery protection
fuse board,
-the negative battery terminal wiring nuts,
-the positive battery terminal wiring nut,
-the earth wiring nut on the front left-hand side
member,
-the earth wiring nuts on the engine,
-the starter wiring nuts,
-the alternator earth wiring nut.
aClip:
-the section of wiring on the cylinder head,
-the section of wiring on the cylinder block and sub-
frame,
-the section of wiring on the engine cooling fan as-
sembly.
III - FINAL OPERATION.
aRefit:
-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6) ,
-the air filter unit (see Air filter unit: Removal - Re-
fitting) (MR 411, 12A, Fuel mixture),
-the battery (see 80A, Battery, Battery: Removal -
Refitting, page 80A-2) , WARNING
To prevent any damage during the removal ope-
ration, check that the wiring is free from its moun-
tings (retaining clip, plastic clip, adhesive tape,
connector, etc.).
STANDARD HEATING
AIR CONDITIONING

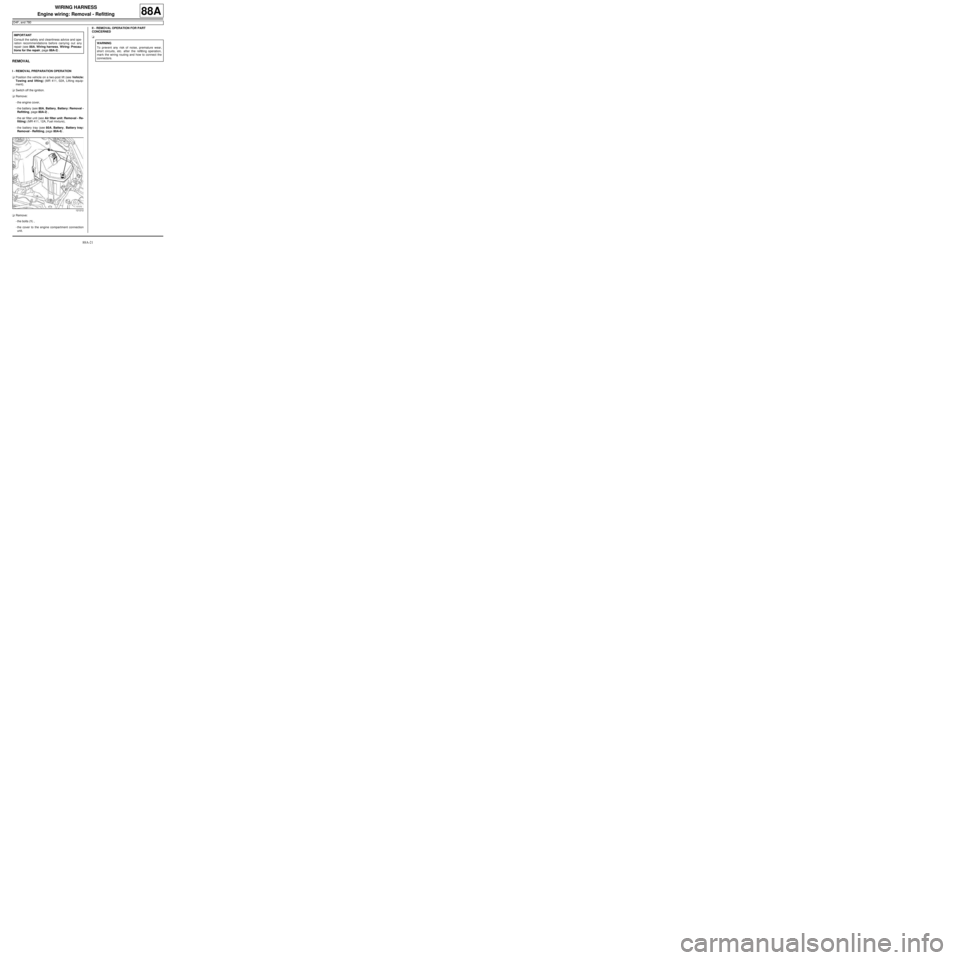

88A-26
WIRING HARNESS
Engine wiring: Removal - Refitting
D4F or D7F
88A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aSwitch off the ignition.
aRemove:
-the engine cover,
-the battery (see 80A, Battery, Battery: Removal -
Refitting, page 80A-2) ,
-the air filter unit (see Air filter unit: Removal - Re-
fitting) (MR 411, 12A, Fuel mixture),
-the battery tray (see 80A, Battery, Battery tray:
Removal - Refitting, page 80A-6) .
aRemove:
-the bolts (1) ,
-the engine compartment connection unit cover.II - REMOVAL OPERATION FOR PART
CONCERNED
a IMPORTANT
Consult the safety and cleanliness advice and ope-
ration recommendations before carrying out any
repair (see 88A, Wiring harness, Wiring: Precau-
tions for the repair, page 88A-2) .
121212
WARNING
To prevent any risk of noise, premature wear,
shor t circuits, etc. after the refitting operation,
mark the wiring routing and how to connect the
connectors.
